Laying the foundation for your van conversion has never been easier with our Ford Transit Van Flooring Kit. Crafted with precision and designed to elevate your van life experience, this flooring kit is the essential starting point for your DIY adventure on wheels.
Our kit goes beyond the basics, offering a load-bearing birch subfloor in a complete package designed to cater to every aspect of your van flooring needs. The customization options with cut-to-fit panels, dovetail pattern assembly, and the option for adhesion or screws provide unparalleled flexibility in installation. What sets us apart is the attention to detail – from the continuous flooring for a seamless, insulated surface to the CNC relief cuts ensuring a precise fit around wheel wells. With Serg Supply, you're not just getting a Transit Van flooring kit but investing in the foundation of a comfortable, durable, and stylish van life experience. Choose quality, choose functionality, and choose the Transit Van Flooring Kit for a conversion that stands out on the road. Lonseal/2Tec2 is not included.
Looking to build the complete package? Try pairing our Transit Van Flooring Kit with our Transit Van Wall Panels for the most professional finish.
Features

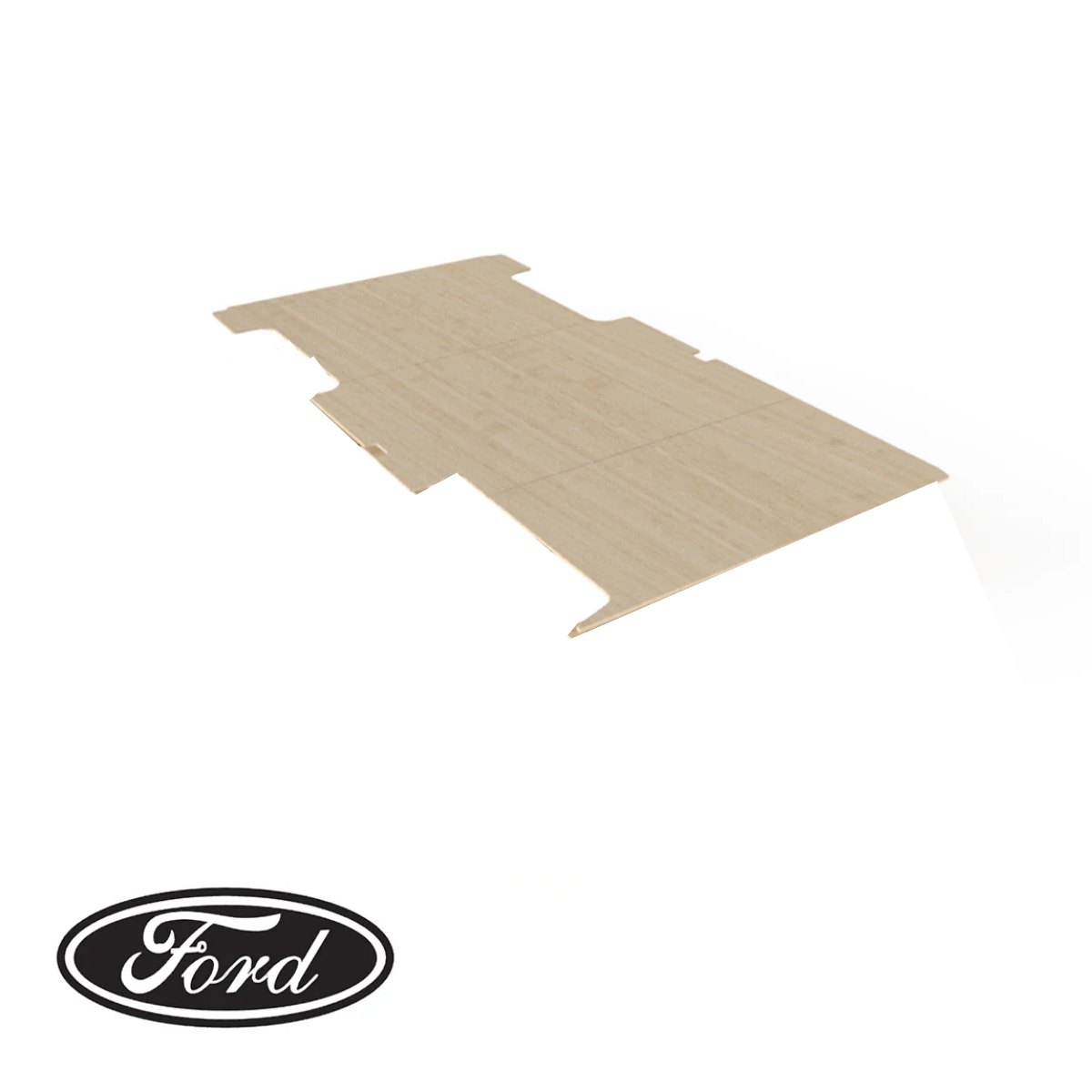

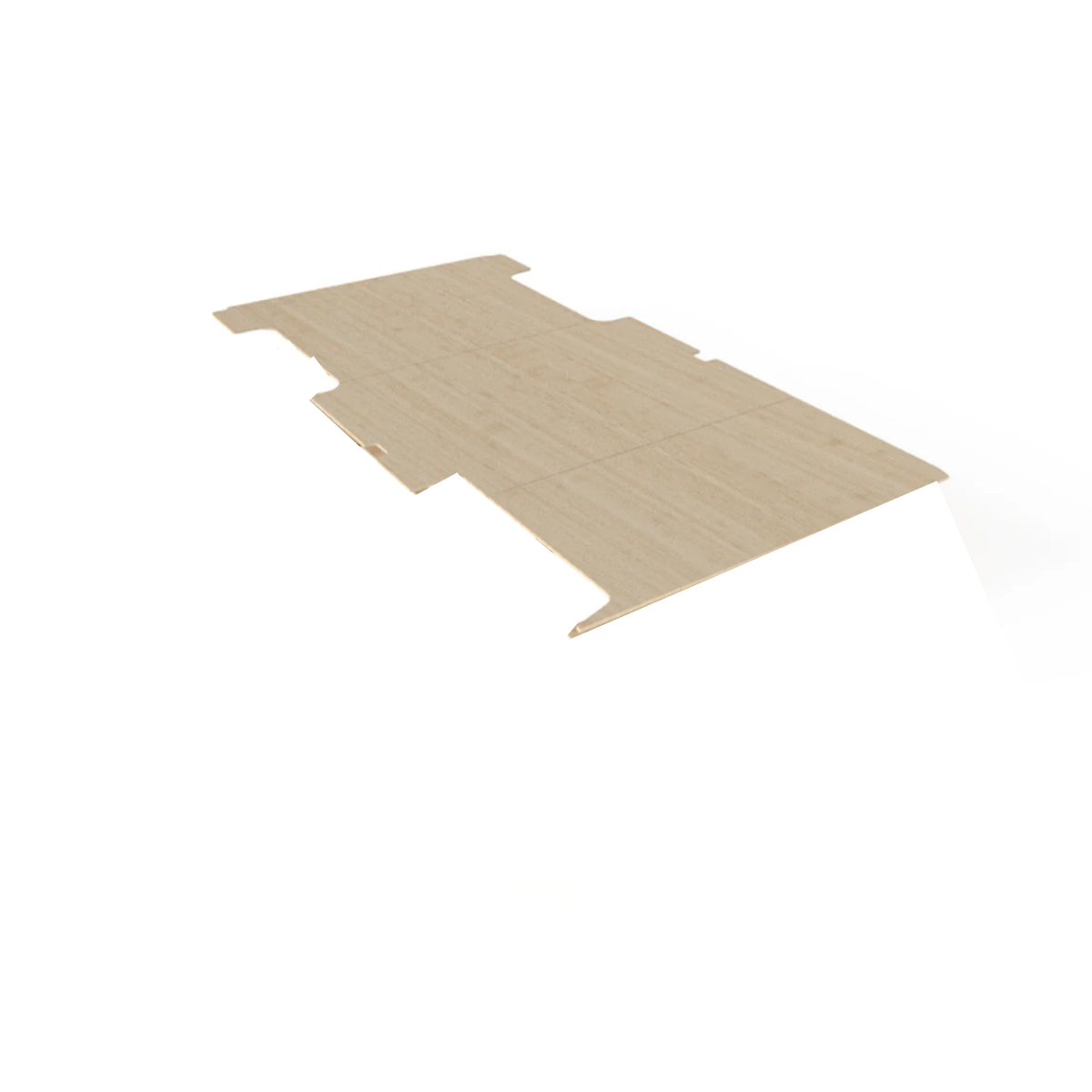

Load-Bearing Birch Subfloor: The 3/4" insulation frame + 1/2" load-bearing birch subfloor provides a sturdy foundation for your van conversion, ensuring durability and stability throughout your journey.

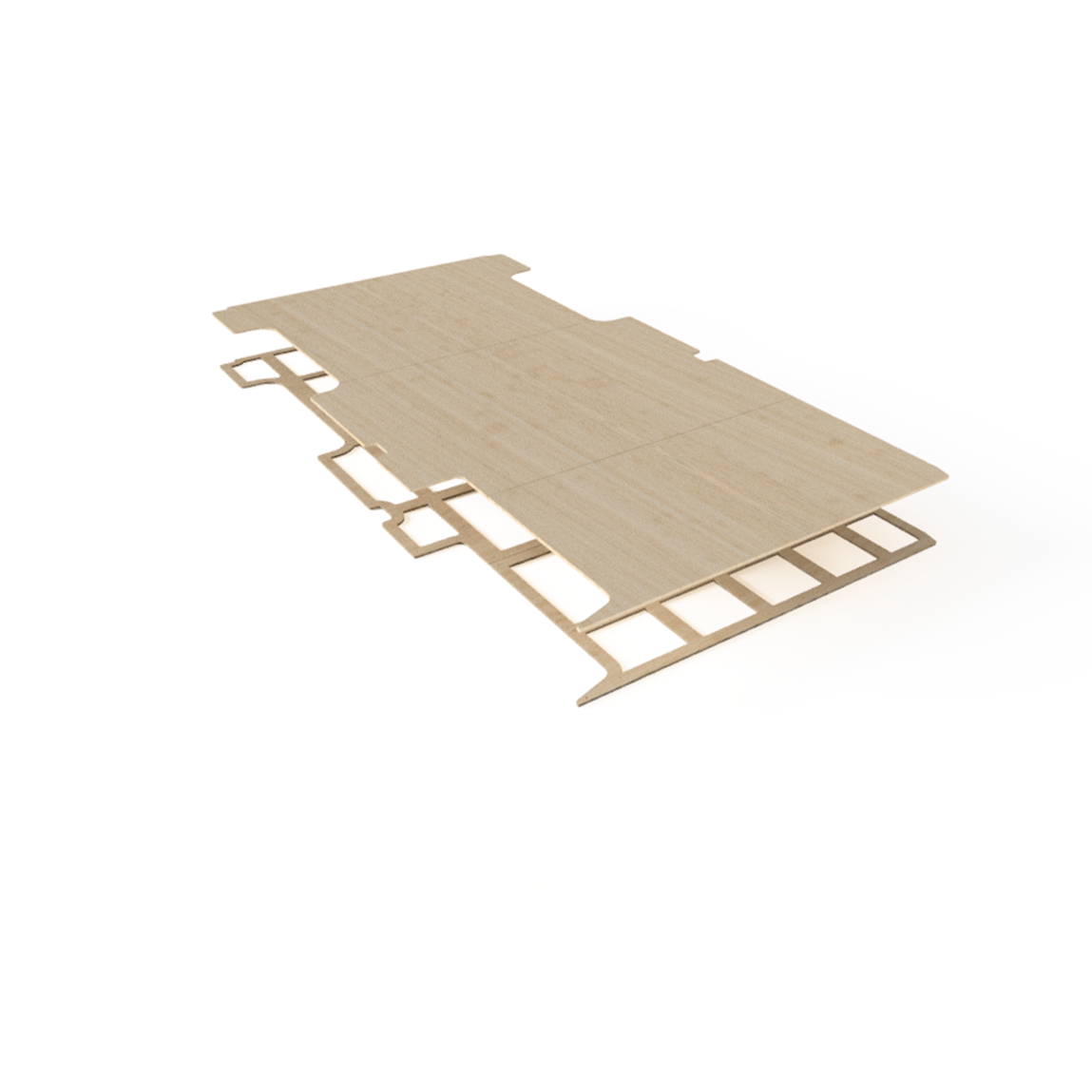

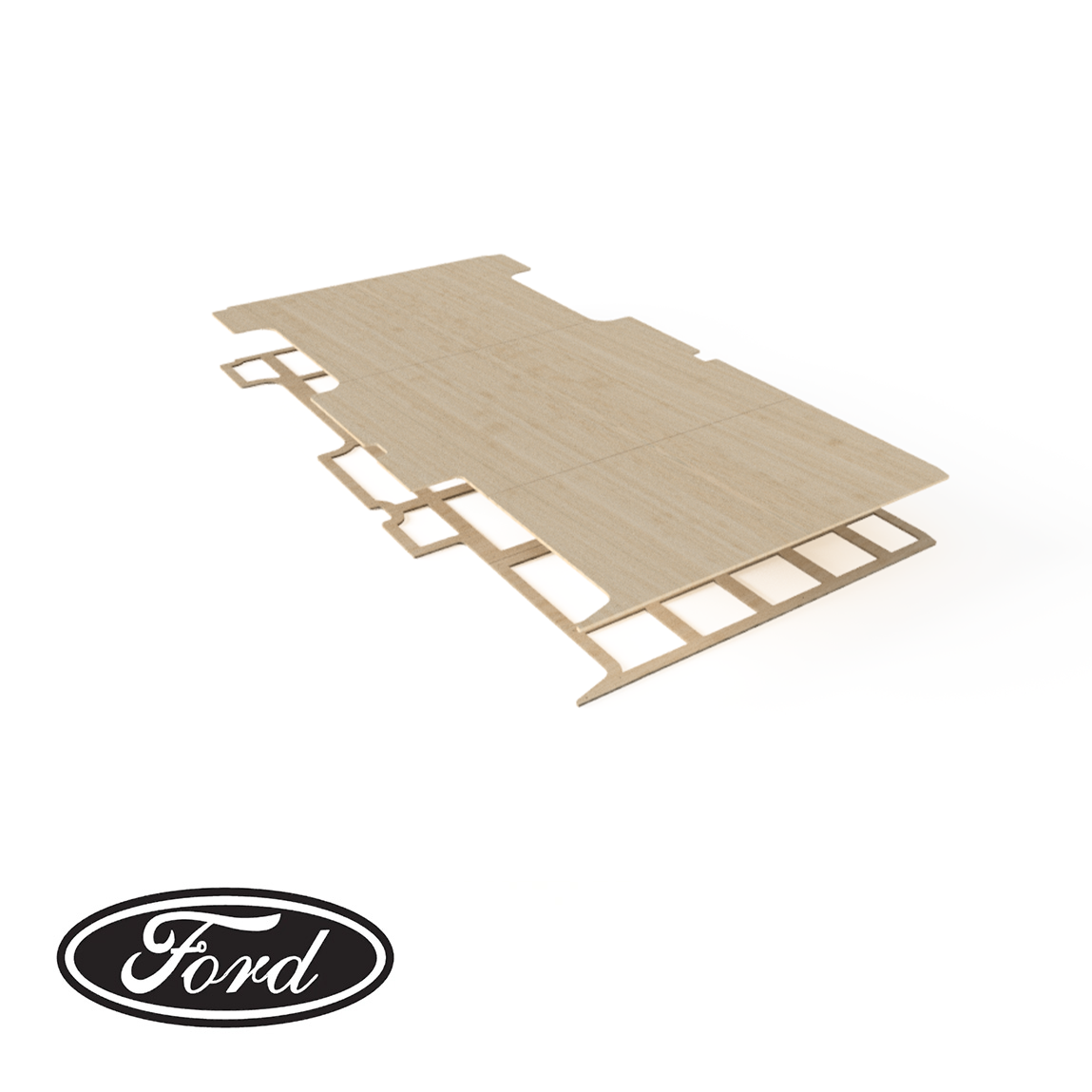

Load-Bearing Birch Insulation Frame: A pocketed subfloor base with openings for insulation to be stuffed into. This is also an alternating dovetail assembly with beams coinciding with the ribs on the factory floor of the vehicle.
CustomizablePanels: The subfloor comes in 3 or 4 (depending on model) cut-to-fit panels measuring 48" x 76", allowing for easy customization to match the unique dimensions of your Ford Transit.

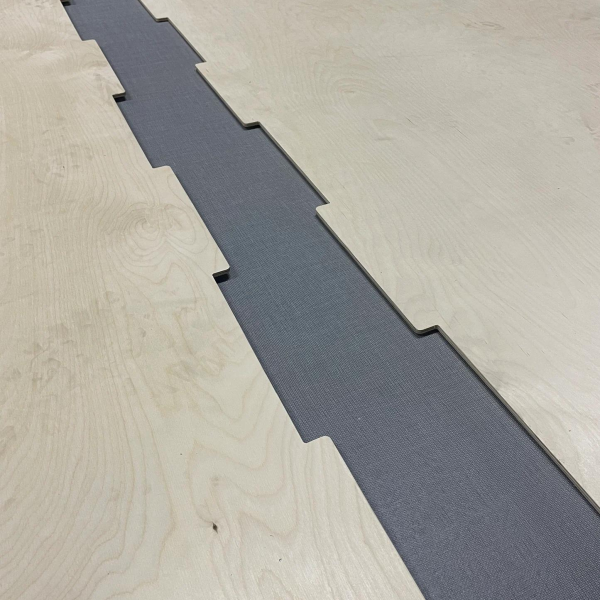

EffortlessInstallation: The floor panels feature a dovetail pattern, enabling a secure and hassle-free assembly. Choose between adhesion or screws for a customizable installation process that suits your preferences.
Drop-In Design: No need for complicated modifications – these flooring panels are designed to be effortlessly dropped into your Ford Transit, streamlining the conversion process.
CNC Relief Cuts: The subfloor incorporates CNC relief cuts on the underside, ensuring a perfect fit even around higher elevation wheel wells, addressing the intricacies of your van's architecture.
Lonseal/2Tec2 is not included.
Materials
Subfloor: Birch Plywood
Insulation Frame: Birch Plywood.
Flooring Types
Standard Floor: 3/4" Insulation Frame + 1/2" Subfloor + Installation Hardware. Lonseal/2Tec2 is not included.
Adventure Floor: 3/4" Insulation Frame + 1/2" Subfloor + (2) rows integrated L-Track + Installation Hardware. Lonseal/2Tec2 is not included. L-Track is always 48" long in the garage area of the build. The L-Tracks are anchored in place with threaded inserts on the underside of the insulation frame and spaced 6.5" apart from center to center. L-Track placement and/or quantity can be modified per customer request for a customization fee. This L-Track is for gear only, not for seats.
