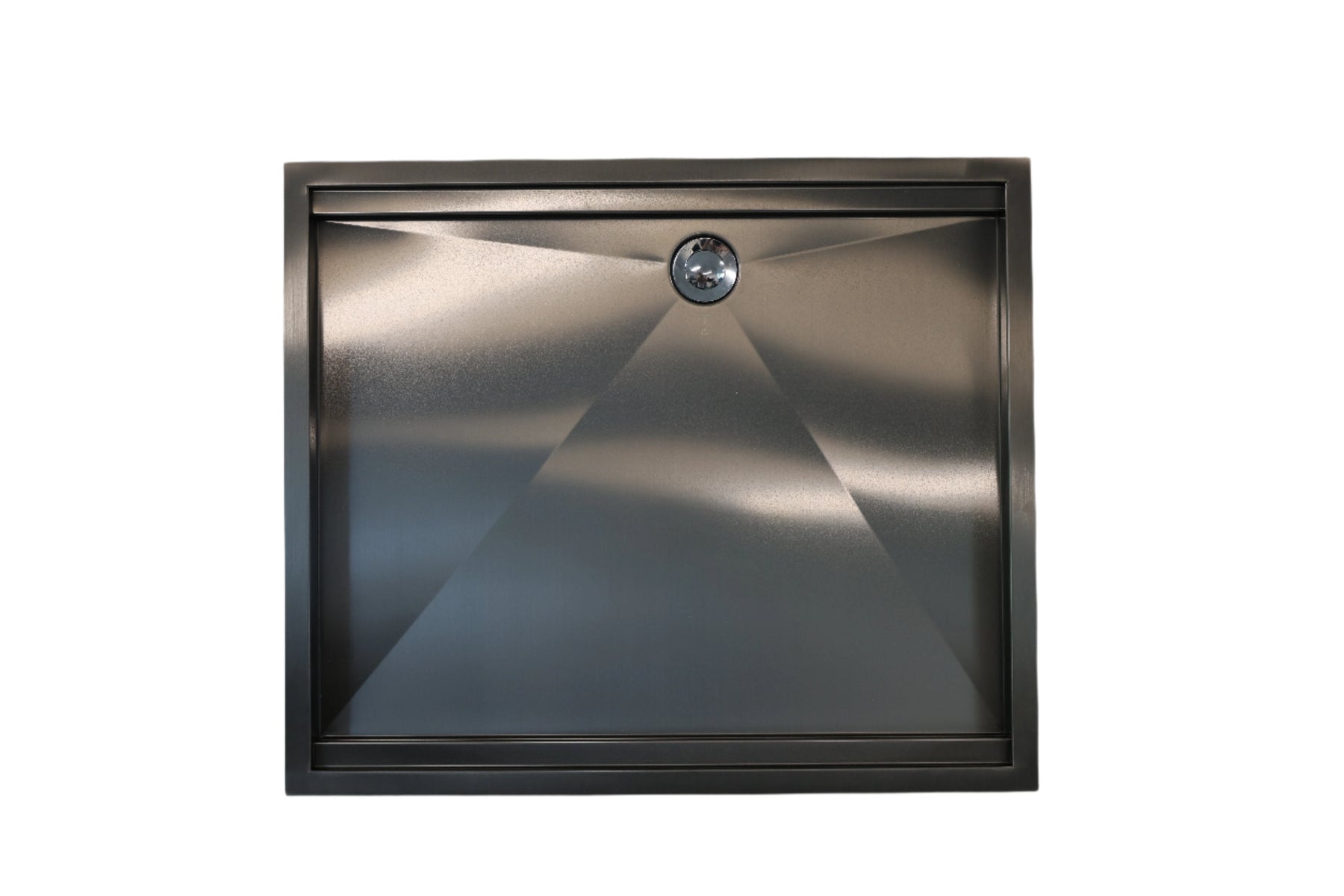

Ultra low profile shower pan with a reversible bamboo cover that converts the shower area into usable floor space when not in use.
Key Features:

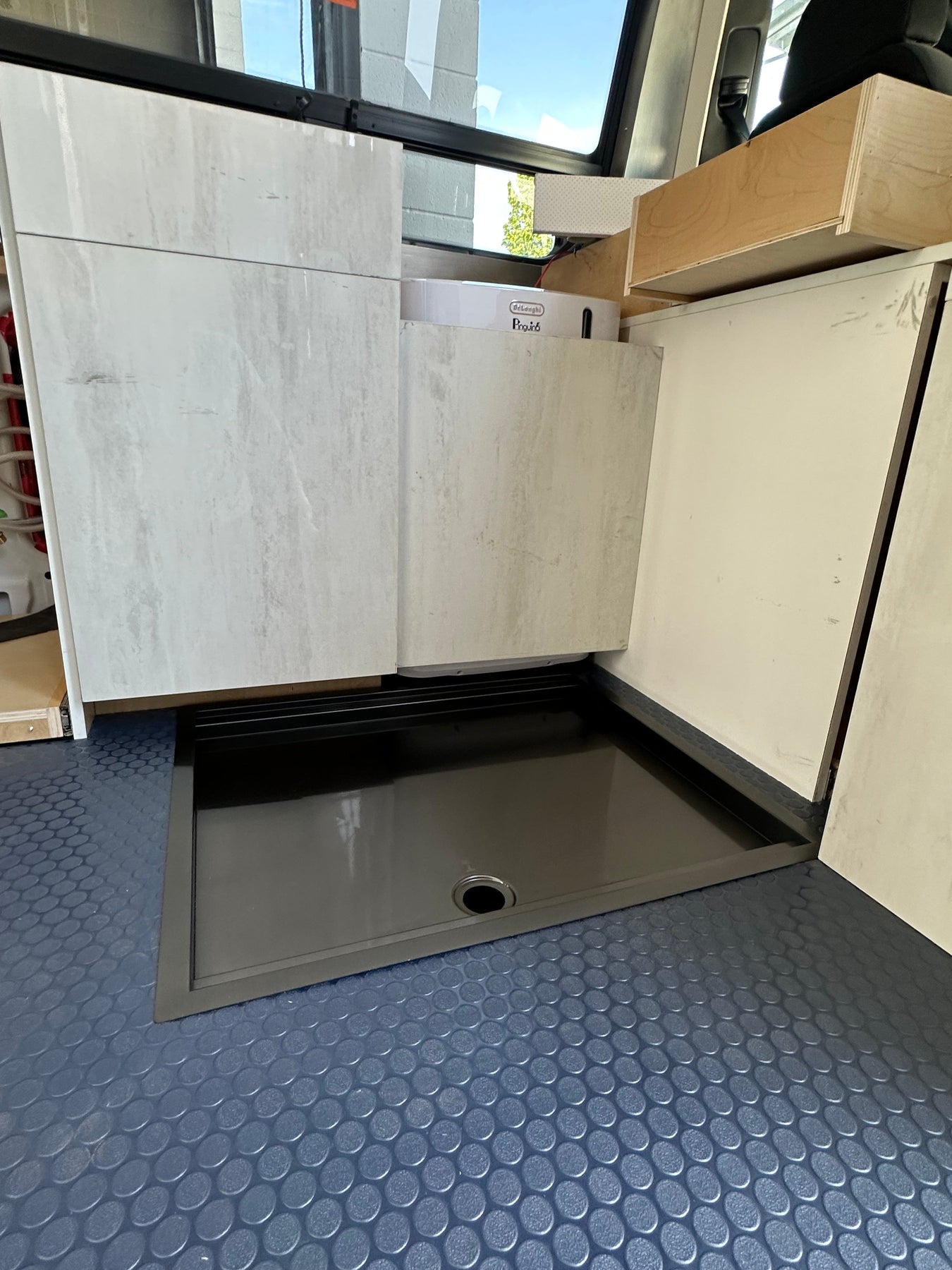

- Low profile design can be recessed into the vehicle floor to preserve walking space
- Off center drain placement accommodates common van layouts and helps avoid structural floor framing

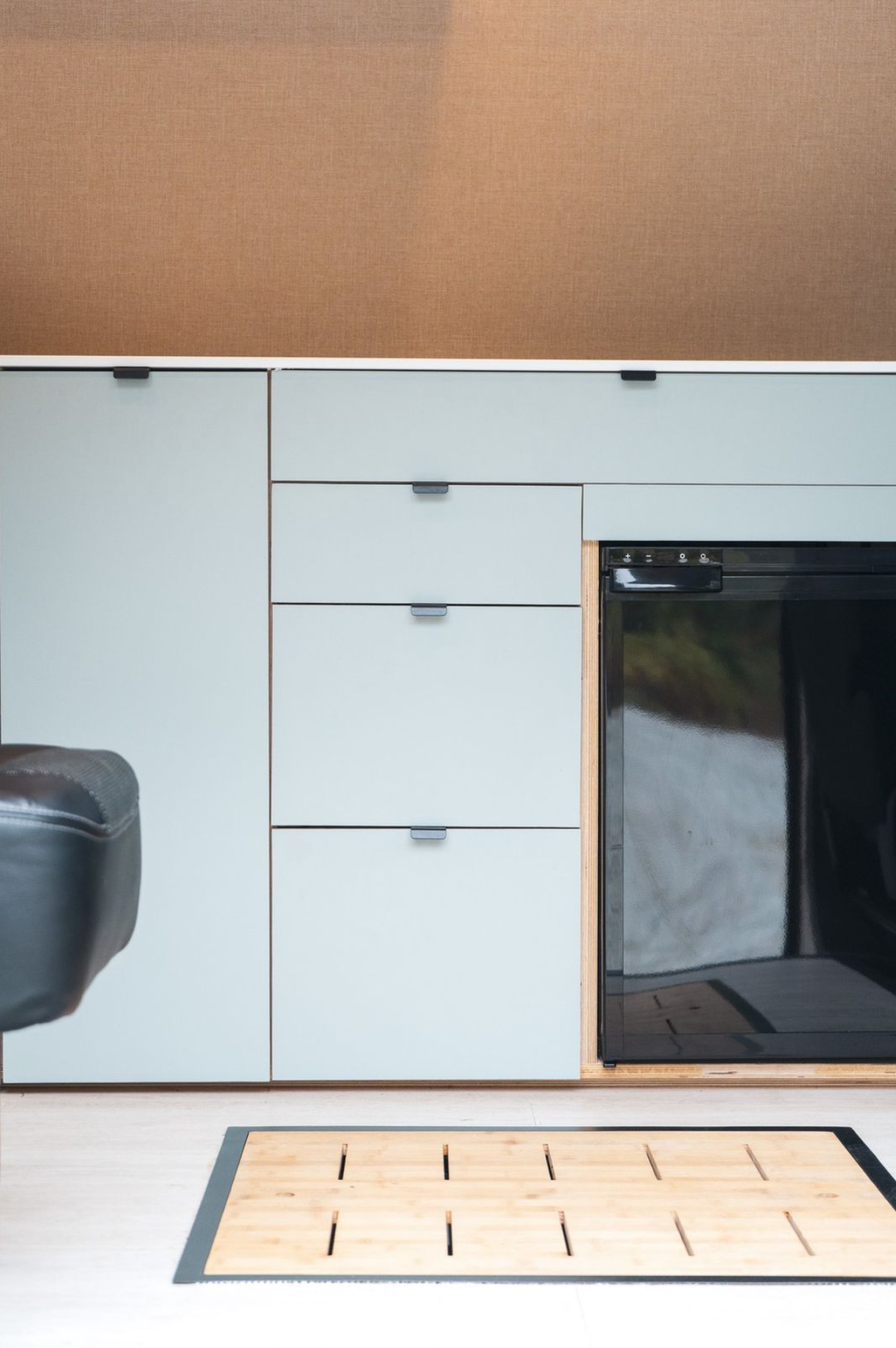

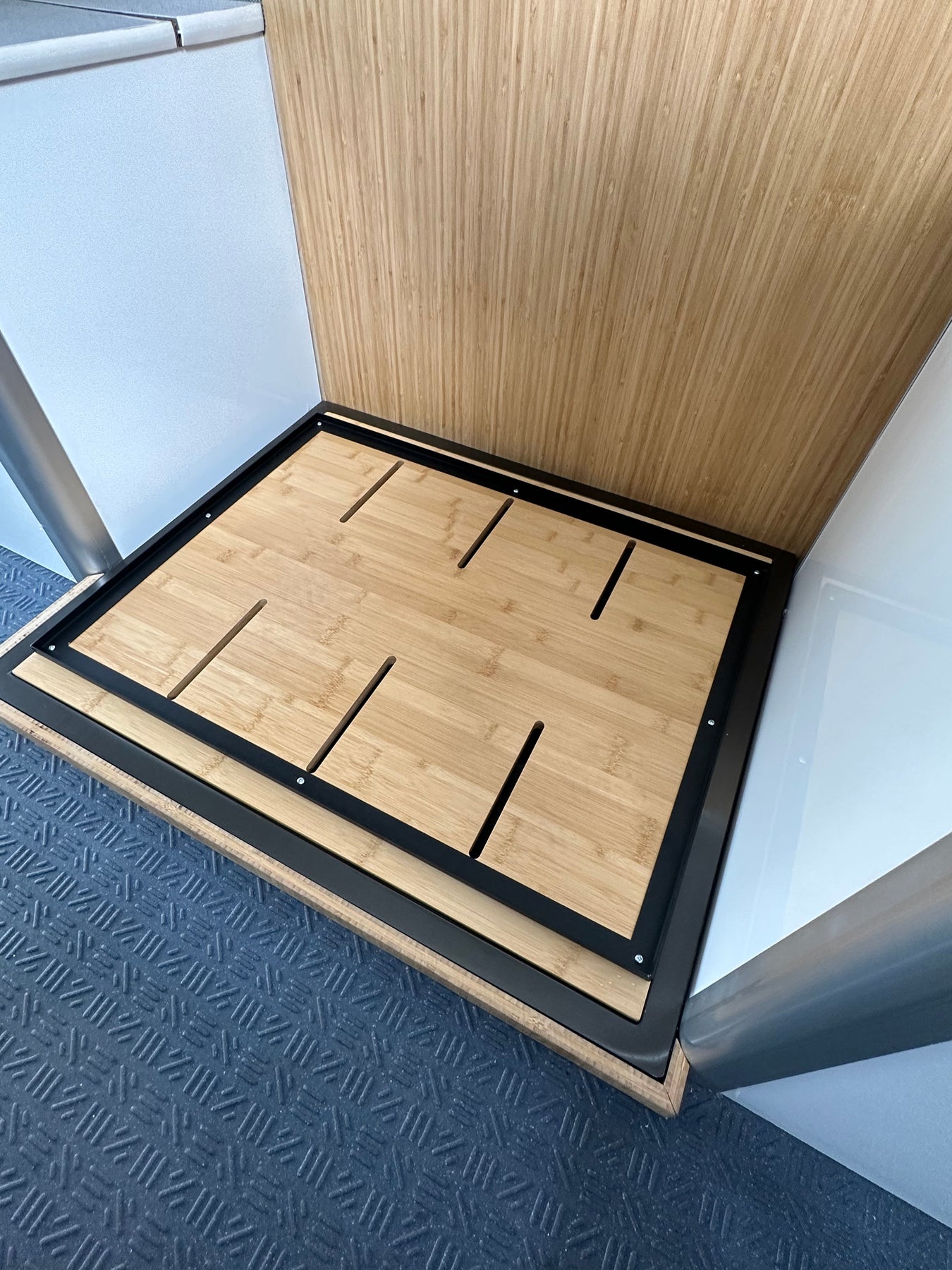

- Reversible bamboo cover provides a solid walking surface when the shower is not in use
- Welded construction reduces seams and potential leak points

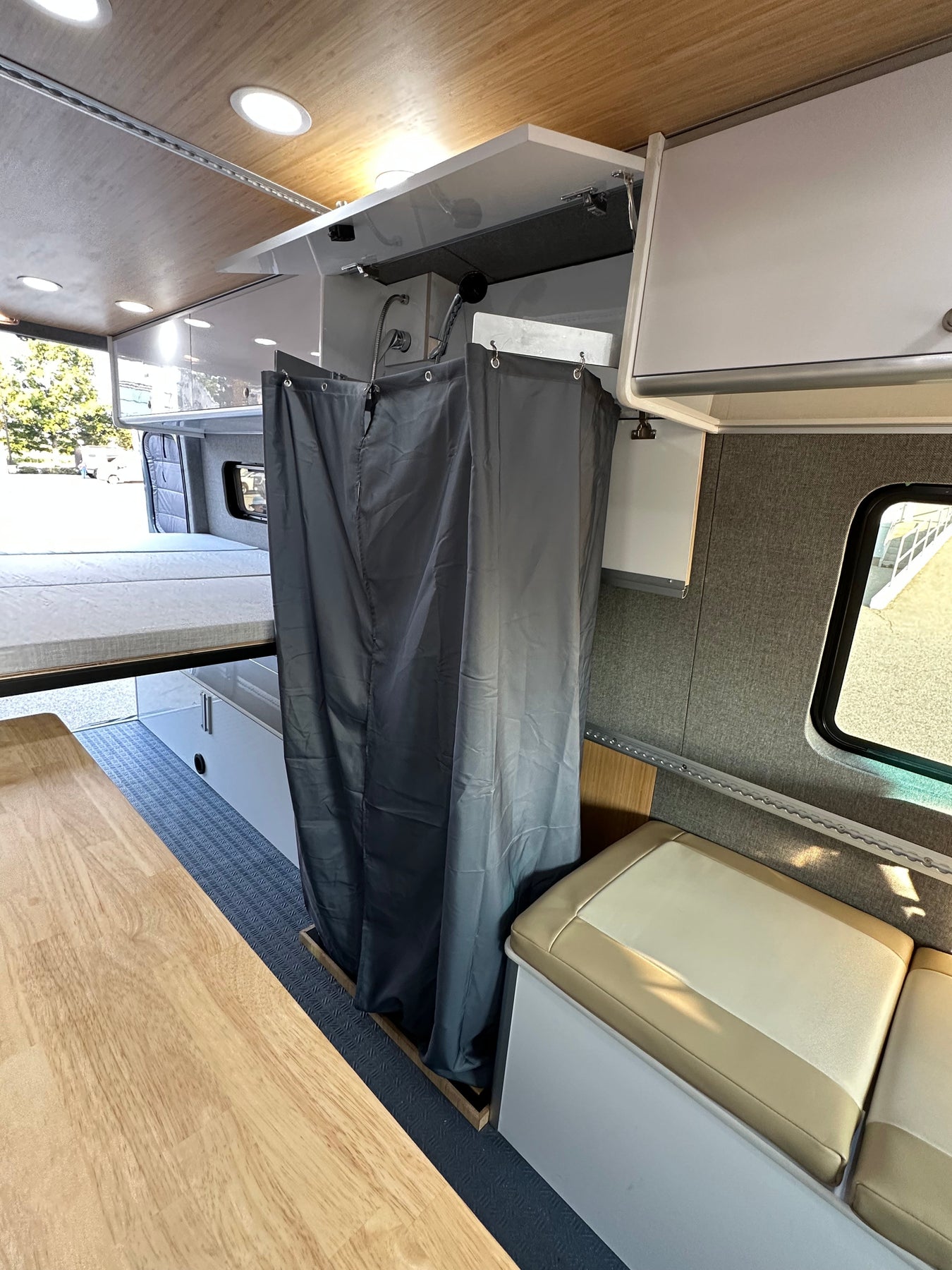

- Stainless steel rim on the underside of the bamboo cover secures magnetic shower curtain weights and helps keep water inside the shower pan

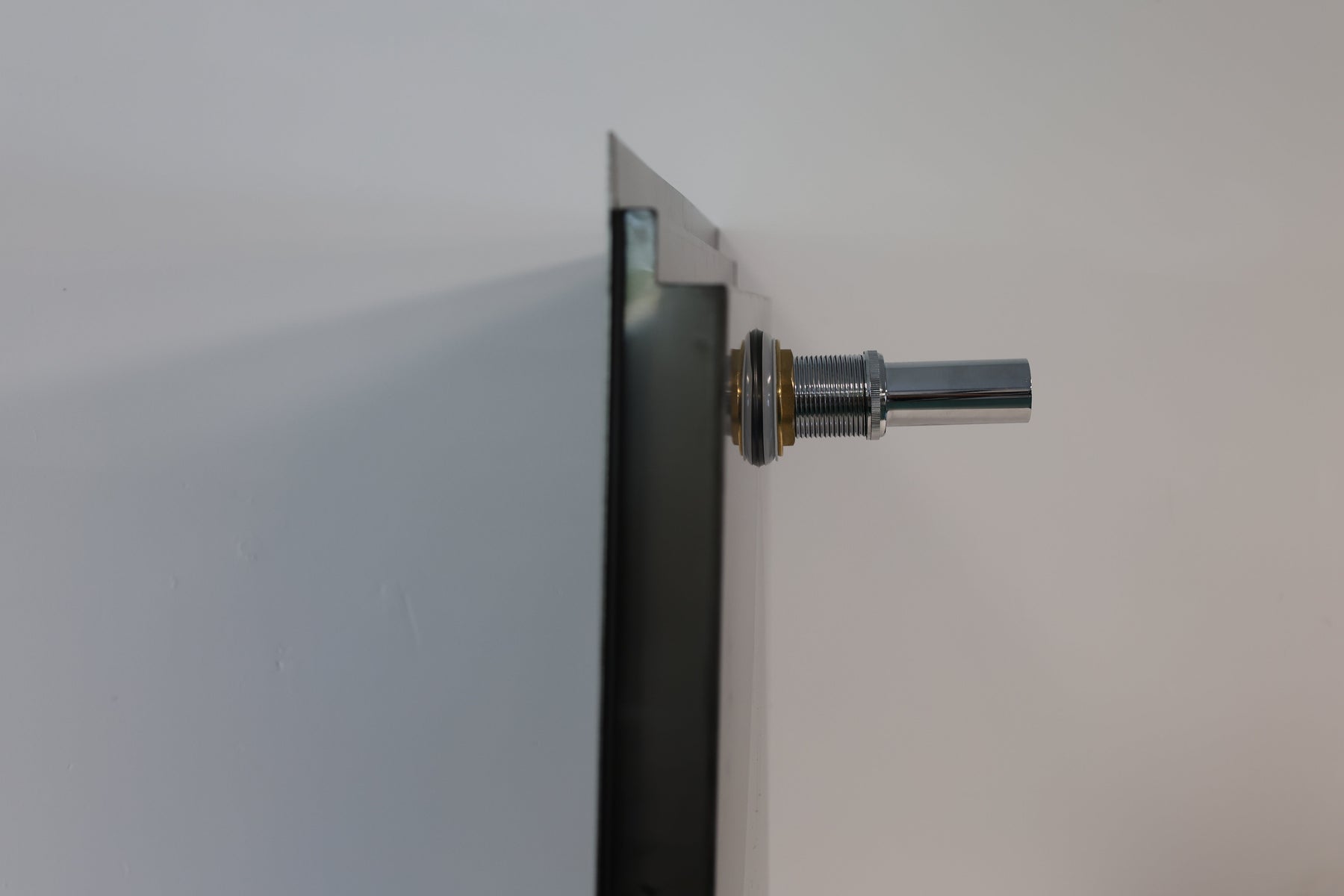

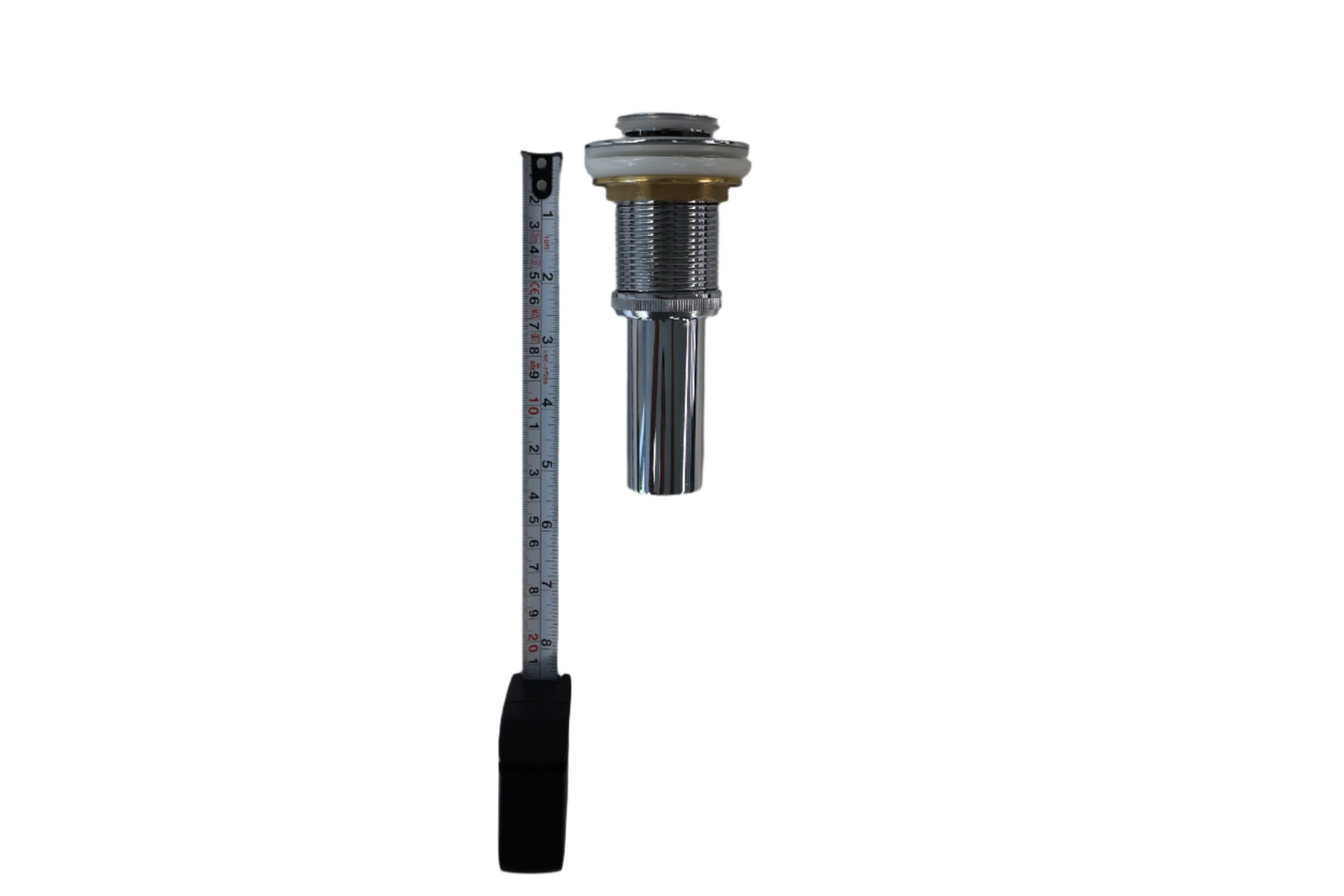

- Chrome finished pop up drain with a 1 1/4" drain connection is included
- Durable surface coating is stain resistant, scratch resistant, and easy to clean
- Provides a convenient wash area for pets, footwear, and outdoor gear
- Natural bamboo finish adds warmth and style to the interior
Measurements:
-

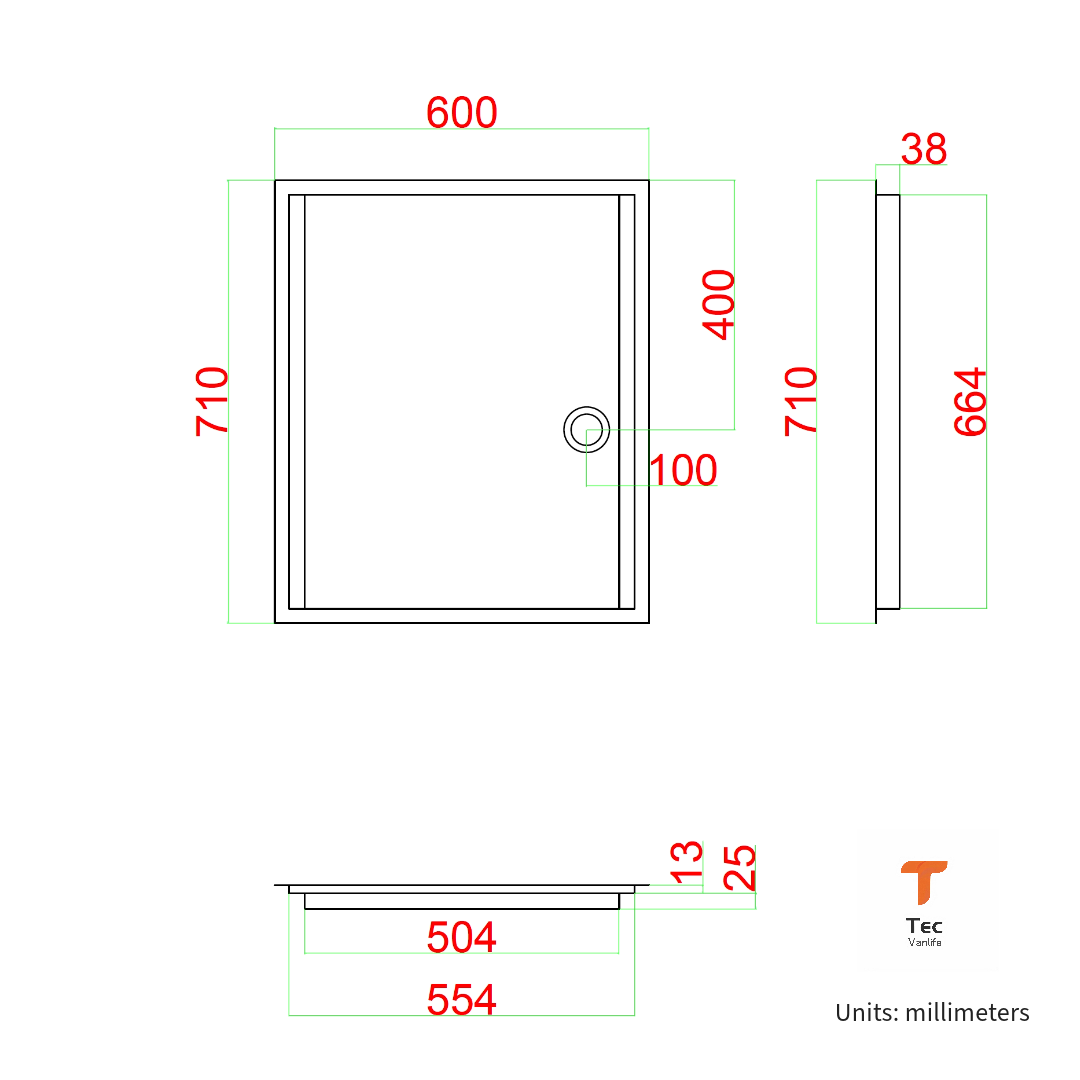

Shower Pan Dimensions: 28" x 23.6" (710 mm x 600 mm)
-

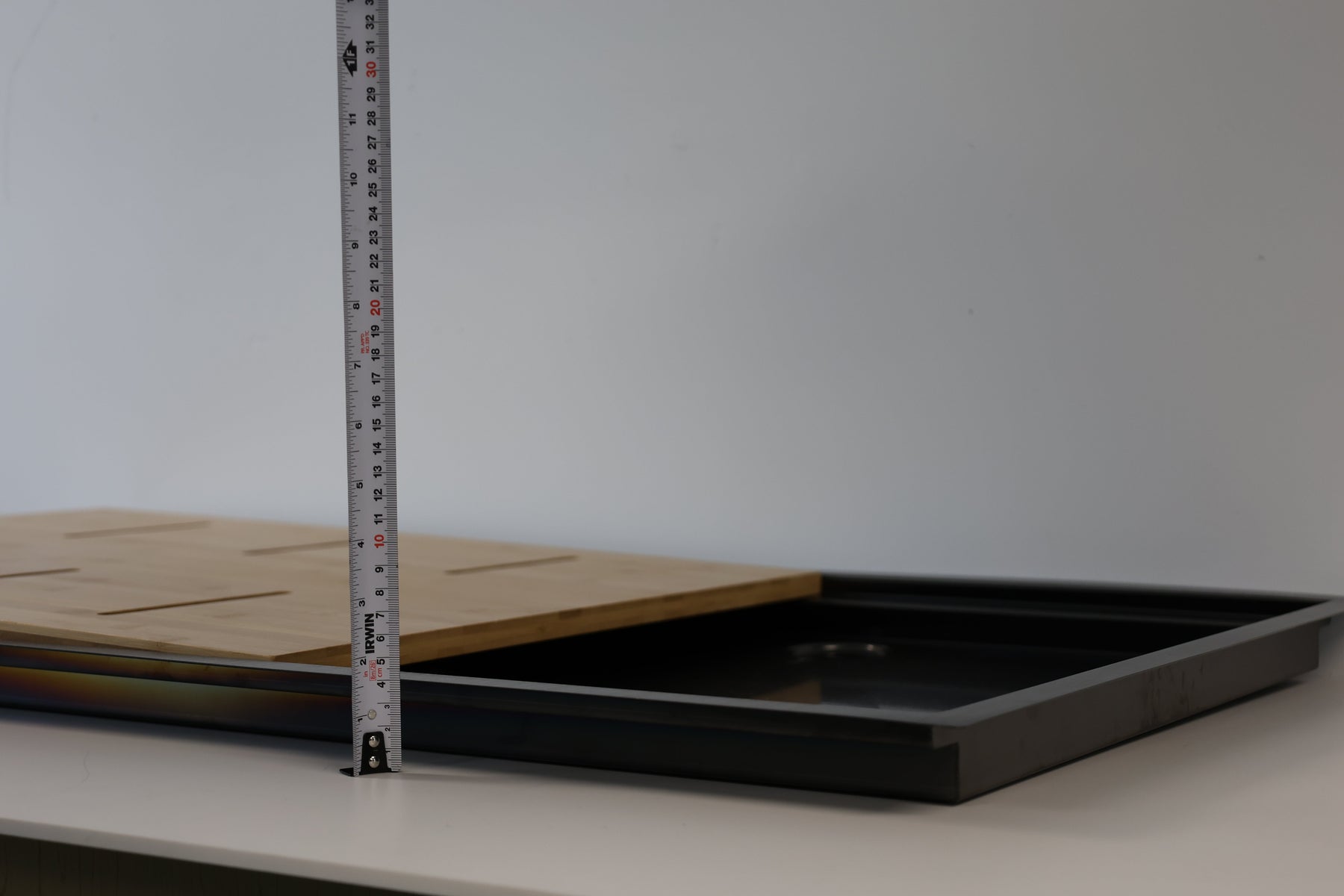

Shower Pan Depth: 1.5" (38 mm)
-
Drain Opening Size: 3 1/2"
-
Drain Outlet Size: 1 1/4"
-
Bamboo Cover Dimensions: 25.98" x 22.13" x 0.39" (660 mm x 562 mm x 10 mm)
Description:

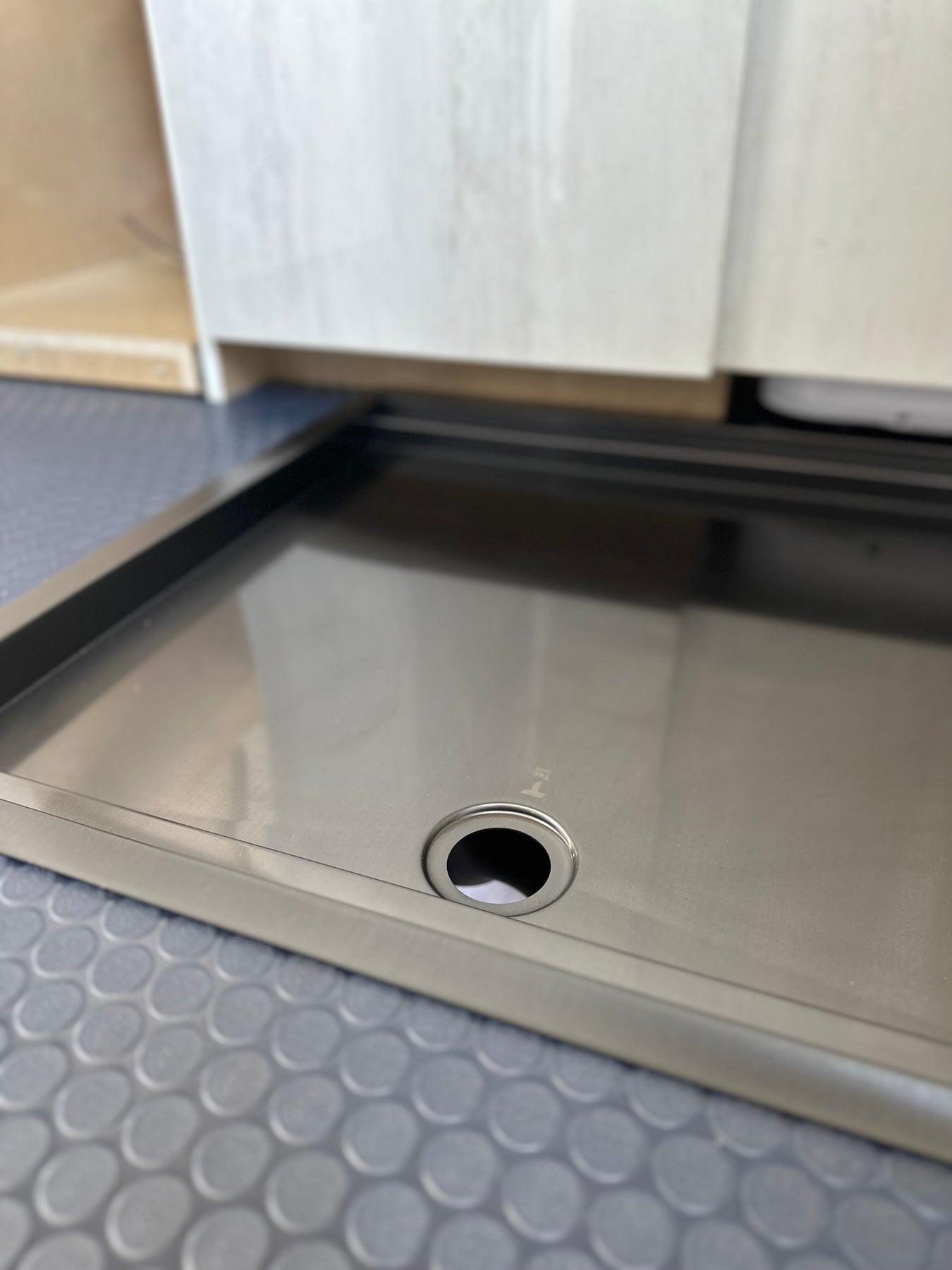

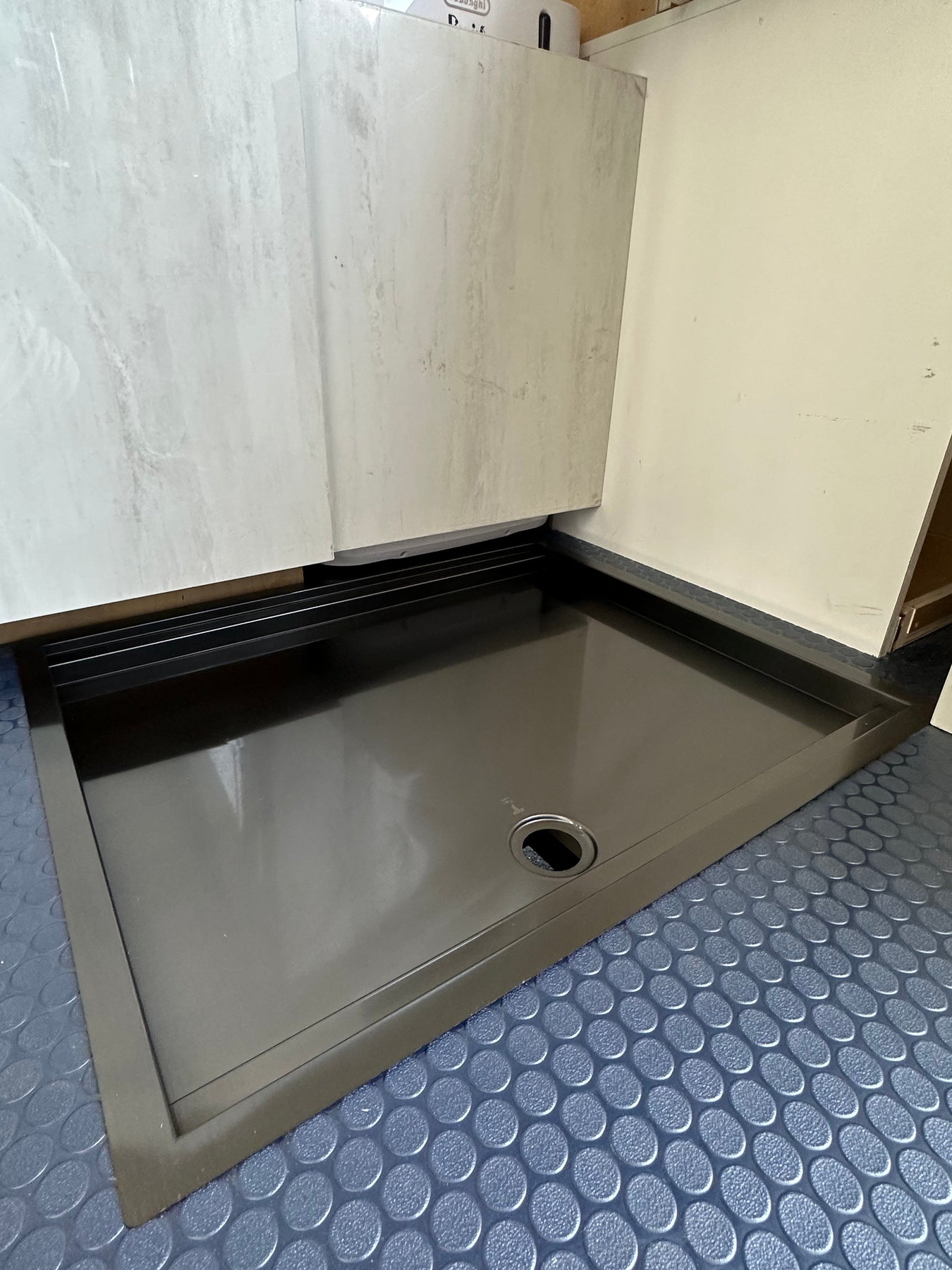

Designed for compact van conversions, the Tec Vanlife Ultra Low Profile Shower Pan allows a shower area to be added without permanently taking away valuable floor space. The shallow pan can be recessed into the vehicle floor and covered when it is not in use.

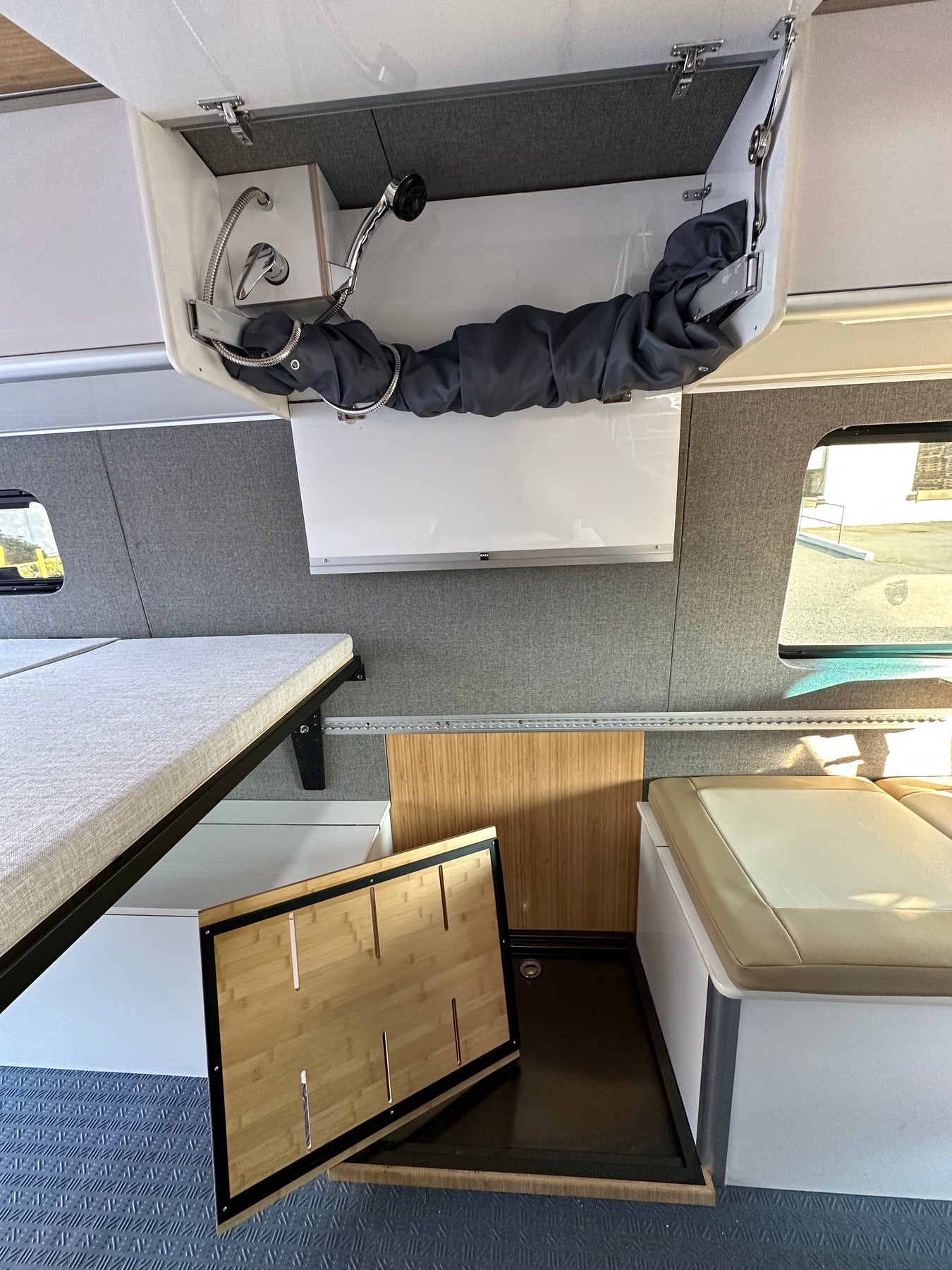

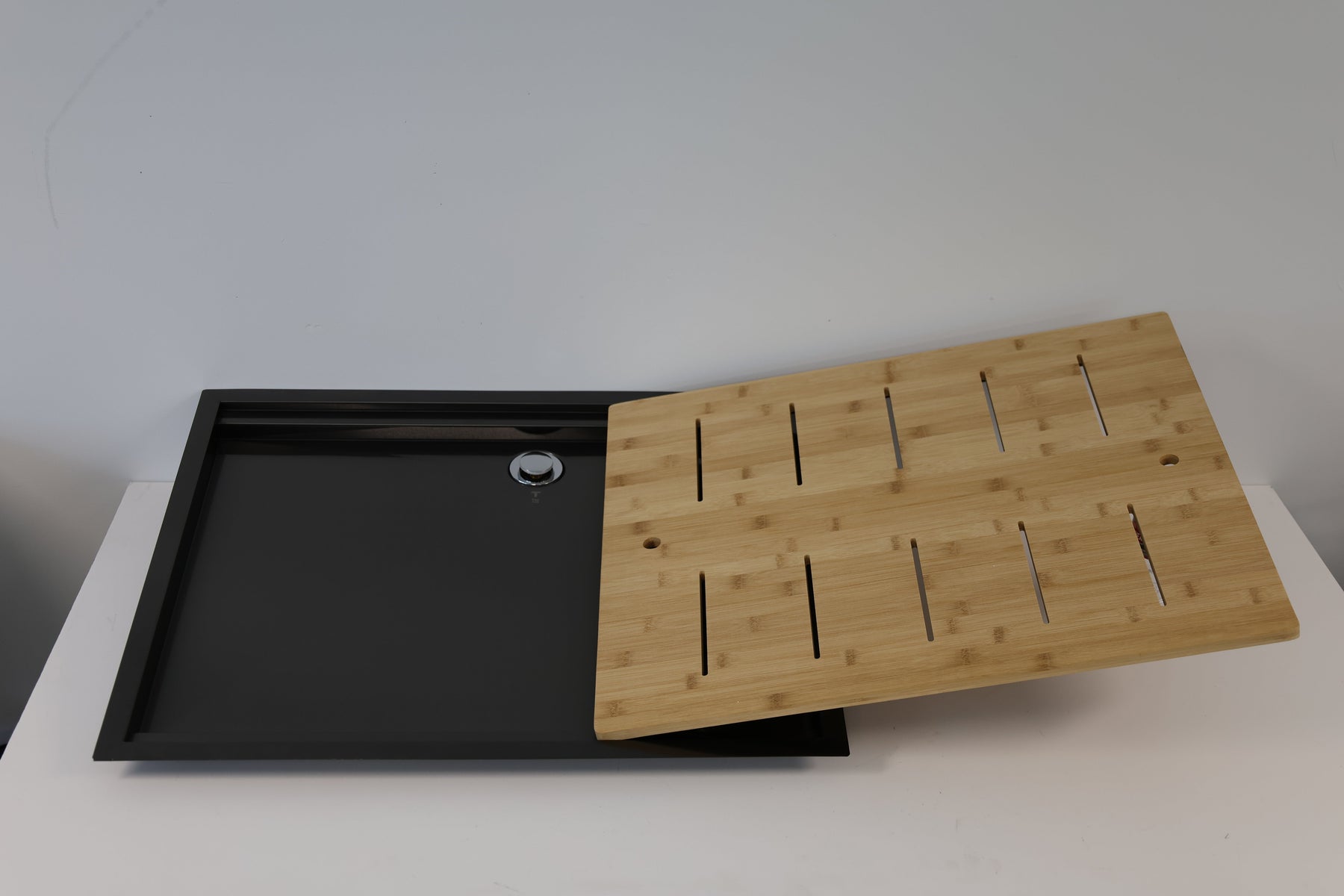

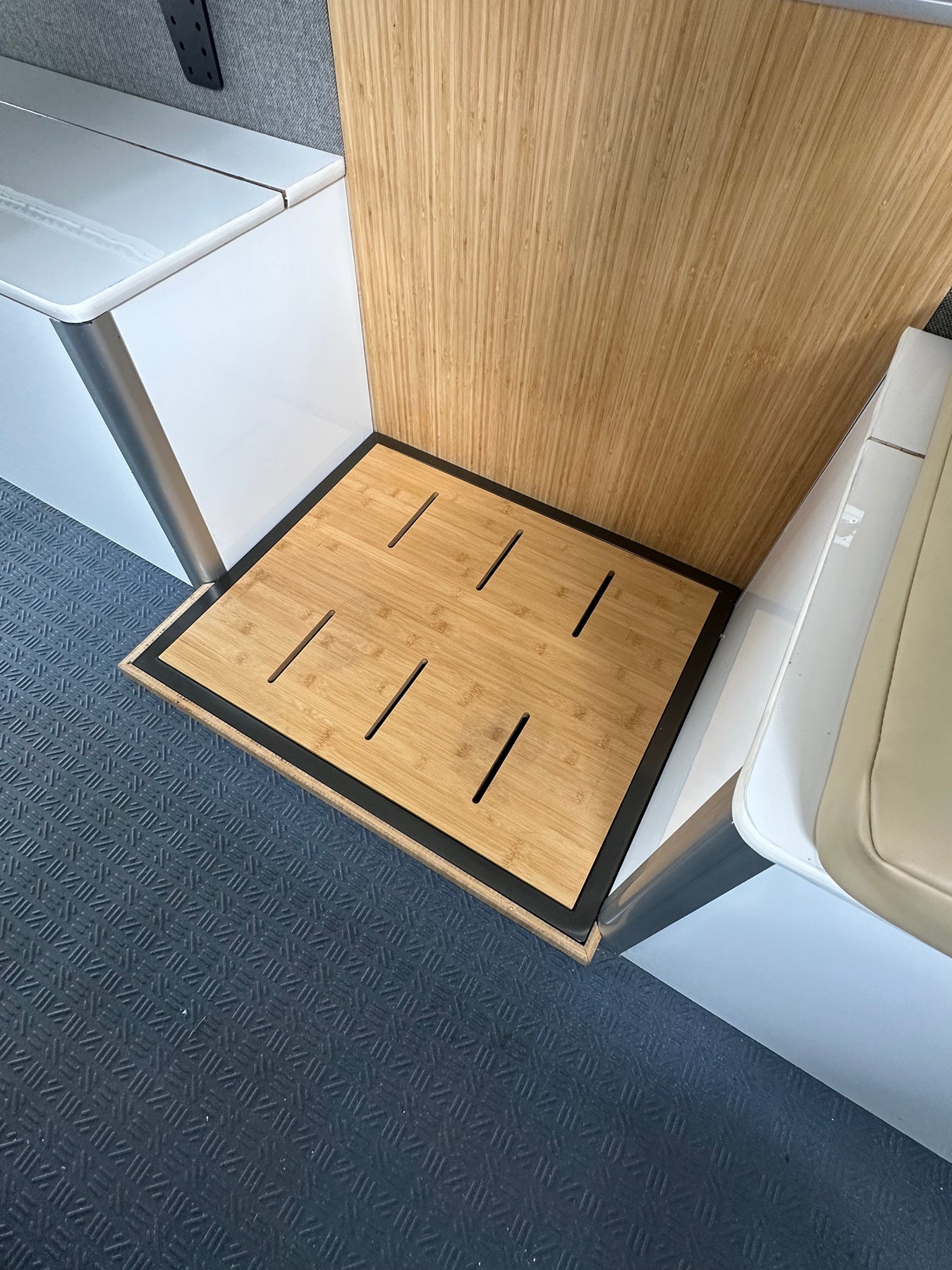

The reversible bamboo cover serves two purposes. One side provides a finished walking surface, while the other side features a stainless steel rim that secures magnetic shower curtain weights. The slotted bamboo surface allows water to pass through and drain into the shower pan.

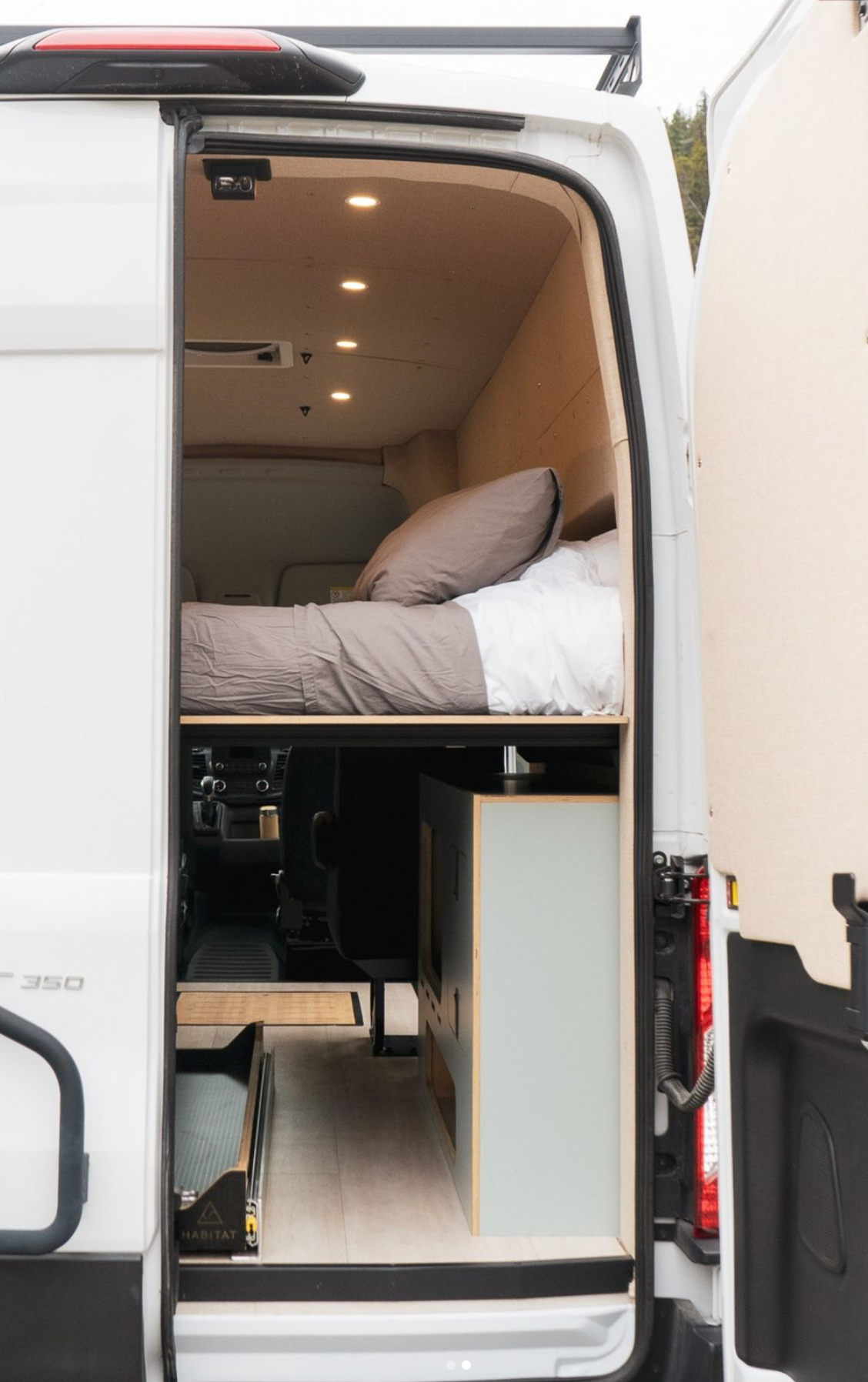

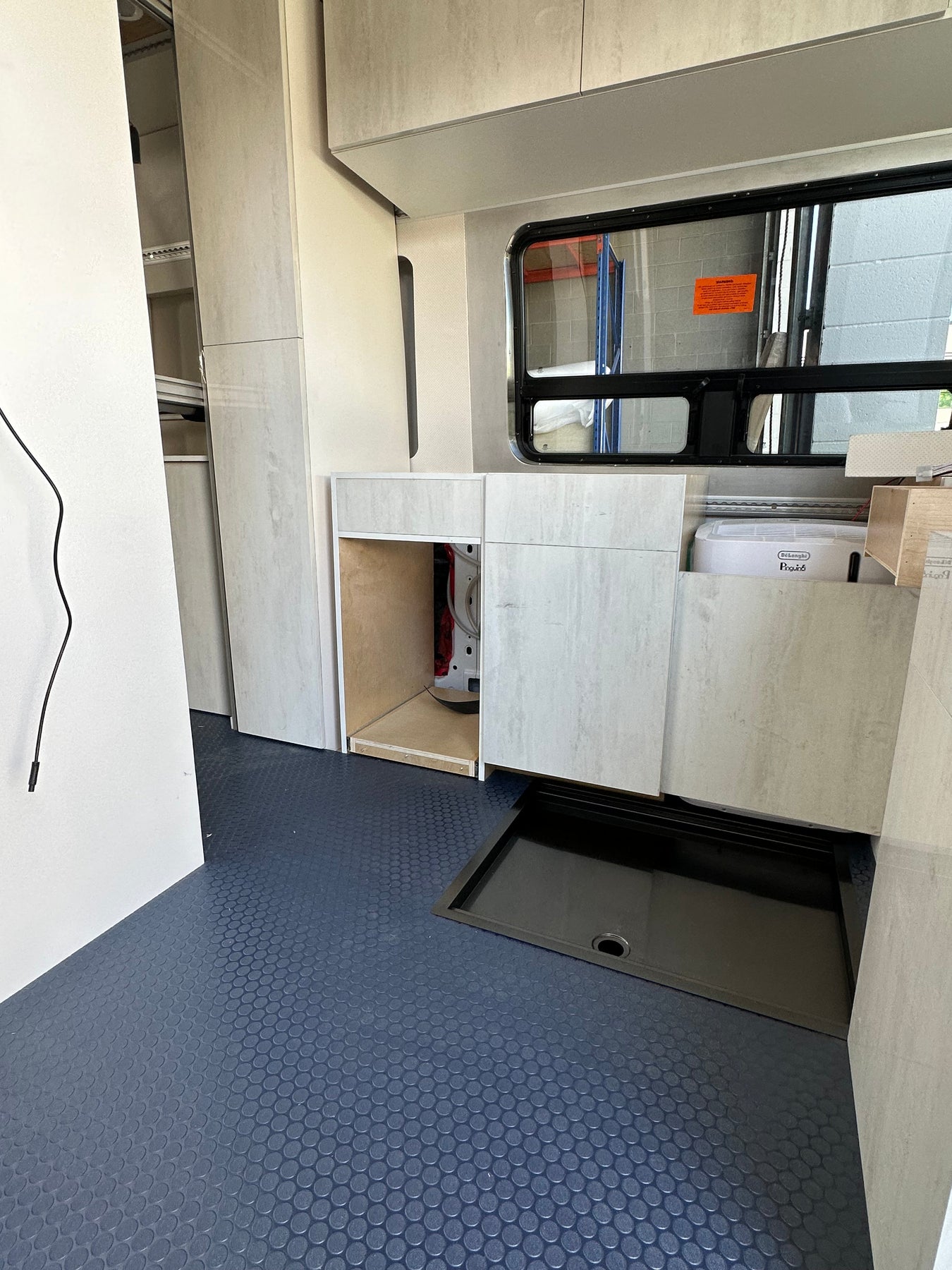

The off center drain is positioned for common installation locations in Mercedes Sprinter, Ford Transit, and Ram ProMaster vans, including beside the sliding door, ahead of the driver side wheel well, and near the rear doors. Final placement will depend on the vehicle layout and floor construction.
Installation Tip: Van and expedition vehicle floors are often uneven. We recommend applying low expansion spray foam between the bottom of the shower pan and the vehicle floor to provide additional support, stability, and thermal insulation.
A Helpful Reference for Your Build:
Our friends at FarOutRide documented how they installed this shower pan in their Ford Transit. Installation methods will vary depending on the vehicle layout and build requirements, but their guide provides a helpful reference when planning your installation.
View the FarOutRide installation guide
