Modular camper van panel bed system available in two panel and three panel configurations, with heavy duty aluminum and stainless steel frames and optional bed boards.
$300 flat rate shipping to the Lower 48 states. Free warehouse pickup available.
Key Features:
Flexible installation height from 16" to 38" to suit different interior layouts and storage requirements.

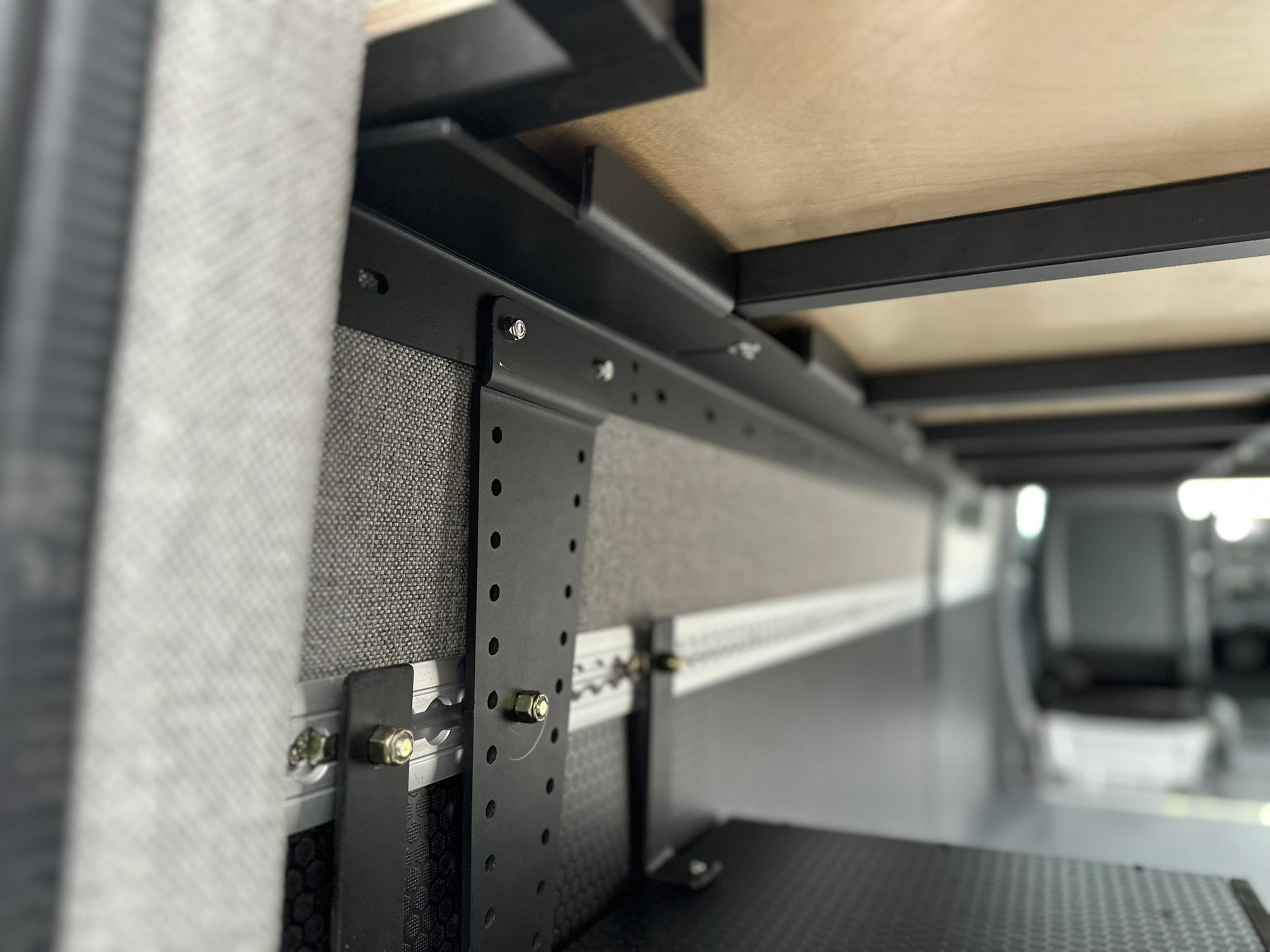

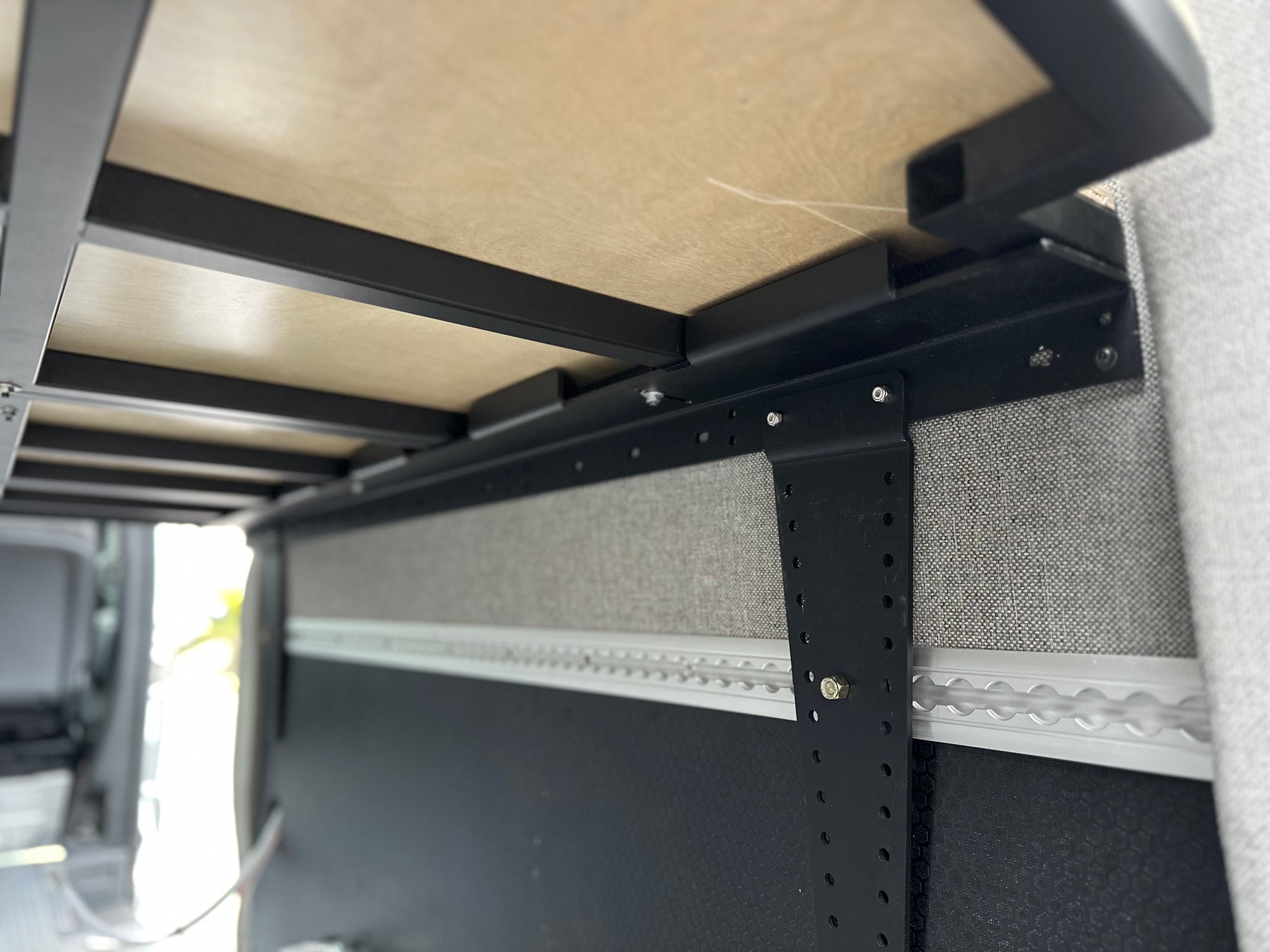

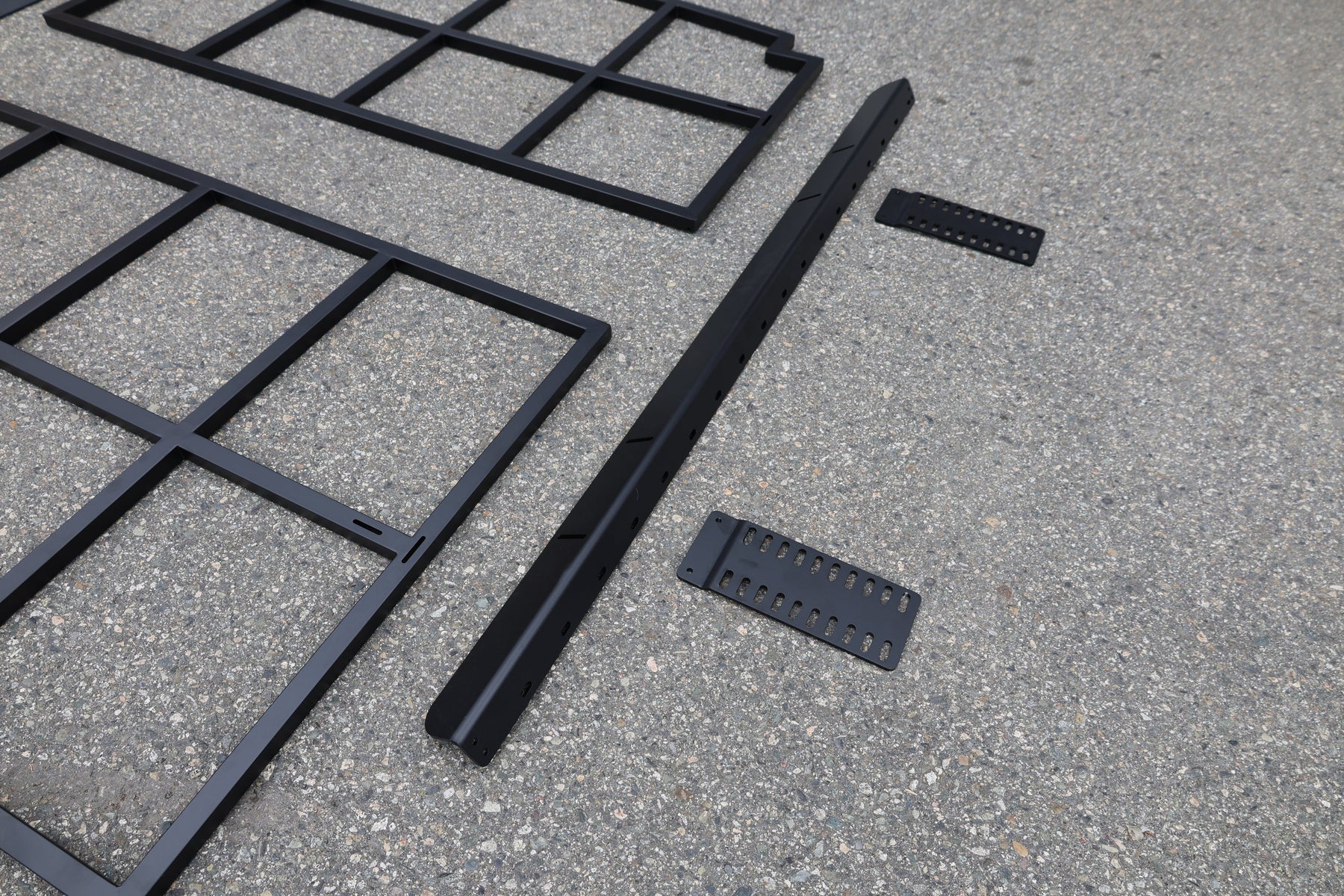

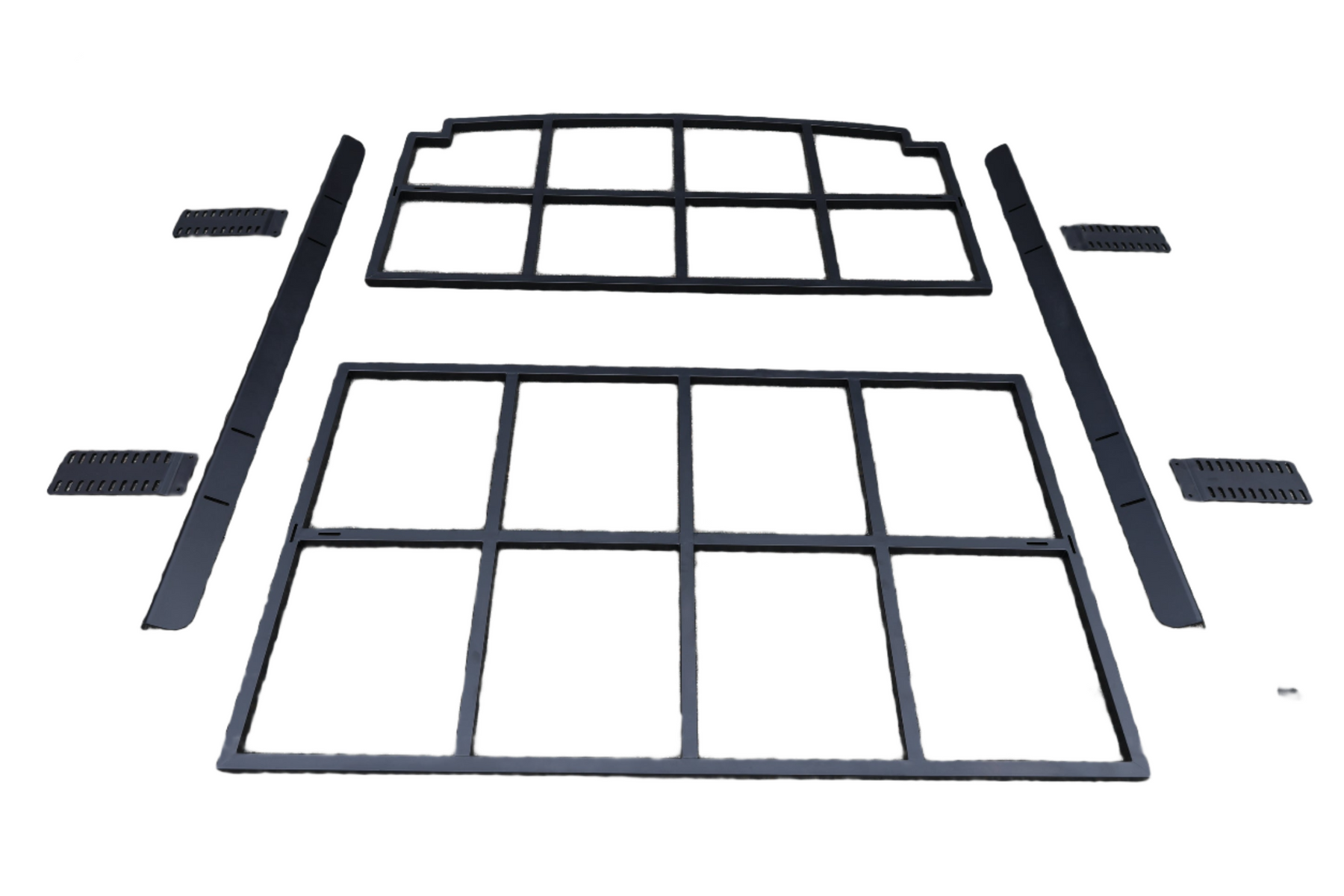

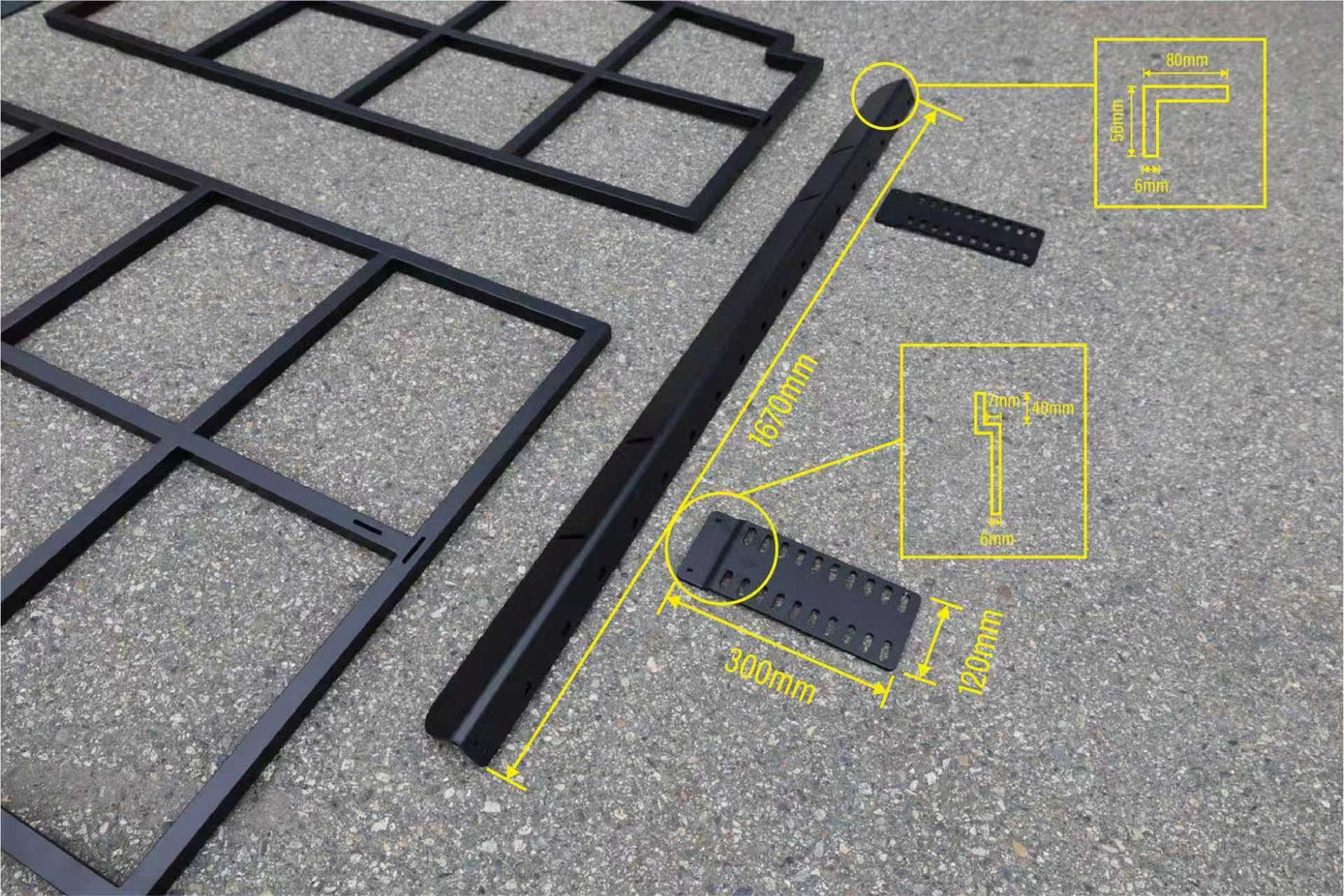

Heavy duty 7/32" aluminum support rails with stainless steel bed frames.
500 lb dynamic load rating per panel.

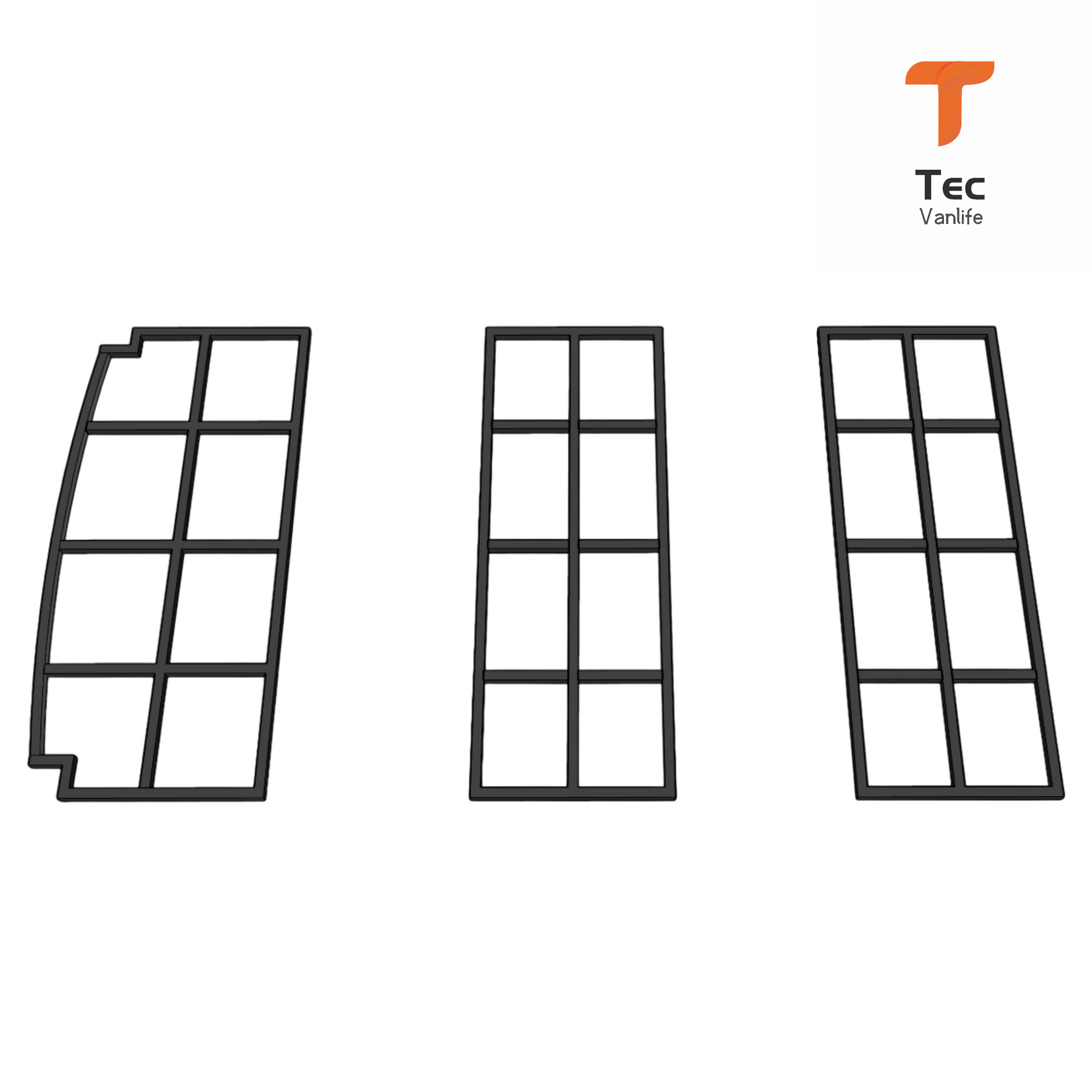

Available as a 71.3" two panel bed or 79.5" three panel bed, both measuring 65.75" wide.

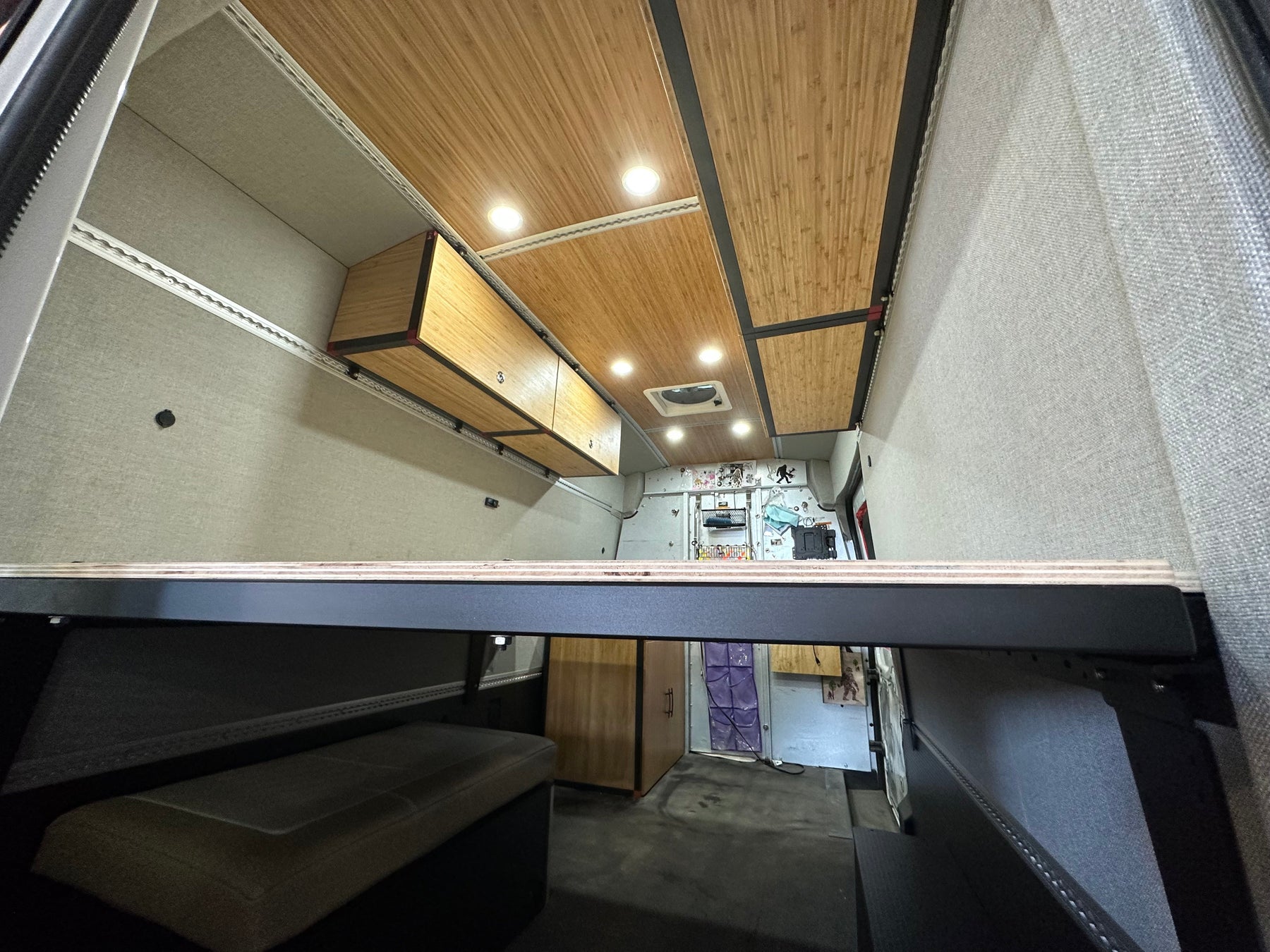

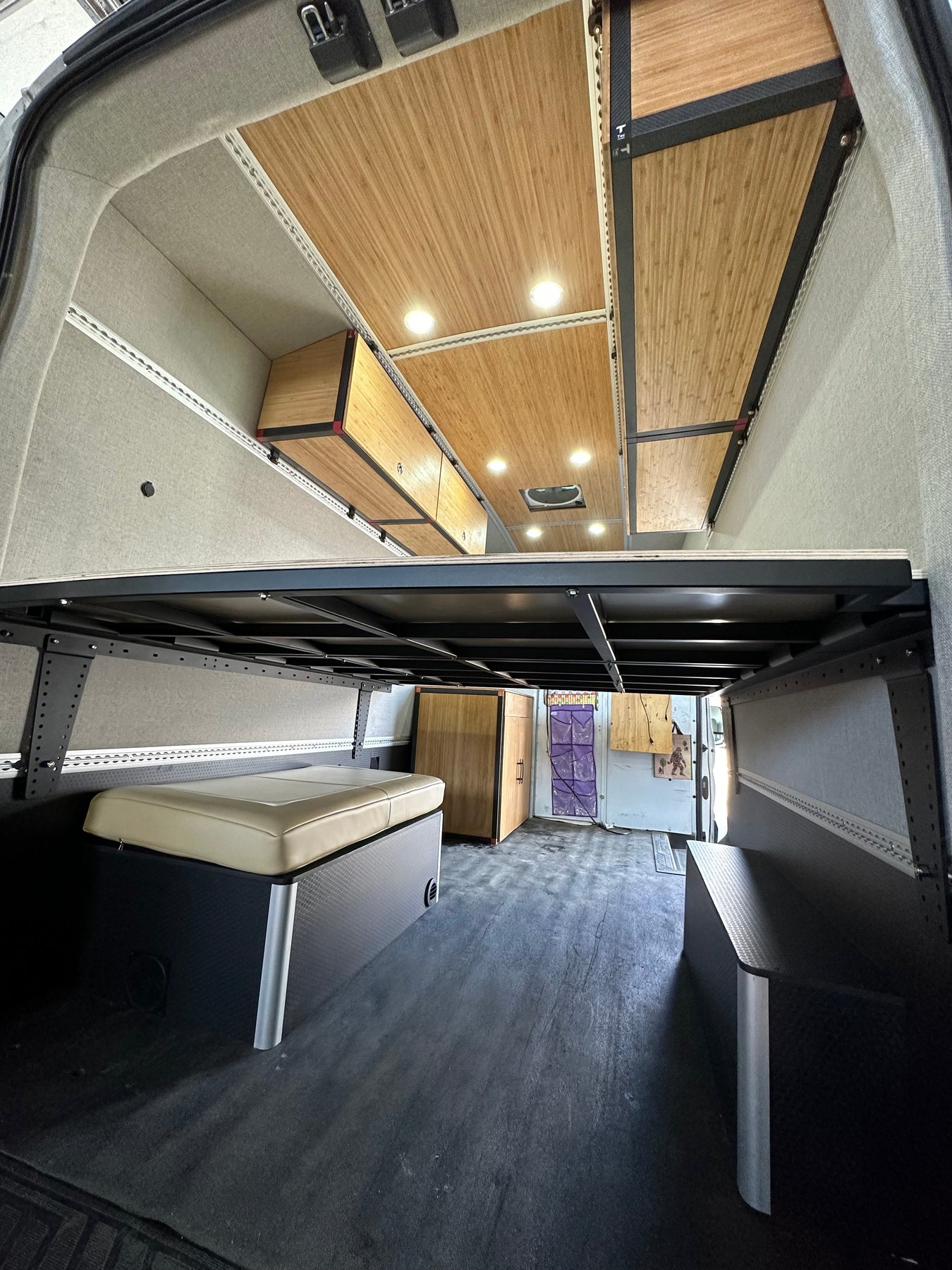

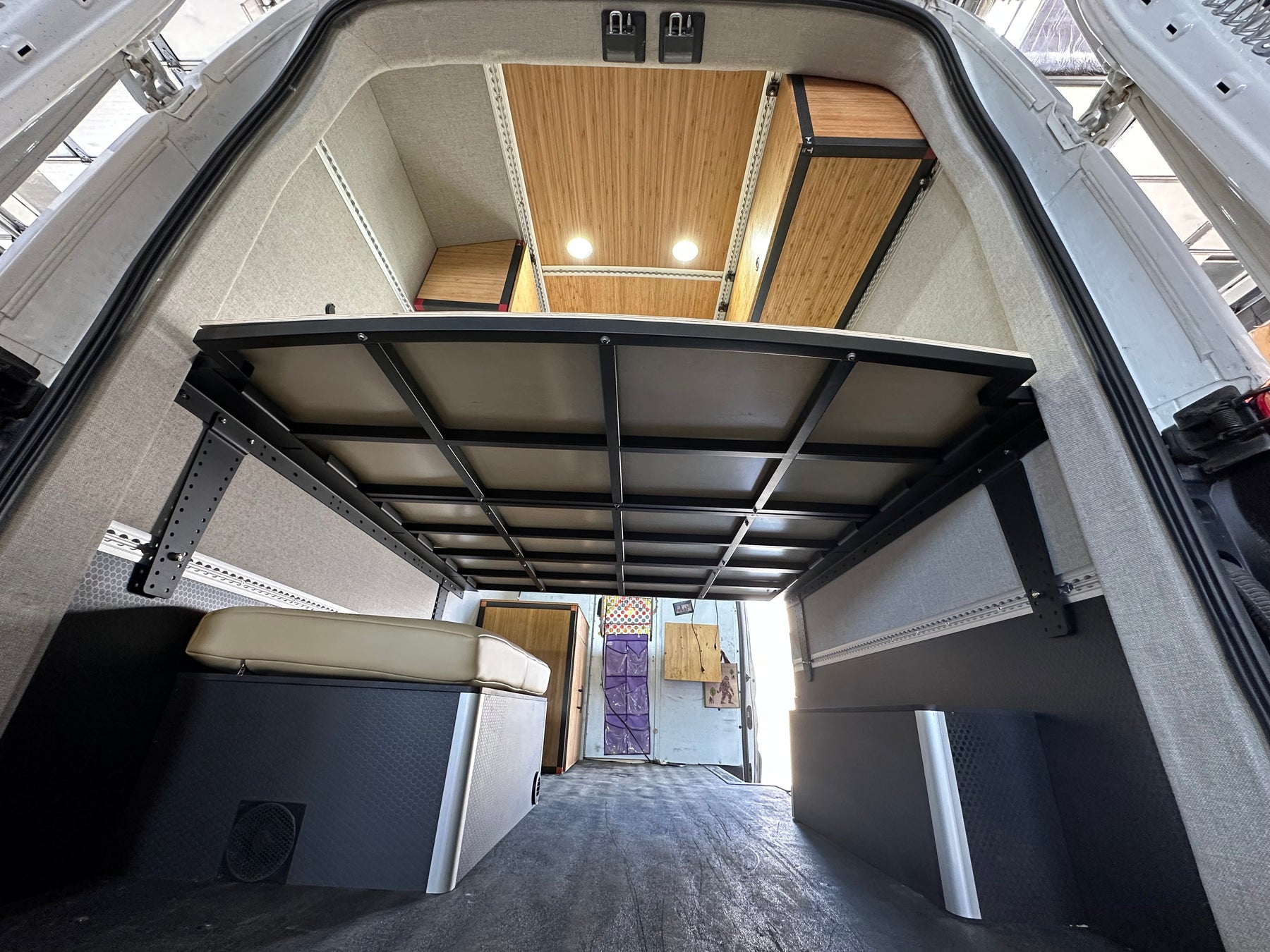

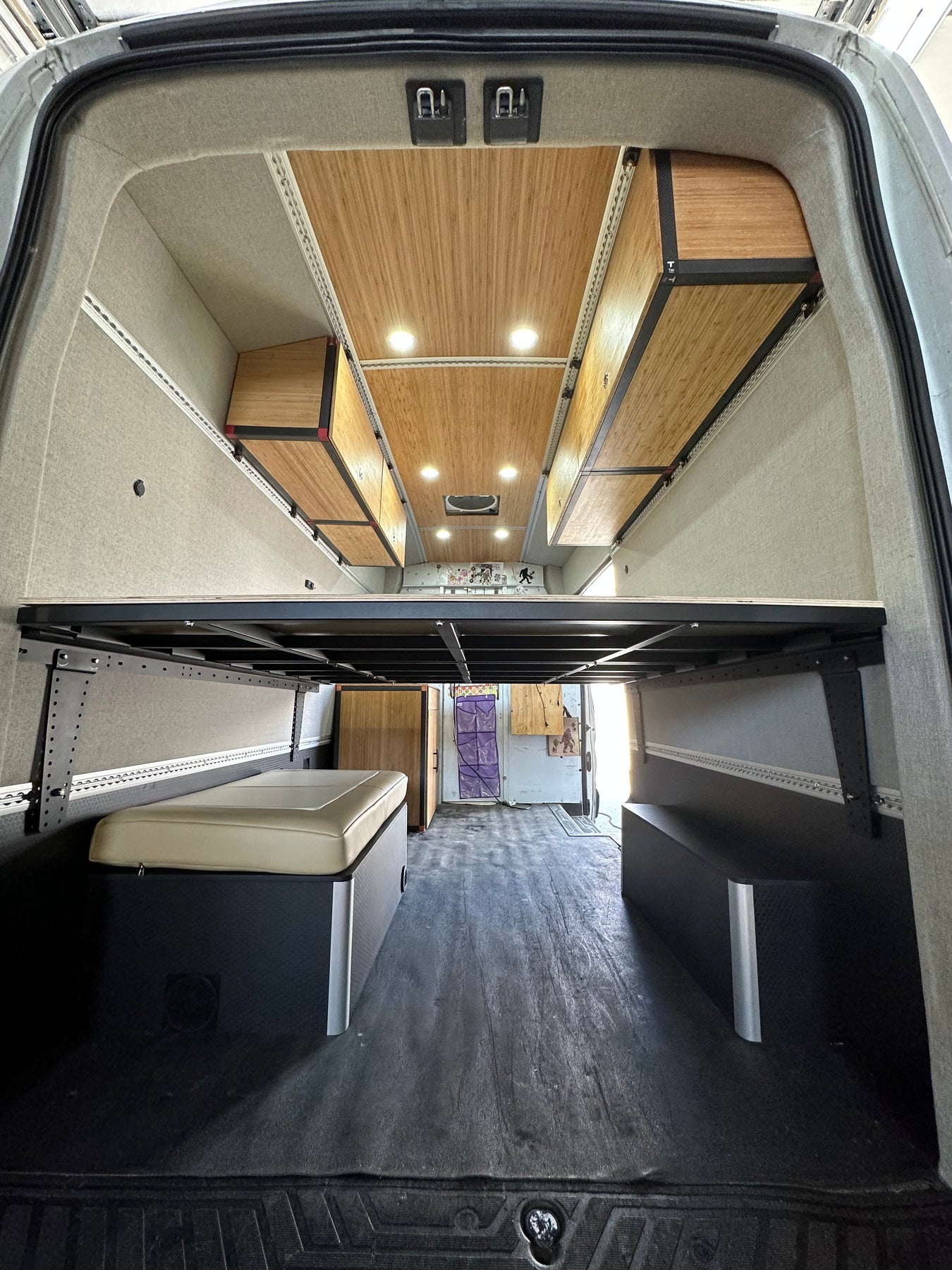

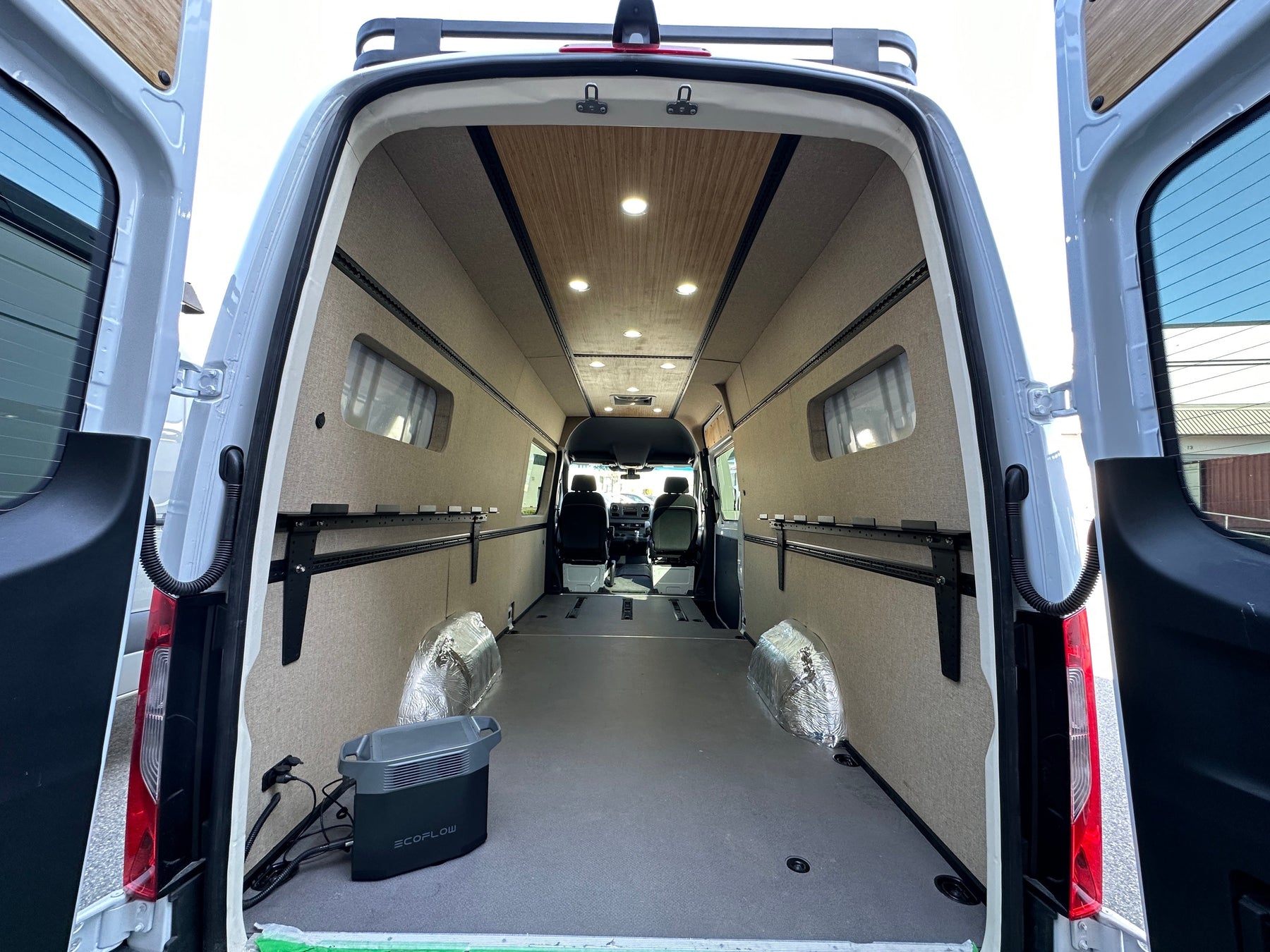

Wall mounted support rails eliminate floor supports, leaving the space under the bed open for storage and equipment.

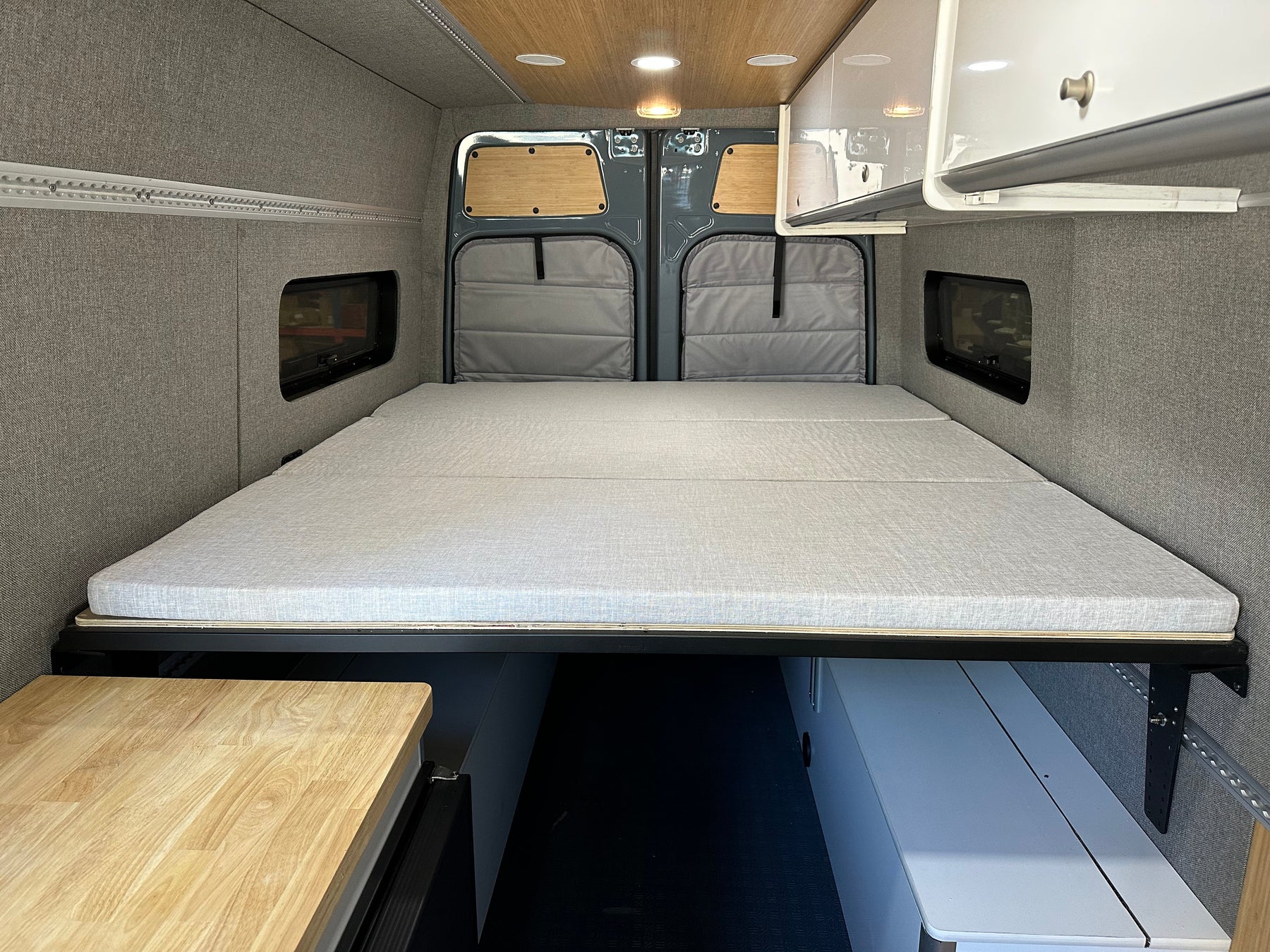

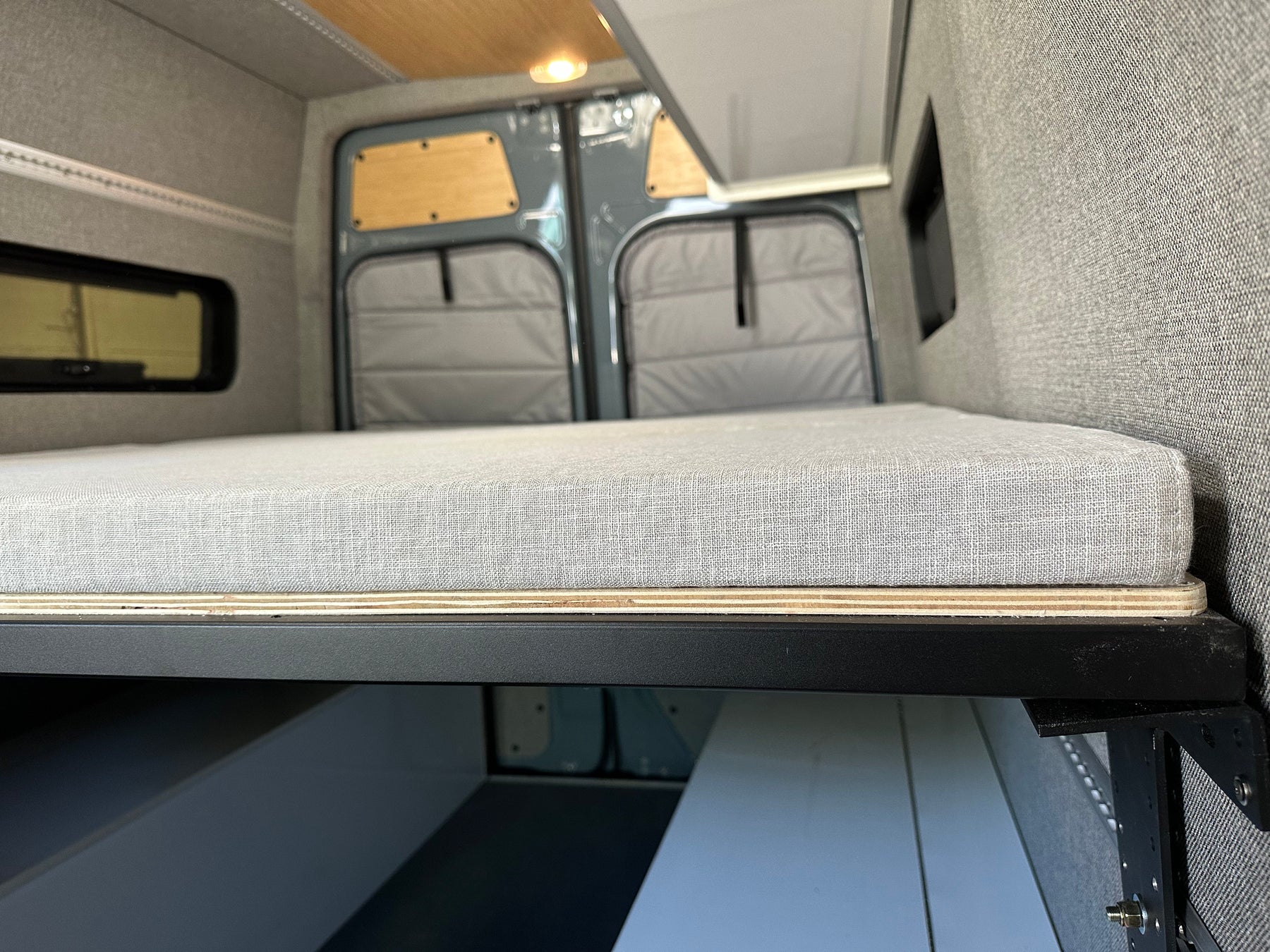

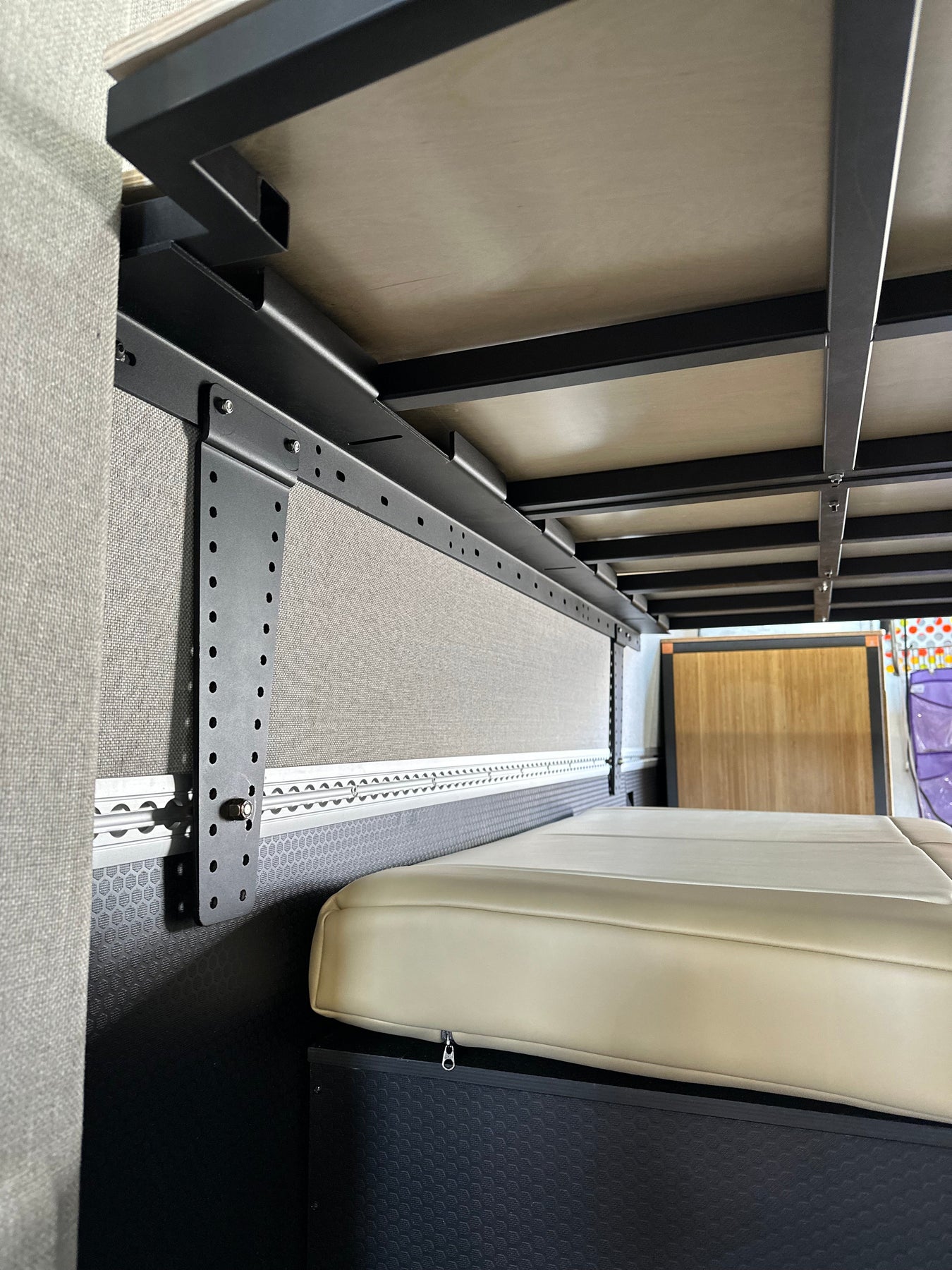

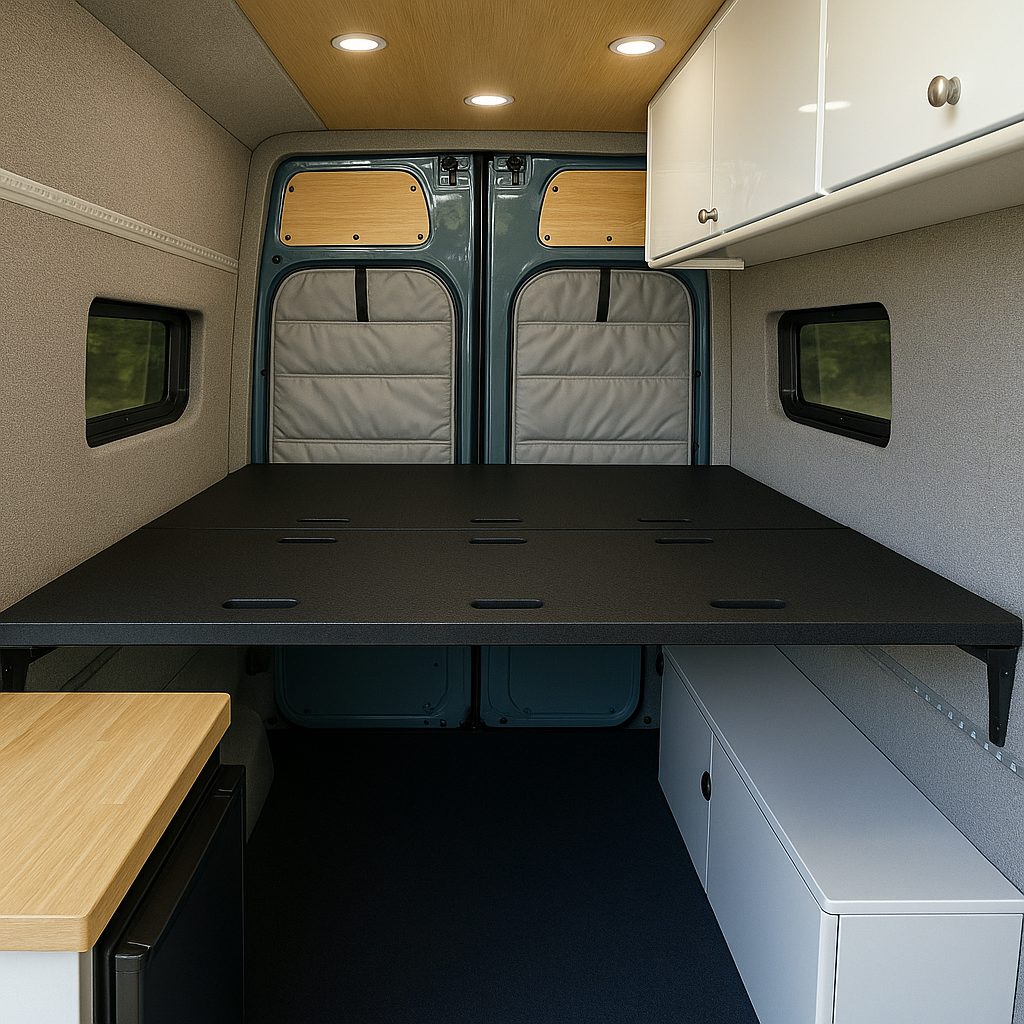

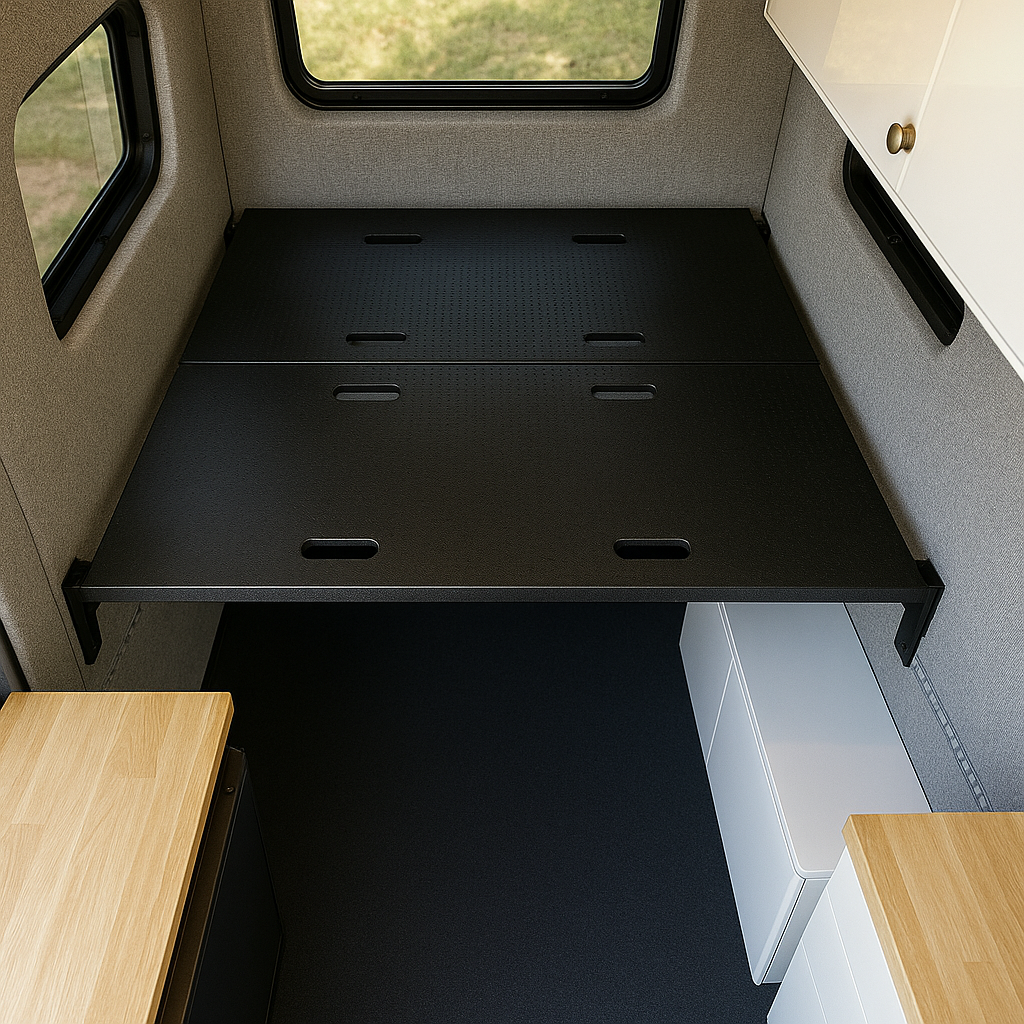

Bed panels rest directly on the side rails and can be removed individually when the full bed platform is not needed.

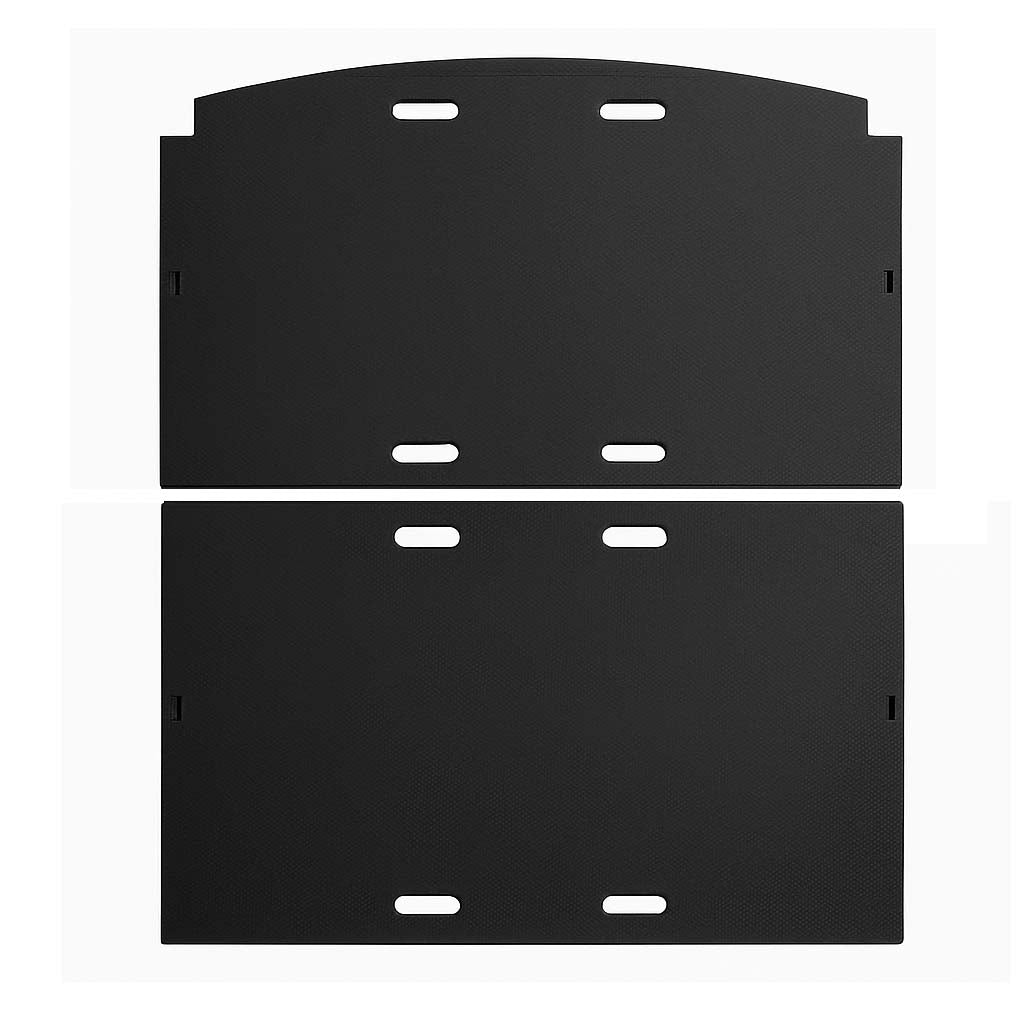

Available as a frame system only or as a complete system with matching boards included.
Measurements:

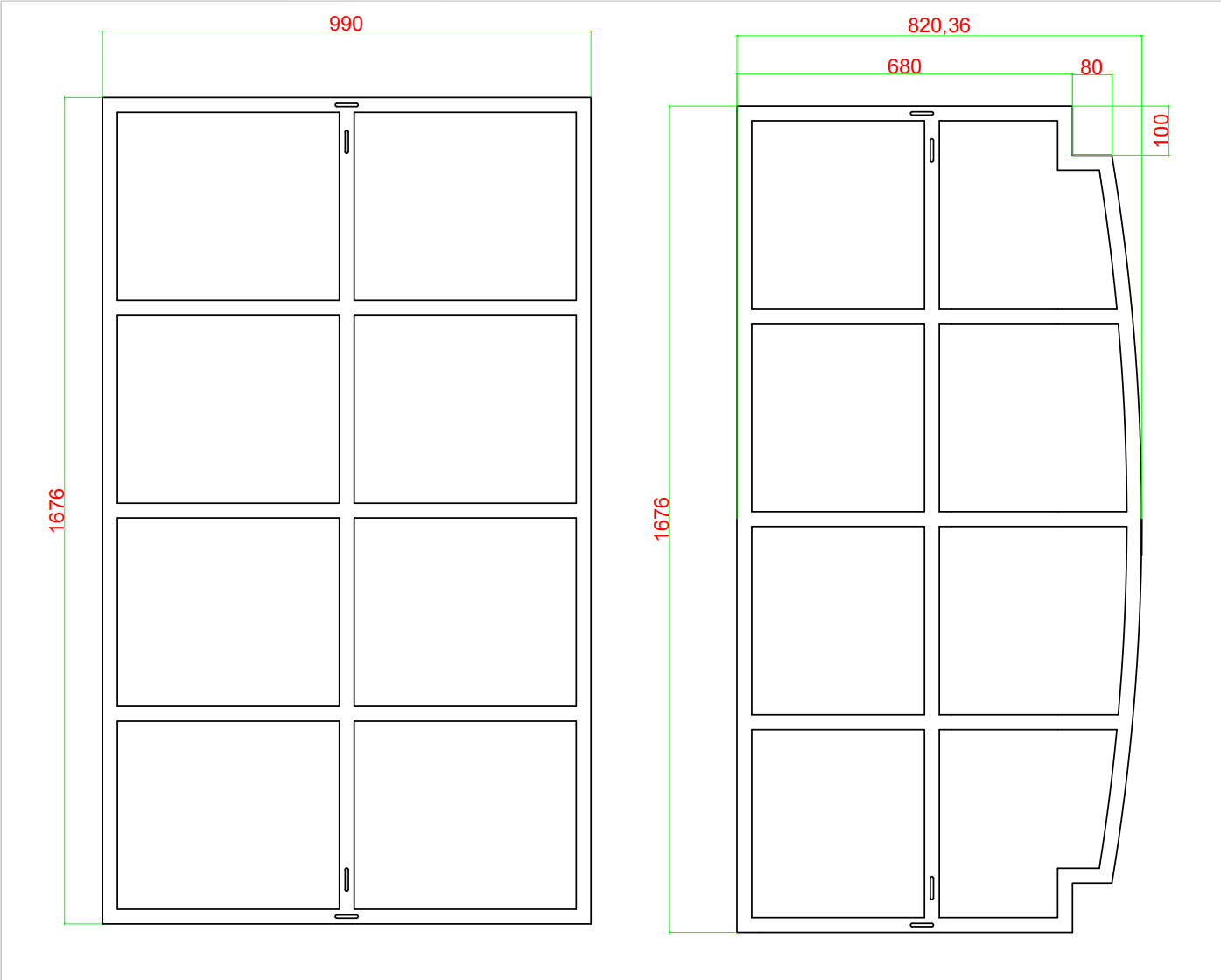

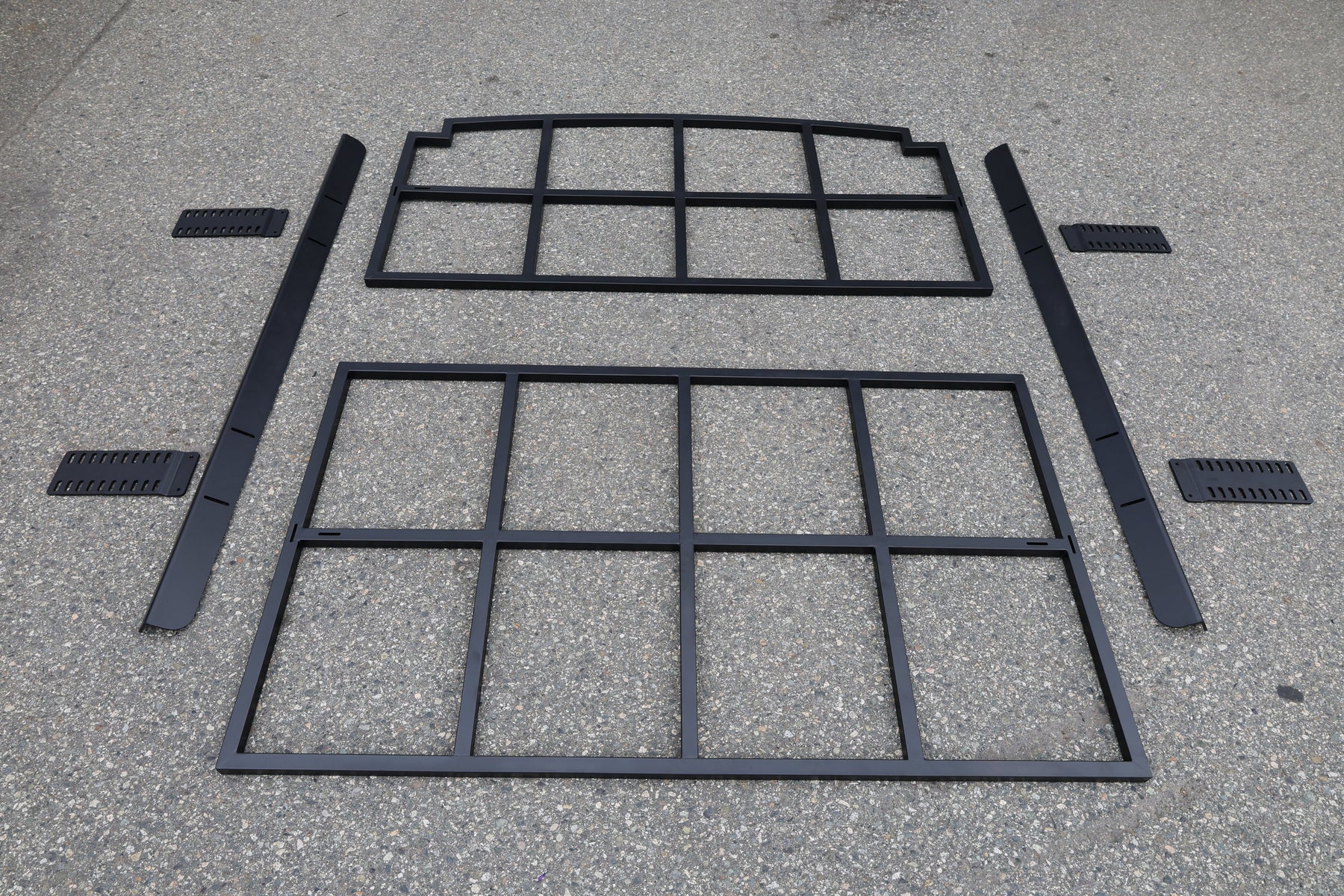

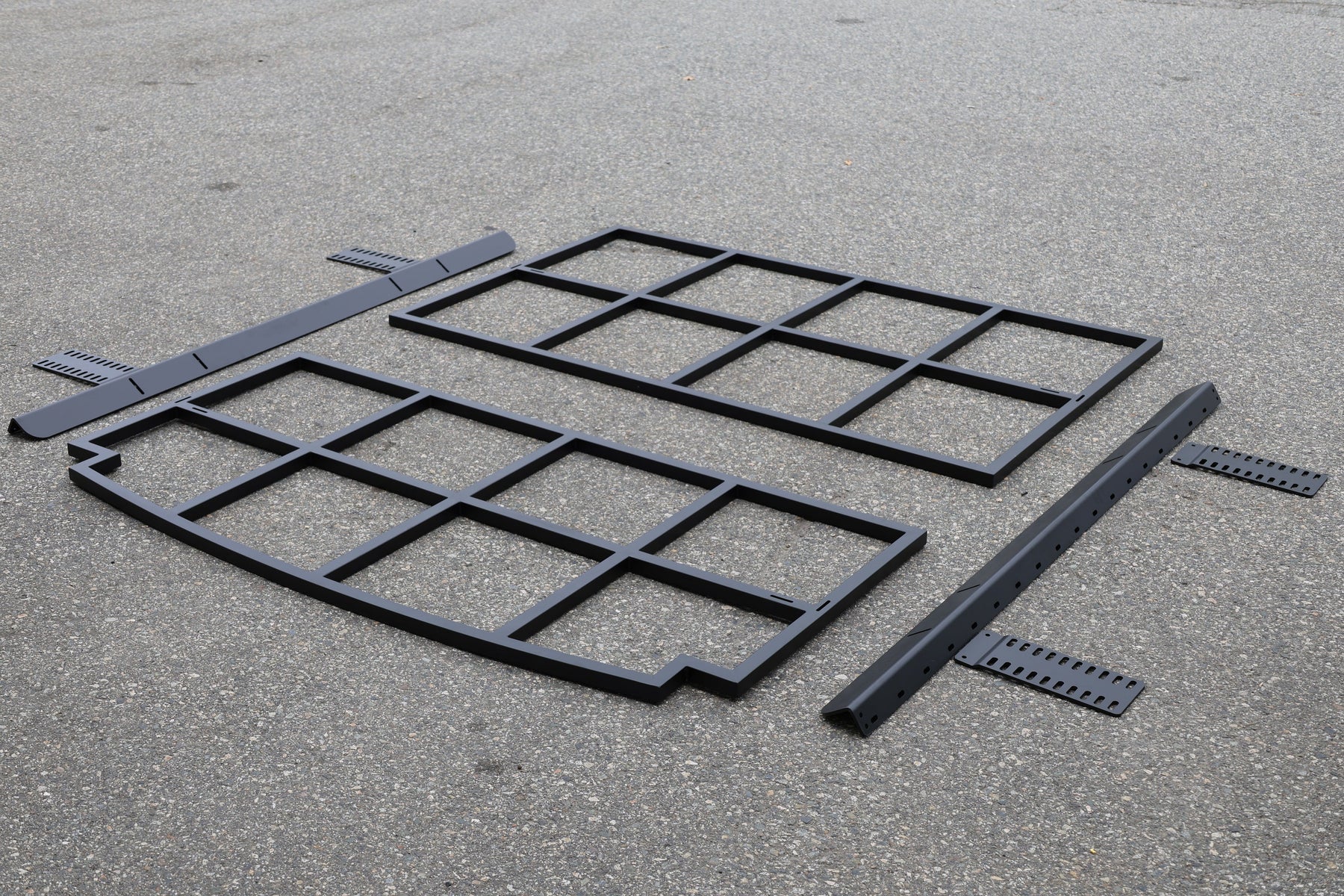

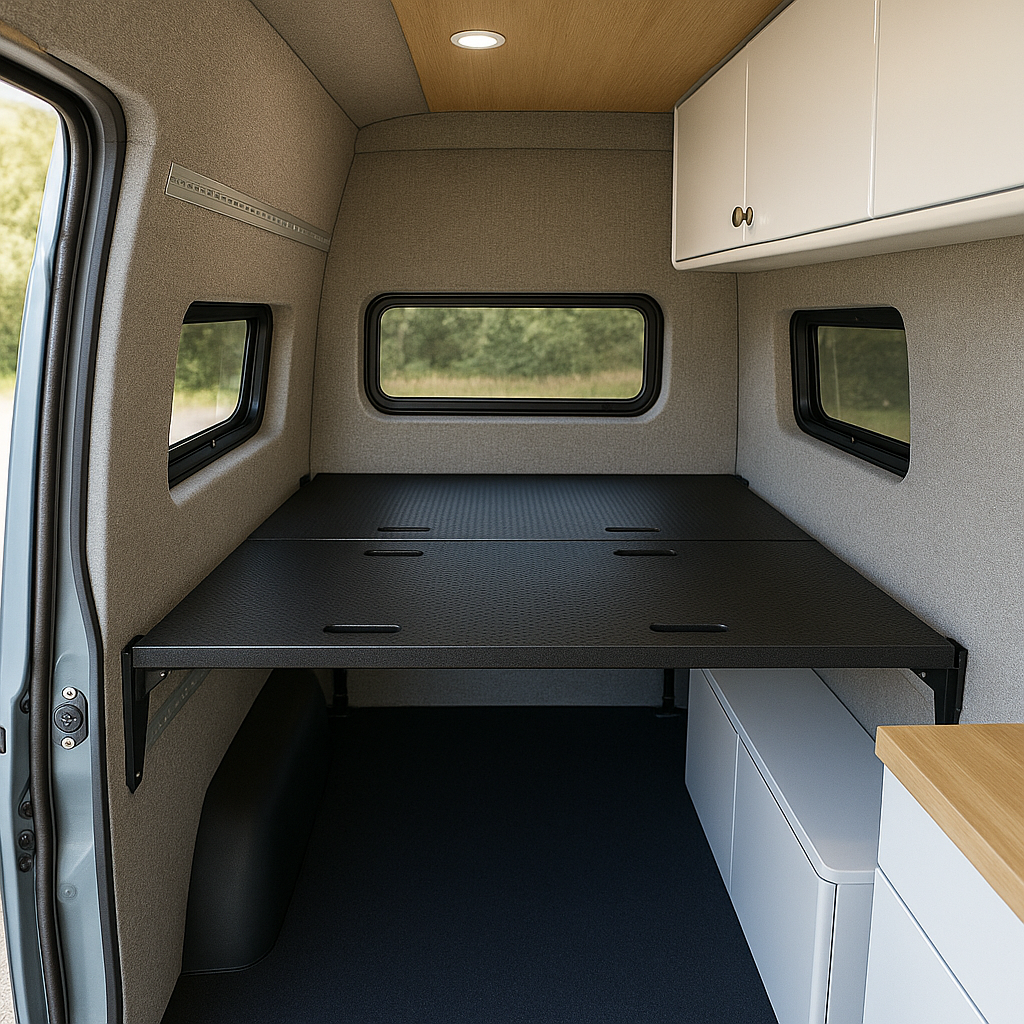

Two Panel Bed System:
Total Dimensions: 71.3" x 65.75" (181 x 167 cm)
Panel 1: 32.3" x 65.75" (82 x 167 cm)
Panel 2: 39" x 65.75" (99 x 167 cm)
Frame Thickness: 1.18" (30 mm)

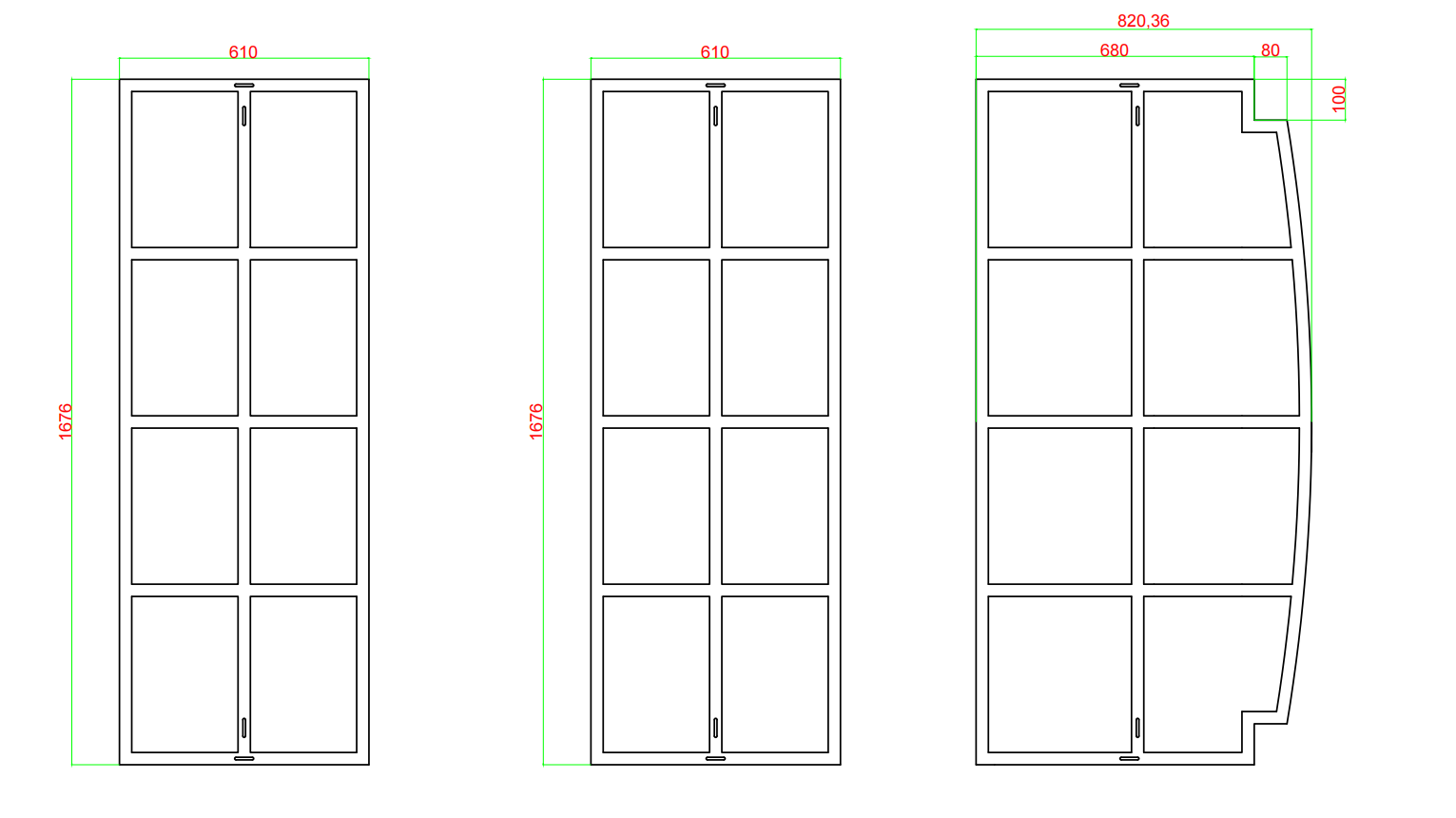

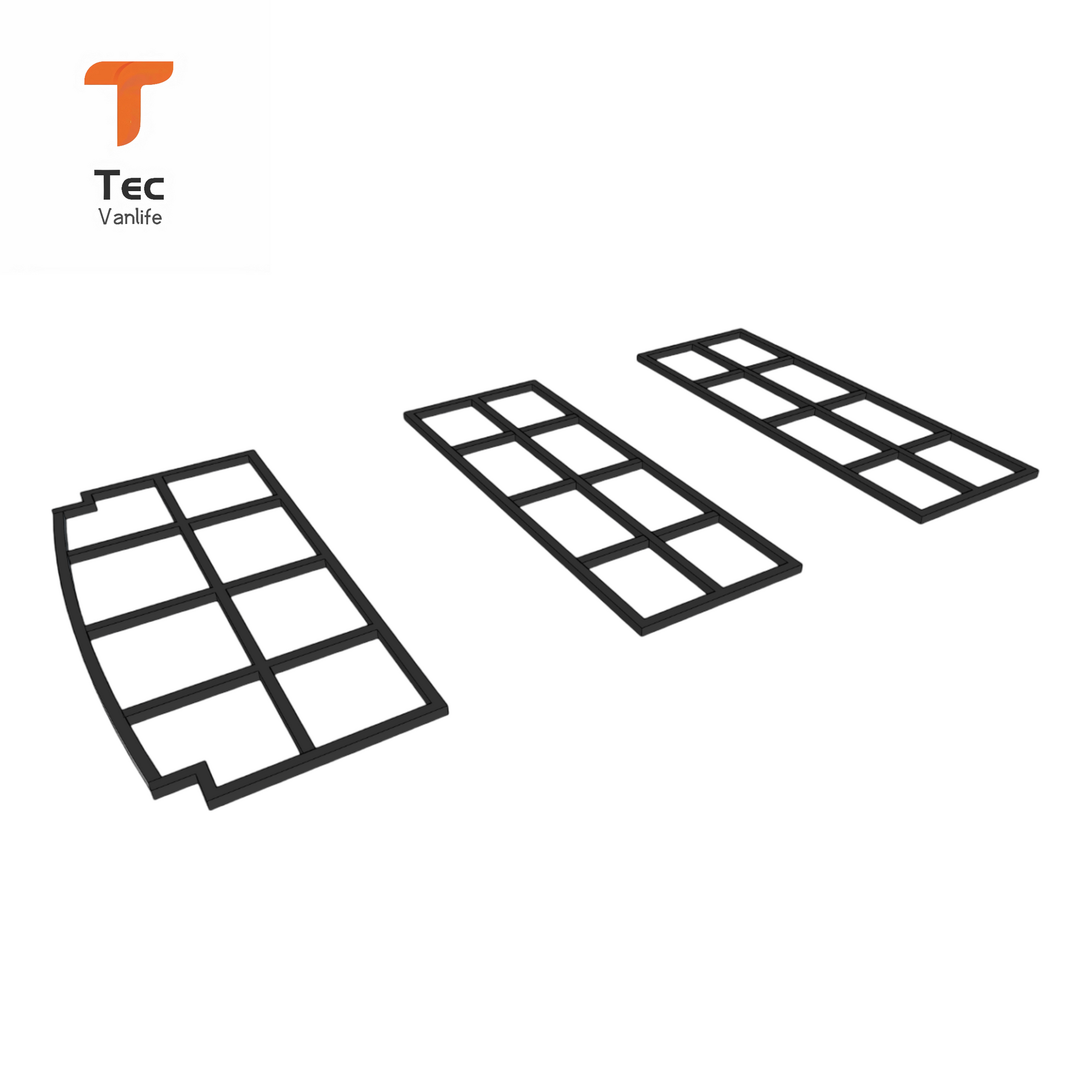

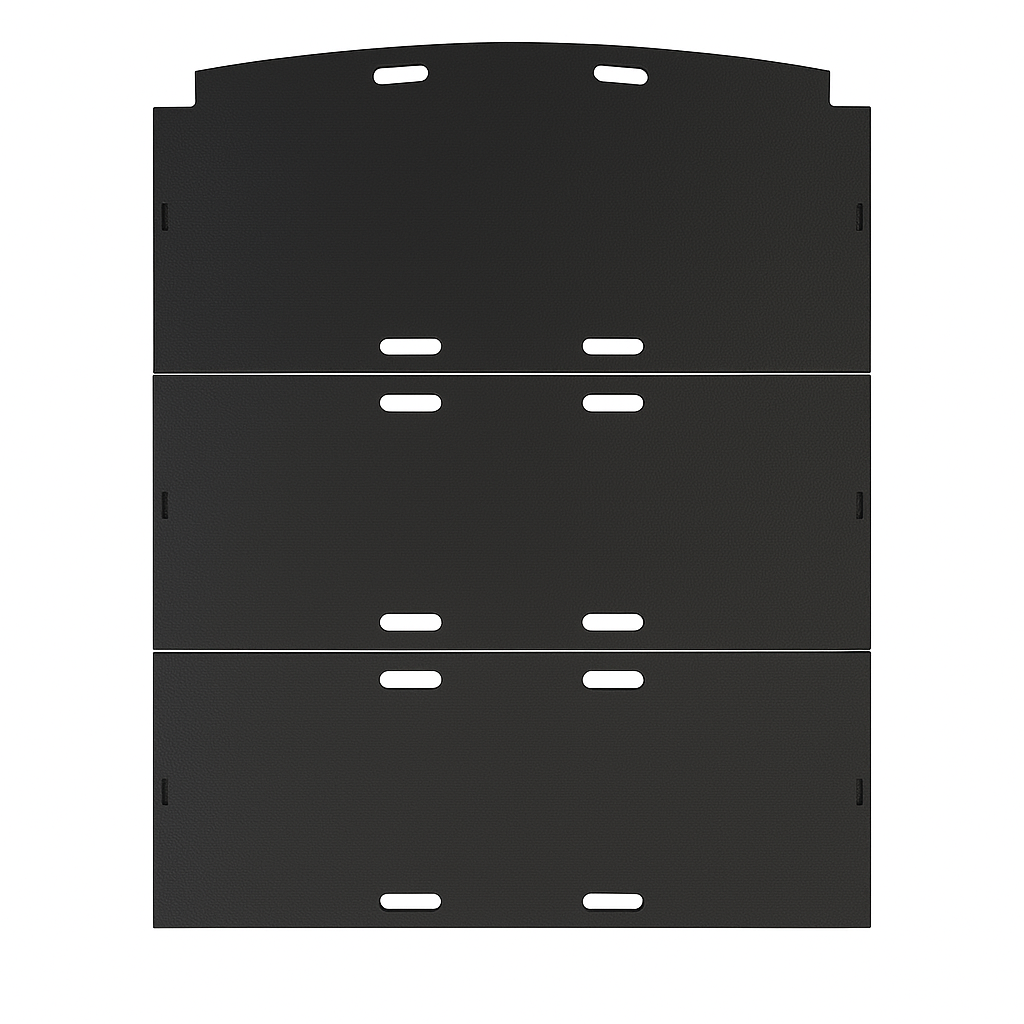

Three Panel Bed System:
Total Dimensions: 79.5" x 65.75" (202 x 167 cm)
Panel 1: 32.3" x 65.75" (82 x 167 cm)
Panels 2 and 3: 23.6" x 65.75" (60 x 167 cm) each
Frame Thickness: 1.18" (30 mm)
Recommended Board Thickness: 1/2" when supplying your own bed boards.
Description:

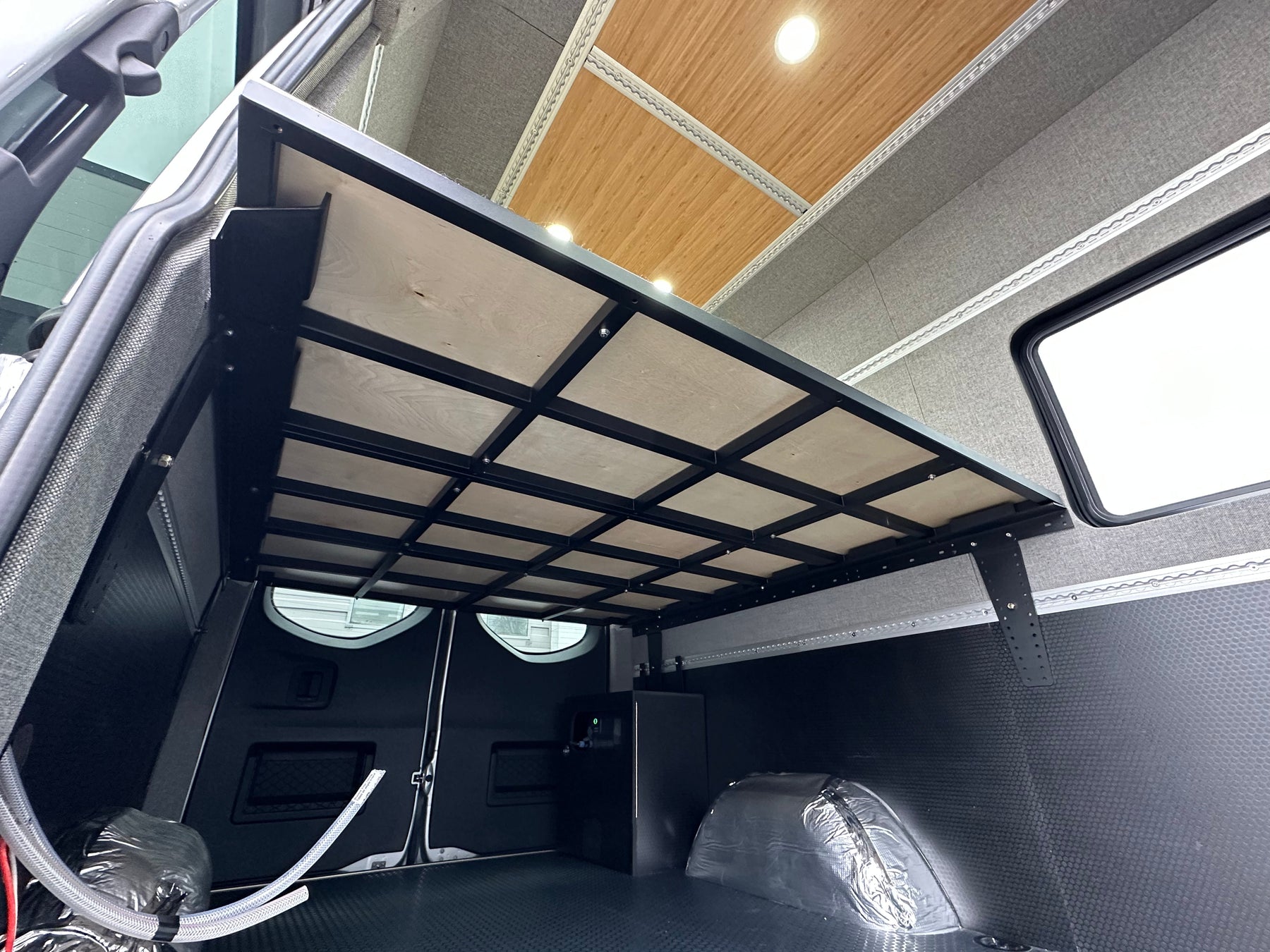

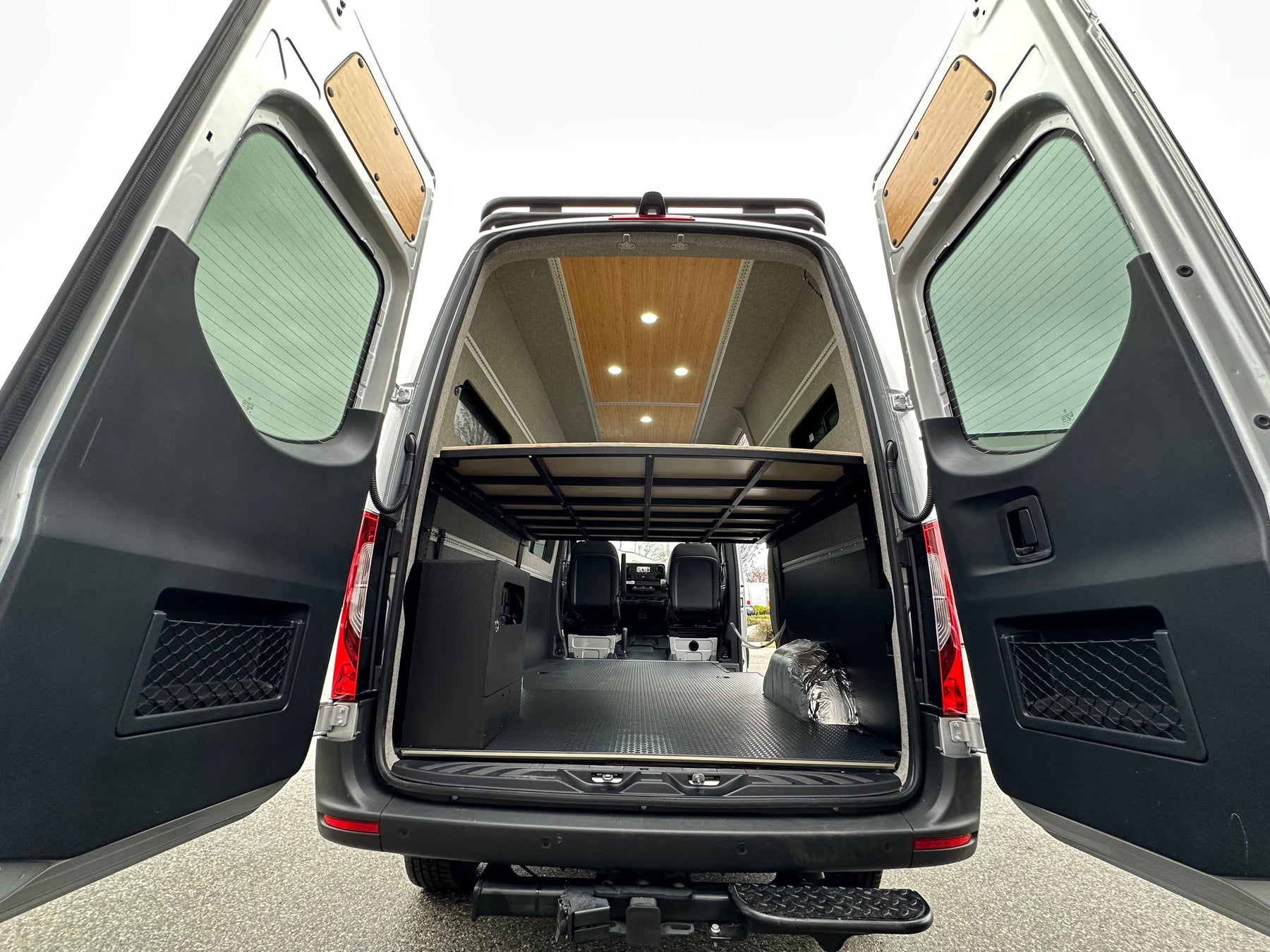

The Tec Vanlife Panel Bed System uses heavy duty aluminum support rails and stainless steel bed frames to provide a rigid wall mounted bed structure without floor supports. The rails can be installed between 16" and 38" high, allowing the bed position to be set around storage, bikes, cabinetry, and other equipment underneath.
Two panel and three panel configurations provide overall bed lengths of 71.3" and 79.5", while maintaining the same 65.75" width. This allows the system to work across a wide range of camper vans, with the configuration selected according to the interior space available rather than a specific vehicle model or wheelbase.
Each bed panel rests directly on the side support rails and can be removed individually when the full bed is not required. The system is available with the frames only for customers supplying their own bed boards, or with matching boards included for a complete setup.
FAQ:
1. Can I install the three panel bed system in a 144" Sprinter or 148" Ford Transit?
Yes, the three panel system can be installed in either van. Please measure your interior first and make sure enough length is allocated for the full 79.5" bed system.
2. Are L-Tracks and L-Track Back Framing required for installation?
No. L-Tracks and Back Framing are highly recommended for the installed but they are not required.
