Name: Stainless Steel In-Floor Shower Pan
Brand: GoCode
SKU: TVU0213
Price: 725.0 USD
Availability: InStock

$725.00

Shipping calculated at checkout.

Magnetic Zipped Shower Curtain

Add Shower Curtain

No Shower Curtain

Drain Hole Location

Center

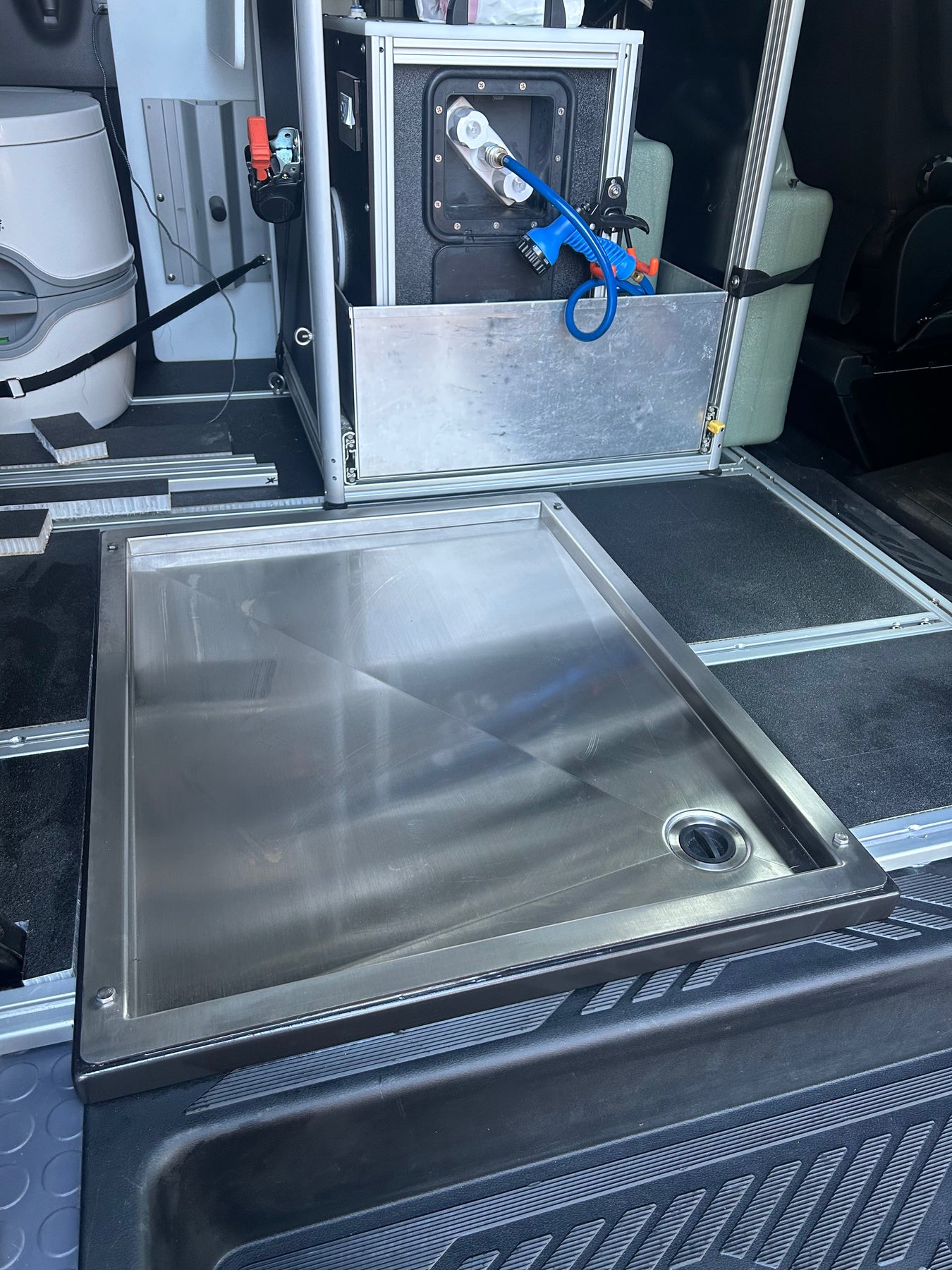

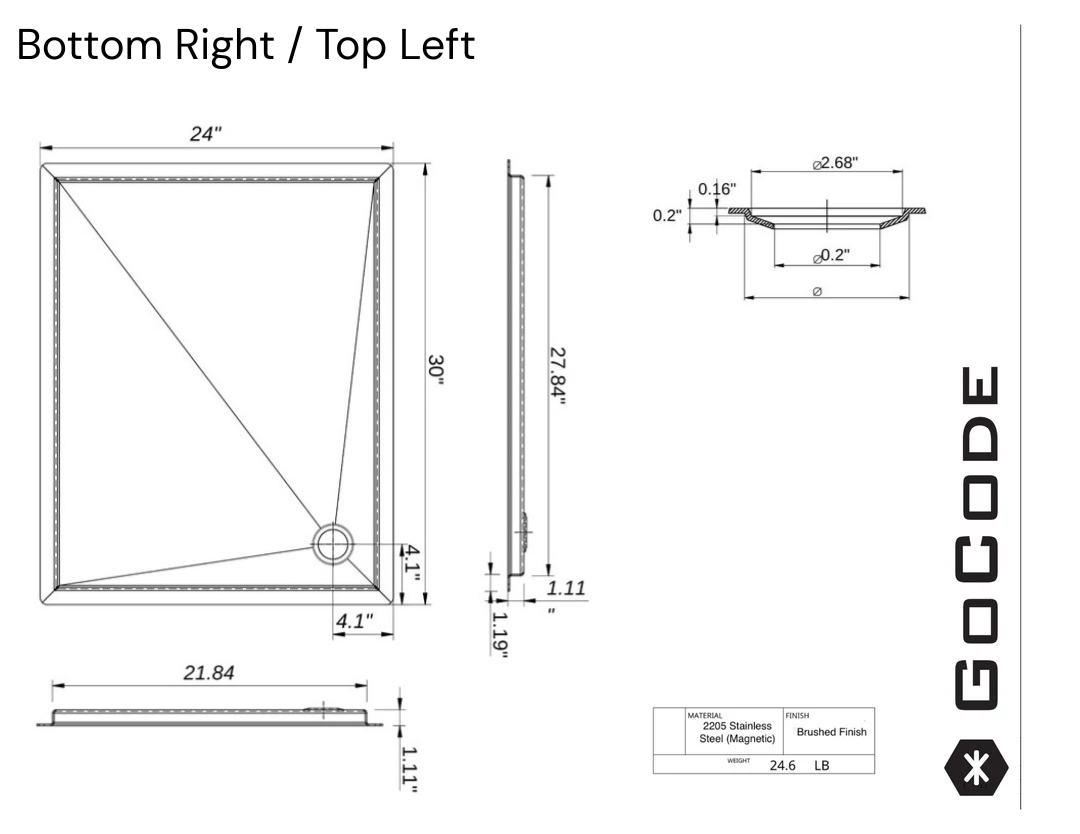

Bottom Right / Top Left

Bottom Left / Top Right

About the Product

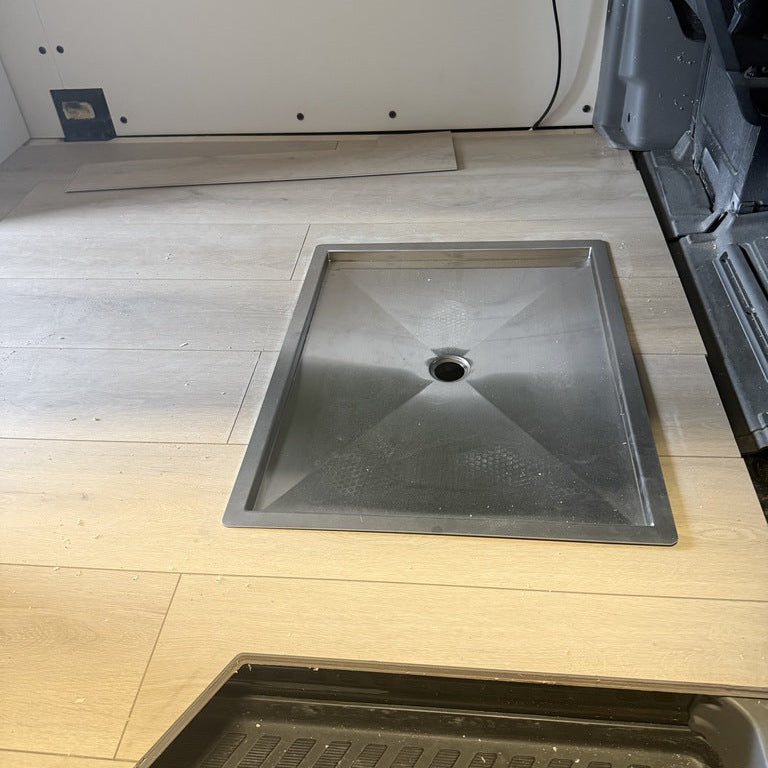

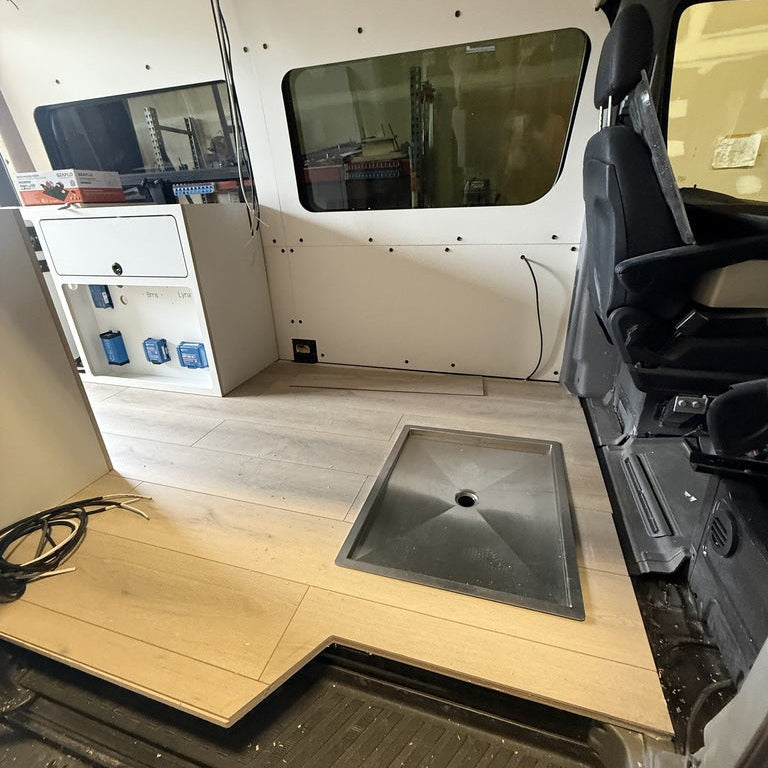

The In-Floor Shower Pan recesses flush into your van floor — out of the way and hidden in plain sight until you need it. A cross break in the bottom directs water to the center drain, and the magnetic brushed stainless steel construction means your shower curtain seals directly to the pan edge without clips or tracks. A straightforward alternative to the Folding Shower for builders who want a permanent, low-profile shower footprint.

Features

Recesses into your floor surface — sits just over 1" below floor level, maximizing headroom
Cross break bottom directs water to center drain
Brushed magnetic 2205 stainless steel — shower curtain magnets attach directly to pan edge

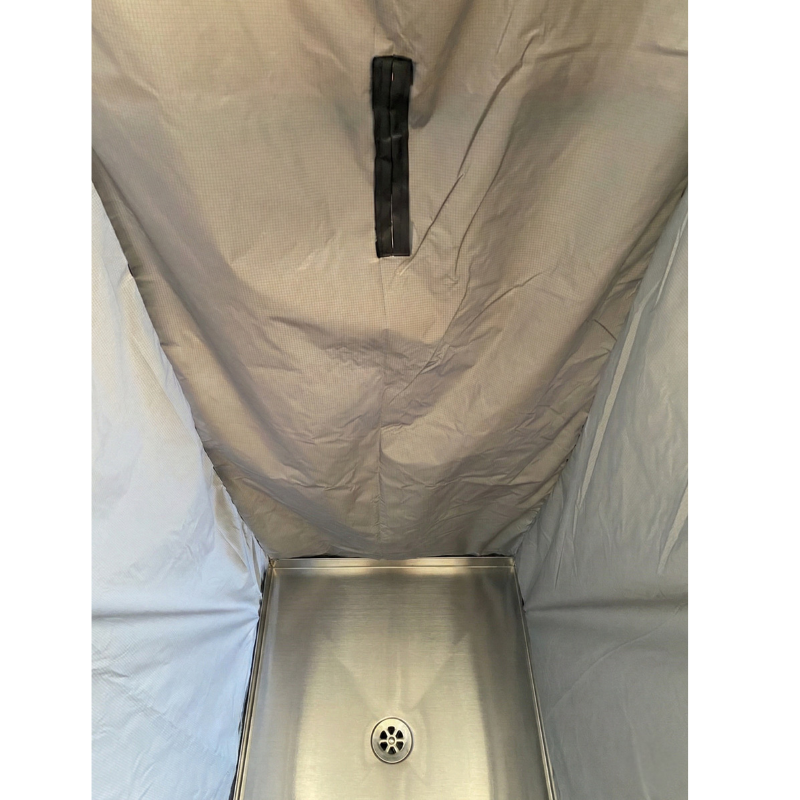

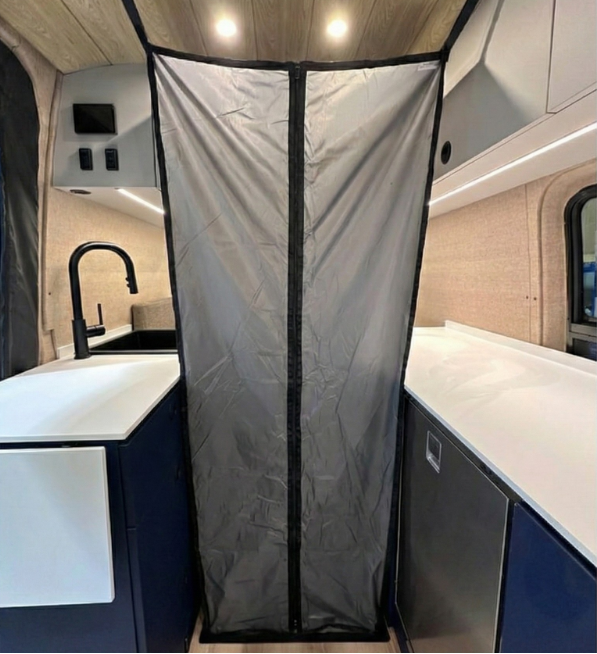

Compatible with the Tetravan Universal Shower Curtain — 3/8" tall magnets seal to inside pan edges, zippered front entry, widens to 30"+ at shoulder height, 71" tall
Curtain height extendable to roof height with 6" extenders
Center drain with included 1-1/2" threaded straight drain fitting
Additional drain position options available

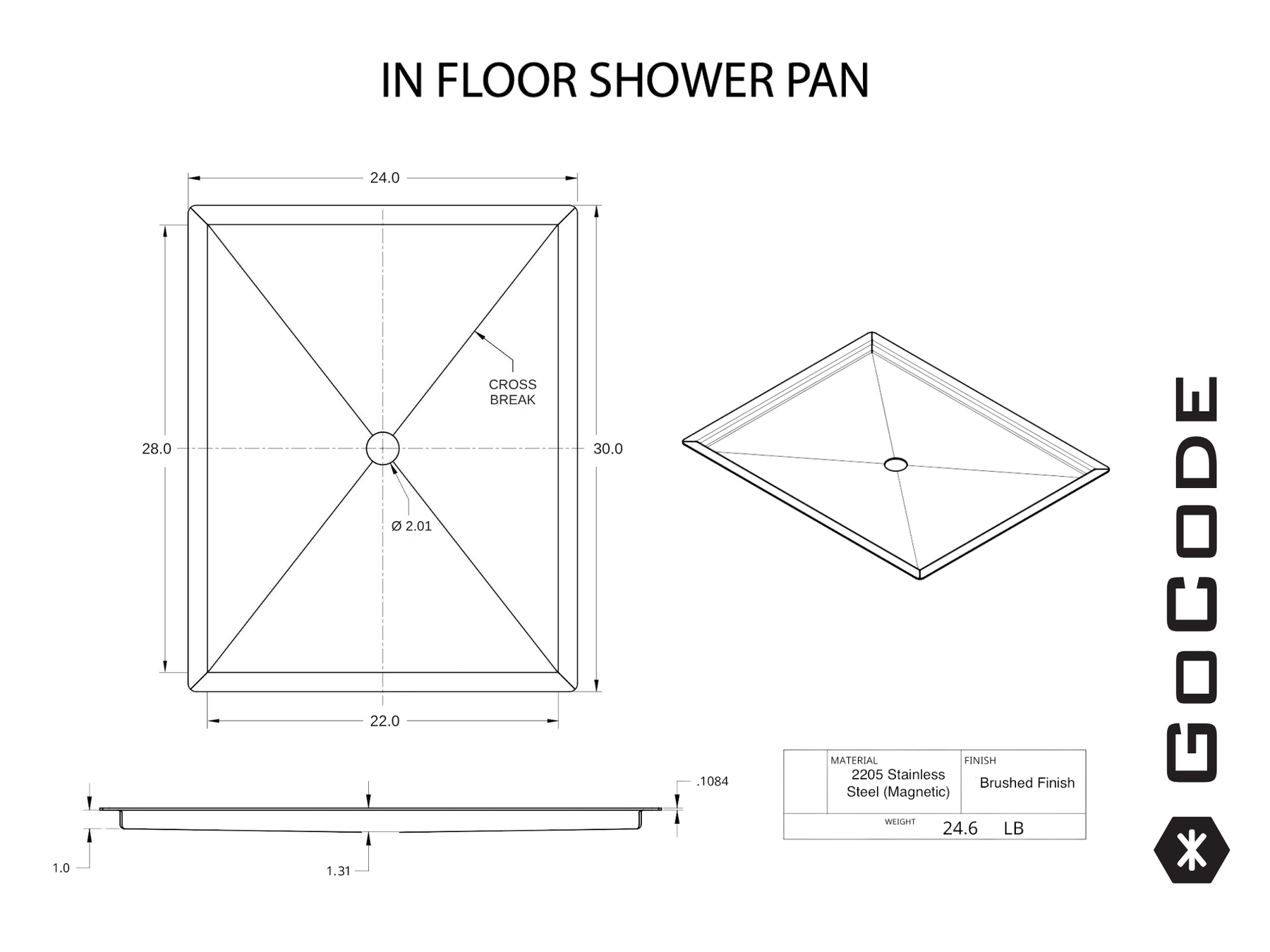

Dimensions

Overall: 30" x 24"
Interior (recessed area): 28" x 22"
Depth: 1.31"
Flange Width: 1"
Center Drain Diameter: 2.01"
Weight: 24.6 lb
Material: 2205 Stainless Steel (Magnetic), Brushed Finish

What's Included

In-Floor Shower Pan (brushed stainless steel)
1-1/2" threaded straight drain fitting

Compatibility

Compatible with any van, trailer, or RV build with adequate subfloor depth
Requires minimum 1.3" subfloor depth
Compatible with Universal Shower Curtain (sold separately)
ProMaster builders: the ProMaster sits stock-sloped downward in the front — a leveling kit is required for proper drainage

Installation Notes

Van must be level for proper drainage. ProMaster owners will need a leveling kit before install.
Recommended install: adhesive on underside of flange plus at least 1" countersunk screws through flange into subfloor.

Shipping & Lead Times

Ships in 1-2 business days

Resources

Need Help? Not sure about your van's configuration or want to order individual pieces? Contact us, we're happy to help.
