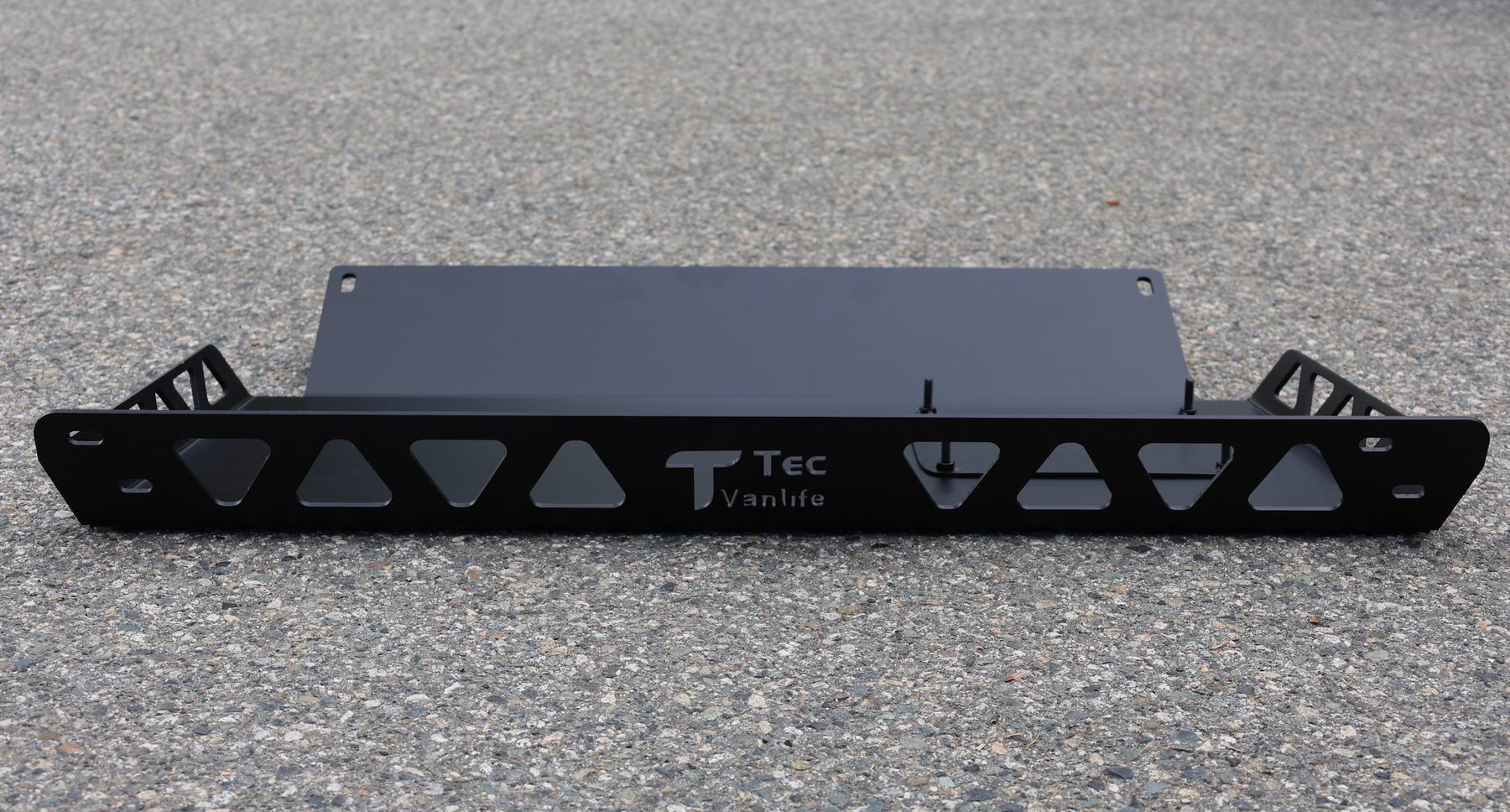

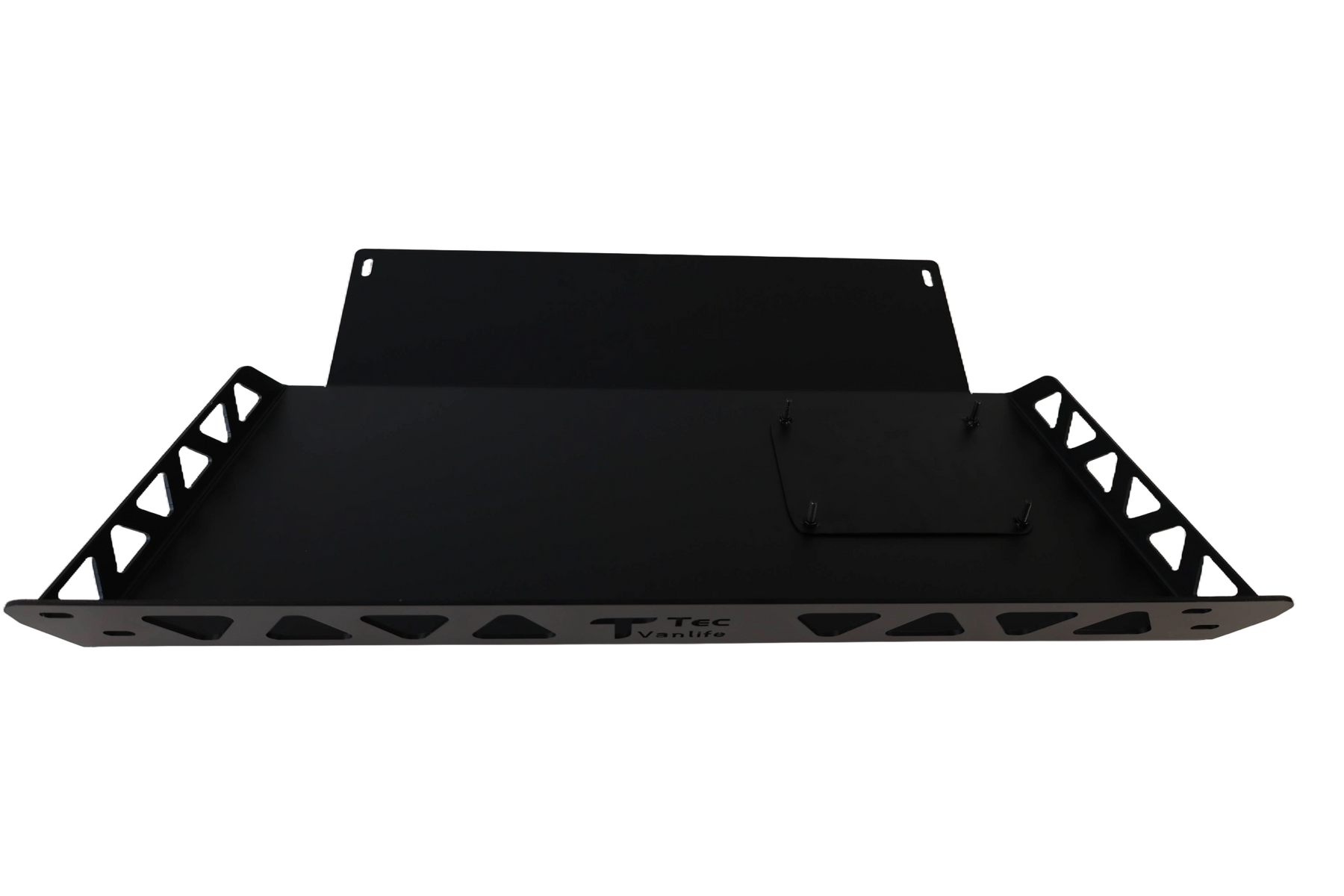

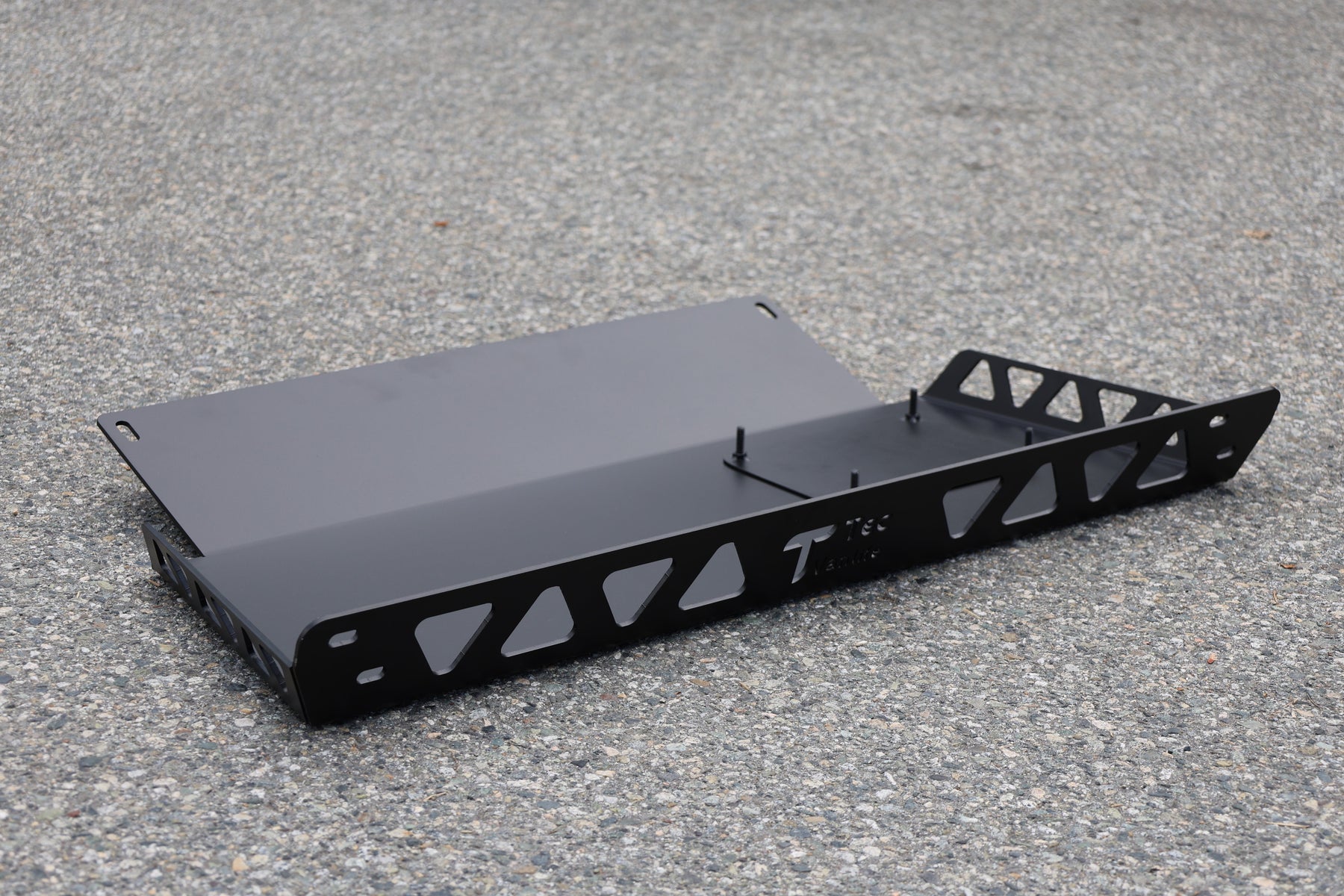

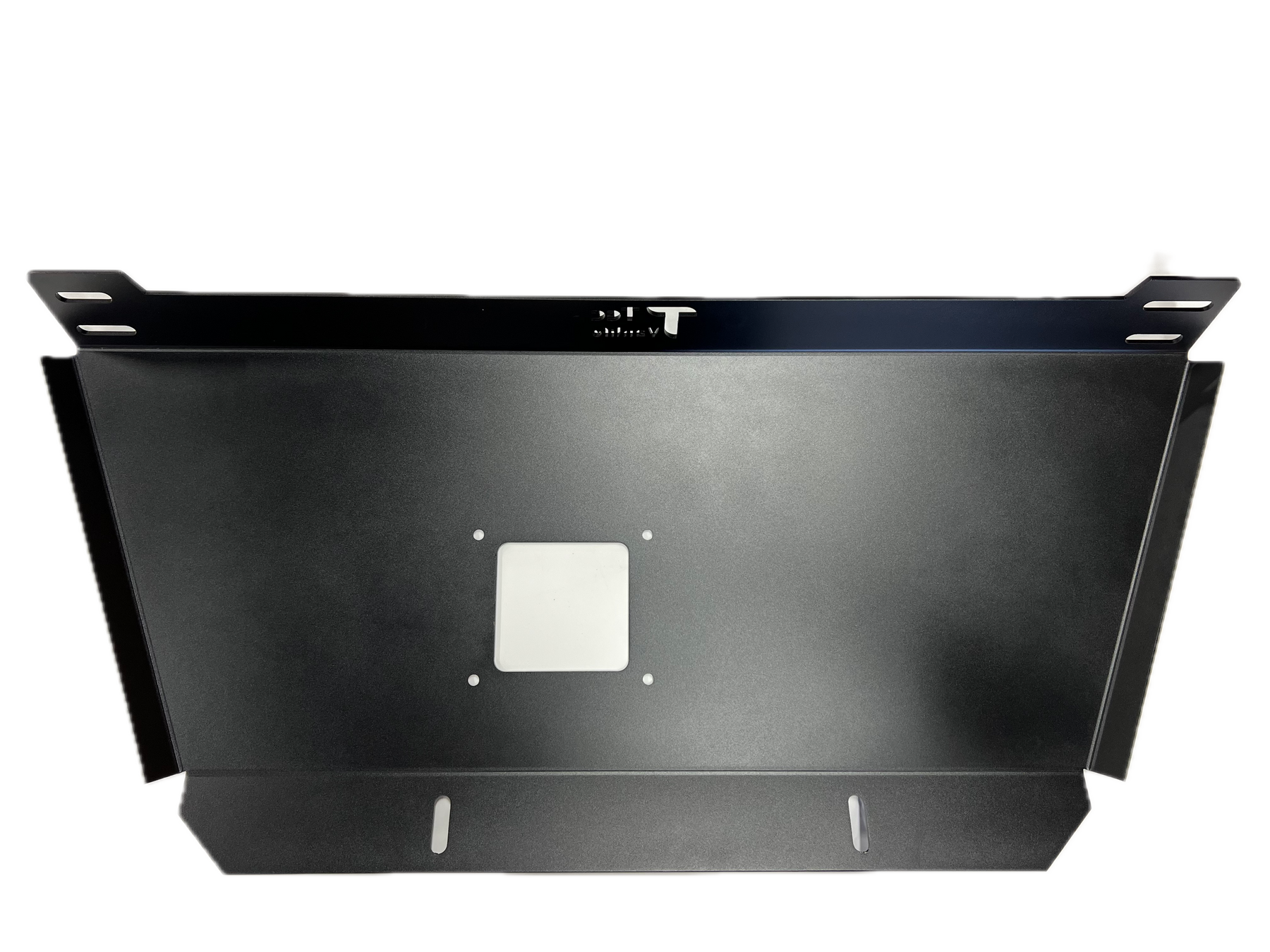

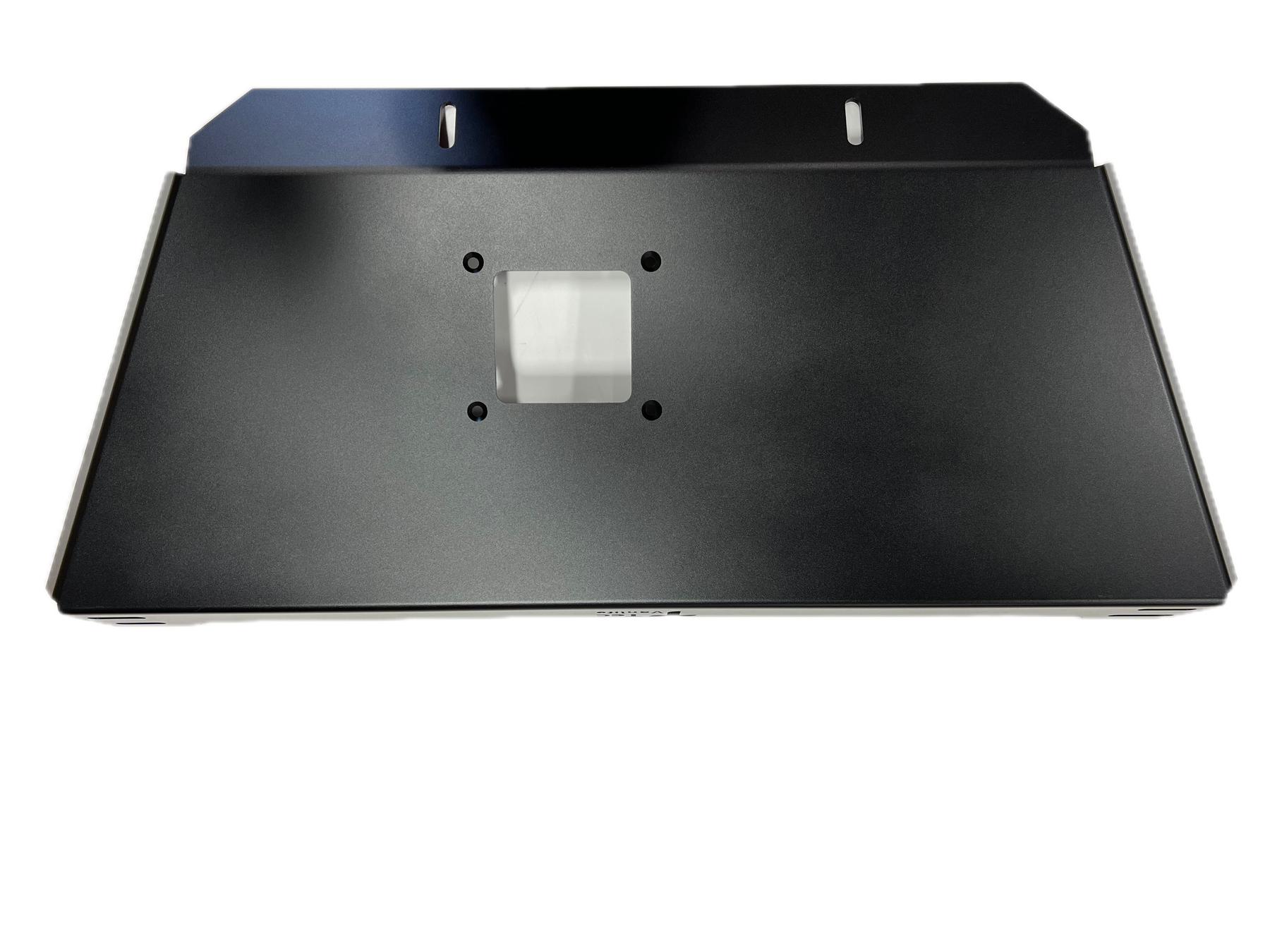

Sprinter Engine Skid Plate 2019+

-FREE Shipping to Lower 48 states.

TEC Features:

• High-Strength Aluminum: Made from 3/16" thick high-strength aluminum, this skid plate provides superior durability and protection while maintaining a lightweight profile.
• Comprehensive Protection: Shields the oil pan, power steering rack, and subframe from rocks, logs, roots, snow, ice, and all types of debris, ensuring your vehicle remains in top condition.
• Corrosion Resistance: The aluminum construction offers excellent corrosion resistance, prolonging the life of the skid plate and maintaining its protective qualities.
• Compatibility: Specifically designed to fit 2019+ Sprinter models, including both 4x4 and AWD variants, ensuring a precise fit and seamless integration with your vehicle.
• Lightweight Design: The lightweight nature of aluminum ensures minimal impact on your vehicle's performance and fuel efficiency.
• Easy Installation: Engineered for straightforward installation, allowing you to enhance your vehicle's protection quickly and easily without professional assistance.

TEC Specs:

• Dimension: 41" x 23 1/4" x 4"
• Thickness: 3/16"
• Weight per unit: 18.6 lbs

Installation Instructions:

1. Prep the Van

• • Park on a level surface and engage the parking brake.
  • Raise the front of the van with a jack and secure it with jack stands, or use a lift for easier access.

2. Front Mounting – Factory Bolt Points

• • Lift the skid plate into position under the engine bay.
  • Align the front holes of the skid plate with the pre-threaded factory frame holes on the front crossmember.
  • Insert factory bolts (or reuse existing bolts if removed).
  • Hand-tighten to hold in place.

3. Rear Mounting – Suspension Subframe

• • Align the rear holes of the skid plate to the factory holes near the lower control arm/suspension area:

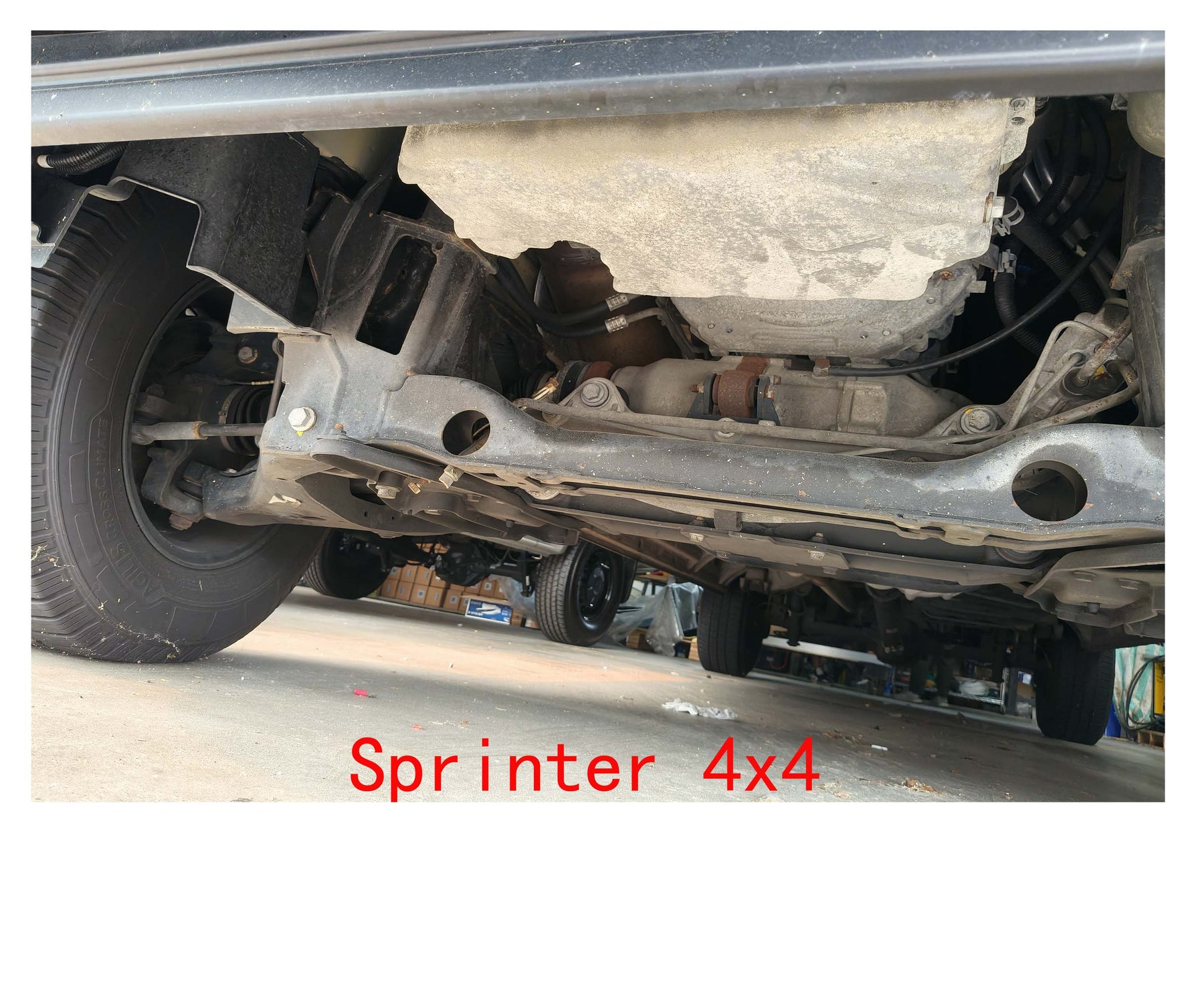

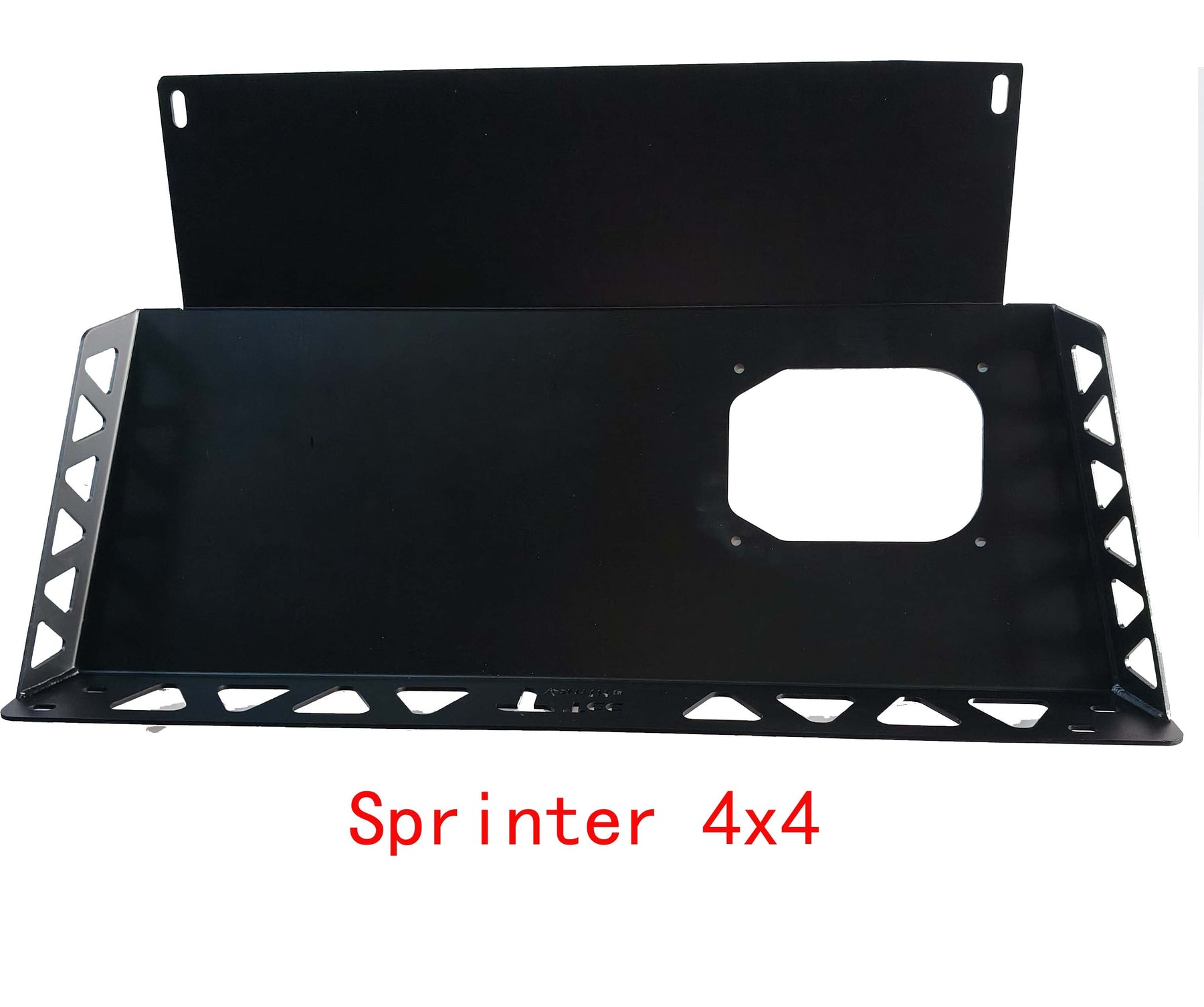

  •  4x4 Sprinter (2019–2022): Rear bolt holes sit wider apart.

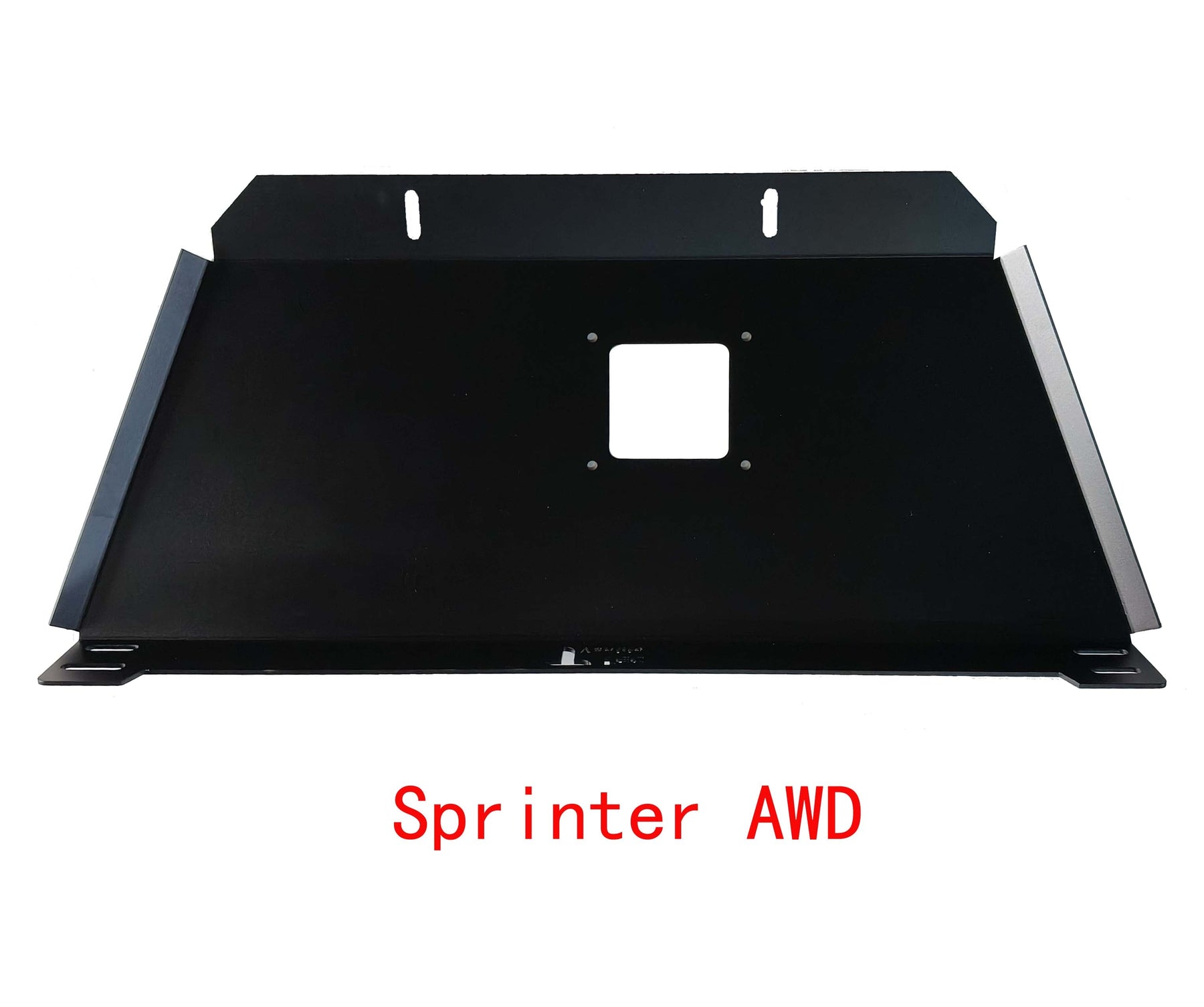

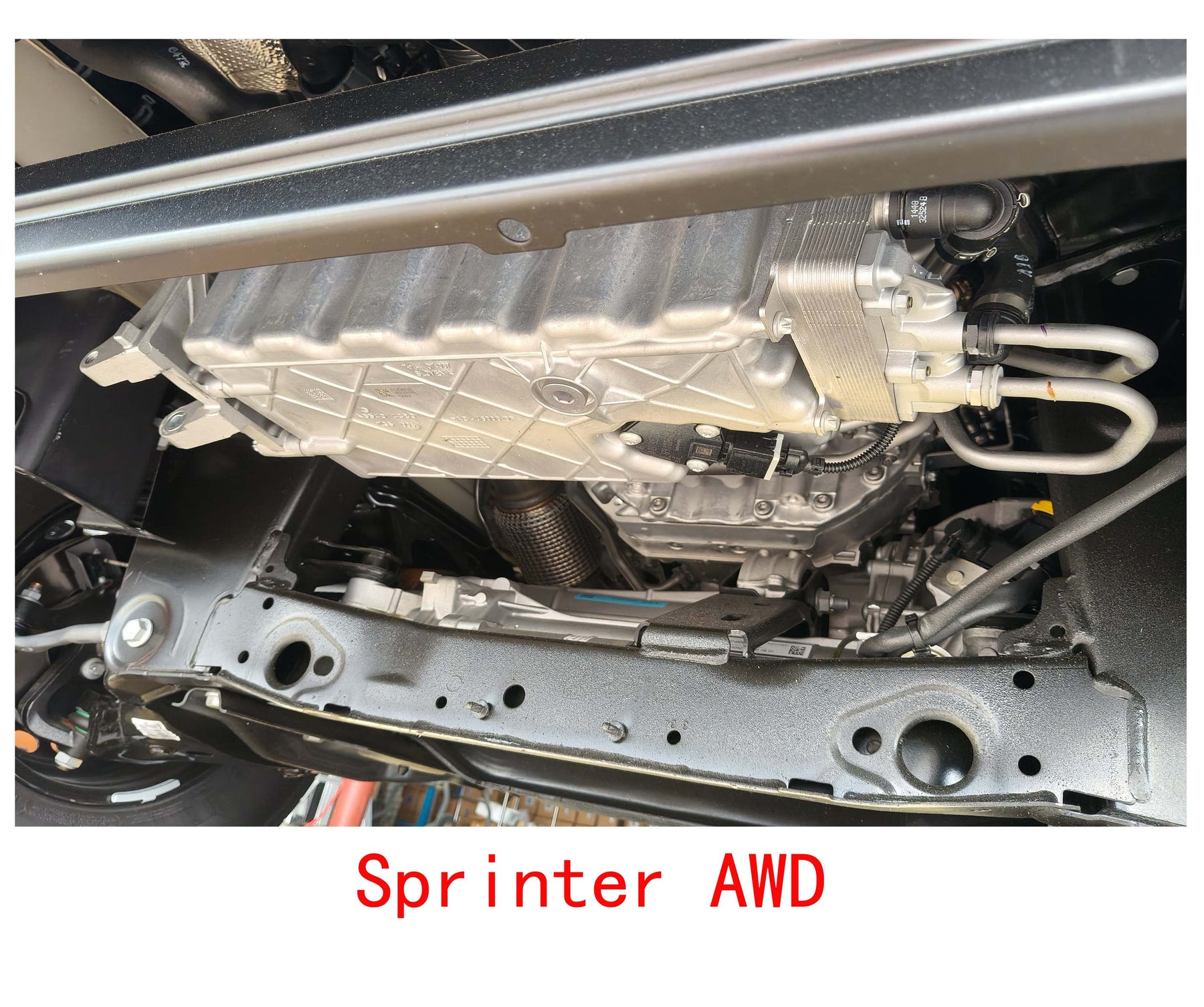

  •  AWD Sprinter (2023+): Rear bolt holes are closer together and slightly forward.
  • Insert the two included bolts into these rear frame points.
  • Hand-tighten initially.

4. Final Torque

• • Verify the skid plate is centered and flush against the frame.
  • Torque all bolts (front and rear) to 30–35 ft-lbs.
  • Recheck after your first off-road trip or 100–200 km.

Notes:

• • No drilling, trimming, or bracket installation required.
  • Compatible with stock engine splash guards and aftermarket lift kits.
  • Designed to protect oil pan, crossmember, and steering components.

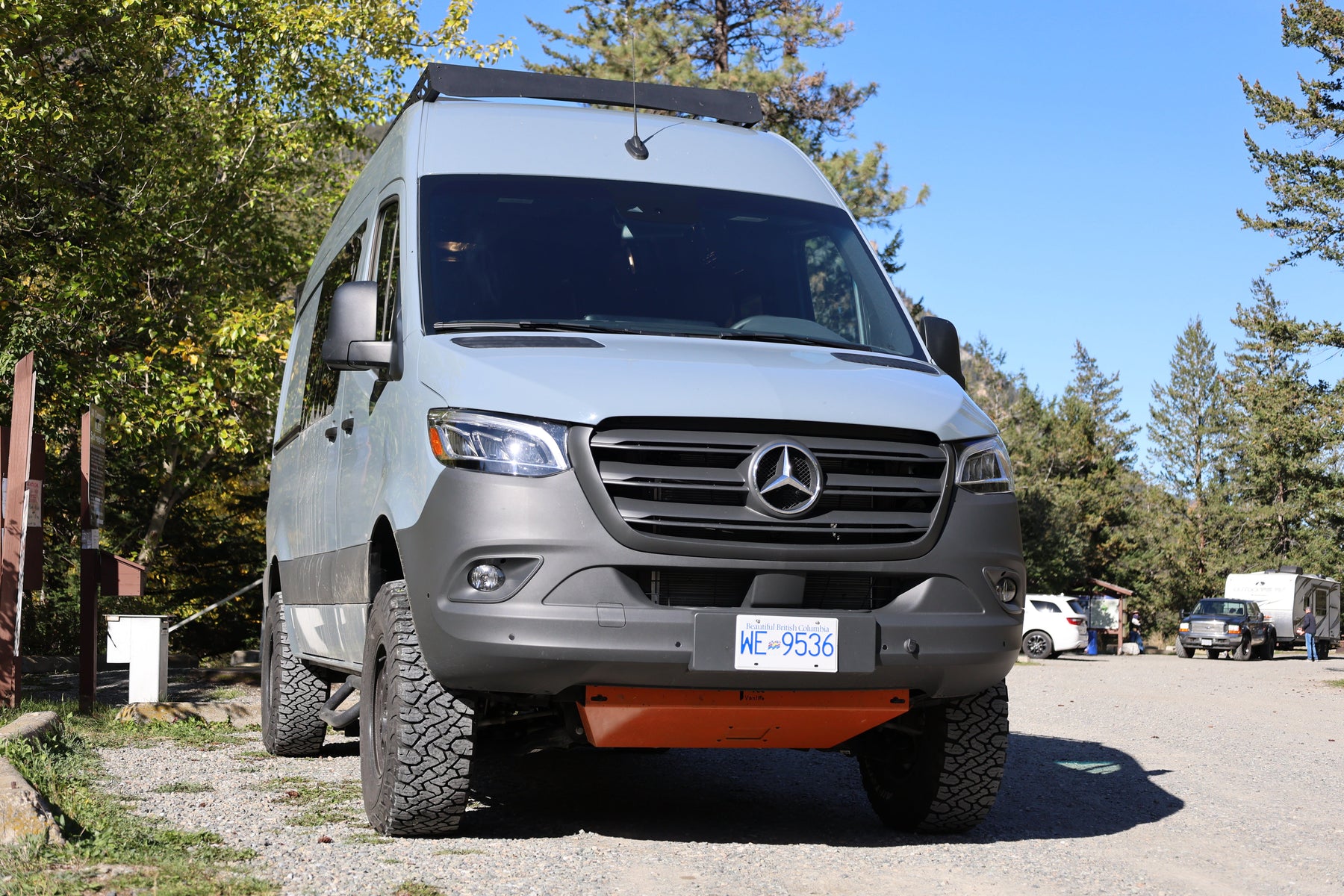

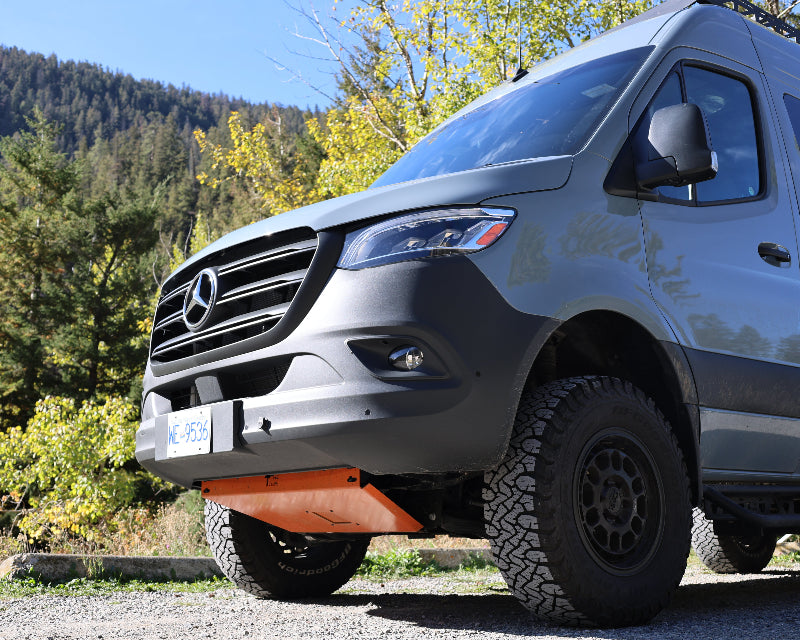

Upgrade your Sprinter's protection with the Sprinter Engine Skid Plate, meticulously crafted from 3/16" thick high-strength, lightweight aluminum. Designed to safeguard your vehicle's engine and essential components, this skid plate is the ultimate shield against tough terrain and road debris.

Equip your 2019+ Sprinter with our Engine Skid Plate and drive with confidence, knowing your engine and critical components are protected by high-strength, lightweight aluminum. Whether tackling rugged trails or navigating daily roads, ensure your Sprinter is ready for any challenge.
