NW Conversions 24 Gallon Ford Transit Spare Tire Tank (TR-ST-24)
About the Product
Free up your spare tire space for water storage, with all mounting hardware included. Purpose-built to fit the Ford Transit's factory spare tire location, using the supplied mounting hardware for a secure, clean install. Relocate your spare to the rear door to add substantial water storage without giving up living space. Works for both fresh water and grey water applications. Made in the USA by GoCode.
Features
Specifications

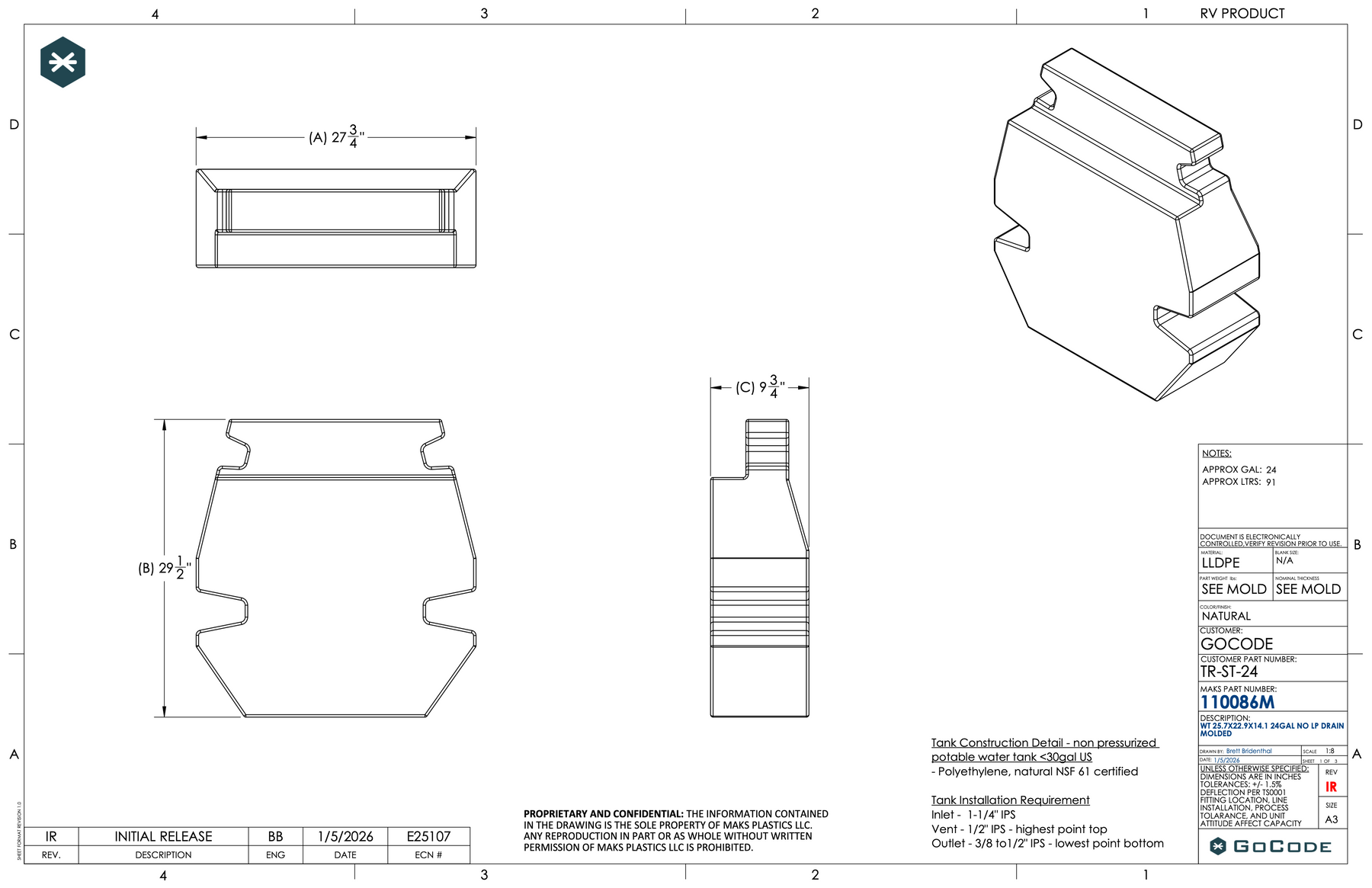

- 30" L x 28" W x 9.75" H (approx.)
- Capacity: 24 gallons
- Weight: 34 lbs (empty)
- Water use: Fresh water or grey water
- System type: Non-pressurized, must be vented
- Recommended sensor: KUS 154009F, 9" (1.5" NPT threaded)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade polyethylene
- IAPMO TS-4 / TEI Listed / RVIA Approved
- Made in the USA
- TEi listed and RVIA approved

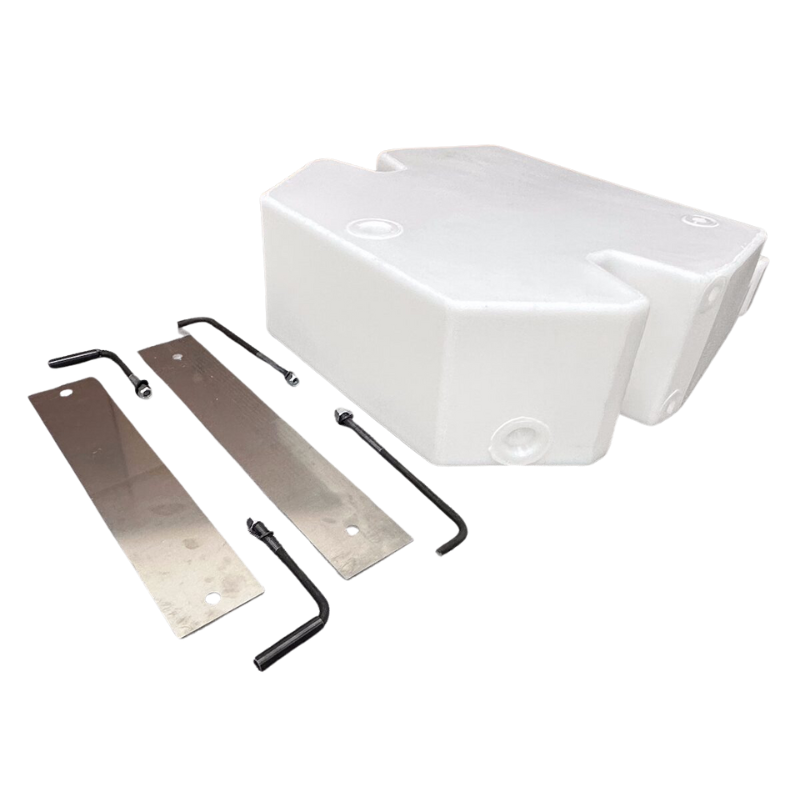

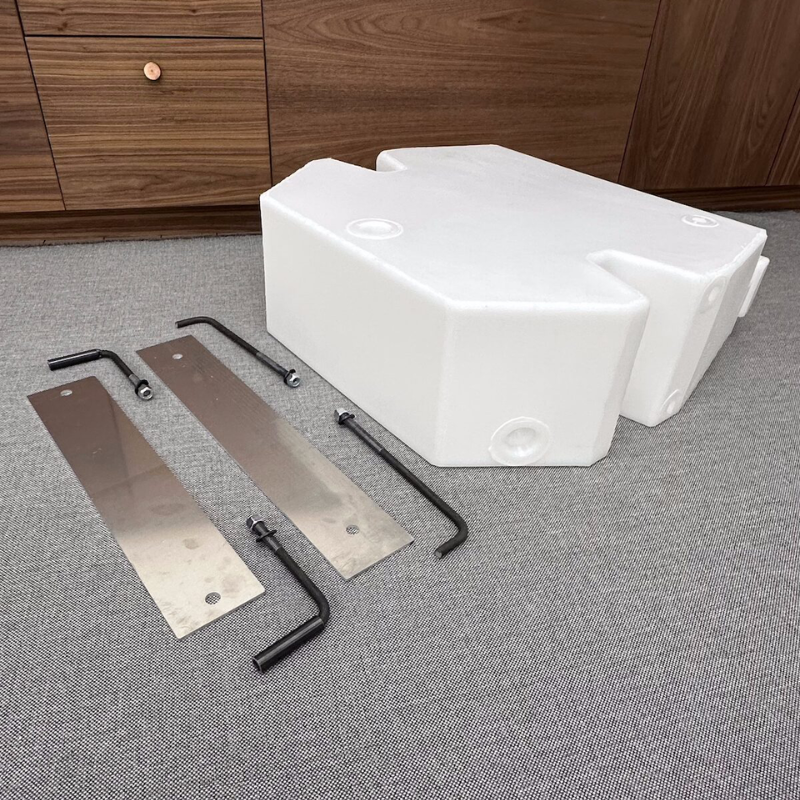

What's Included
- Water Tank
- 1/2" mounting hardware and plates included
Ports & Plumbing
- Driver side: (2) 1.5" NPT + (2) 1/2" NPT
- Top: (1) 1.5" NPT + (1) 1/2" NPT (float sensor or vent)
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Compatibility

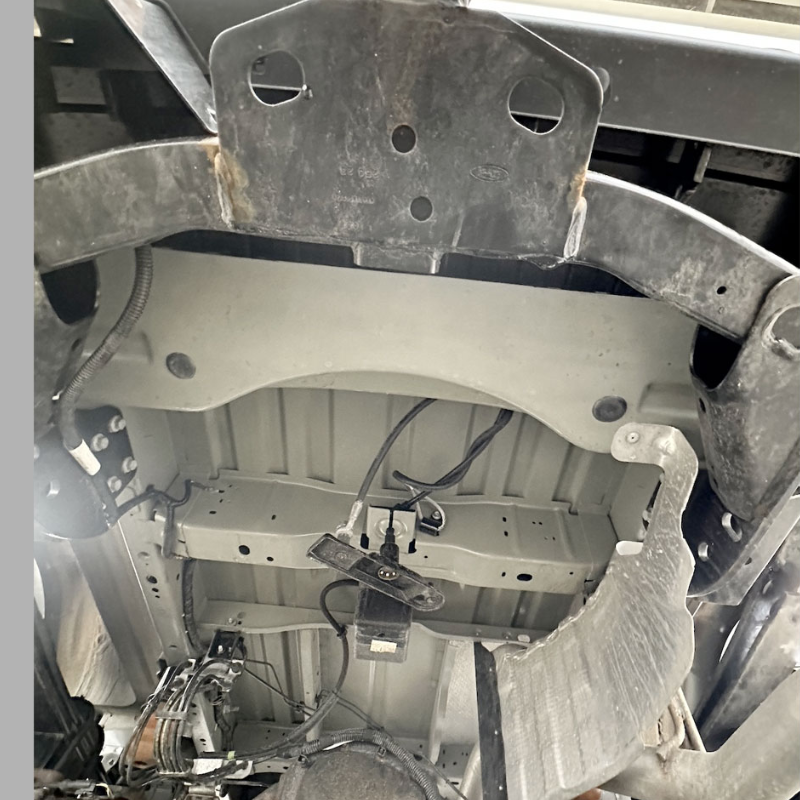

- Ford Transit (2007-present), spare tire location
- May fit other makes and models, confirm dimensions before ordering
