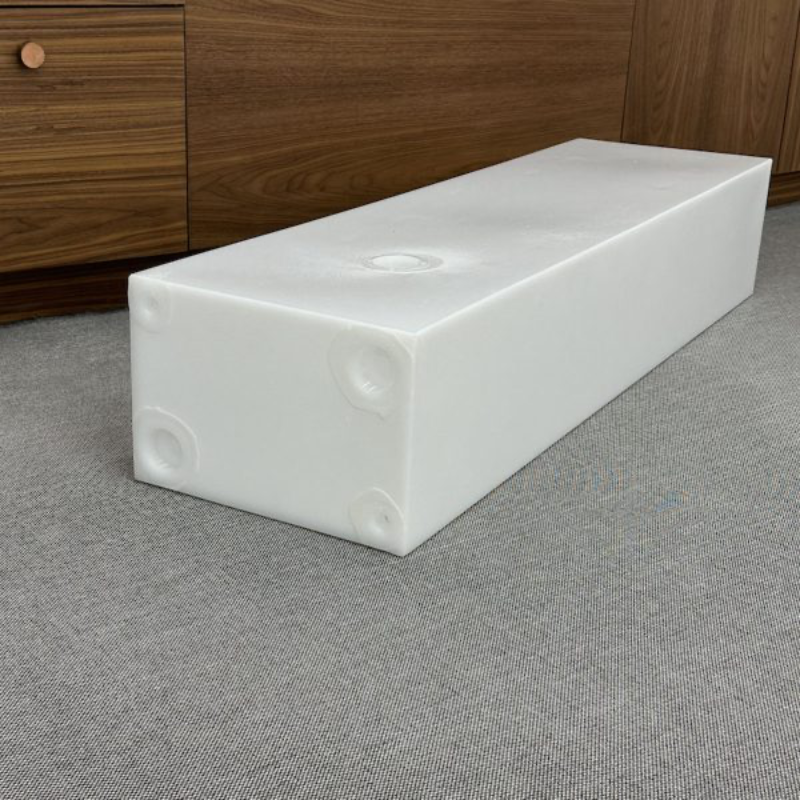

NW Conversions 20 Gallon Driver Side Transit Undercarriage Water Tank (TR-UC-20)
About the Product

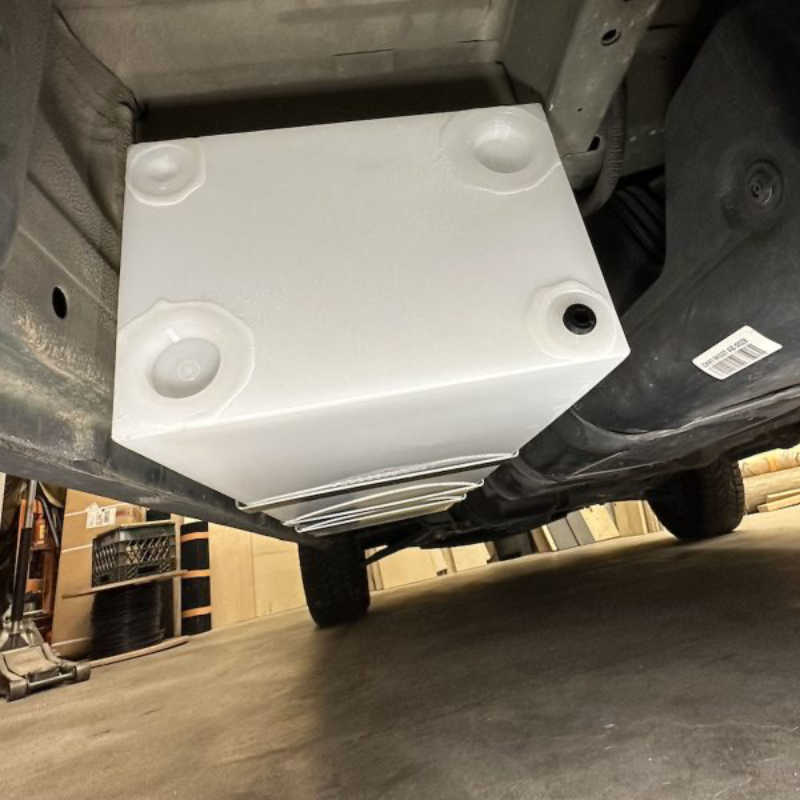

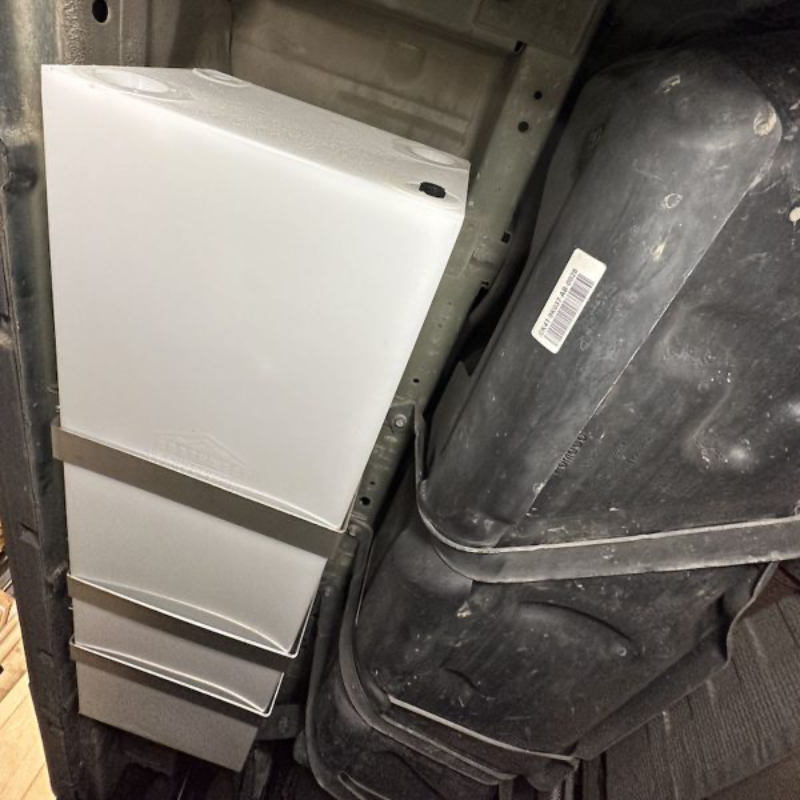

Maximize your Transit's water capacity with a driver-side undercarriage tank that uses your existing fuel strap bolt locations. Mounts under the driver side of your Ford Transit, next to the OEM fuel tank, using existing fuel strap mounting points to minimize drilling. Suitable for fresh or grey water, sized to give serious water capacity without compromising your interior layout. Made in the USA by GoCode.
⚠️ May NOT fit Transit vans with a rear passenger heater or AC unit due to heater lines in the mounting bay. Consider the TR-UC-16 if your van has this option.
Features
Specifications

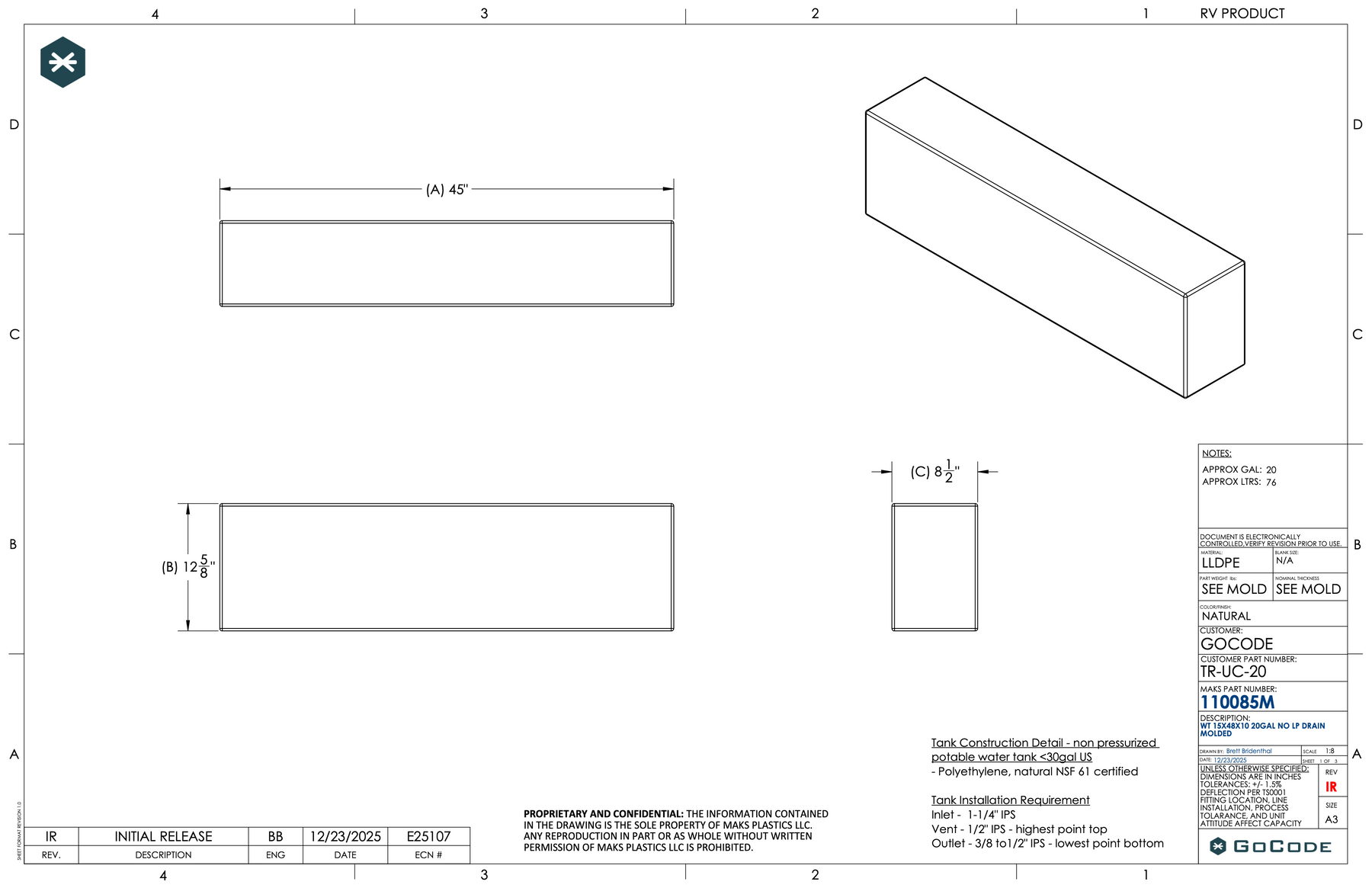

- 45" L x 12.75" W x 8.5" H
- Capacity: 20 gallons
- Weight: 23 lbs
- System type: Non-pressurized, must be vented
- Recommended sensor: KUS 154008F, 8" (1.5" NPT threaded). If out of stock, KUS 154007F (7") works as a substitute.
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade polyethylene
- IAPMO TS-4 / TEI Listed / RVIA Approved
- Made in the USA

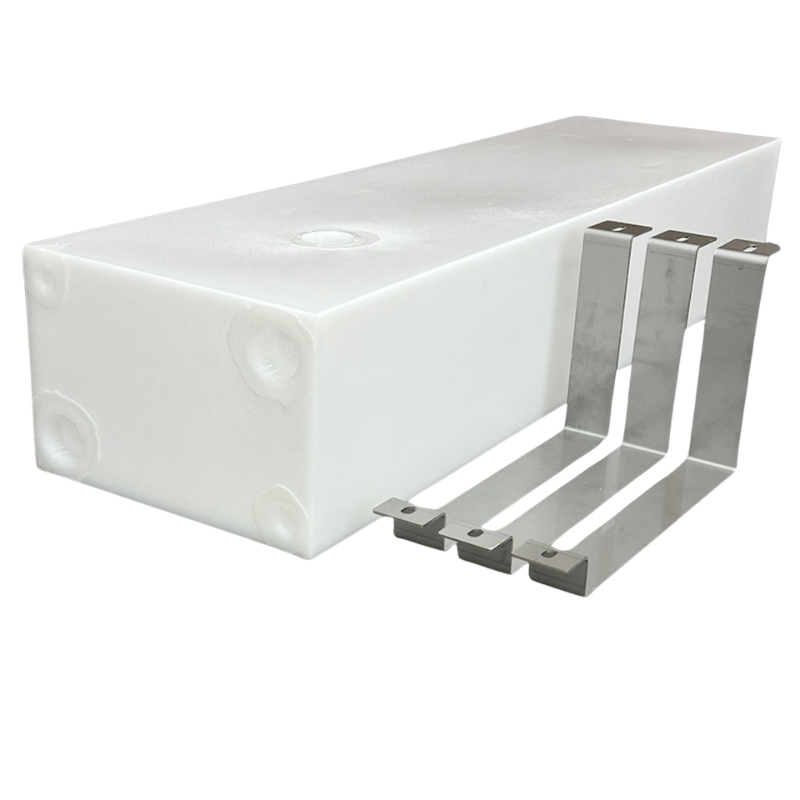

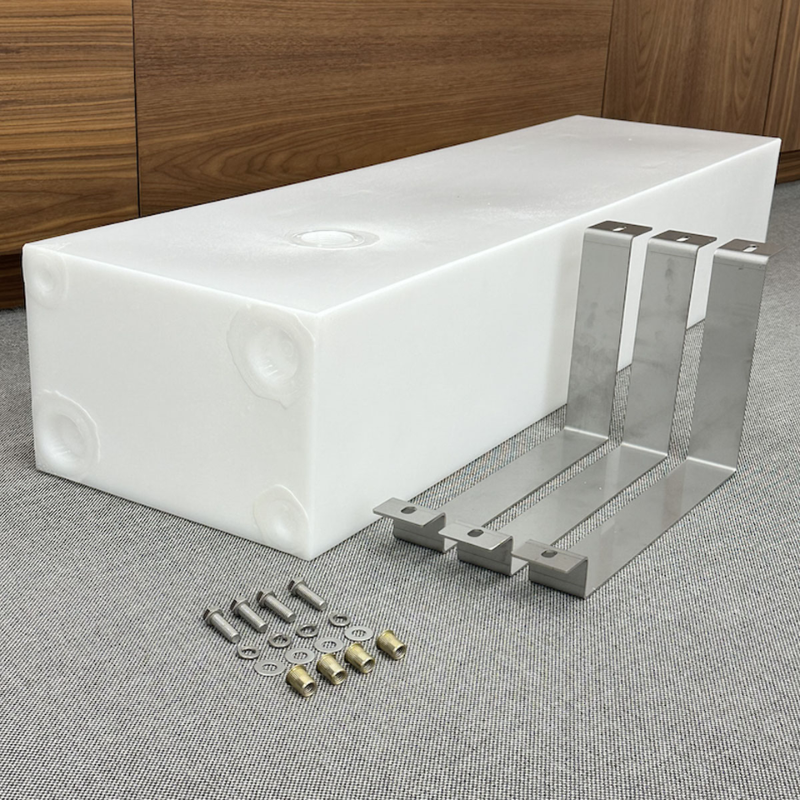

What's Included
- Water Tank
- (3) stainless steel laser-cut mounting straps
- Stainless 3/8" hardware and 3/8" rivnuts
- Note: rivnut tool required, not included
Ports & Plumbing
- (2) 1.5" NPT + (2) 1/2" NPT on rear-facing end
- (1) 1.5" NPT port on top
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Compatibility
- Ford Transit 148" / 148" EXT (2014-present)
- Driver side undercarriage, next to fuel tank
- ⚠️ Does NOT fit vans with factory running boards or rear passenger heater/AC unit. Confirm clearance before ordering.
