Typically ships in 7-10 business days. Free Shipping to all lower 48 US states!

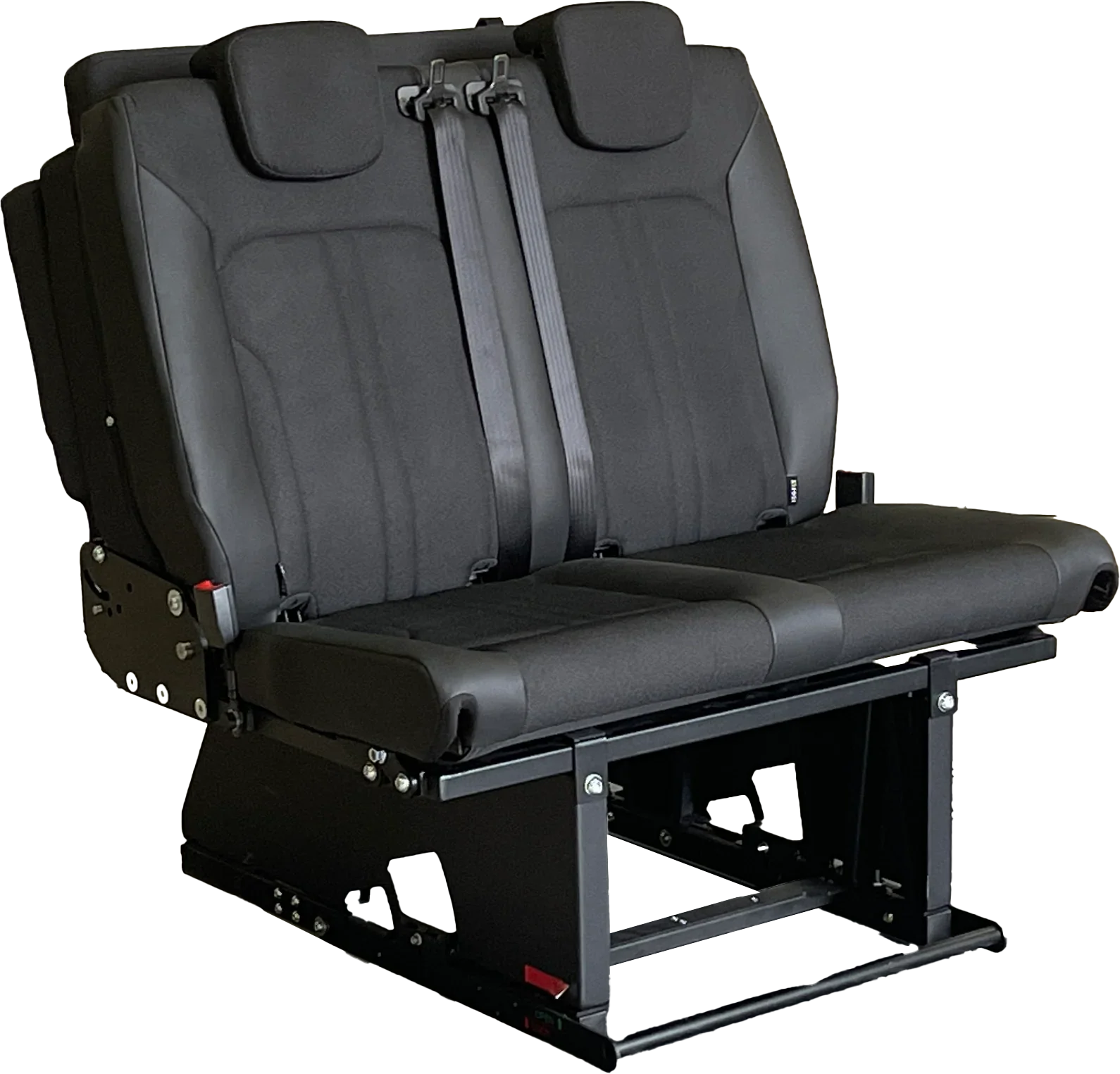

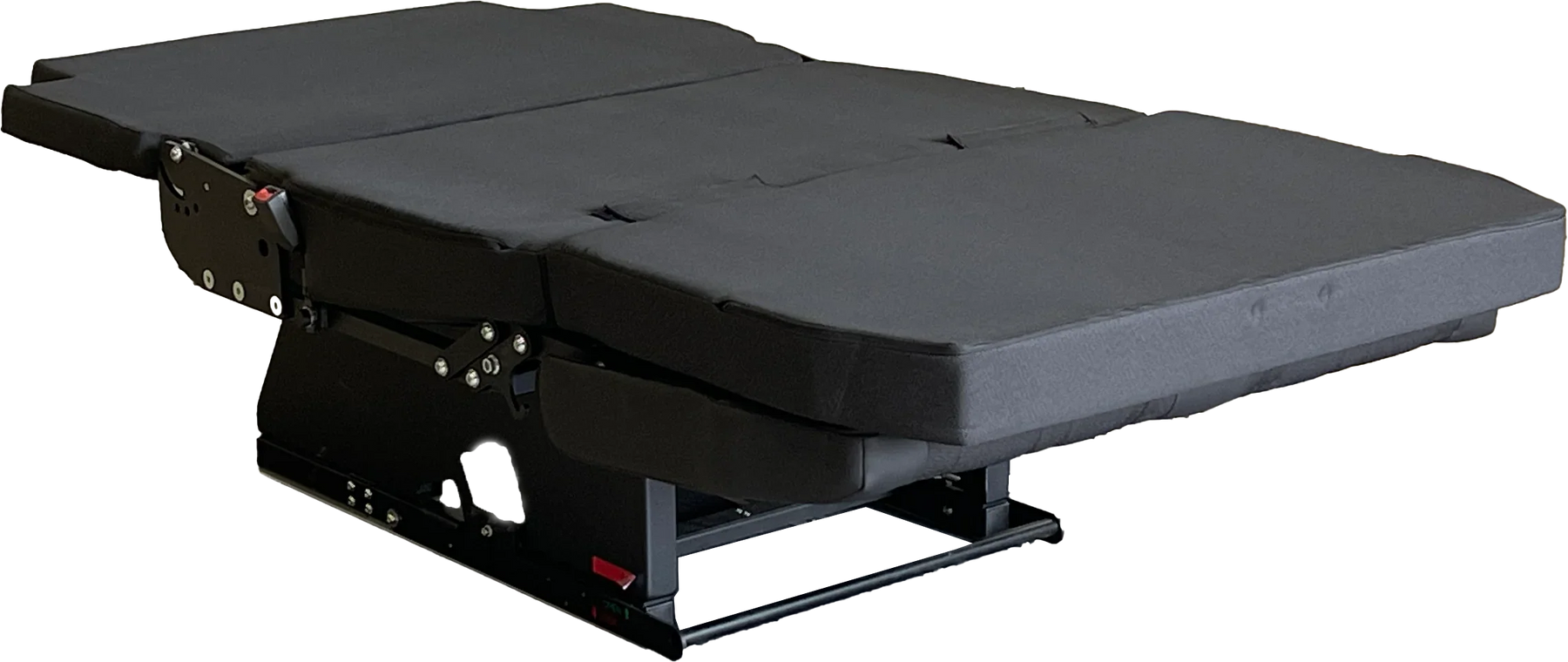

MobiFrame SAF42/43 seat beds are versatile, comfortable, easy to use, and most importantly, they are safe and fully NHTSA-certified. Subjected to intensive testing, these seat beds meet all safety certifications in North America including the stringent FMVSS/CMVSS 207/210 regulations, while providing a comfortable seat for traveling and upon arrival, an equally comfortable bed. These seats are available in three seat widths, but all are the same length, giving you a comfortable 6' 3" bed length when fully deployed.
These seat beds can be mounted in either of two ways:
-
SafeTrack Seatbed Bracket - This bracket (sold separately) can allow for mounting of a these camper van bench seat/beds into any vehicle with the vertical clearance and enough surface area - make sure you add the Install Plate option if you are using this install method.
-

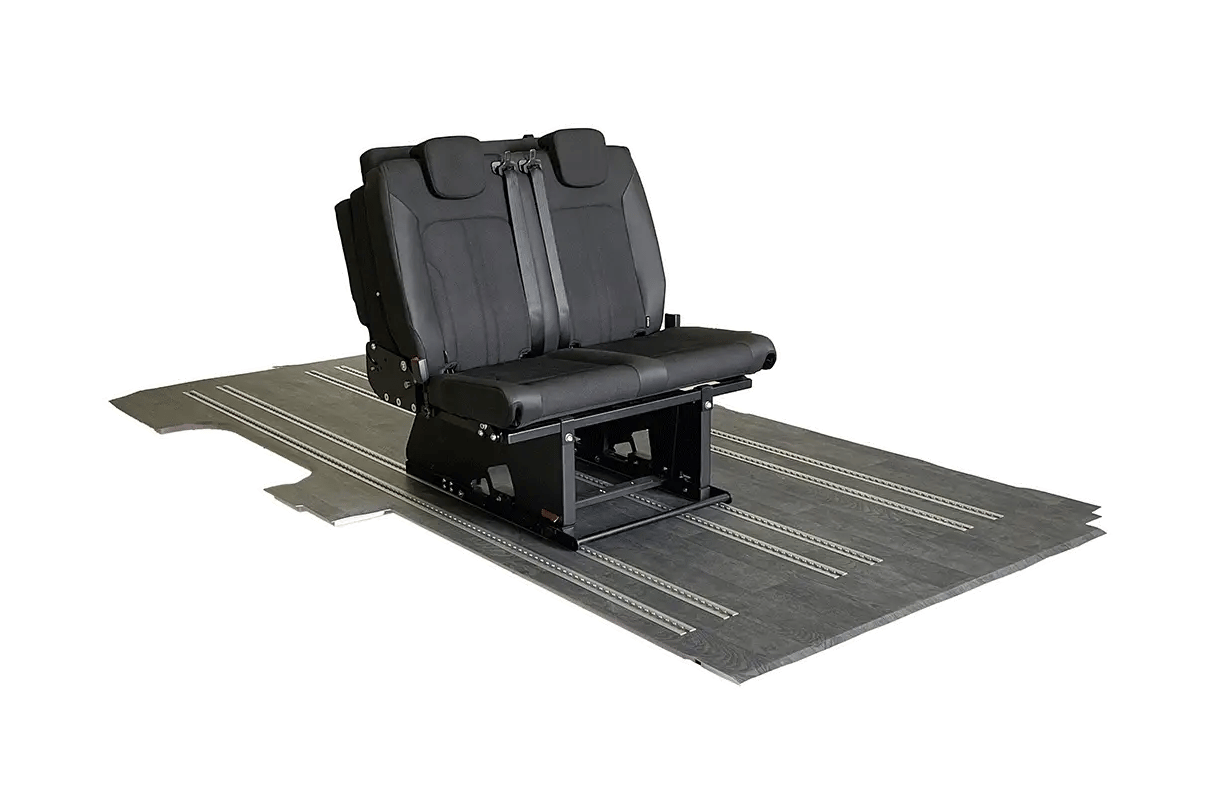

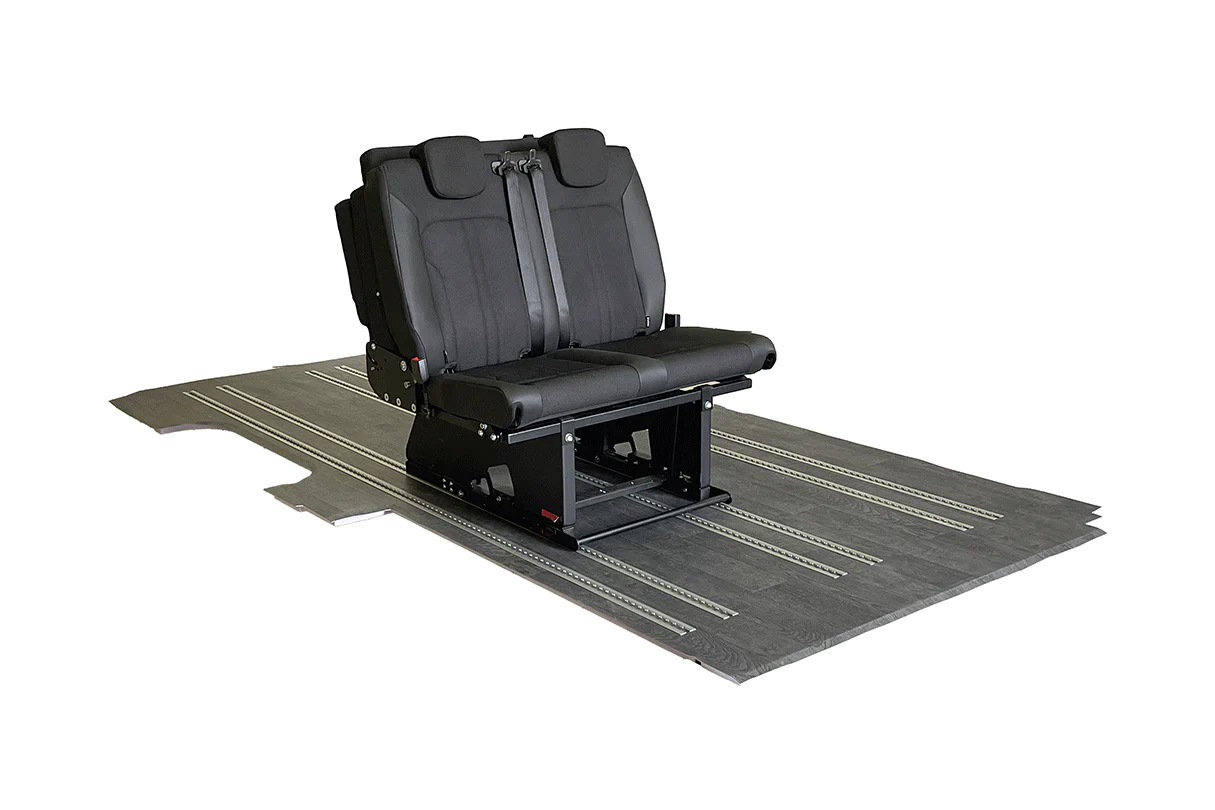

SafeTrack Flooring System - When these MobiFrame bench seat/beds are paired with SafeTrack Flooring Systems (sold separately) for vans, these Seatbeds become even more versatile and can glide from one end of the van to the other with ease.
Key Features: MobiFrame SAF42/43 Seat Bed
- Multiple reclining positions including upright to fully horizontal
- Multiple size choices - use the drop-down to select seat width (all seat beds are the same length when folded flat, 75.6 inches (192cm))
- Tab and lever for easy configuration transition
-
ISOFIX and top tether anchor points for child seats
- Adjustable headrests
- 3-point seat belts
- Spring-loaded arm for easy gliding and locking into place
- Contoured seat cushions
- Extra padding for comfortable bed configuration
- Additional storage possible underneath including lockable drawer and soft-sided bags
- Standard black upholstery.

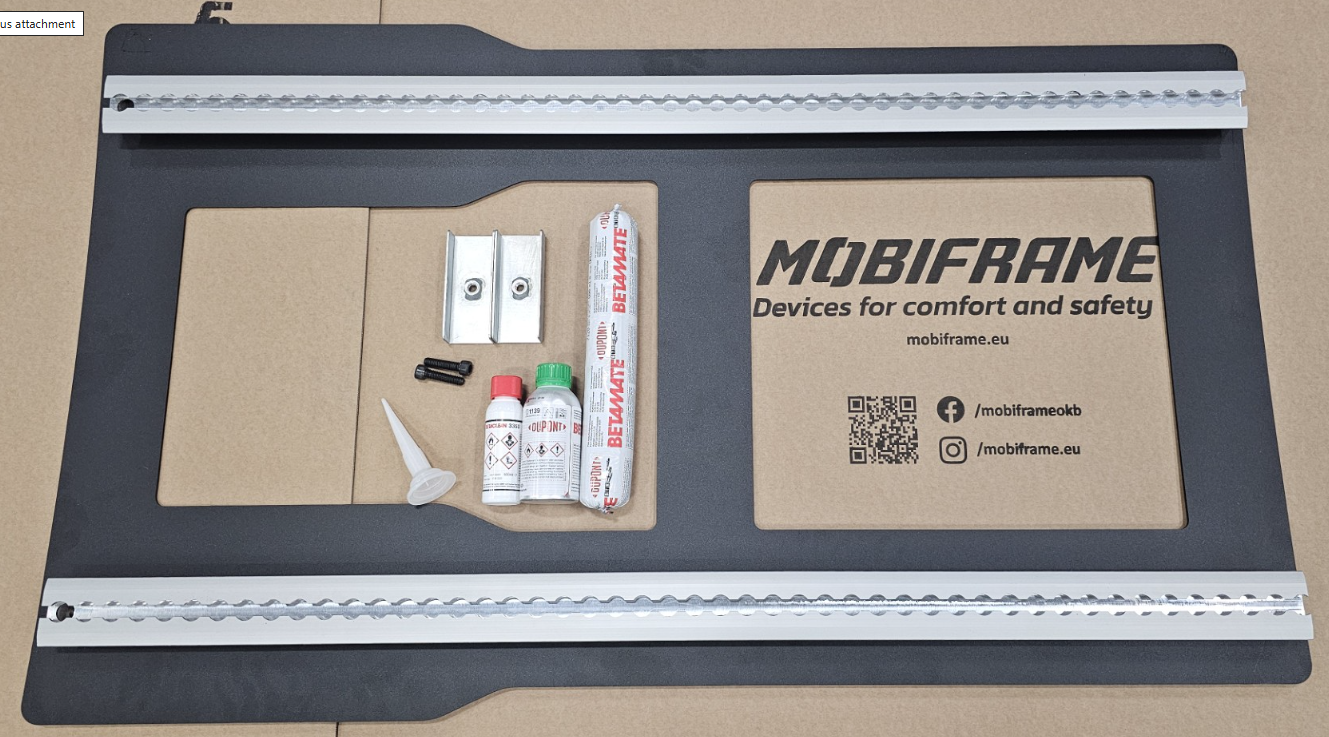

The Install Plate option includes adhesive, primer, and mounting hardware that is required for proper installation. If you do not have a MobiFrame 2007+ Mercedes Sprinter Floor System, this mounting plate is required.
Documents: MobiFrame Seatbed SAF42/43

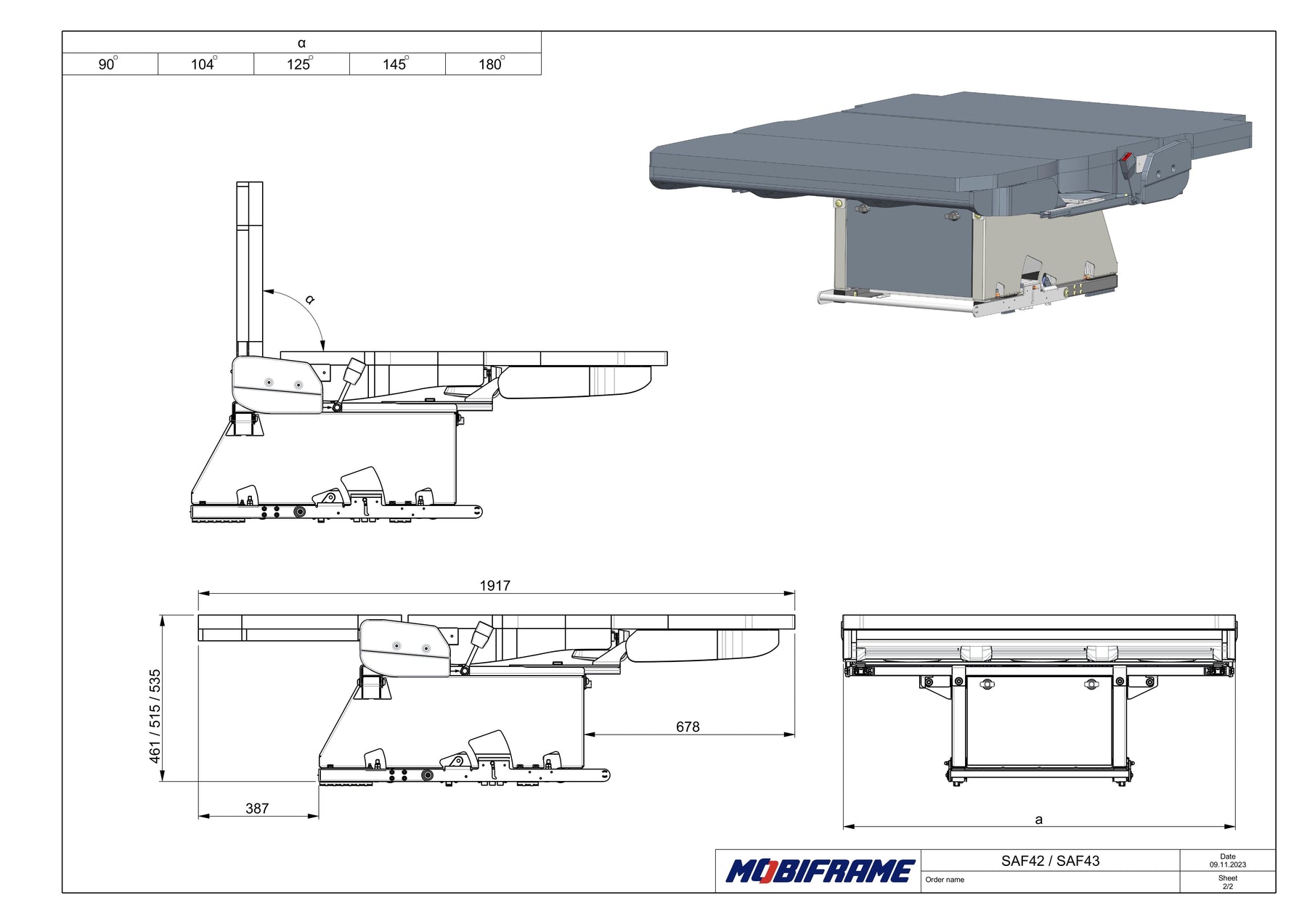

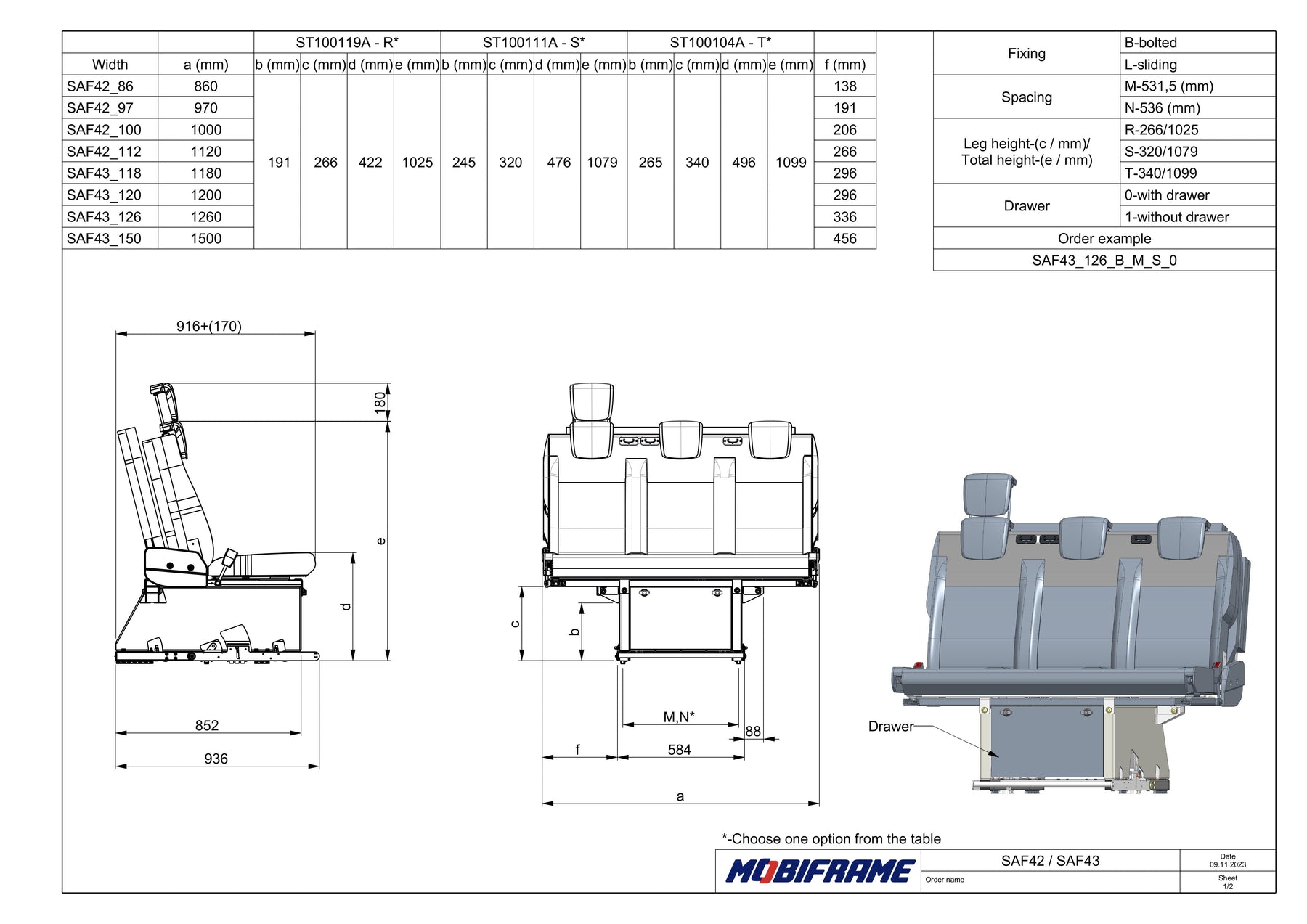

SAF42/SAF43 Technical Drawing

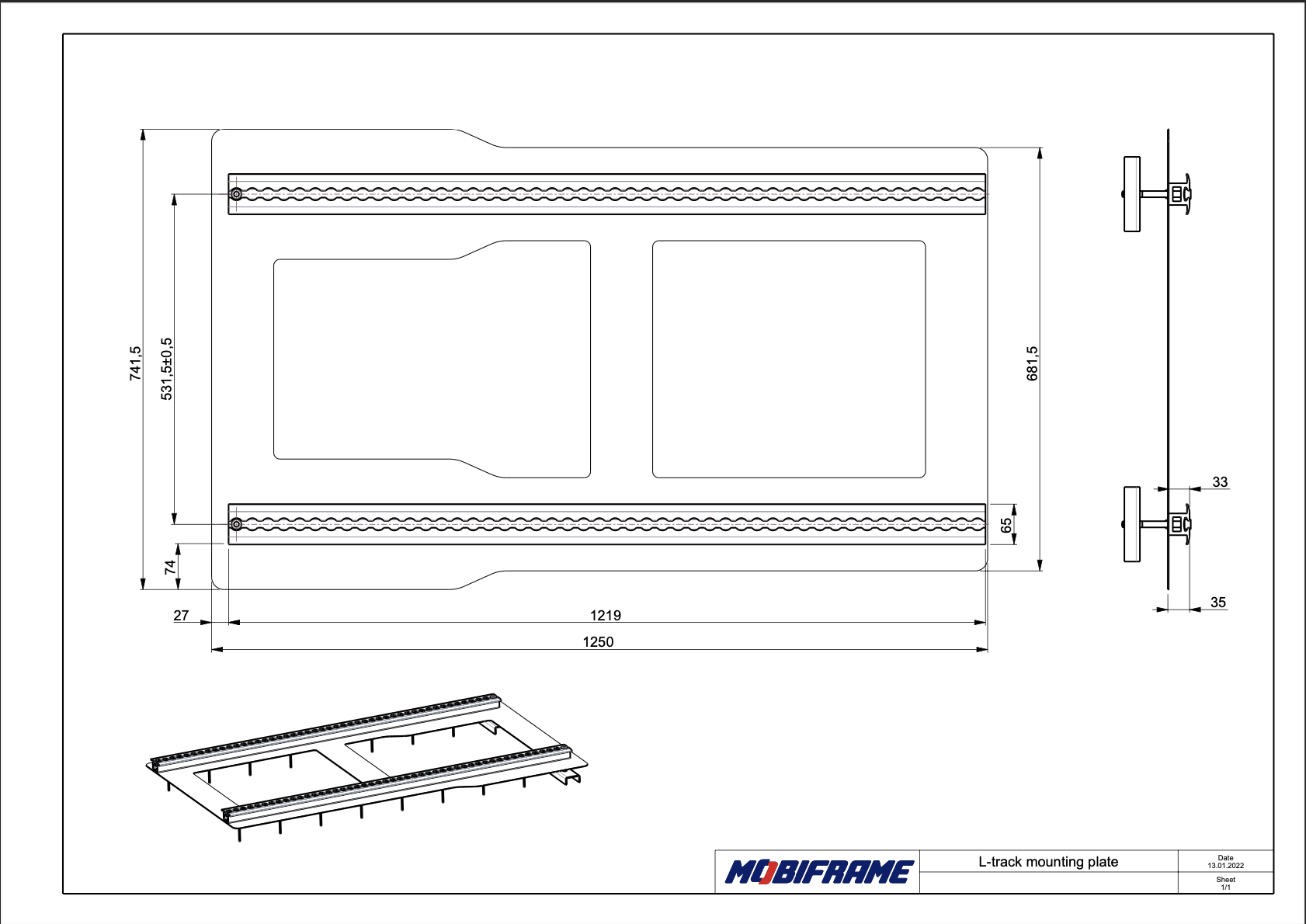

MobiFrame Seatbed Mounting Plate Install Instructions
From MobiFrame:

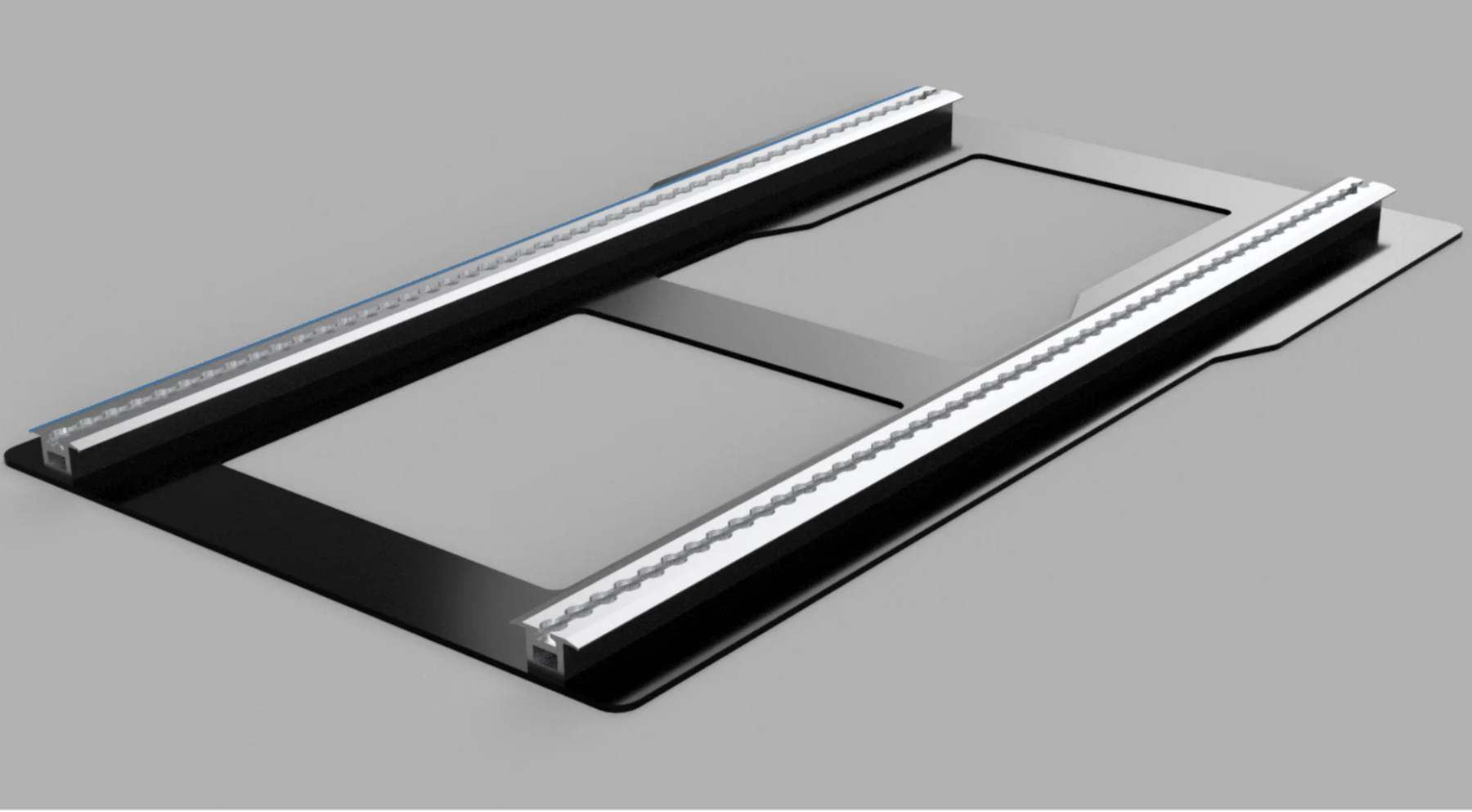

"For the SAF42 or SAF43 seat beds: The mounting plate incorporates 48" of rail that mates with the 33.5" base of our Bench/Beds(SAF42/43). The install plate is required if the user does not have a full floor with L-Track integrated within it. There is not much room to slide the bench seat on the install plate, it's designed to create a safe connection with the floor of the van and for convenient seat removal and reinstallation. The bench seats are very heavy and should be removed and reinstalled by a professional upfitter. If the user is looking to slide the MobiFrame SAF42/43 Seat Bed from the front of the van to the back of the van, one of the full floors will always be the best option."

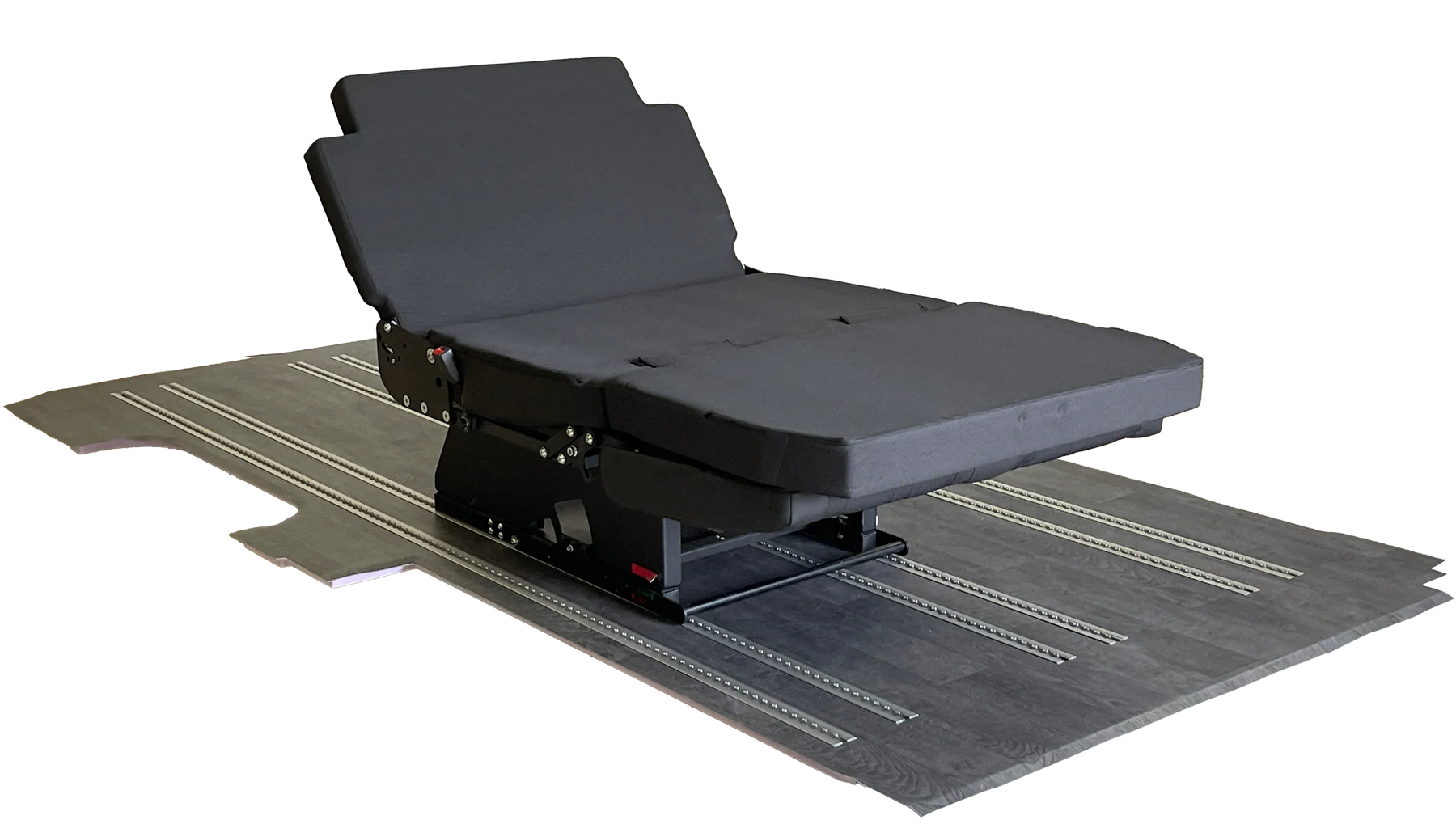

Install the MobiFrame Seat Bed with the MobiFrame Sprinter SafeTrack Composite Floor System for 2007+ Mercedes Sprinters for the ideal traveling and custom bed/seating experience.
All MobiFrame products will ship truck freight and require curbside or loading dock deliveries only. Customer is responsible for any additional freight services such as lift gate, residential delivery, storage/rescheduling fees and weekend delivery. Please reach out to us before purchasing if you have a residential address and we will quote you any additional fees required to ensure a smooth delivery service.
