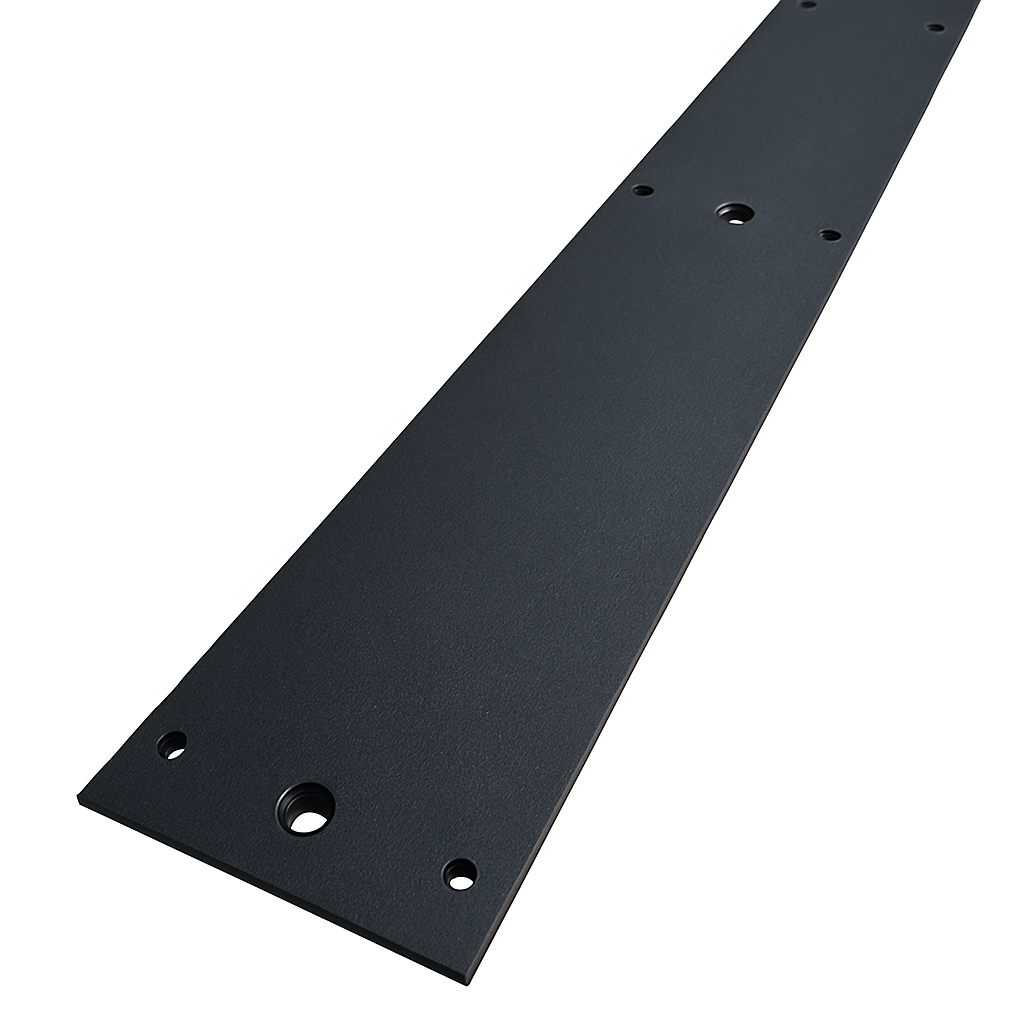

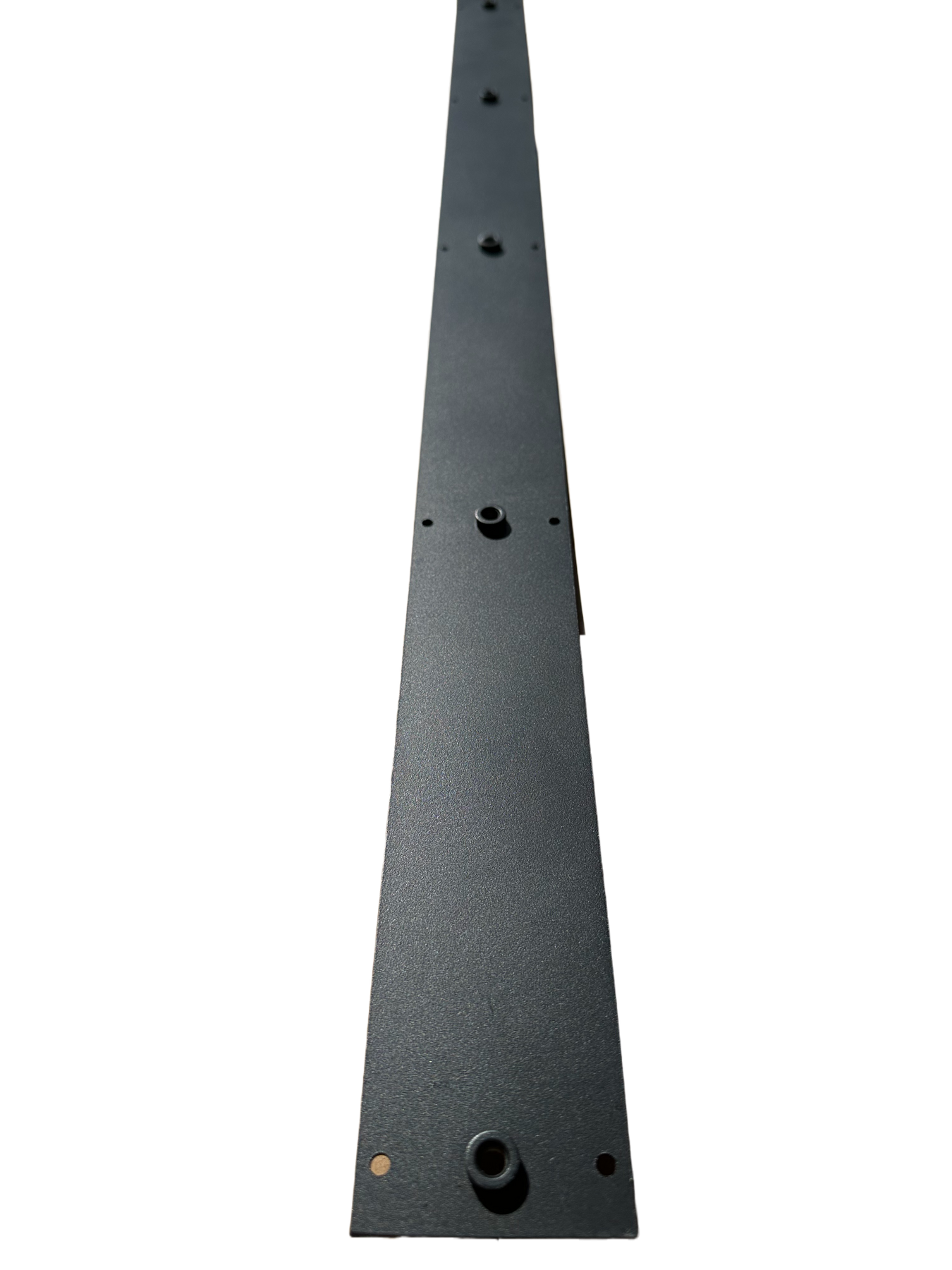

L Track Back Framing

• High tensile steel alloy construction
• Powder coated finish for superior corrosion resistance
• Integrated rivnuts to eliminate spin/jam issues.
• Pre drilled holes for simplified DIY installation
• Optimized 84" length for seamless L-track integration
• Wide 2 1/8" profile for distributed load reinforcement
• 12 mounting holes with 8" and 3.5" center to center spacing


• Length: 84" (2133 mm)
• Width: 2 1/8" (55 mm)
• Number of mounting holes: 12
• Spacing between mounting holes:
  • Outer six: 8" center to center
  • Central two: 3 1/2" center to center
• Mounting screw size: M6 stainless steel flat head screws and 1/8" rivets are recommended for installation
  • Note: mounting screws are not included.

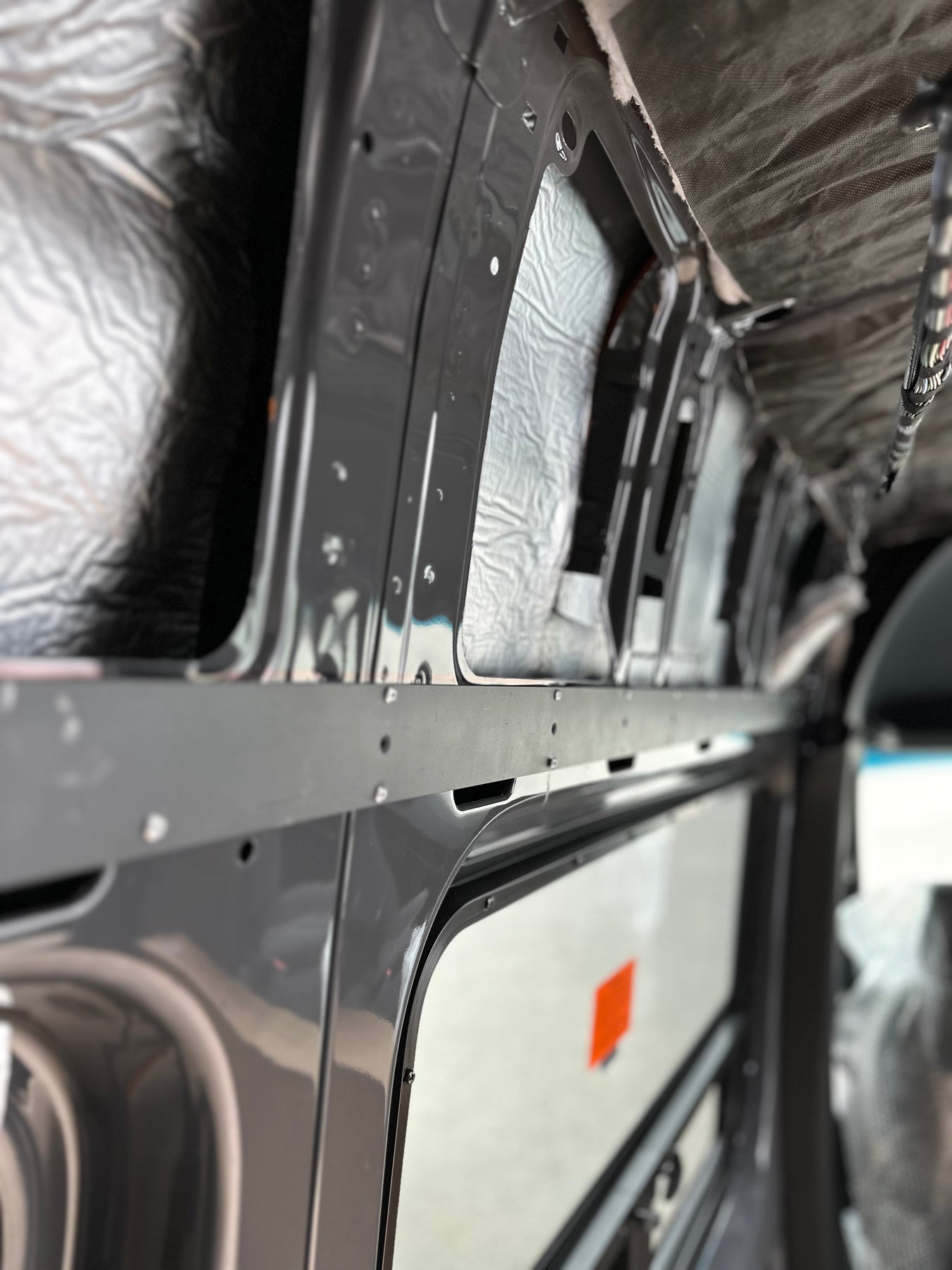

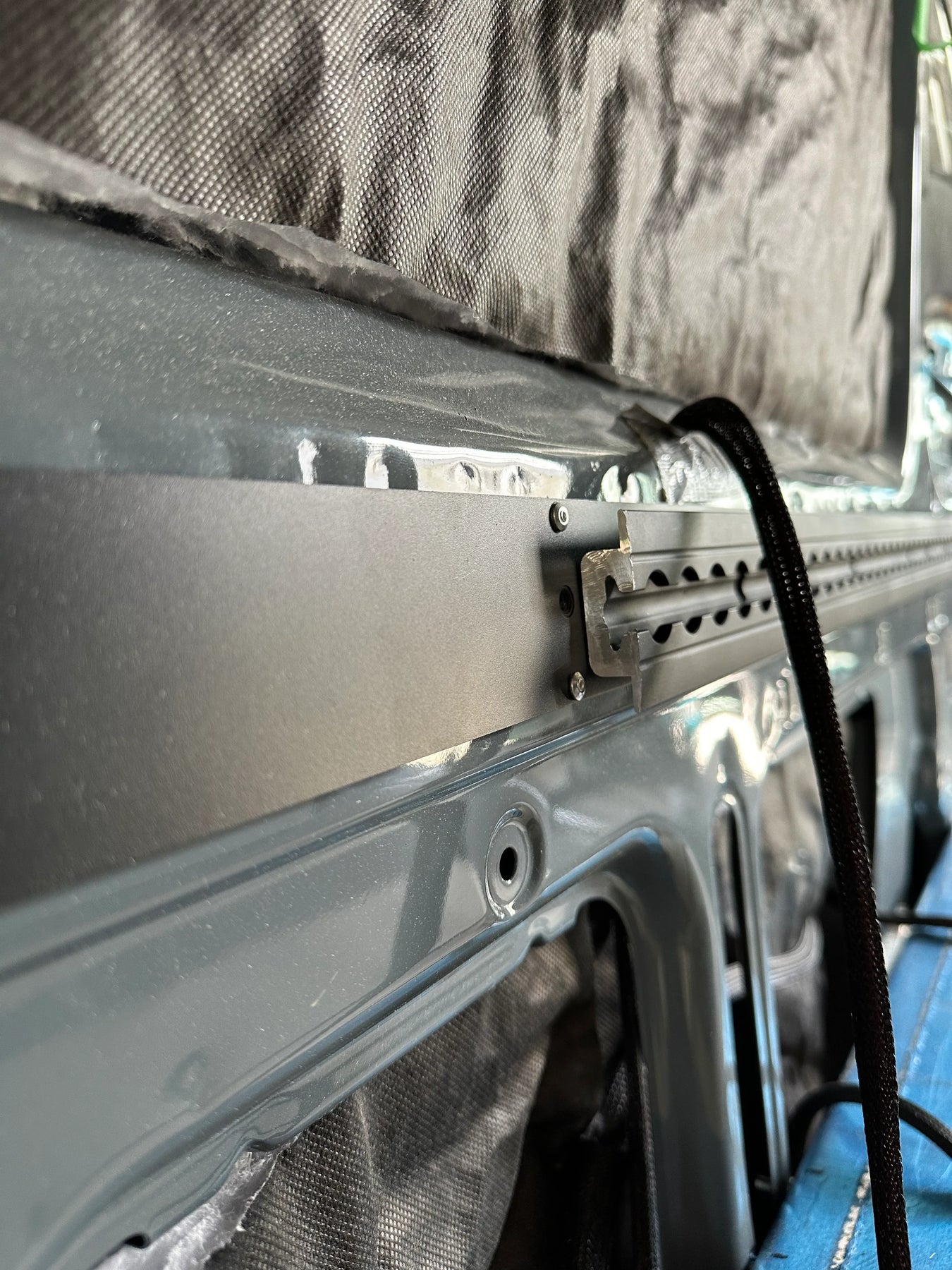

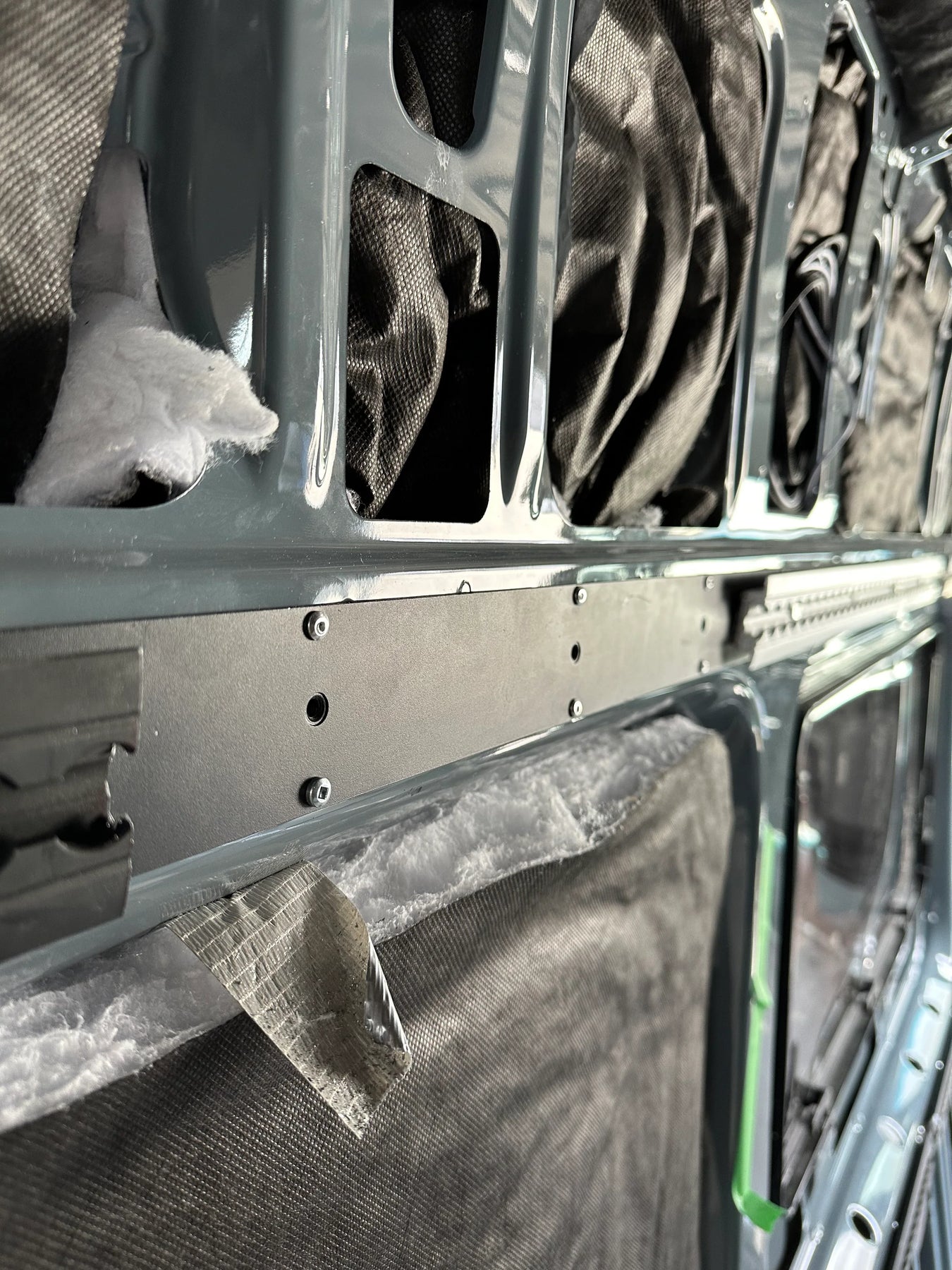

The L-track back framing is engineered from high tensile steel to provide a rigid foundation for mounting heavy cabinetry and gear. Featuring integrated welded nuts, it creates a solid mounting point and avoids the rivnut spin/jam issue that can leave a fastener stuck in the wall during install or removal. The wide 2 1/8" profile serves as a structural reinforcement, effectively distributing load forces across the vehicle sheet metal to provide a flat and stable anchor point behind the wall.

Precision cut to an 84" length, these frames feature a pre drilled 12 hole pattern that aligns perfectly with the L-track kits. The consistent layout simplifies installation and ensures accurate positioning behind wall panels for a clean, professional fit.
