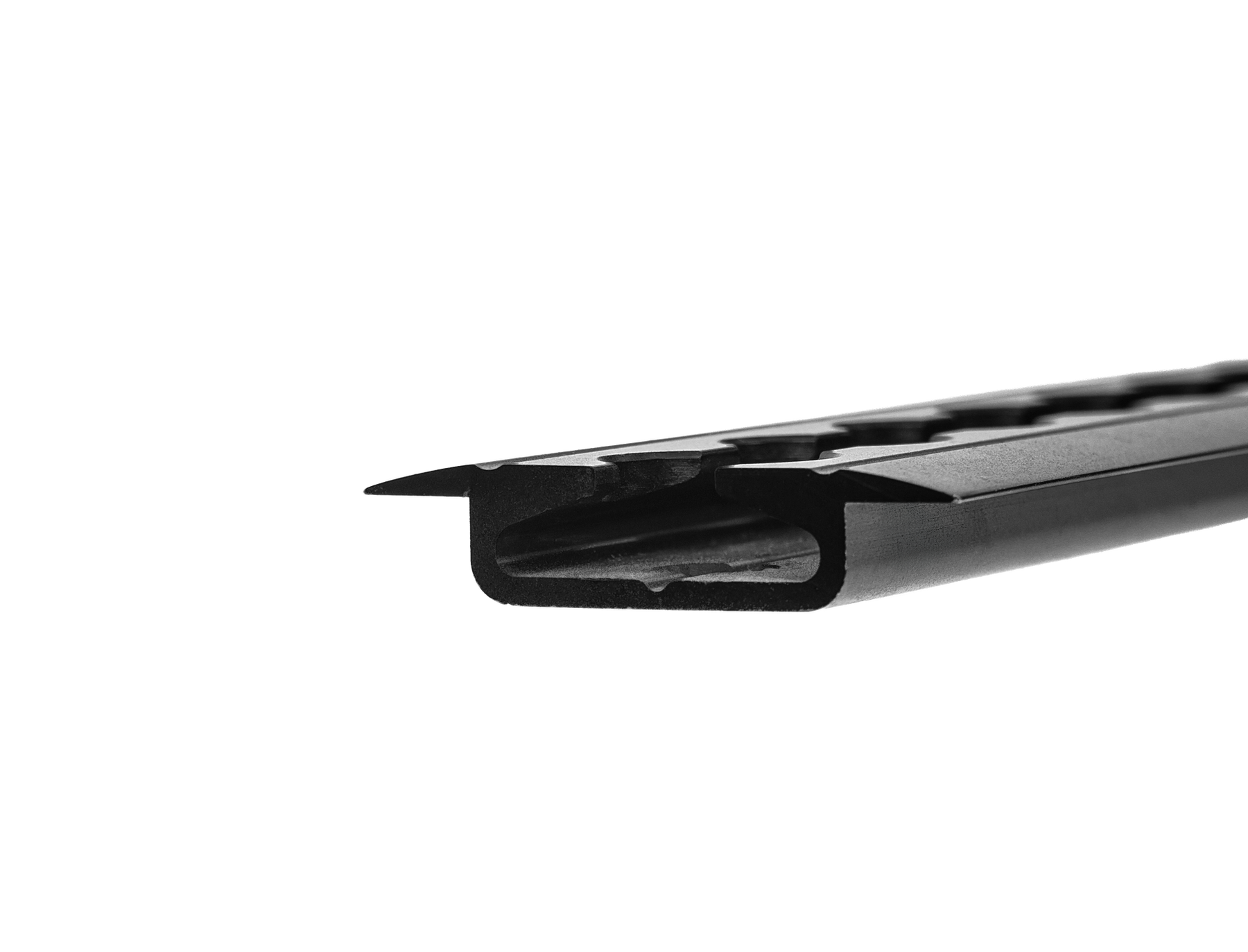

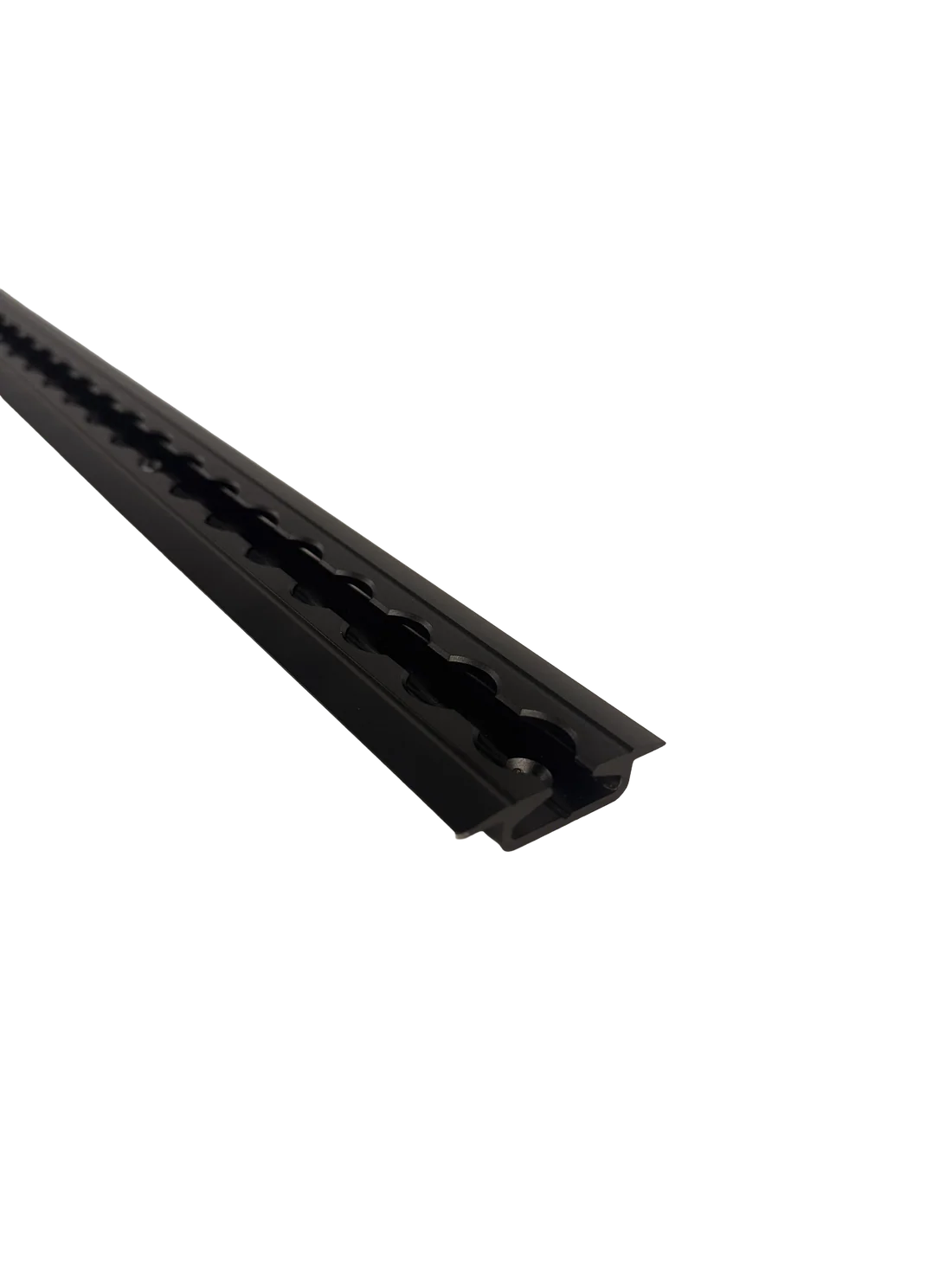

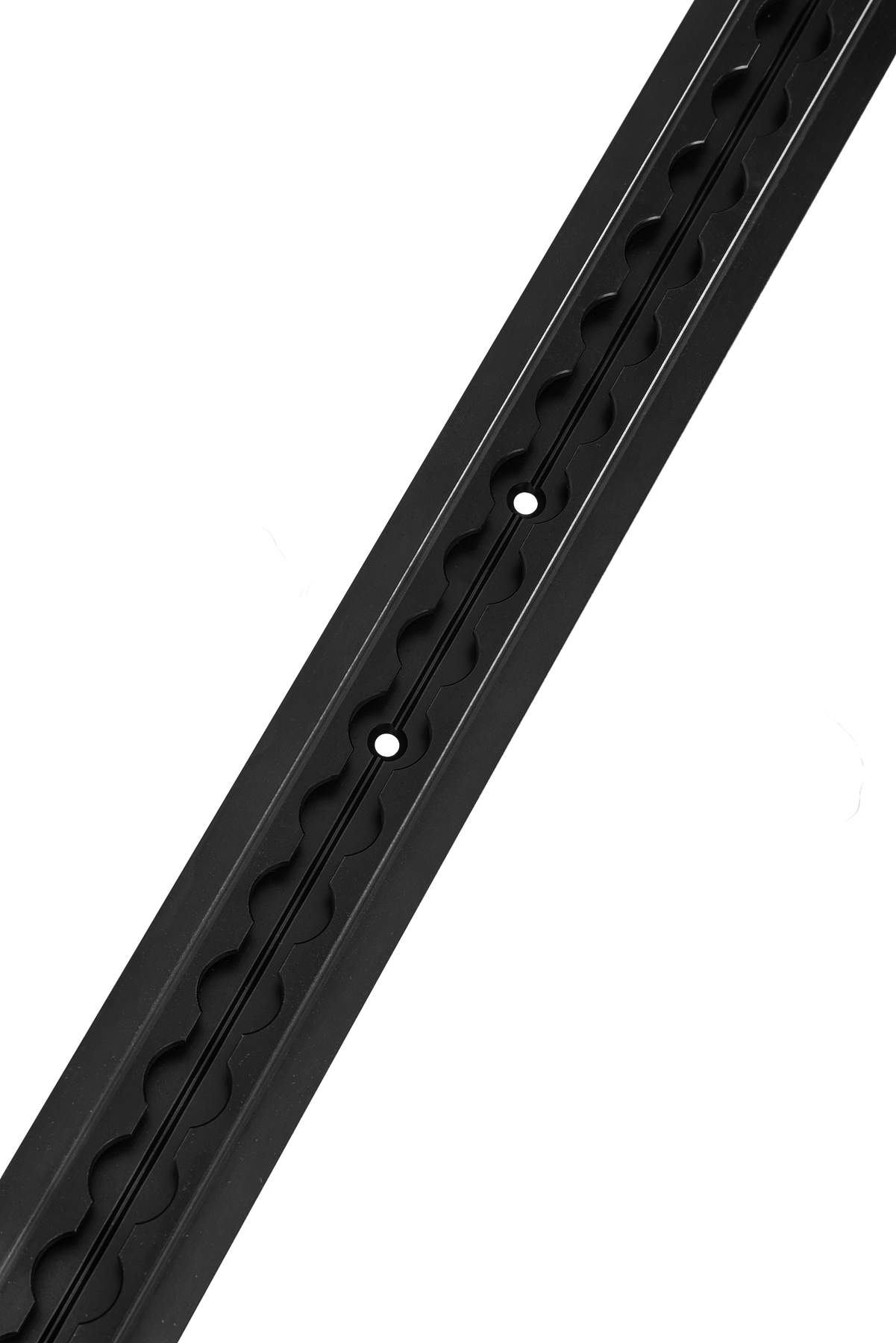

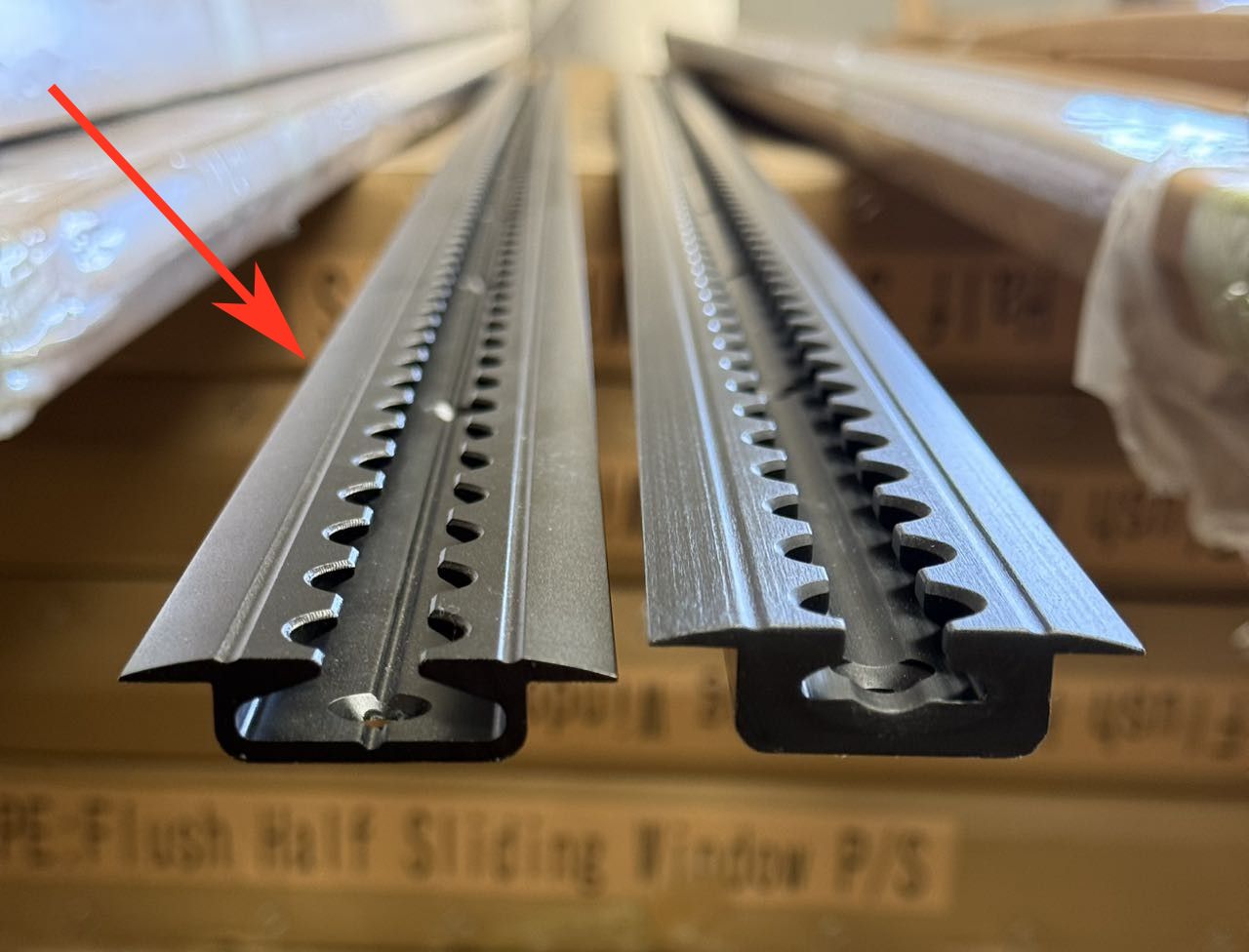

Flanged / Recessed L Track

• High strength aluminum construction
• 500 lb working load limit
• 2mm channel profile engineered for balance between weight and tensile strength
• Premium anodized surface finish for superior corrosion resistance
• Precision trimmed and rounded edges for safe and snag free handling
• 12 mounting holes with 8" and 3.5" center to center spacing
• Universal profile compatible with all standard single and double stud fittings
• Direct mount capability for van walls ceilings or floor subframes
• Rigid base for mounting heavy accessories cabinetry and gear
• Designed for M6 or 1/4 20 flat head fasteners with 90 degree countersink

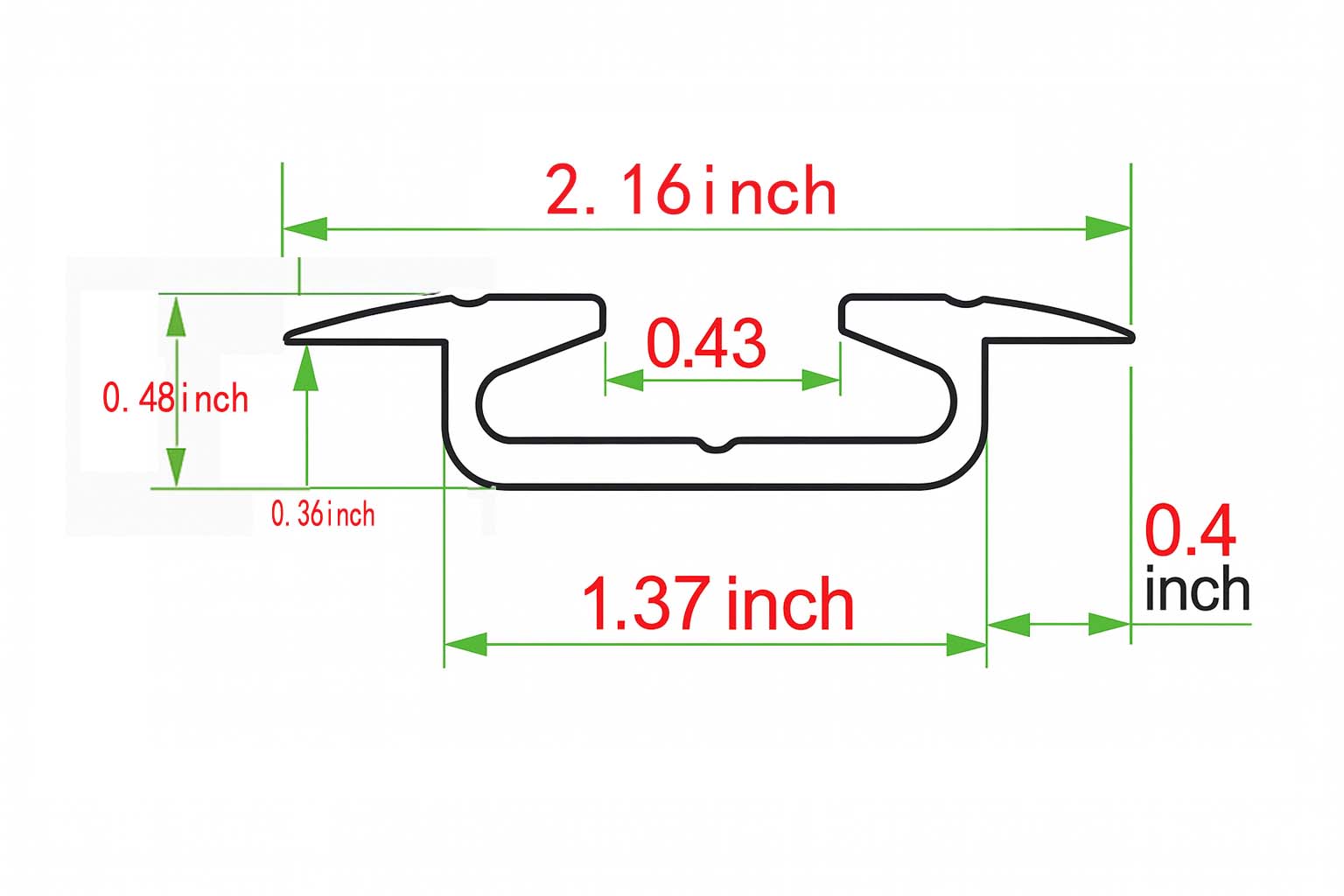

• Length: 84" (2133 mm)
• Width: 2.17" (55 mm)
• Height: 0.47" (12 mm)
• Channel Depth: 5/64" (2mm)

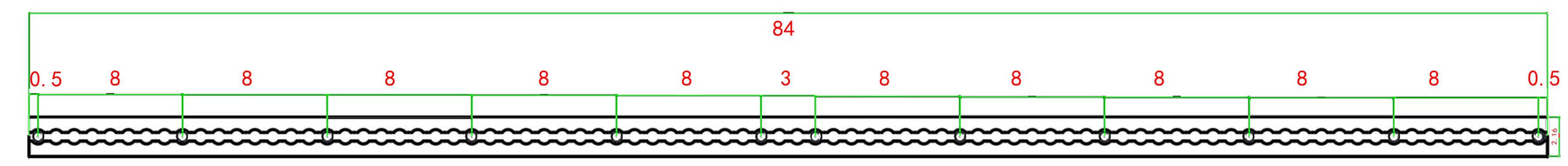

• Number of mounting holes: 12
• Spacing between mounting holes:
  • Outer six: 8" center to center
  • Central two: 3 1/2" center to center
• Mounting screw size: M6 socket flat head (Metric) or 1/4"-20 flat head
  • Note: mounting screws are not included.


The agile L-track kit is constructed from high strength aluminum and comes with a 2mm channel profile engineered for the ideal balance between weight and tensile strength. The reinforced structure provides a robust 500 lb working load limit, making it a dependable mounting base for accessories and other equipment commonly used in van conversions. For long term durability, the track features a premium anodized surface finish for superior corrosion resistance and trimmed edges for safe, snag free handling. The universal profile is compatible with all standard single and double stud fittings to accommodate a wide range of gear.

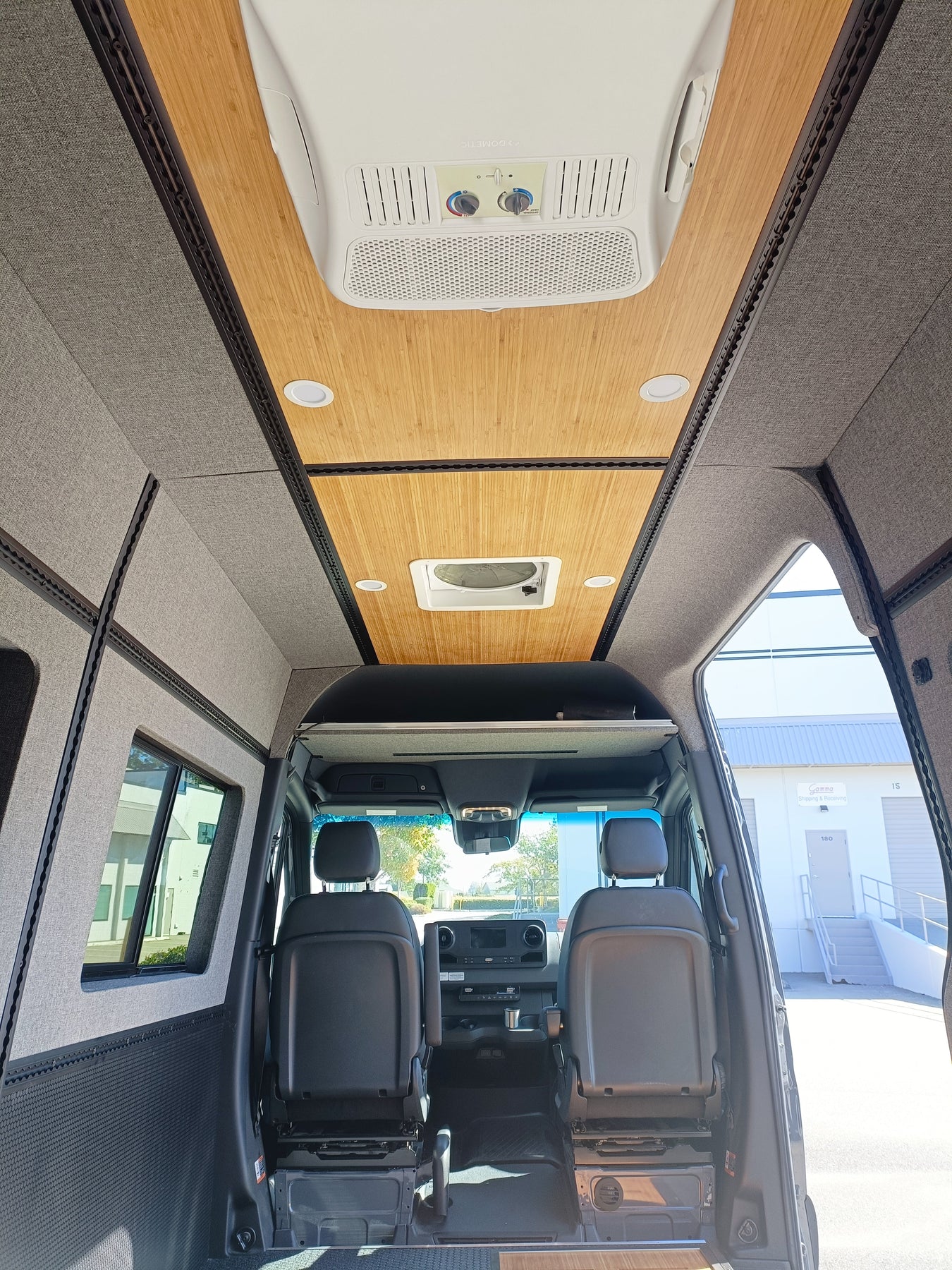

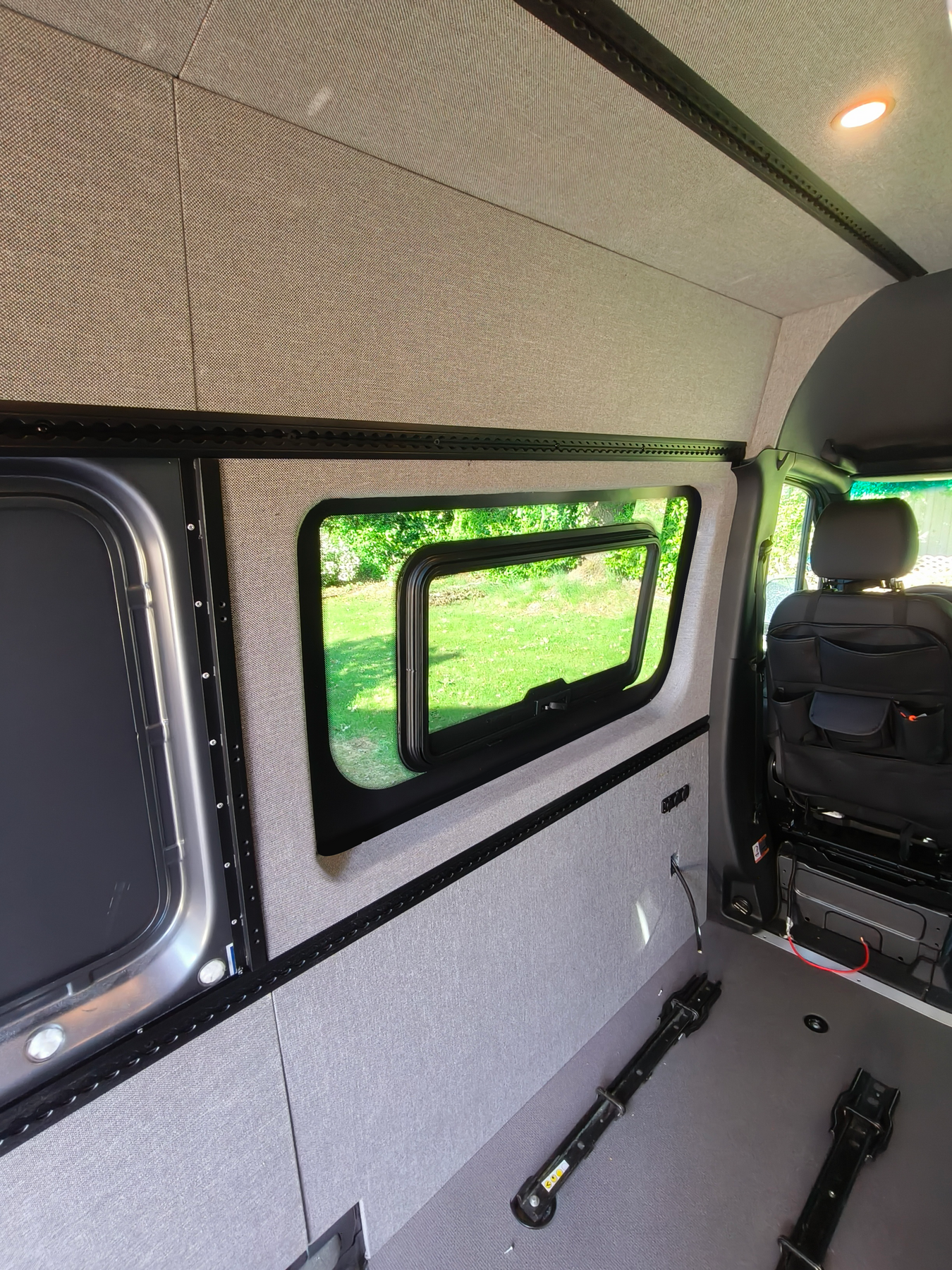

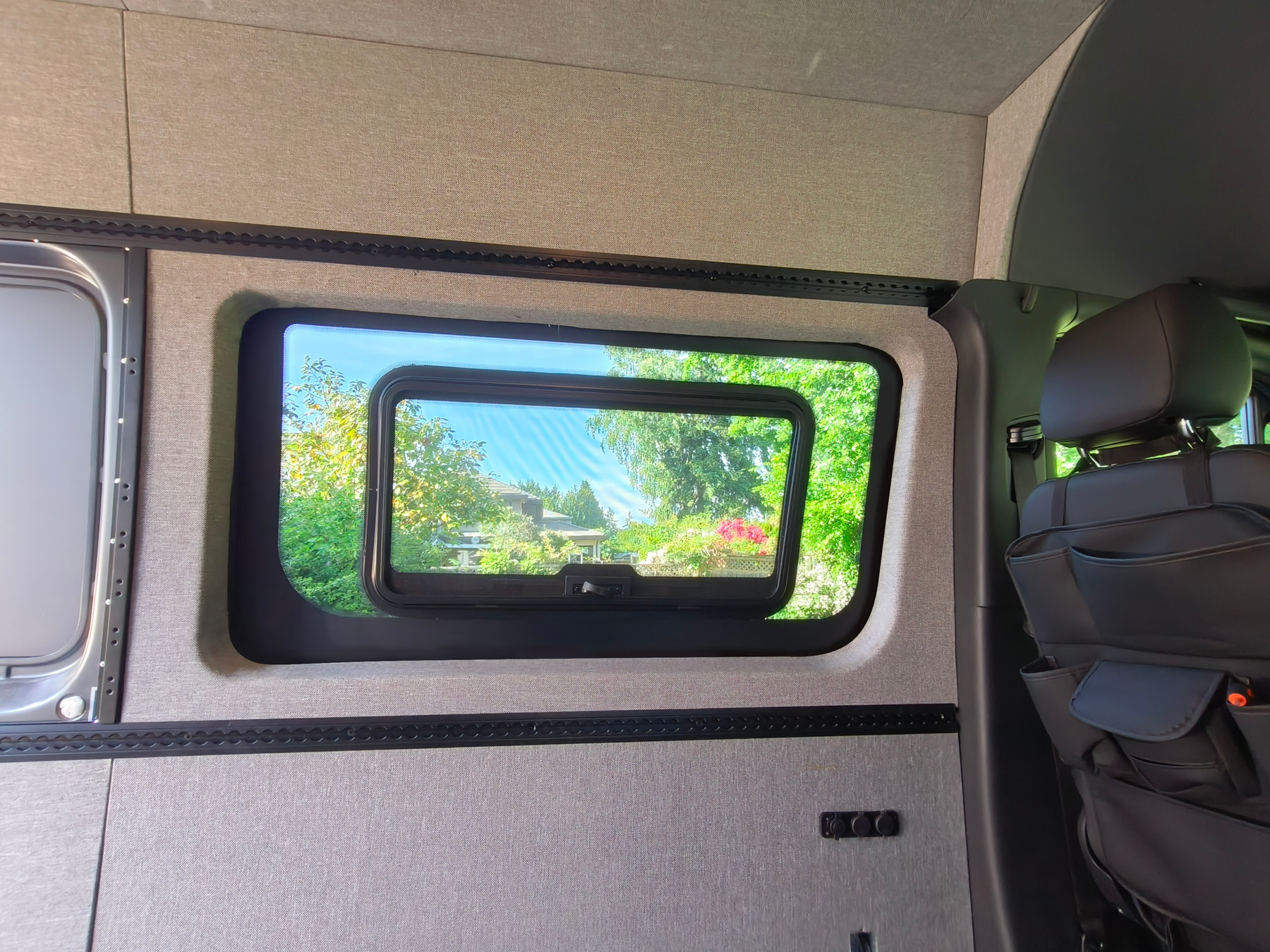

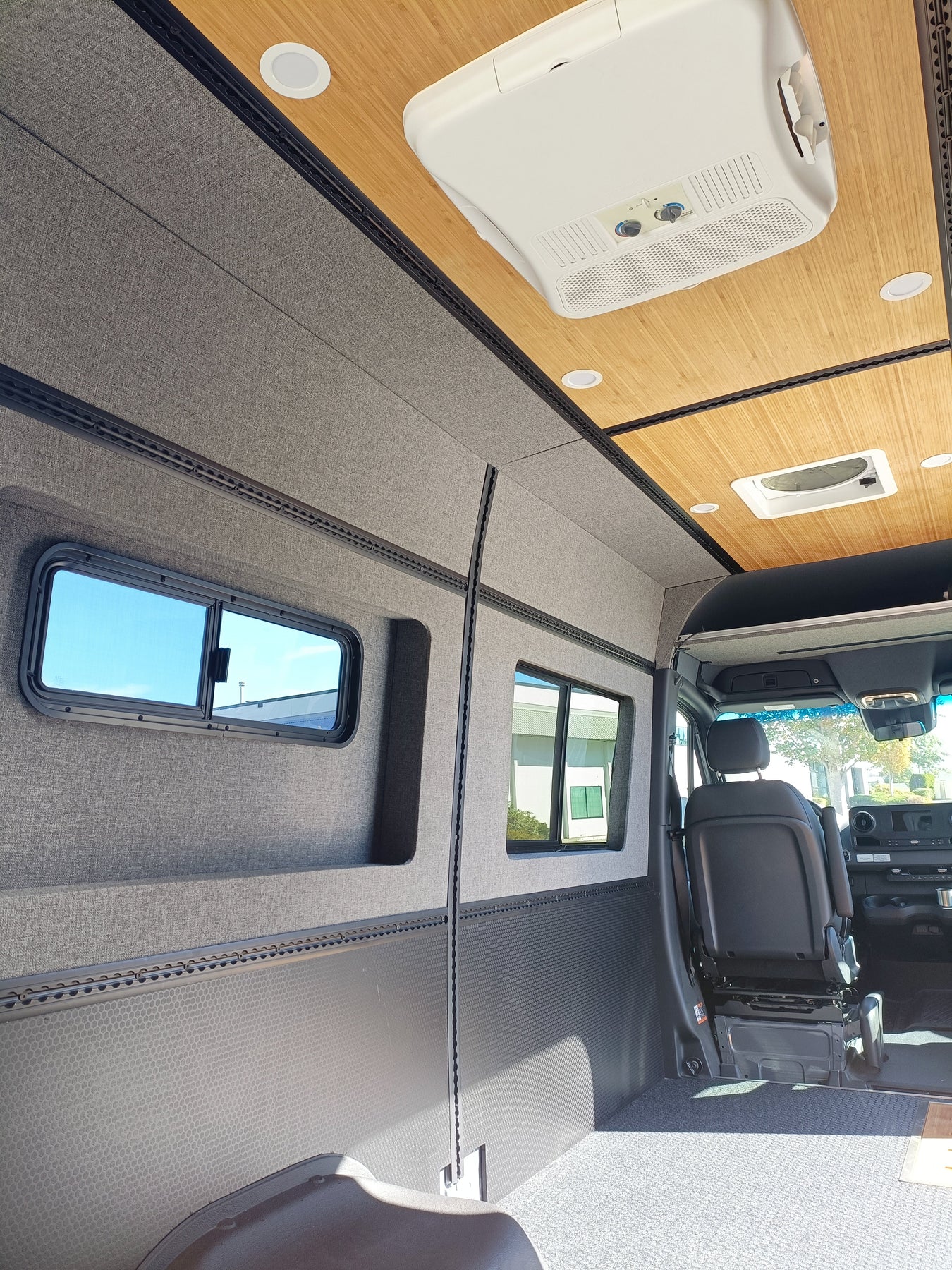

To simplify installation and reduce material waste, these tracks are manufactured in an optimized 84 inch length. This specific sizing allows two 84 inch tracks to cover the lengthwise run of a 170 inch Sprinter or a 148 inch extended Transit. For 144 inch Sprinters and standard 148 inch Transits, one full track and a half section provide complete coverage with minimal cutting. These tracks also feature 8 inch and 3.5 inch center to center hole spacing for direct mounting onto van walls, ceilings, or floor subframes.
