Chemistry
LiFePO4
Maintenance-free, long cycle life
Capacity
460Ah @ 12.8V
High usable energy for 12V systems
Continuous (Charge / Discharge)
230A / 230A
Peak Discharge
500A (30s), 1300A (1s)
For short high-load events

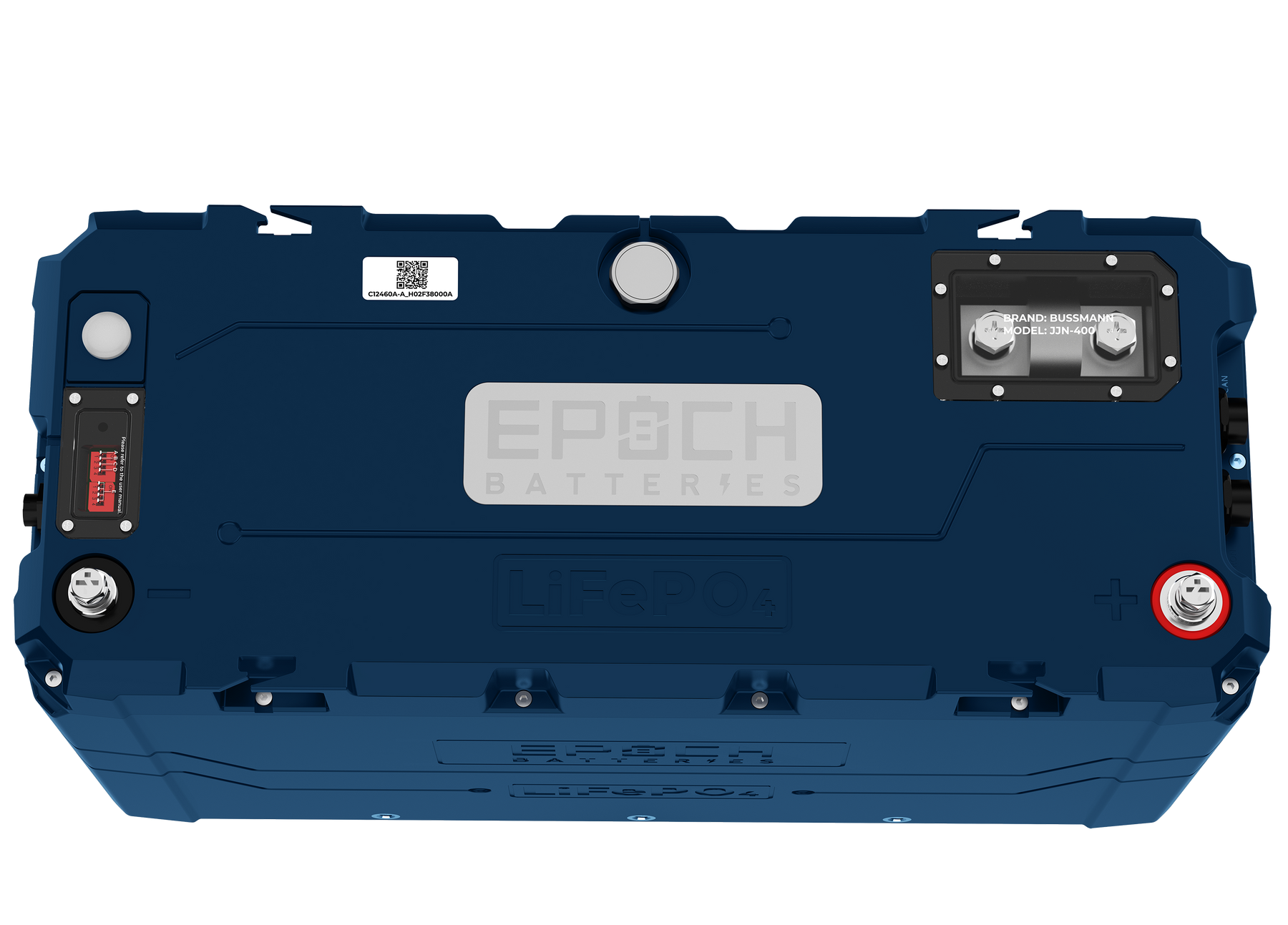

IP67 Dust & Waterproof Internal Heating (below 0°C charging) Bluetooth App (iOS/Android) Victron Comms (Parallel up to 16) External Power Button & Gauge Included User-Serviceable 400A EATON Class-T Fuse
Protection & Certifications
- Built-in Smart Battery Management System (BMS)
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
-
UL60691 certified internal fuse
- Cells: UL1642, U9540A, IEC 62619:2022 certified
- Pack: UL1973 certified
- 4000+ cycle life & maintenance-free
- 11 Year Manufacturer Warranty
Configuration
-
Cell Configuration4S2P
-
ChemistryLiFePO4
Current
-
Ah Capacity460Ah
-
Max Continuous Discharge230A
-
Max Continuous Charge230A
-
Max Discharge Peak500A (30s), 1300A (1s)
-
Series / ParallelMax 4S OR Max 16P
Voltage
-
Voltage12.8V
-
Max Charge Voltage14.6V
-
Operating Voltage Range10.0 – 14.6V
Temperature
-
Charge Temp Range-30°C to 55°C (self-heating)
-
Discharge Temp Range-20°C to 55°C
-
Storage Temp0°C to 35°C
Physical
-
Weight97 lb
-
Length20.75 in
-
Width8.5 in
-
Height12 in
