4 Panel Platform Bed

Sometimes all you need is a great bed.

The 4-Panel Platform Bed delivers a solid sleeping platform built for one job and built to do it well.

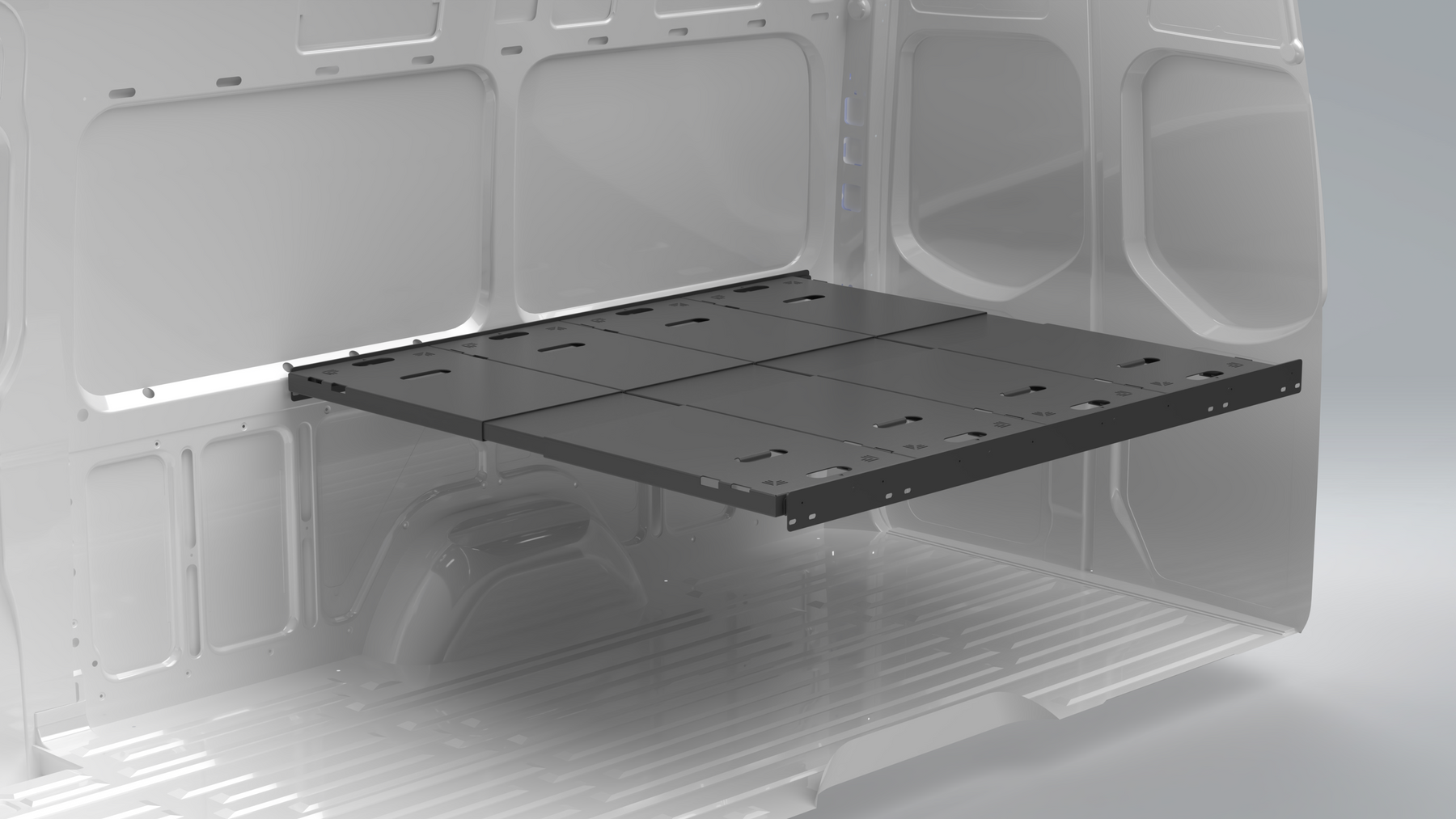

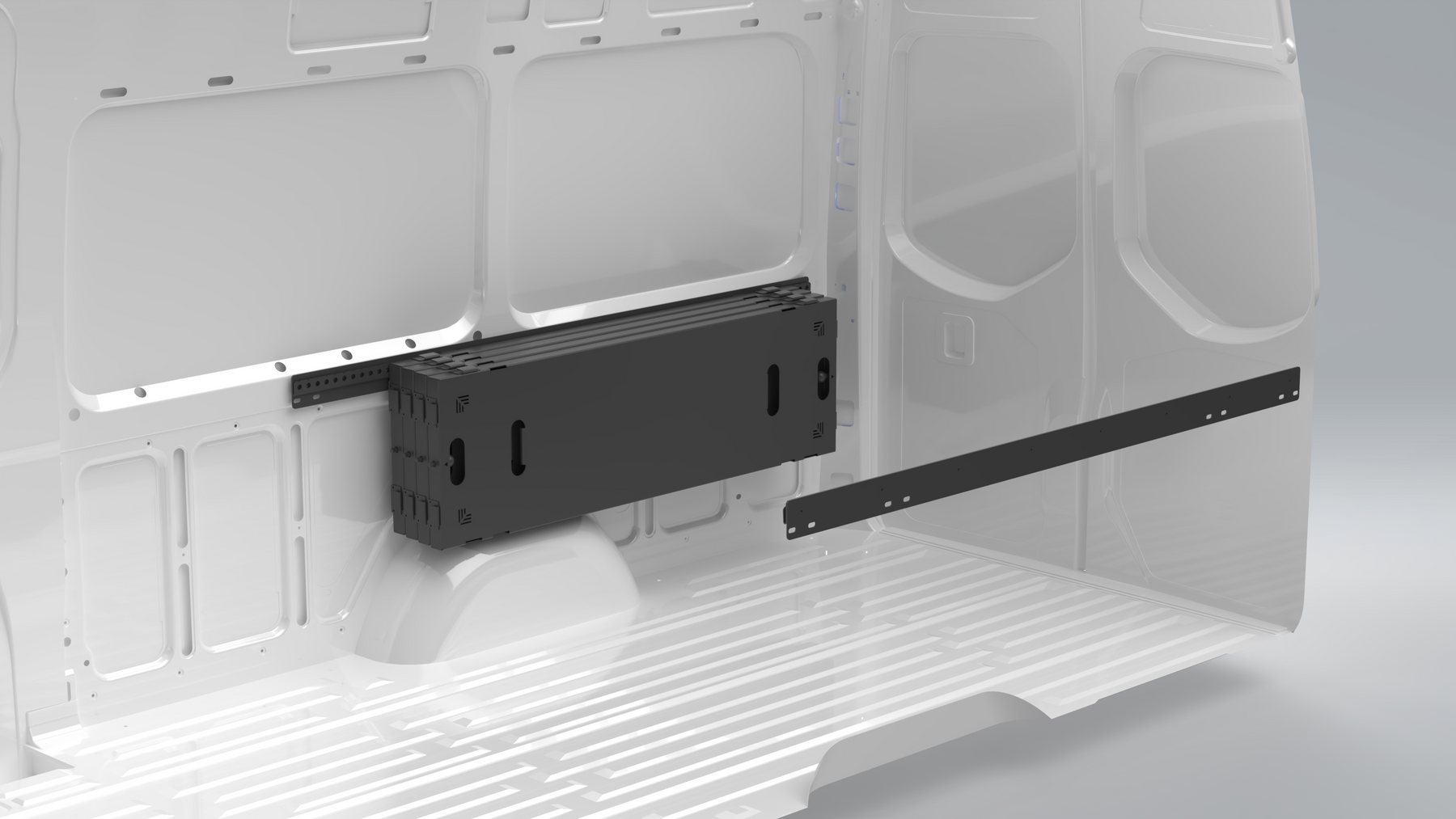

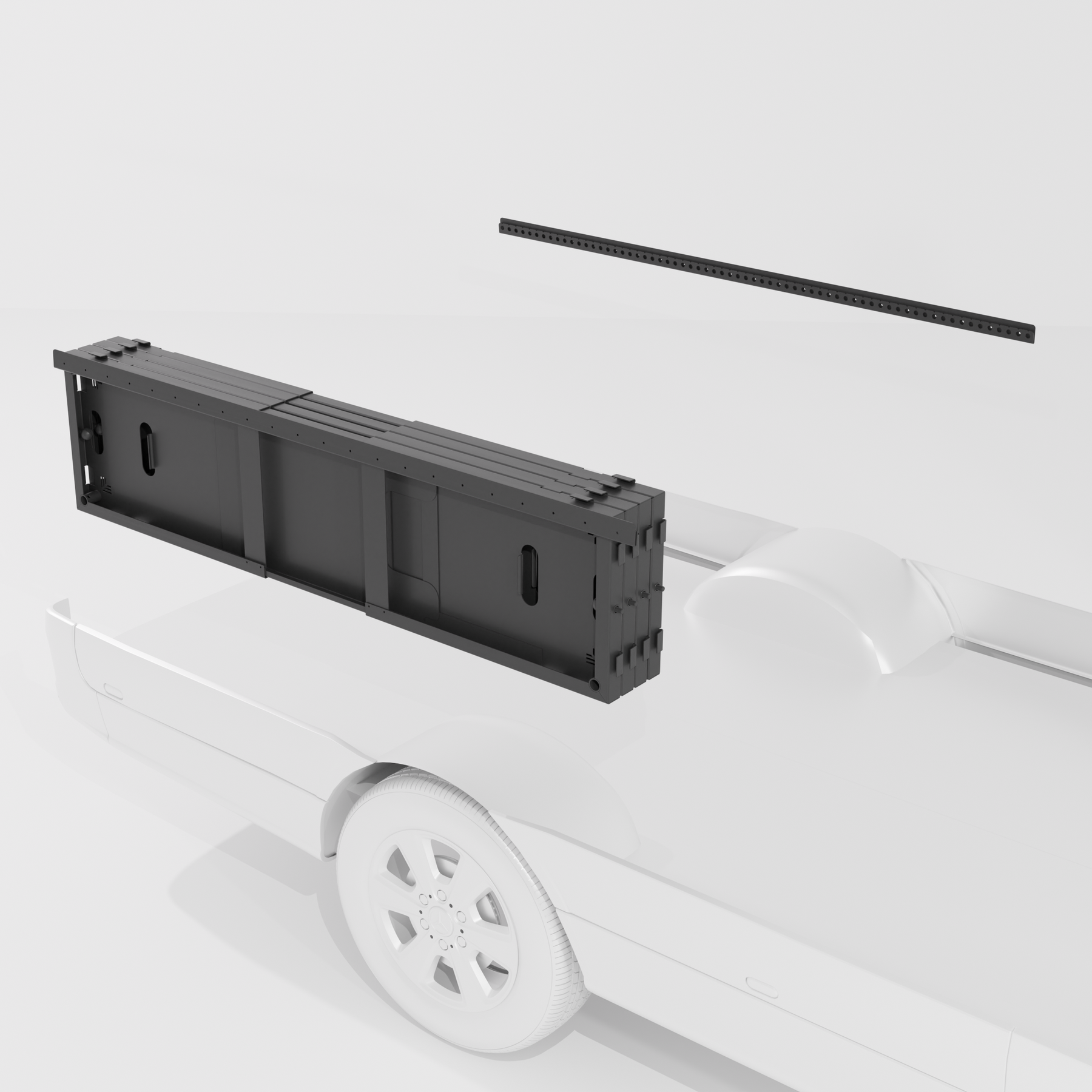

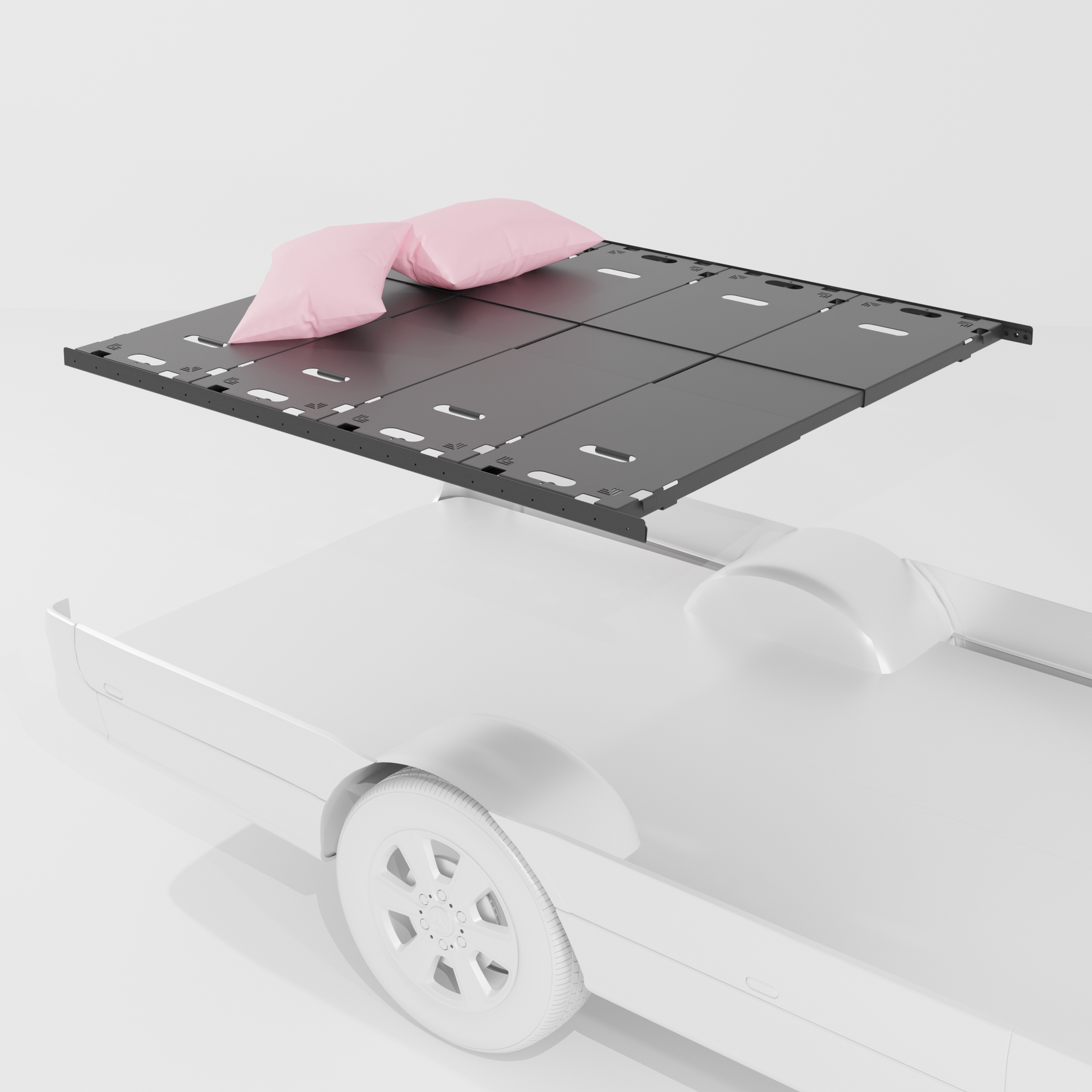

It utilizes 4 panels to create a 72” long head-to-toe platform, which is perfect for North-South sleepers or two people side-by-side. Plus, the bed panels mount flat against the wall to open up the entire rear of the van when not in use.

Each bed panel has a thumb screw that holds the panel in place while in use by fitting into the predrilled J-channel rail holes. Adjoined panels clip together for added stability.

Each panel measures 18" deep and adjusts between 60" and 72" wide, with the single supported bed rail running 75" long (plan for walls that fall within that range and stay reasonably parallel & square). When properly installed, each panel holds up to 400 lbs.

The individual panels can also be configured as a standalone table or bench set outside of the van with the use of optional leg kits.

One important note: this isn't a seating system for use while driving, and it shouldn't be fitted with seatbelts or relied on in motion. Every panel needs to be secured before you drive, leg systems should be removed, and any panels mounted vertically need to be strapped down.

Need a platform bed, but only have room for an East-West sleeping bed in your build? Check out the 3-Panel platform bed.

Assembly

Installation Guide
