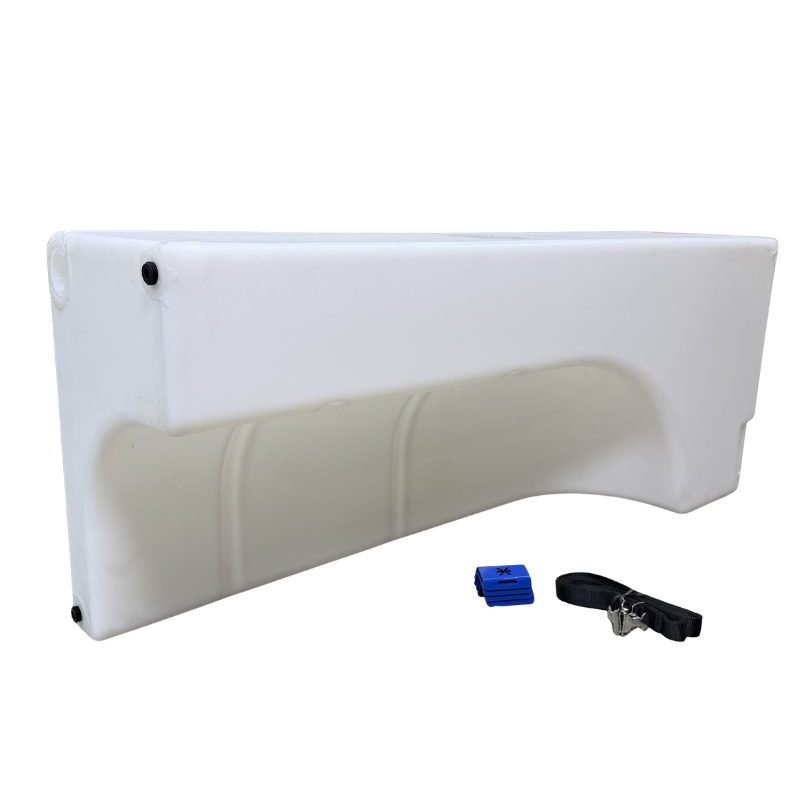

33-Gallon Wheel Well Water Tank - Left (SP-L-33)
About the Product
Fits the wheel well space, keeping your floor plan open while adding water capacity. Sits offset toward the rear or front of the wheel well depending on placement side.
Features
Specifications

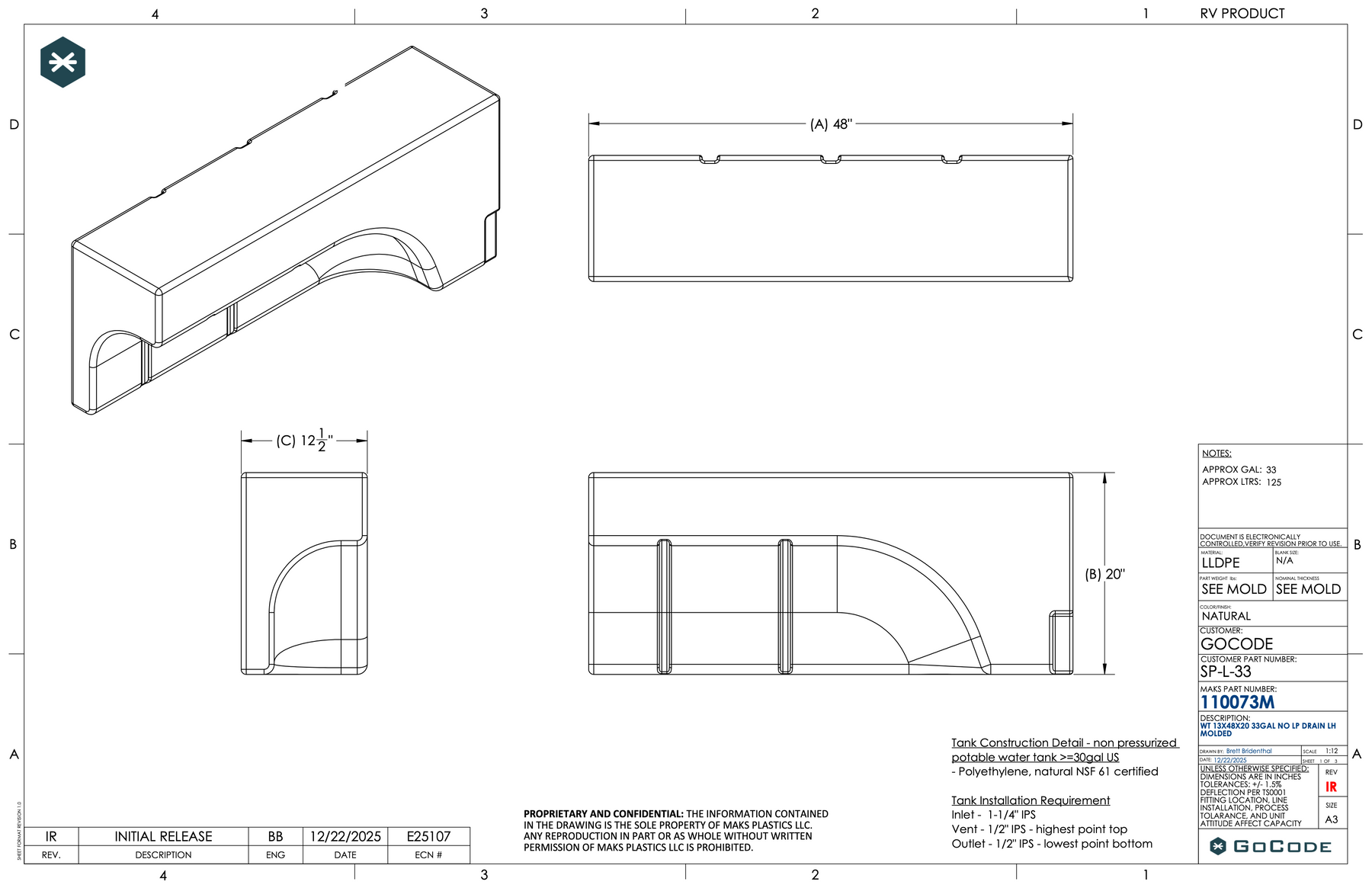

- Nominal dimensions: 48" L x 12.5" W x 20" H
- Actual dimensions may vary up to 1.5% each.
- Capacity: 33 gallons
- Dry Weight: 25 lbs
-
Filled Weight: 300 lbs
- Recommended Sensor: KUS S5U-19
- Recommended Heating Pad: Facon CW-T1218 (x2)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade plastic
- Made in the USA
- IAPMO TS 4 Certified
- TEi listed and RVIA approved

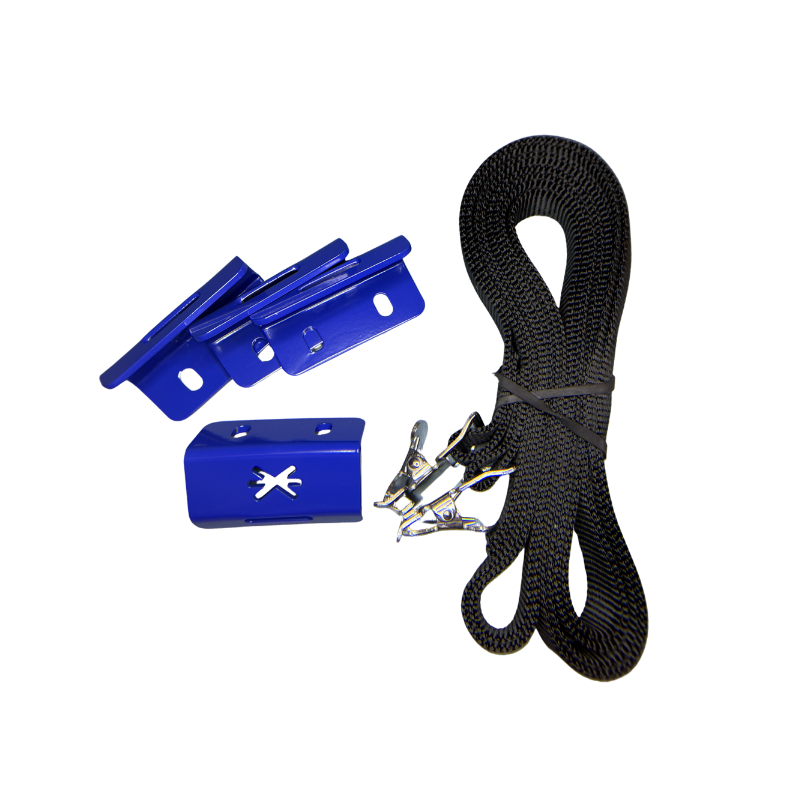

What's Included
- Water Tank

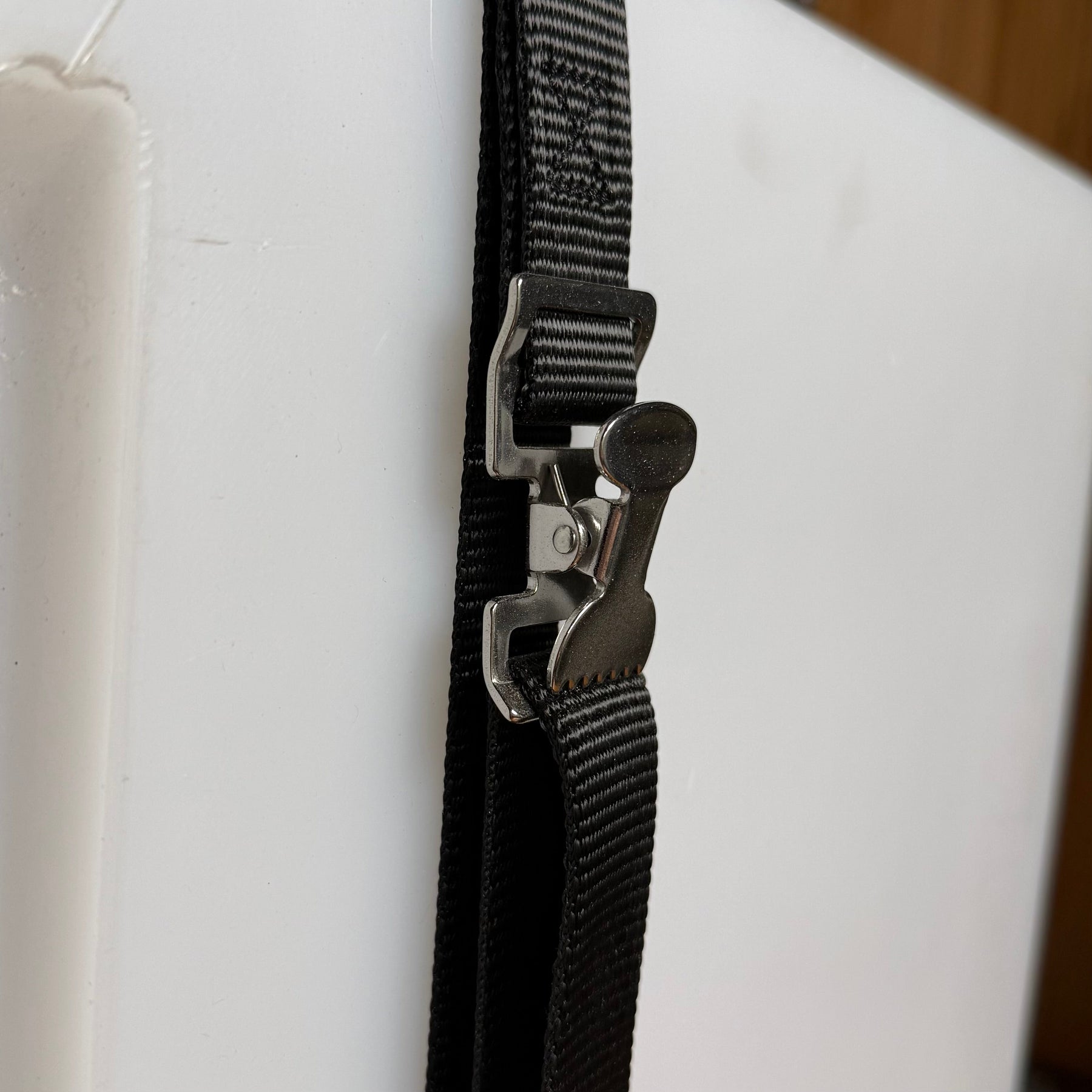

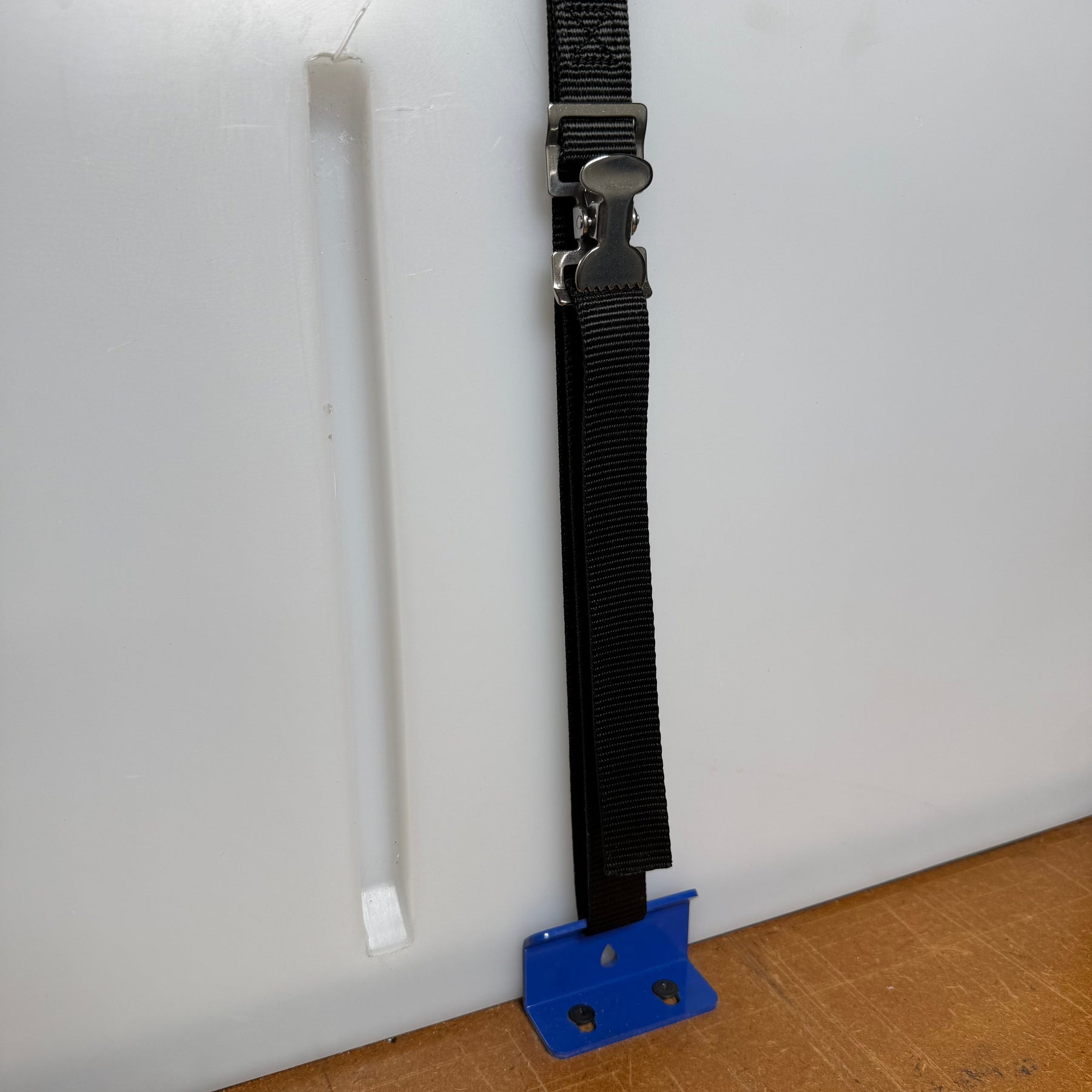

- (x2) Adjustable straps

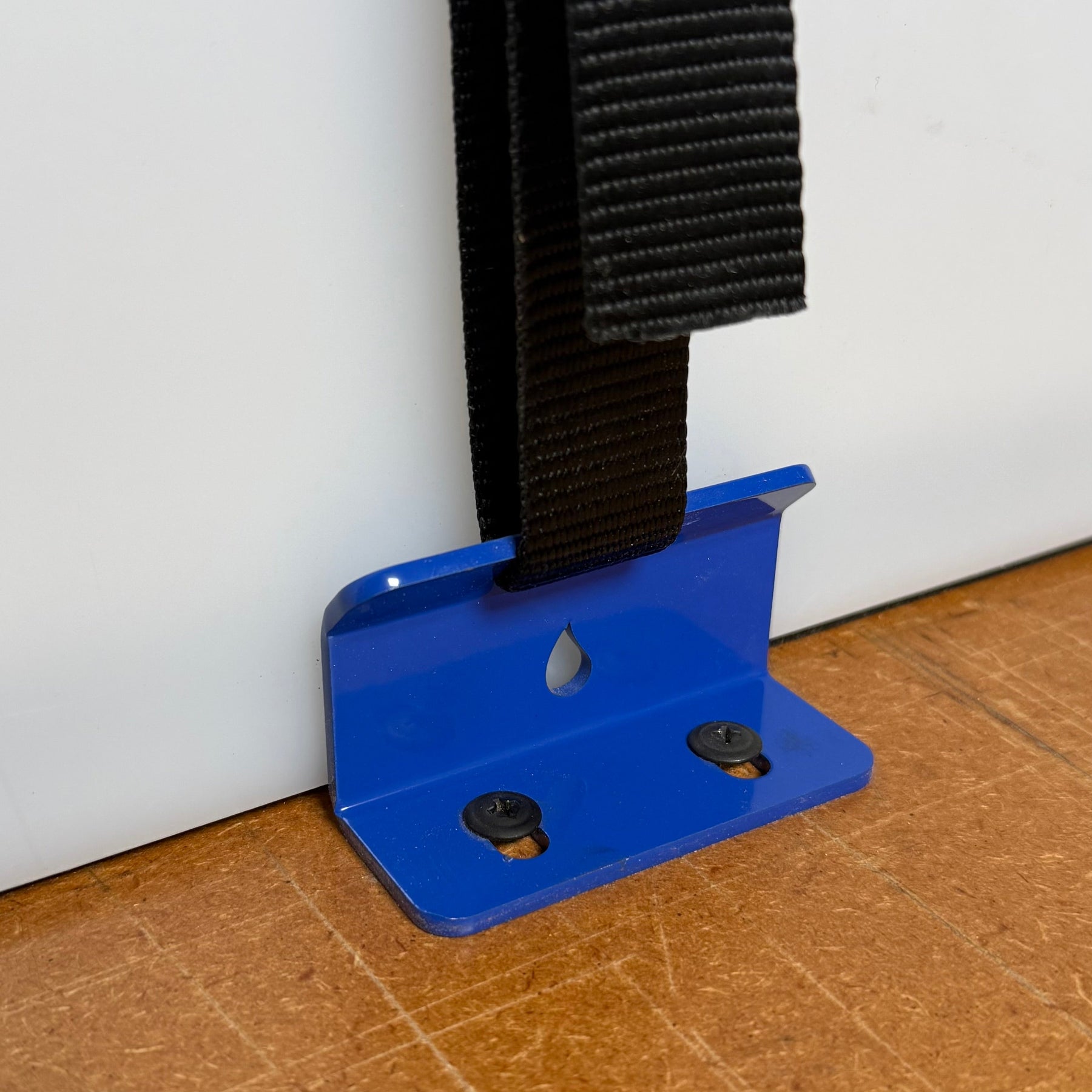

- (x4) Mounting brackets
Ports & Plumbing
- (2) 1.5" NPT ports on the rectangular end, pre-marked, drill out to use
- (2) 1/2" NPT ports on the rectangular end
- (2) 1.5" NPT ports on the opposite end, pre-marked, drill out to use
- (1) 1/2" NPT port on the opposite end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.

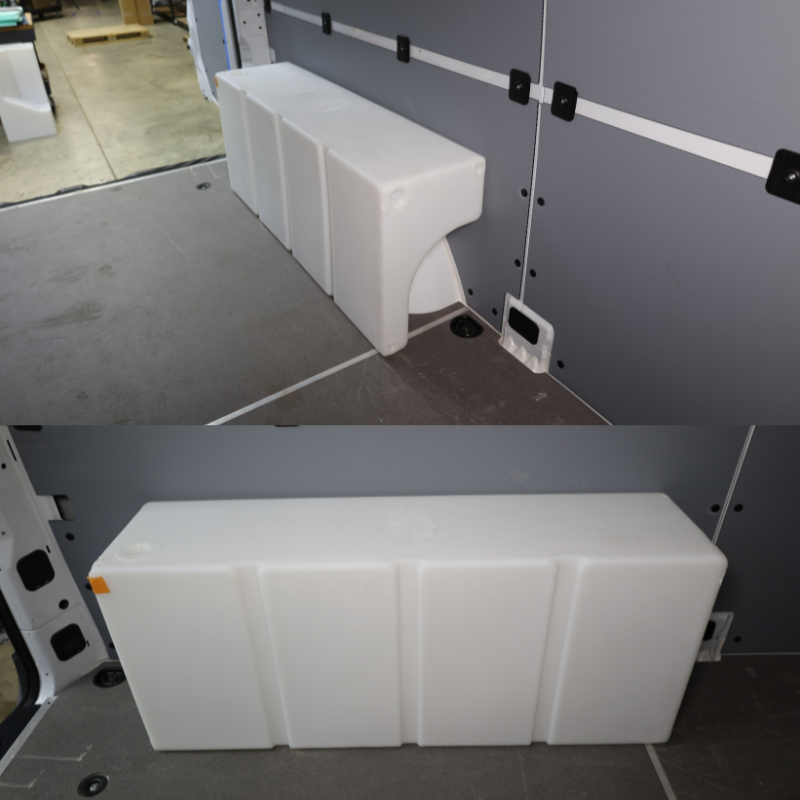

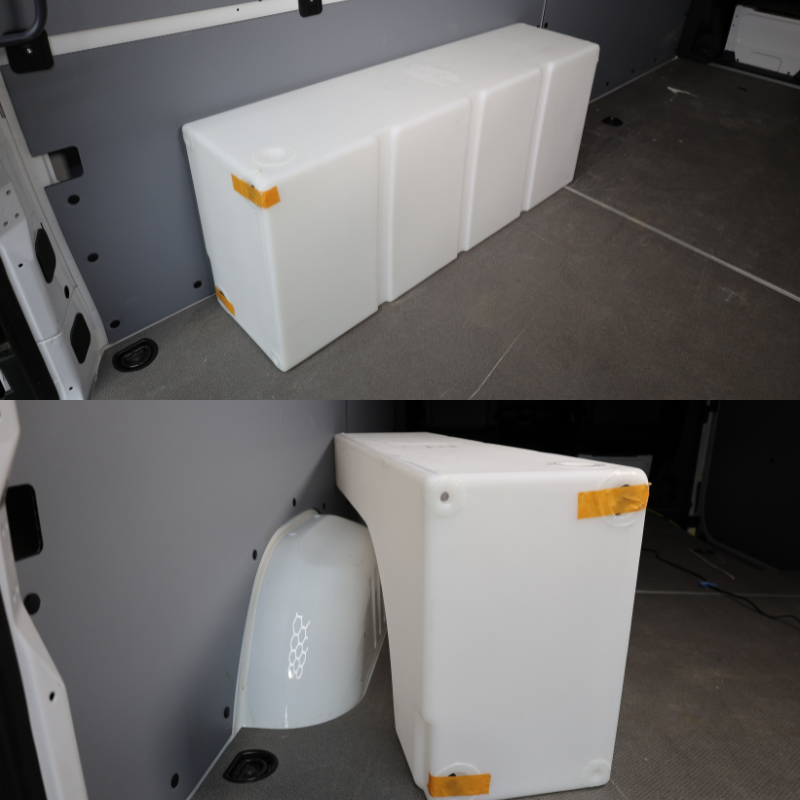

Compatibility
- Sprinter 2500 direct fit (also fits Sprinter T1N)
- Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
- ProMaster requires a 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models

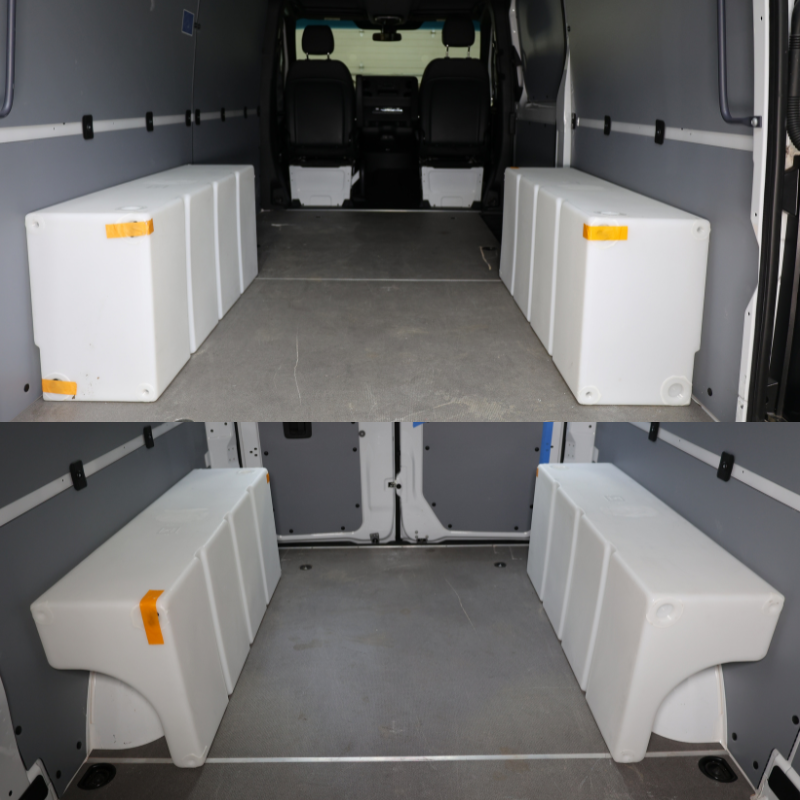

- Driver side: tank sits rear of wheel well
- Passenger side: tank sits front of wheel well
