24-Gallon Wheel Well Water Tank - Center (SP-C-24)
About the Product

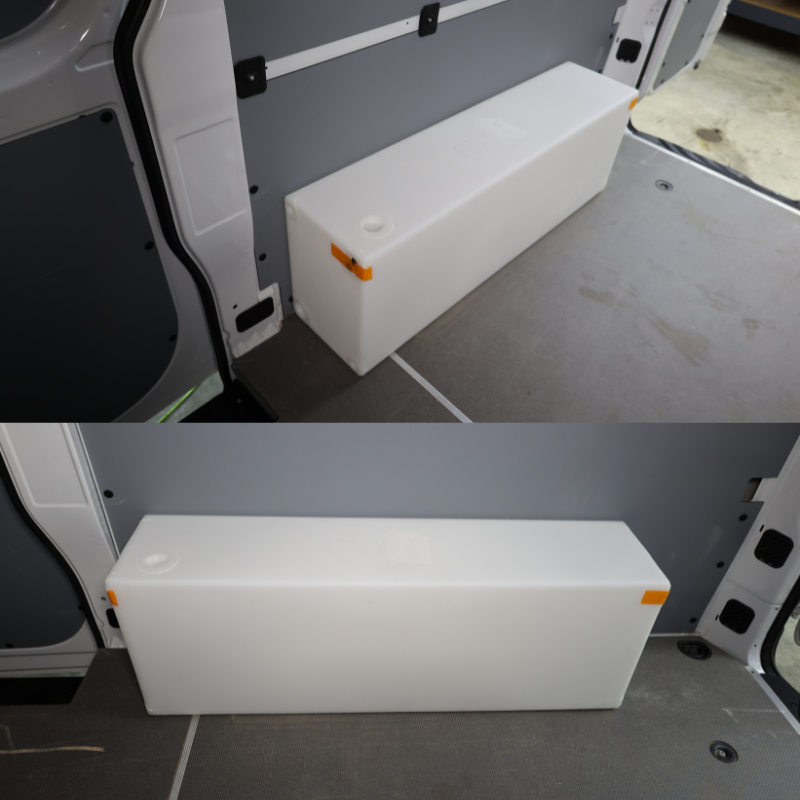

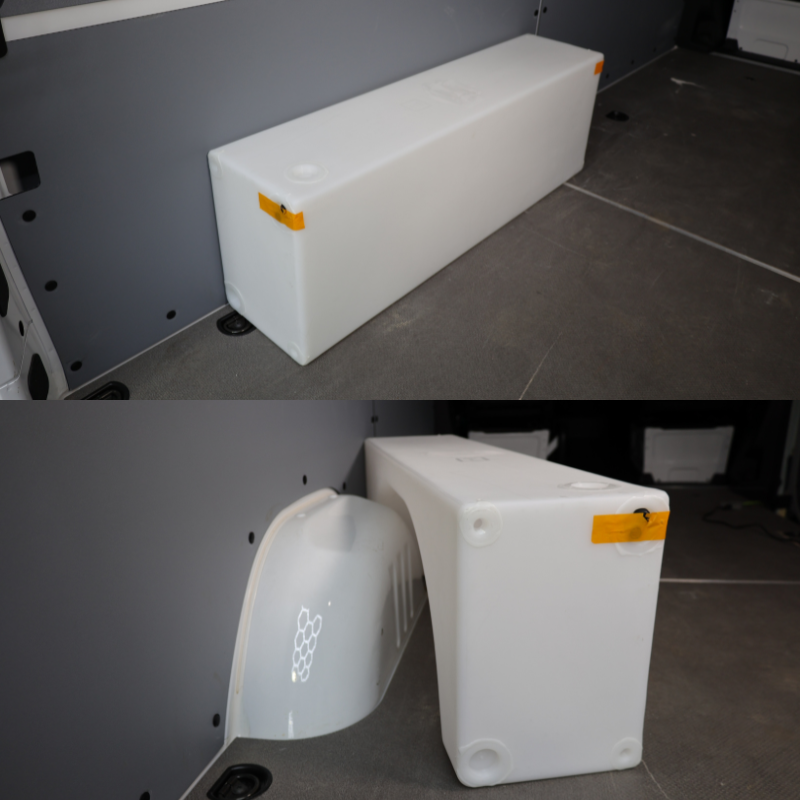

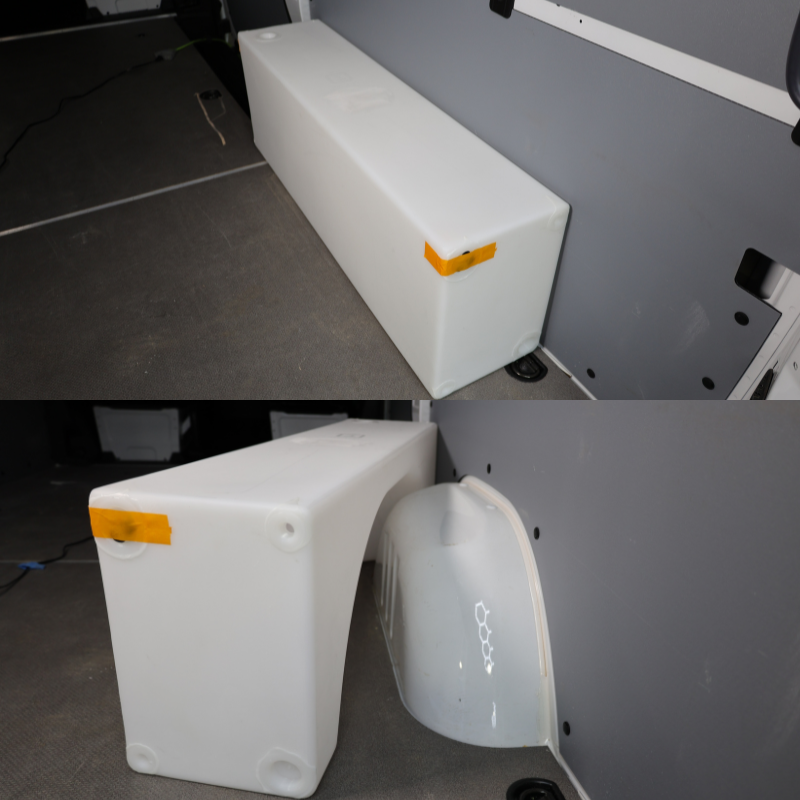

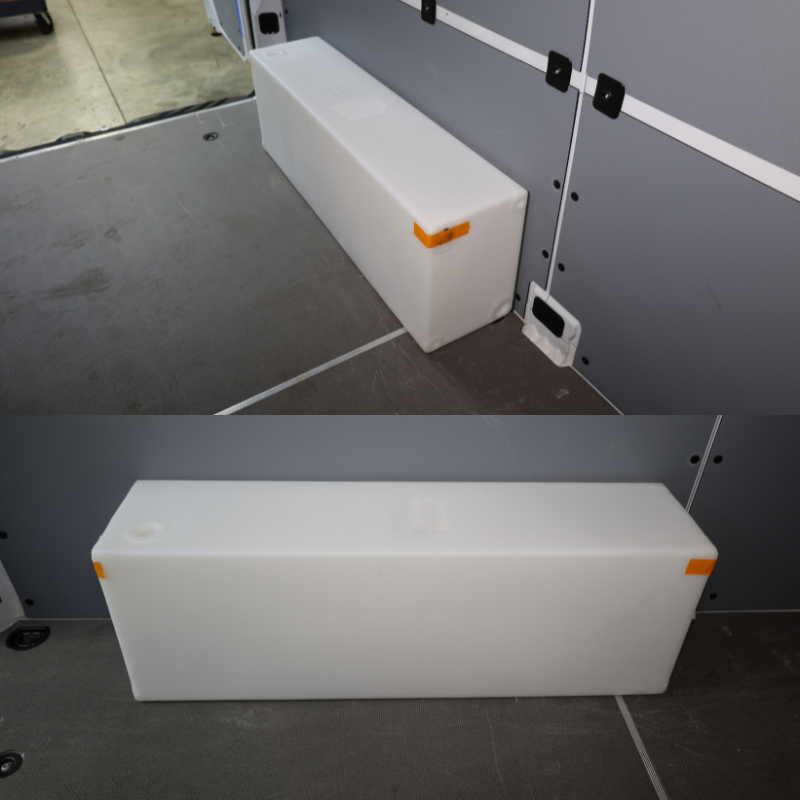

Fits the wheel well space, keeping your floor plan open while adding water capacity. Sits centered over the wheel well.
Features
Specifications

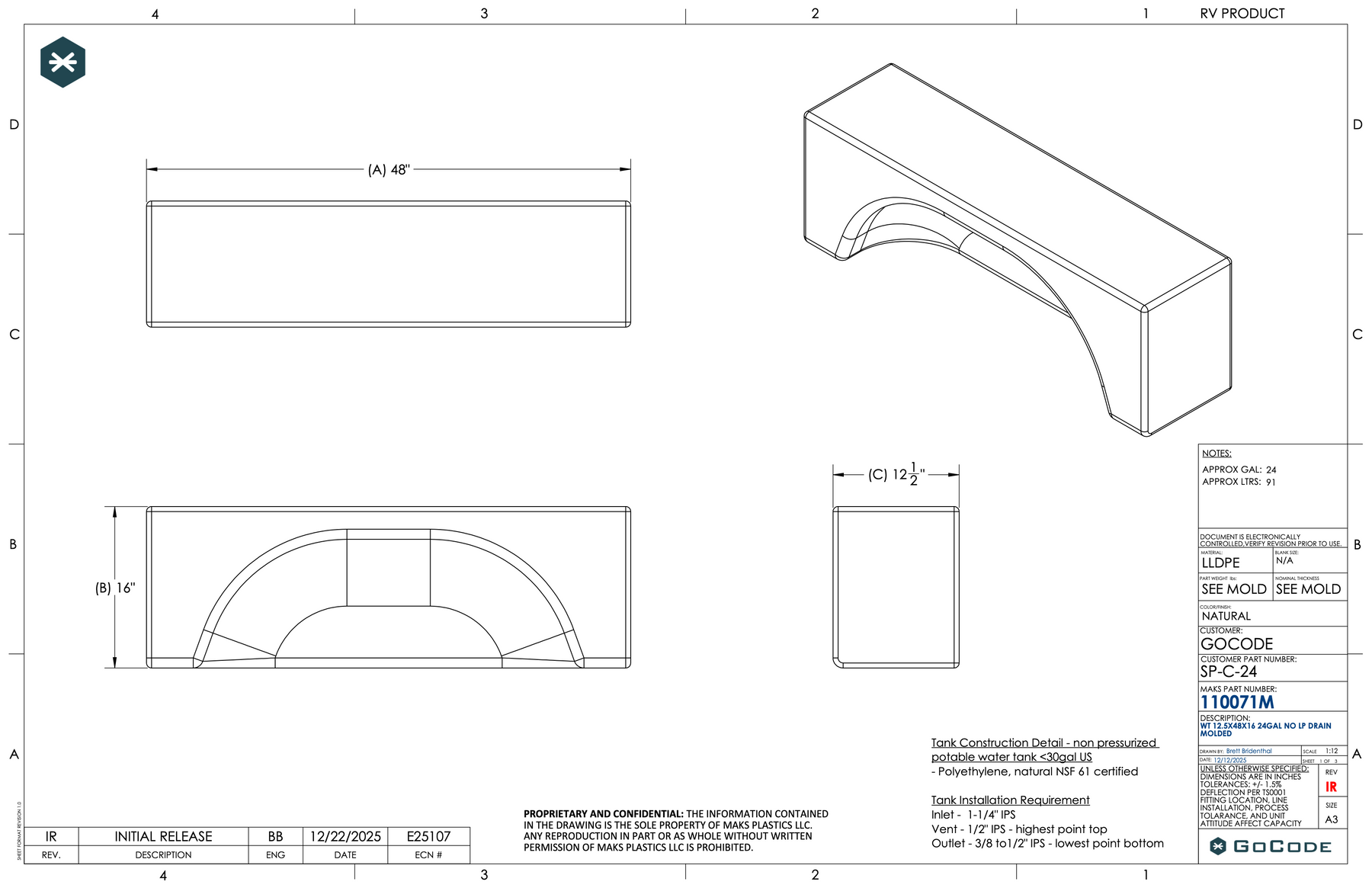

- Nominal dimensions: 48" L x 12.5" W x 16" H
- Actual dimensions may vary up to 1.5% each.
- Capacity: 24 gallons
- Dry Weight: 22 lbs
- Filled Weight: 222 lbs
- Recommended Sensor: KUS S5U-15
- Recommended Heating Pad: Facon CW-T1218 (x2)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade plastic
- Made in the USA
- IAPMO TS 4 Certified
- TEi listed and RVIA approved

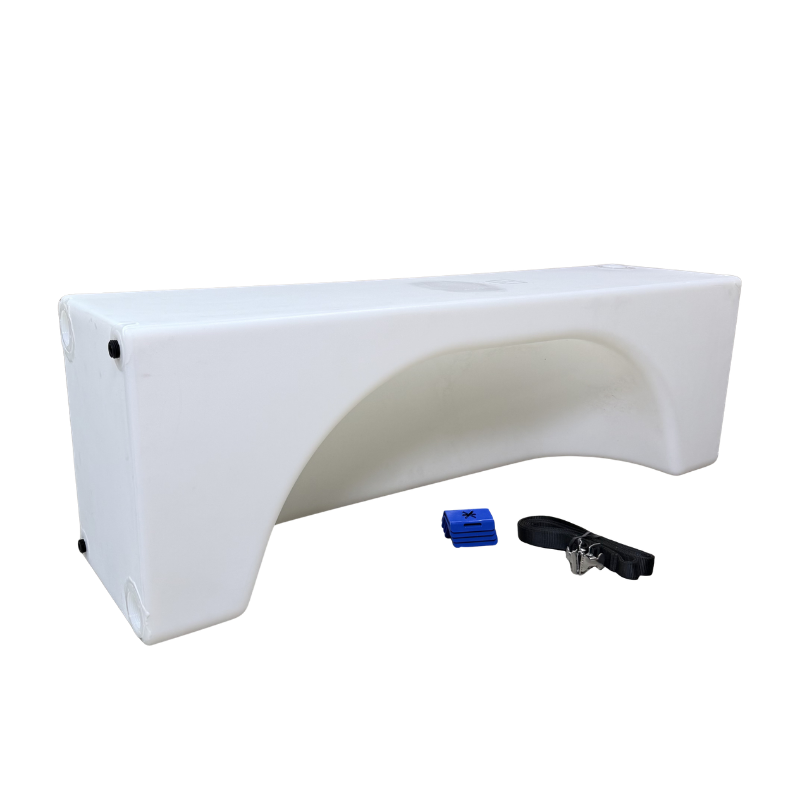

What's Included
- Water Tank

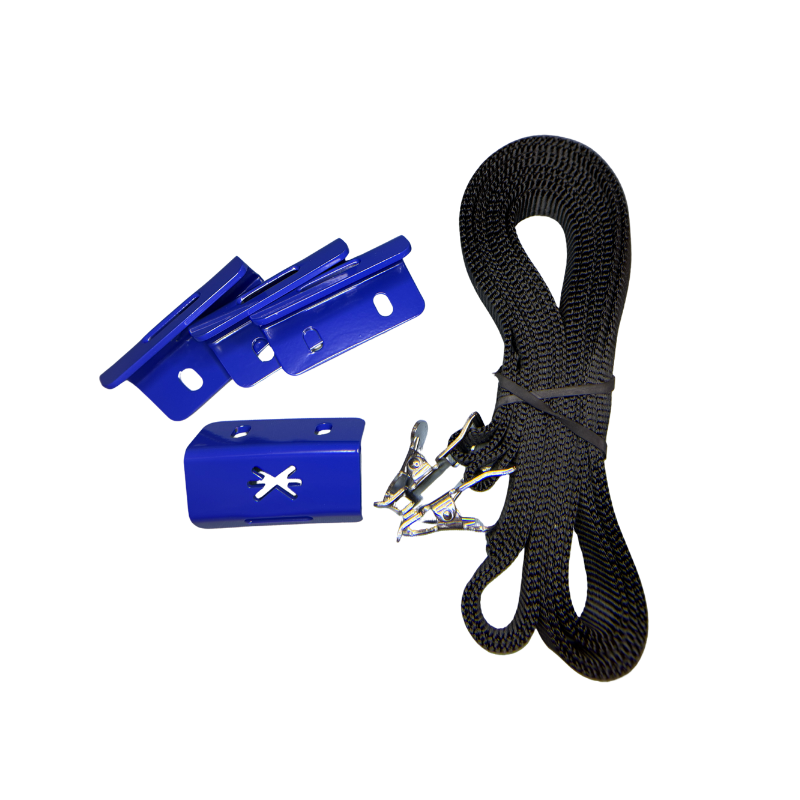

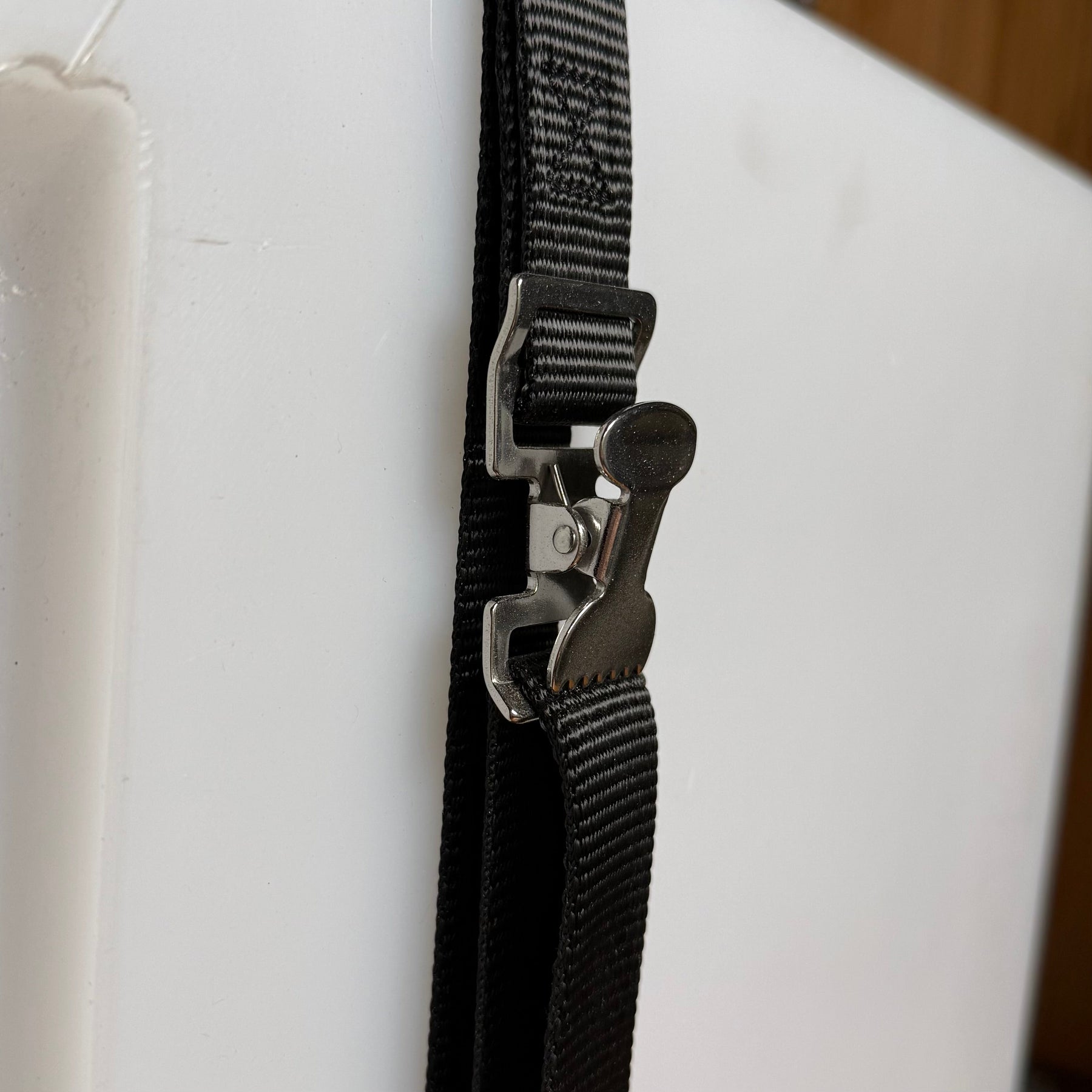

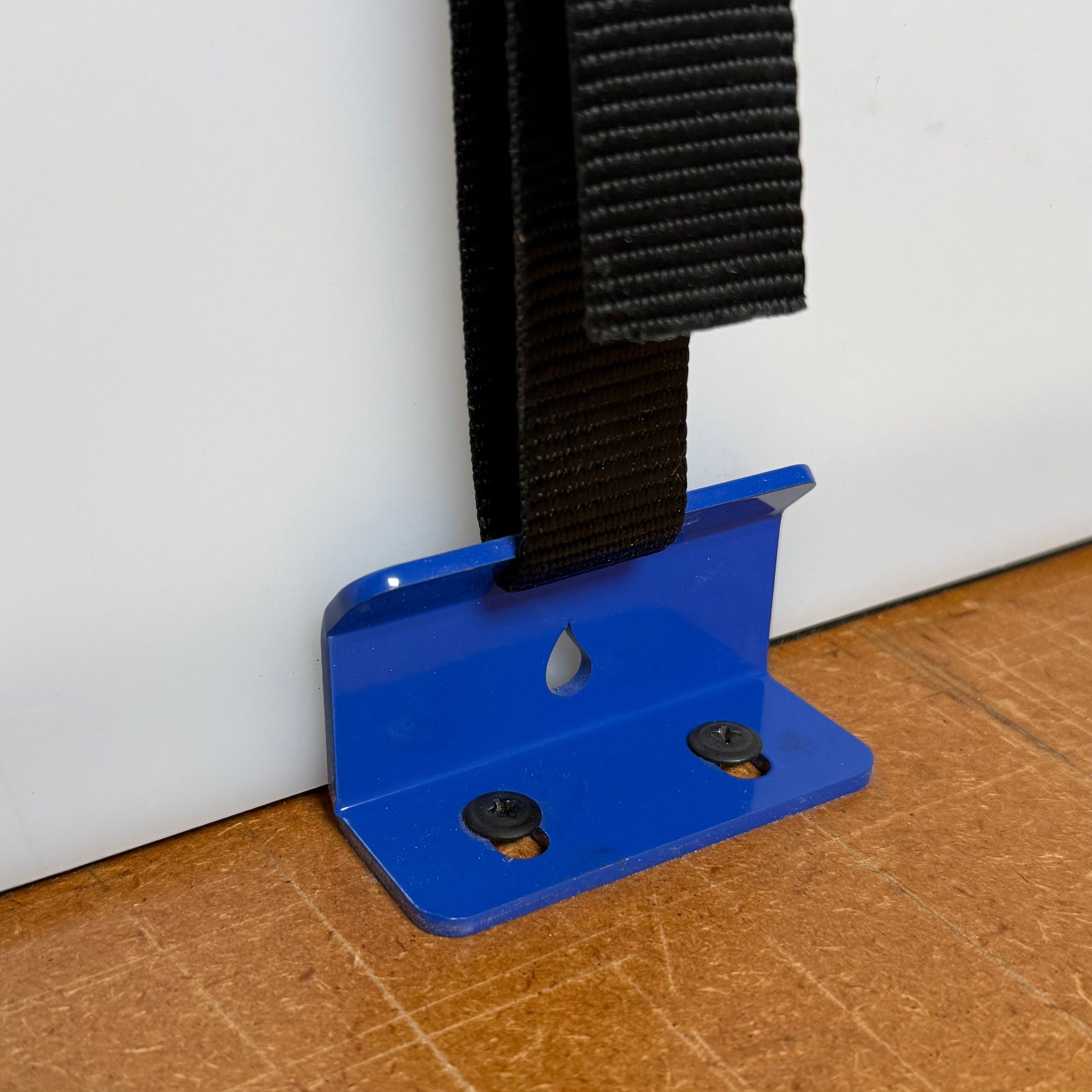

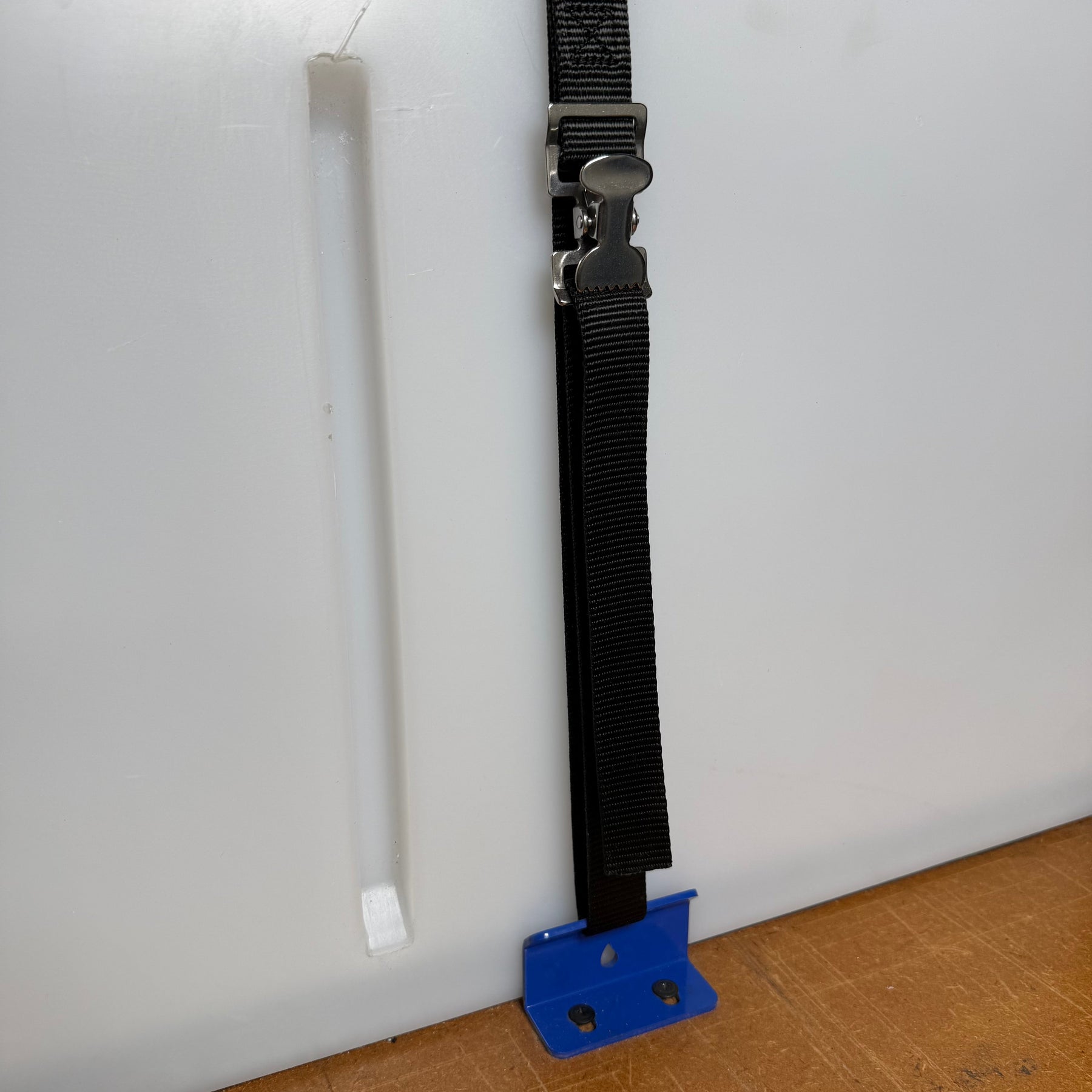

- Adjustable mounting straps and mounting brackets included with every order, as seen in photos
Ports & Plumbing
- (2) 1.5" NPT ports on either end, pre-marked, drill out to use
- (2) 1/2" NPT ports on either end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Compatibility
- Sprinter 2500 direct fit (also fits Sprinter T1N)
- Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
- ProMaster requires a 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models (see below)
- Can be placed on either driver or passenger side
