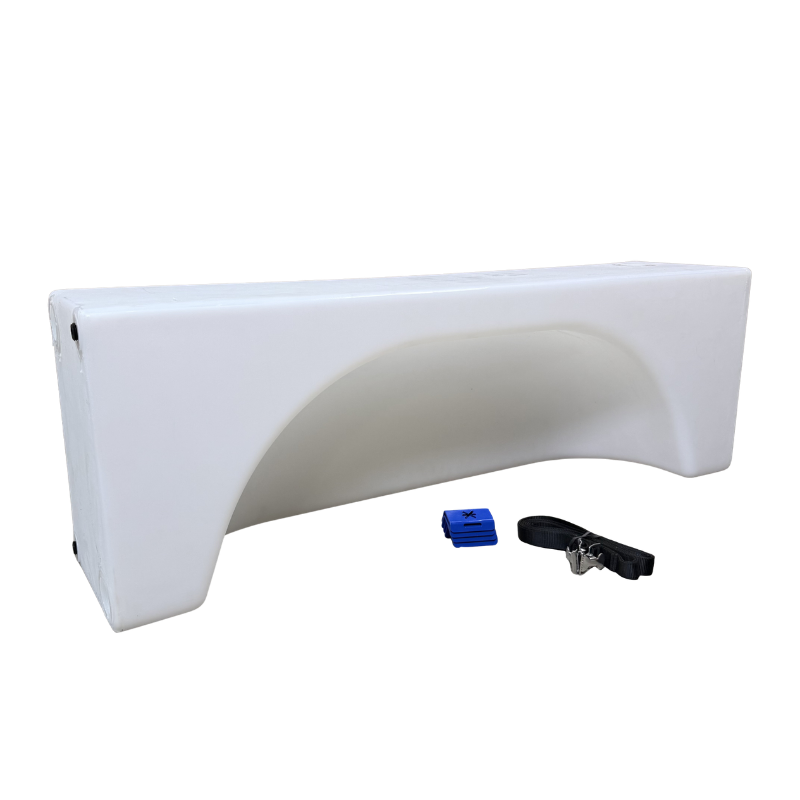

20-Gallon Wheel Well Water Tank - Center (SP-C-20)
About the Product
Fits the wheel well space, keeping your floor plan open while adding water capacity. Sits centered over the wheel well.
Features
Specifications

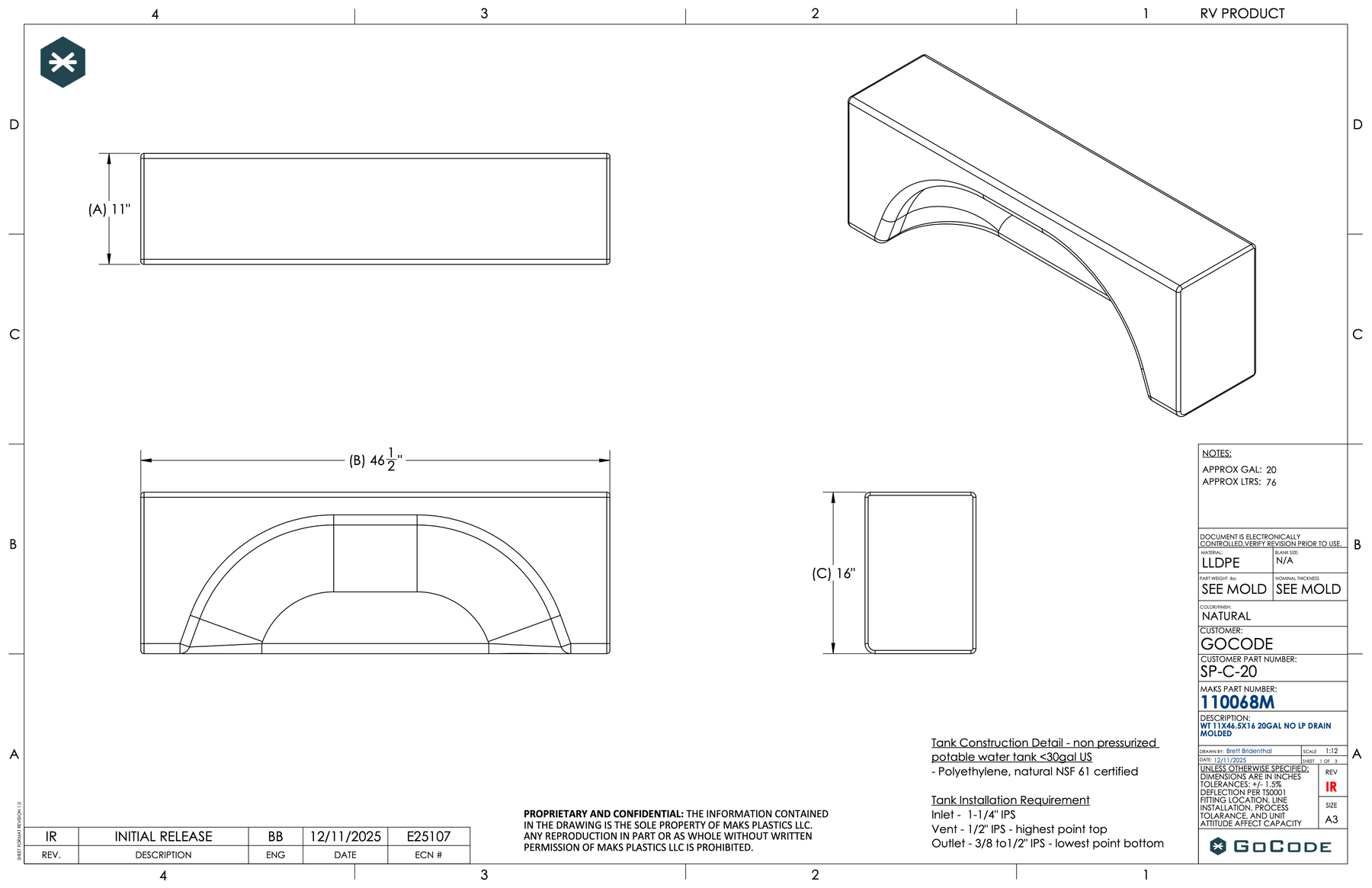

- 46.5" L x 11" W x 16" H
- Capacity: 20 gallons
- Weight: 25 lbs
- Recommended sensor: KUS 154015F, 15" (1.5" NPT threaded)
- Not designed for pressurized systems, must be vented
Materials & Certifications
- BPA-free, food-grade plastic
- IAPMO TS 4 Certified
- Made in the USA
- TEi listed and RVIA approved

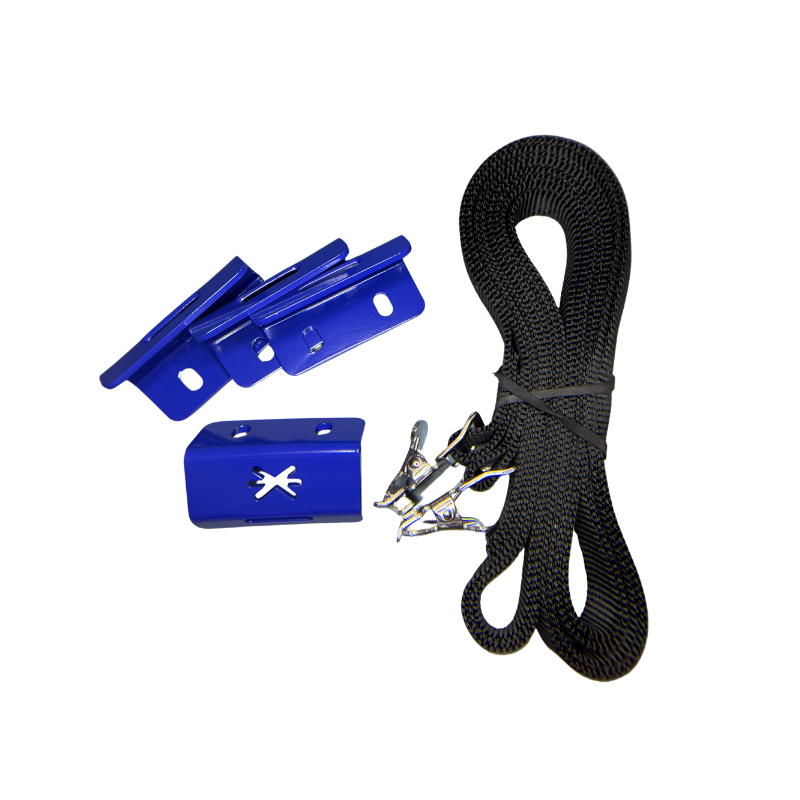

What's Included
- Water Tank

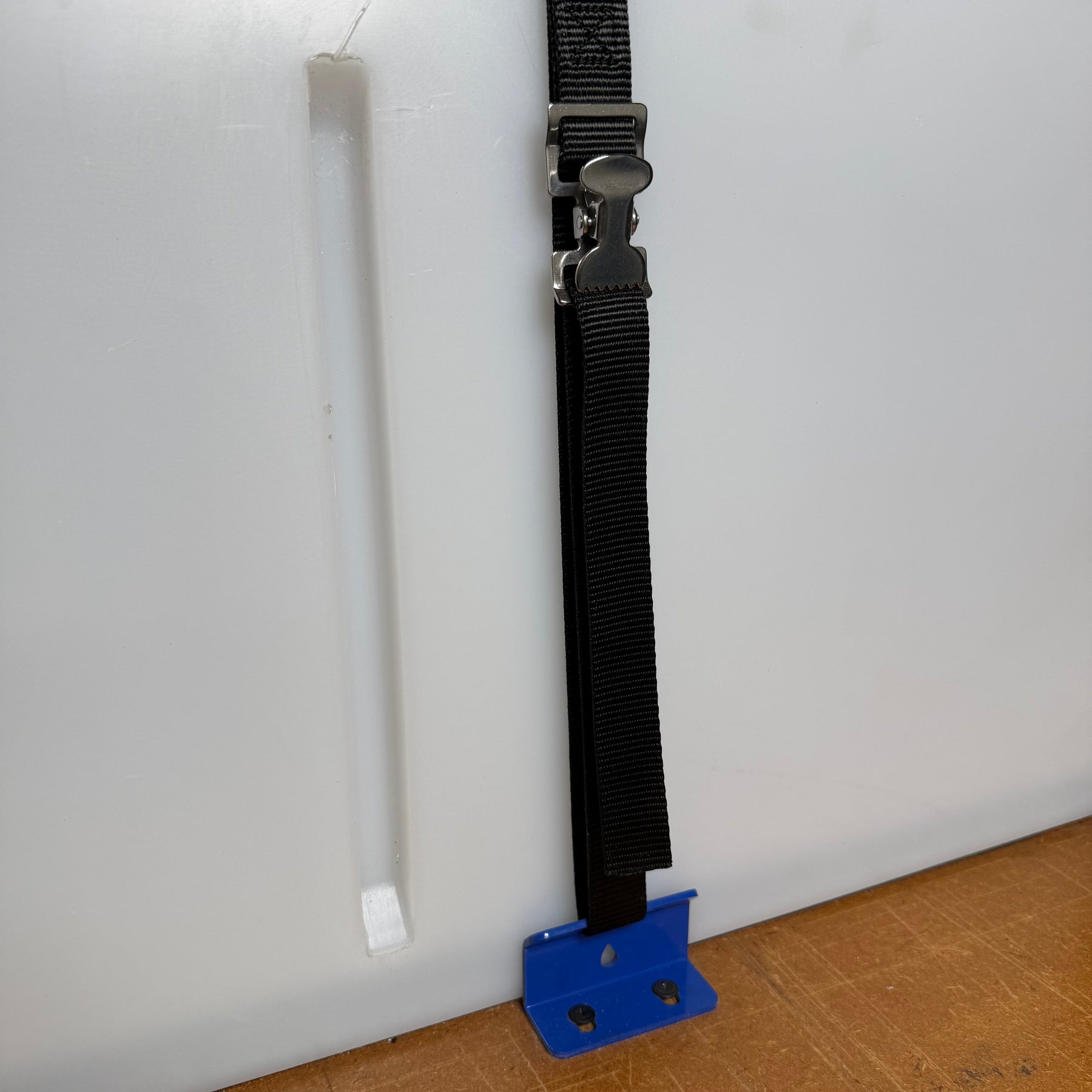

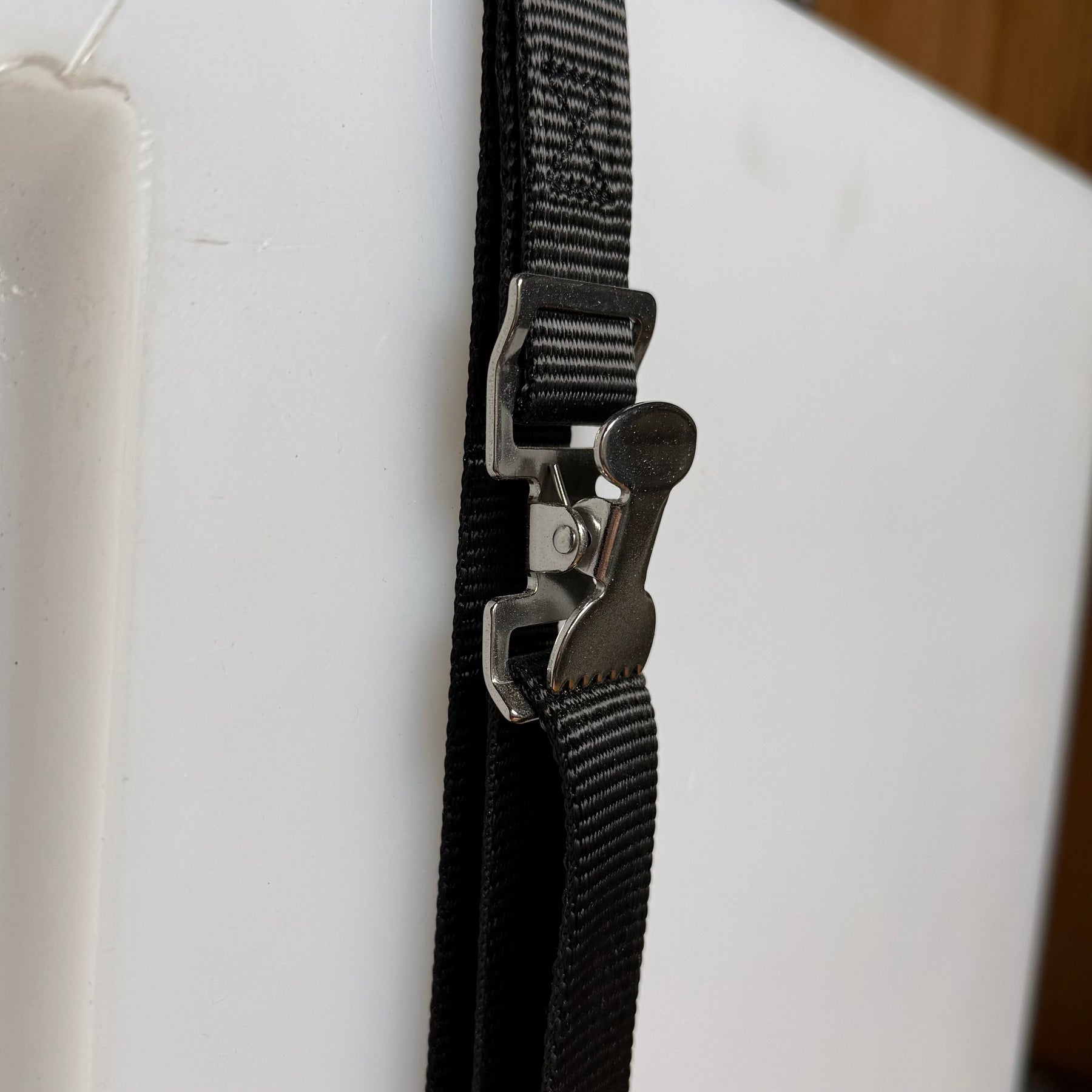

- (x2) Adjustable straps

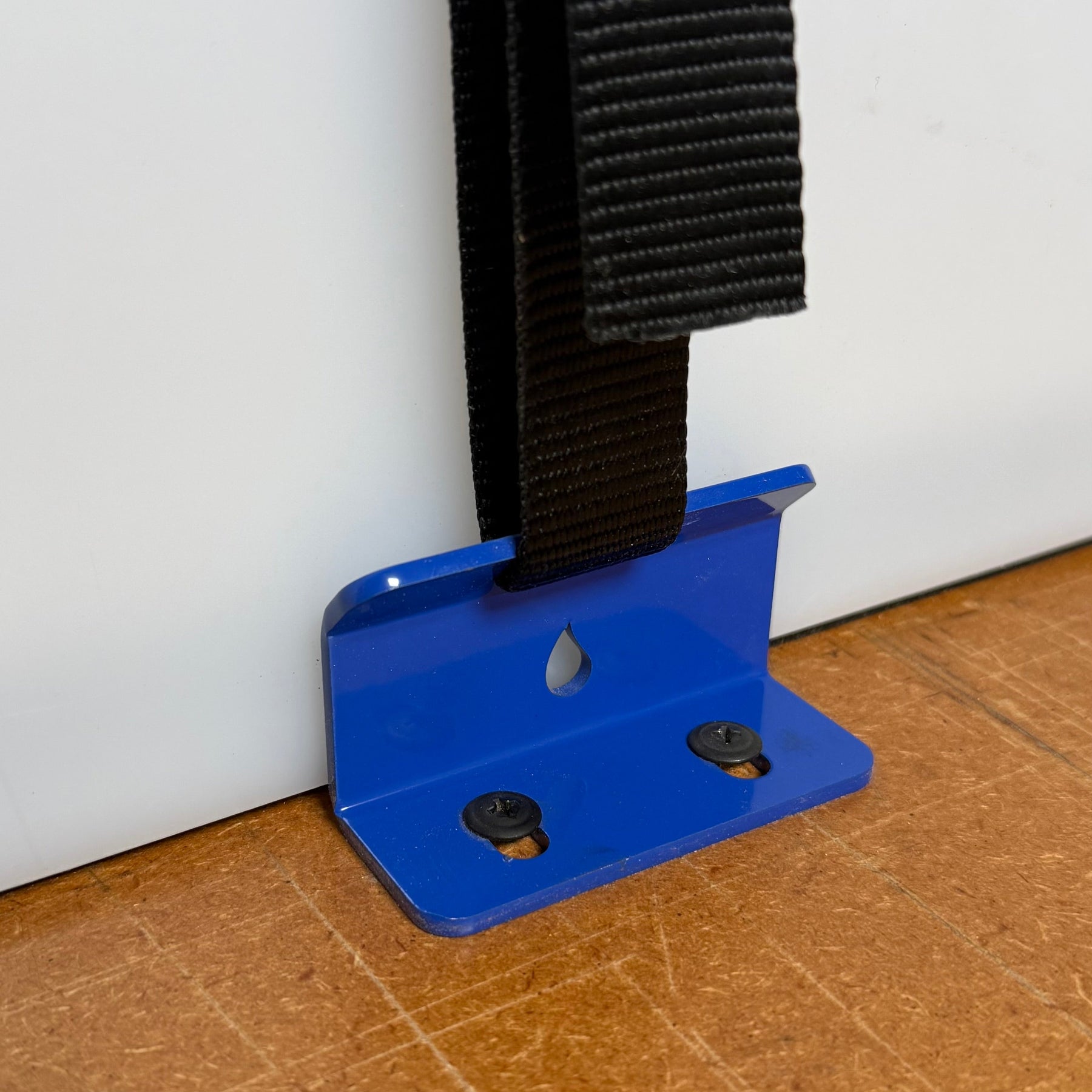

- (x4) Mounting brackets
Ports & Plumbing
- (2) 1.5" NPT ports on either end, pre-marked, drill out to use
- (2) 1/2" NPT ports on either end
- (1) 1.5" NPT port on top for fill or level sensor, pre-marked, drill out to use
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Compatibility

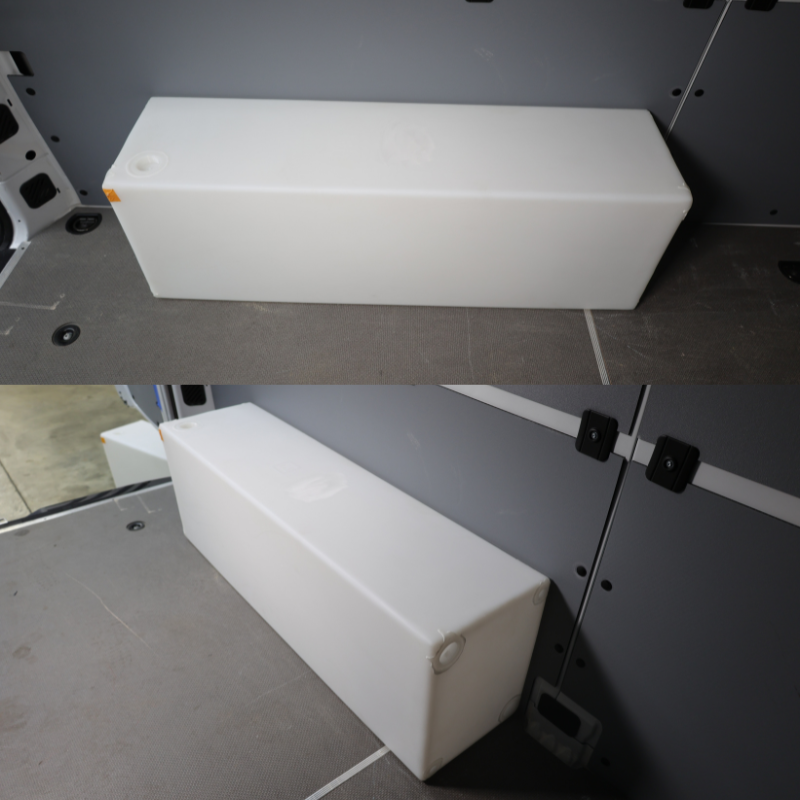

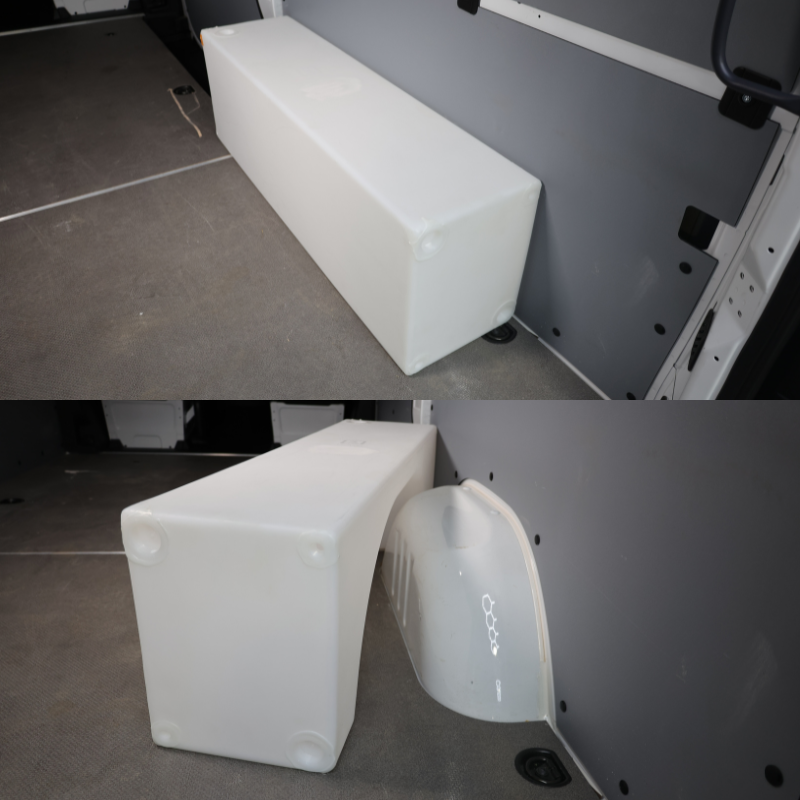

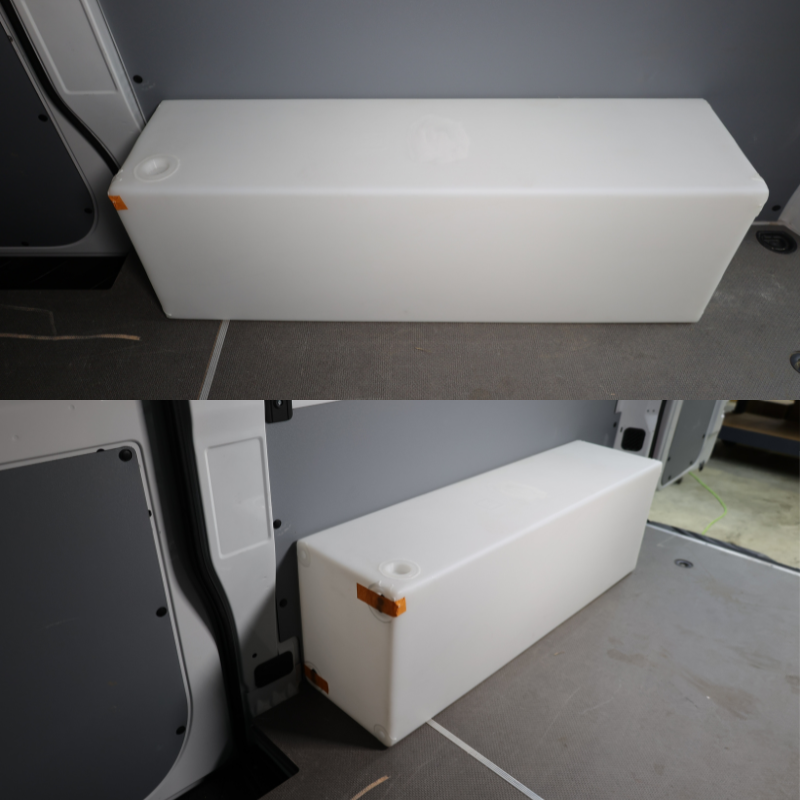

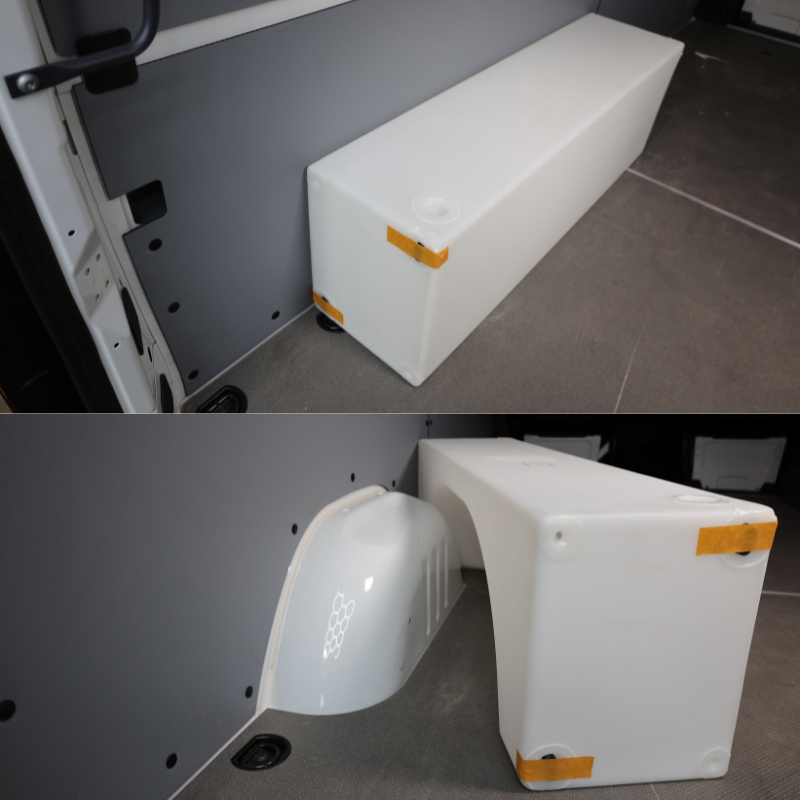

- Sprinter 2500 direct fit (also fits Sprinter T1N)
- Transit (single rear wheel) fits with slightly more room around the wheel well for insulation
- ProMaster requires a 3.5" elevation to clear the larger wheel wells
- Compatible with other makes and models (see below)
- Can be placed on either driver or passenger side
