NW Conversions 16 Gallon Transit Undercarriage Water Tank (TR-UC-16)
About the Product
A flexible undercarriage tank that fits passenger or driver side, and works with factory Transit Trail running boards. Slots under the Ford Transit's undercarriage with three laser-cut stainless steel mounting straps and all required hardware included. Fits on the passenger side under the slider door, or on the driver side next to the fuel tank, giving you placement flexibility depending on your build layout. Suitable for fresh or grey water. Made in the USA by GoCode.
Features
Specifications
- Nominal dimensions: 46" L x 13" W x 8.5" H
- Actual dimensions may vary up to 1.5% each.
- Capacity: 16 gallons
- Dry Weight: 14 lbs
- Filled Weight: 147 lbs
- Recommended Sensor: KUS S5U-8
- Recommended Heating Pad: Facon CW-T825
- System type: Non-pressurized, must be vented
Materials & Certifications
- BPA-free, food-grade polyethylene
- IAPMO TS-4 / TEI Listed / RVIA Approved
- Made in the USA

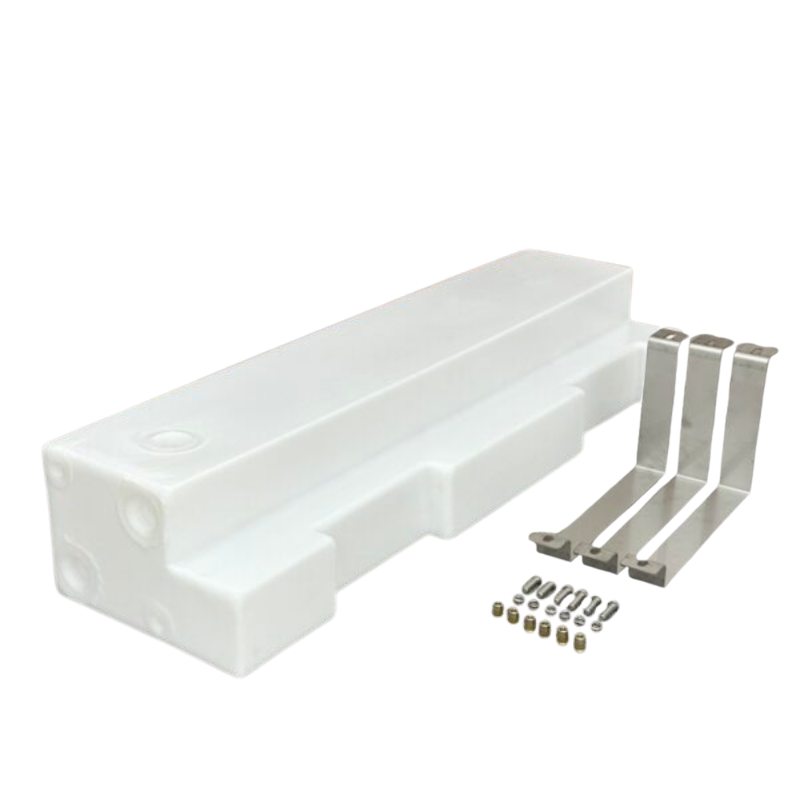

What's Included
- Water Tank
- (3) stainless steel laser-cut mounting straps
- Stainless 3/8" hardware and 3/8" rivnuts
- Note: rivnut tool required, not included
Ports & Plumbing
- (1) 1.5" NPT port on rear-facing end
- (2) 1/2" NPT ports on rear-facing end
Shipping & Lead Time
- Ships in 1-2 business days
Note: Despite great care taken during manufacturing and fulfillment, plastic tanks can become dirty and/or scuffed in transit. This does not constitute a damaged tank. Plastic tanks can also become slightly warped, especially on the flat surfaces. This is normal and does not render the tank defective. Maintaining a completely straight/flat surface on a rotationally molded part is not always possible, but we make every effort to keep surfaces within a 1.5 degree tolerance.
Compatibility
- Ford Transit 130", 148", and 148" EXT (2014-present), all wheelbases
- Mounts on passenger side (under slider) or driver side (next to fuel tank)
- Fits Transit Trail with factory running boards
- Also compatible with Owl running boards
- May require minor bracket modification with other aftermarket boards
